User Manual for Palmer PAN 03 19" Active Four-Channel DI Box Click to enlarge the picture
Contents of the user manual for the Palmer PAN 03 19" Active Four-Channel
- Product category: Direct Boxes Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Direct Boxes
|
User manual for the Palmer PAN 03 19" Active Four-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|

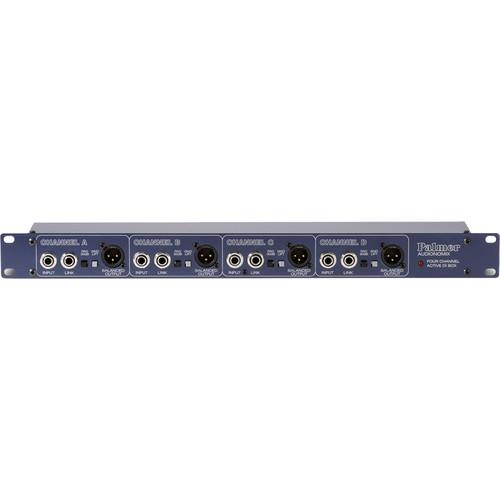

Product description This Palmer PAN 03 19" Active Four-Channel DI Box has a jack input with a parallel output on each channel for passing the signal through. A -30 dB attenuation switch allows connection to either a line or loudspeaker signal. This active 4 x DI box has a 19" format, and the technical specifications identical to those of the PAN-02. All connections and switches are located on the front panel, and an additional parallel XLR output is located in the back. The box is built in 19" rack-mount format, with one rack-space of 3.5" (90mm) front to back. In the Box Palmer PAN 03 19" Active Four-Channel DI Box Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer PAN 03 19" Active Four-Channel DI Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PAN03 Specs | Type | Active DI box, transformer balanced | | Input Connections | 4x 6.3 mm input jack | | Output Connectors | 4x XLR
4x 6.3 mm Jack 4x Parallel 1x THRUchannel | | Input Level | 54 dBu max. | | Input Impedance | 1 Mohms @ 60 Hz | | Input Pad | 0 / -30 dB | | Output Level | 4 dB max. | | Output Impedance | 600 ohms | | Controls | Ground lift, attenuation | | Frequency Response | 10 to 40000 Hz | | Ratio | 10:1 | | Material | Powder-coated sheet steel | | Dimensions (WxDxH) | 1U 18.89 x 3.5 x 1.77" / 480 x 90 x 45 mm | | Weight | 3.15 lb / 1.45 kg |
