User Manual for Palmer PAN 04 Dual-Channel DI Box Click to enlarge the picture
Contents of the user manual for the Palmer PAN 04 Dual-Channel DI Box
- Product category: Direct Boxes Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Direct Boxes
 |
User manual for the Palmer PAN 04 Dual-Channel DI Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|

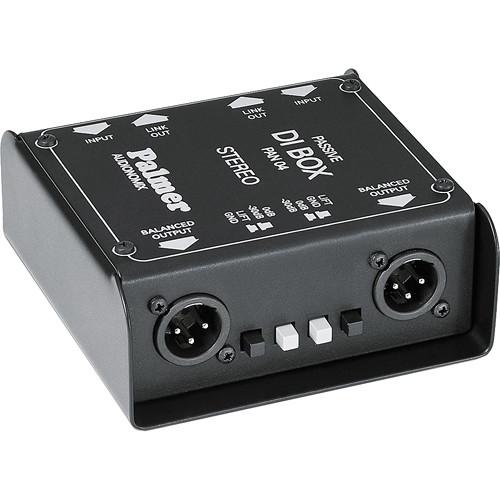

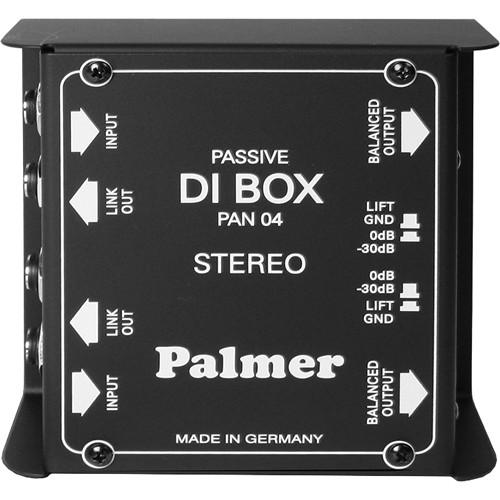

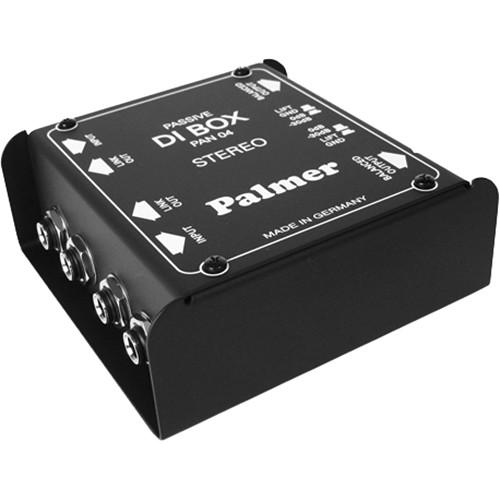

Product description This Palmer PAN 04 Dual-Channel DI Box consists of a housing containing the equivalent of two PAN-01 DI boxes, making it a dual-channel passive DI box. This "stereo" configuration makes it suited for use with certain keyboards and devices having several outputs. It features a jack input with parallel THRU" output, and a transformer balanced XLR output. The attenuable input sensitivity can handle both line- and speaker- level signals. In the Box Palmer PAN 04 Dual-Channel DI Box Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer PAN 04 Dual-Channel DI Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PAN04 Specs | Type | Passive DI box, transformer balanced | | Input Connections | 2 x 6.3 mm input jack | | Output Connectors | 2 x XLR
2 x 6.3 mm Jack
2 x Parallel
1 x THRUchannel | | Input Level | 54 dBu max | | Input Impedance | 60 kΩ @ 60 Hz | | Input Pad | 0 / -30 dB | | Output Level | 4 dB max | | Output Impedance | 600 Ω | | Controls | Ground lift, attenuation | | Frequency Response | 10 to 40000 Hz | | Ratio | 10:1 | | Material | Powder-coated sheet steel | | Dimensions (WxDxH) | 4.3 x 4.3 x 1.77" / 110.0 x 110.0 x 45.0 mm | | Weight | 0.92 lb / 0.419 kg |
