User Manual for Palmer PAN 08 19" DI Line Isolation 4-Channel Active Box Click to enlarge the picture
Contents of the user manual for the Palmer PAN 08 19" DI Line
- Product category: Direct Boxes Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Direct Boxes
 |
User manual for the Palmer PAN 08 19" DI Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|

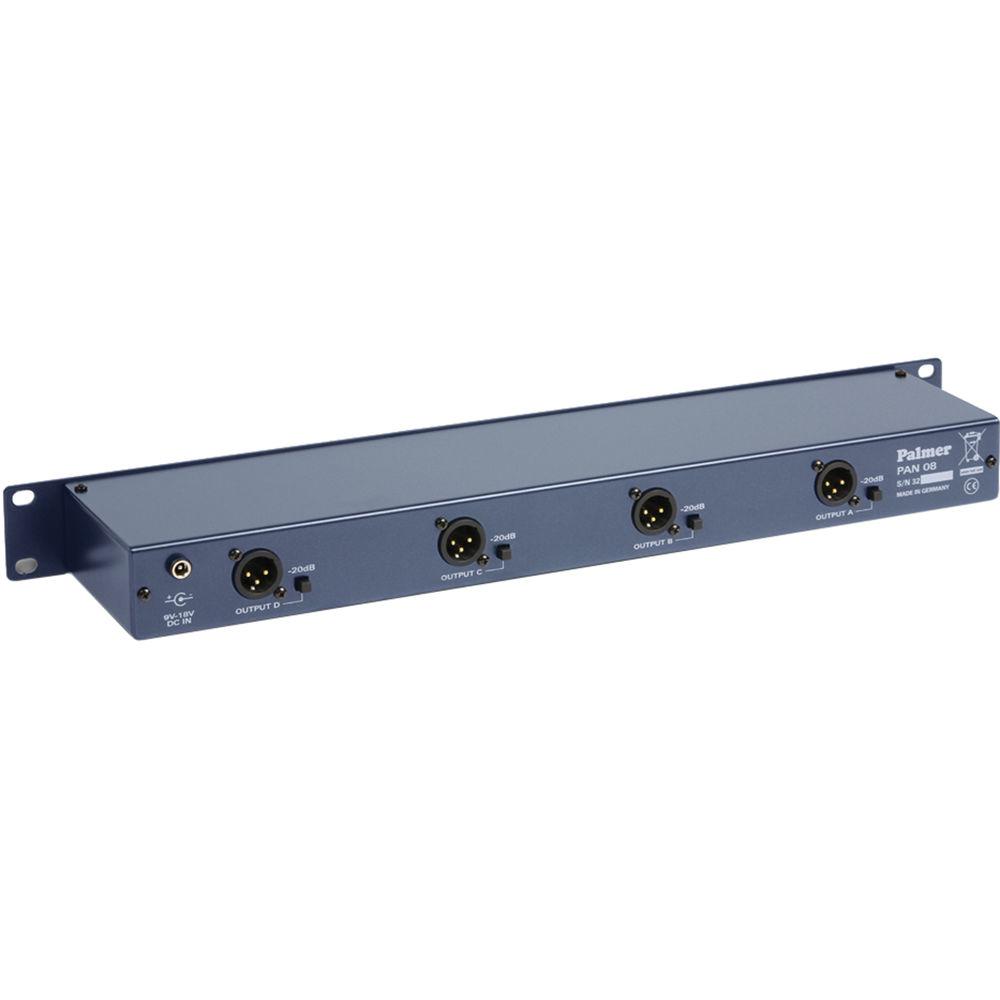

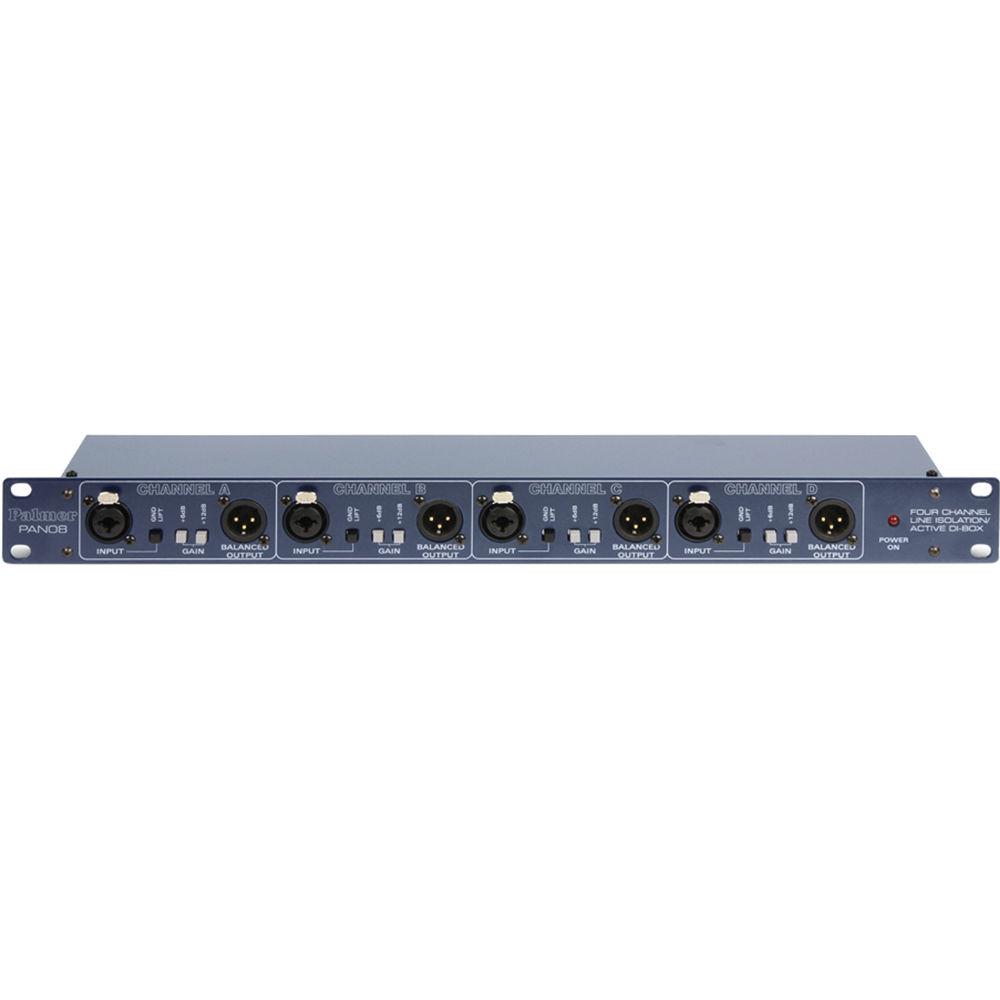

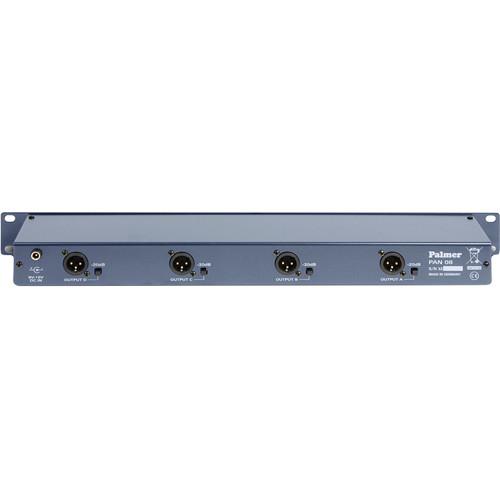

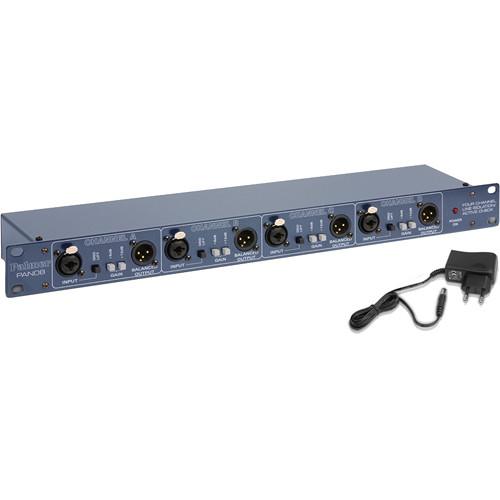

Product description This Palmer PAN 08 19" DI/Line Isolation 4-Channel Active Box is a multifunctional device. Each of the four channels can be used independently as an active DI box, line isolation box, or booster. The combination socket input accepts both balanced and unbalanced signals. The output has dual transformer balanced XLR jacks (front and rear). The signal level can be attenuated by 20 dB for microphone inputs, but can also be boosted in three stages by up to 18 dB for LINE inputs if necessary. With an output level of +12 dBu on a load of 600Ω (with 0.05% THD @40 Hz and an output noise level of less than -110 dBu), the unit meets professional standards. Another feature is battery power; the supply voltage may range from 9 to 18 VDC, thus, the PAN08 can also be used without main power and outdoors. In the Box Palmer PAN 08 19" DI/Line Isolation 4-Channel Active Box Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer PAN 08 19" DI Line Isolation 4-Channel Active Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PAN08 Specs | Type | Active DI box, transformer balanced | | Channels | 4 Channels | | Input Connections | 4 x 6.3 mm input jack | | Output Connectors | 8 x XLR
| | Input Level | 12 dBu max. | | Input Impedance | Balanced 20 kΩ | | Input Pad | 0 / -30 dB | | Output Level | 4 dB max. | | Output Impedance | 600 Ω | | Controls | Ground lift, 2x gain, attenuator | | Frequency Response | 20 to 20000 Hz | | Ratio | Variable | | Indicators | Power indicator | | Power | 9 VDC | | Material | Powder-coated sheet steel | | Dimensions (WxDxH) | 1U
18.89 x 3.5 x 1.77" / 480.0 x 90.0 x 45.0 mm | | Weight | 3.5 lb / 1.59 kg |
