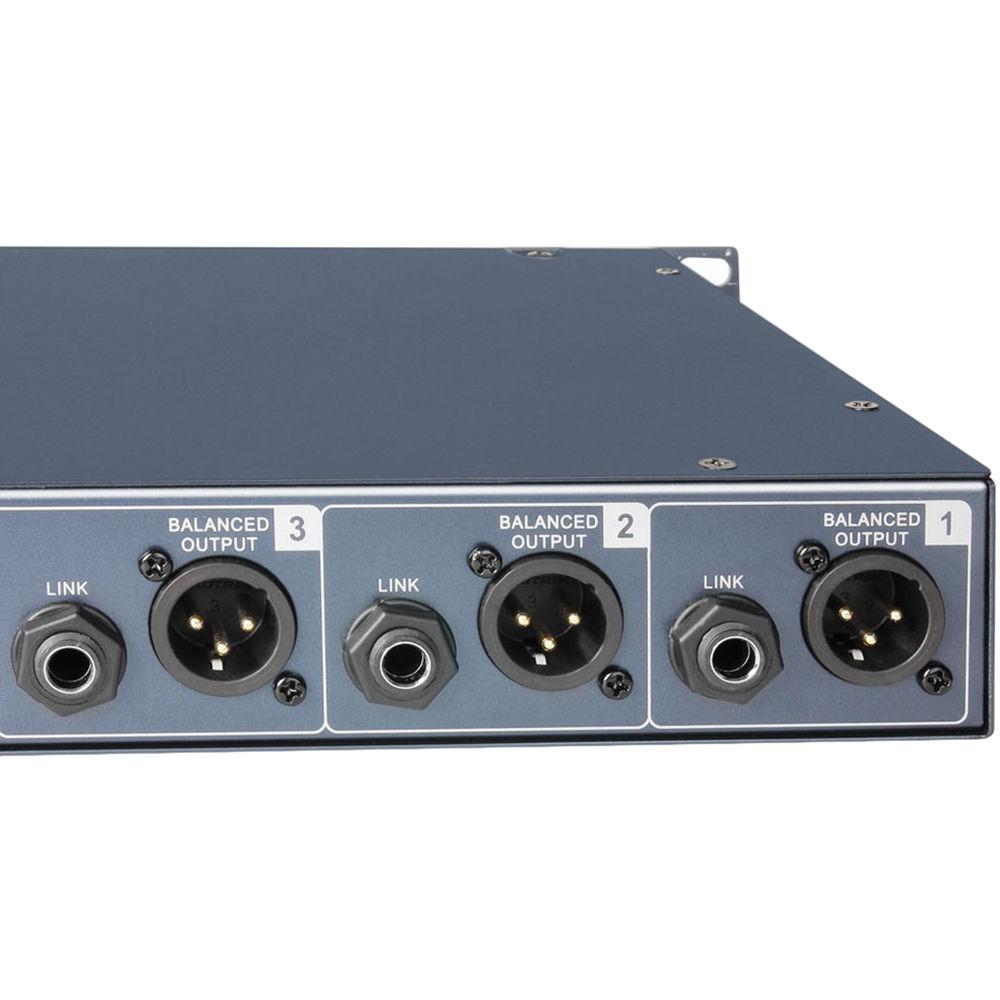

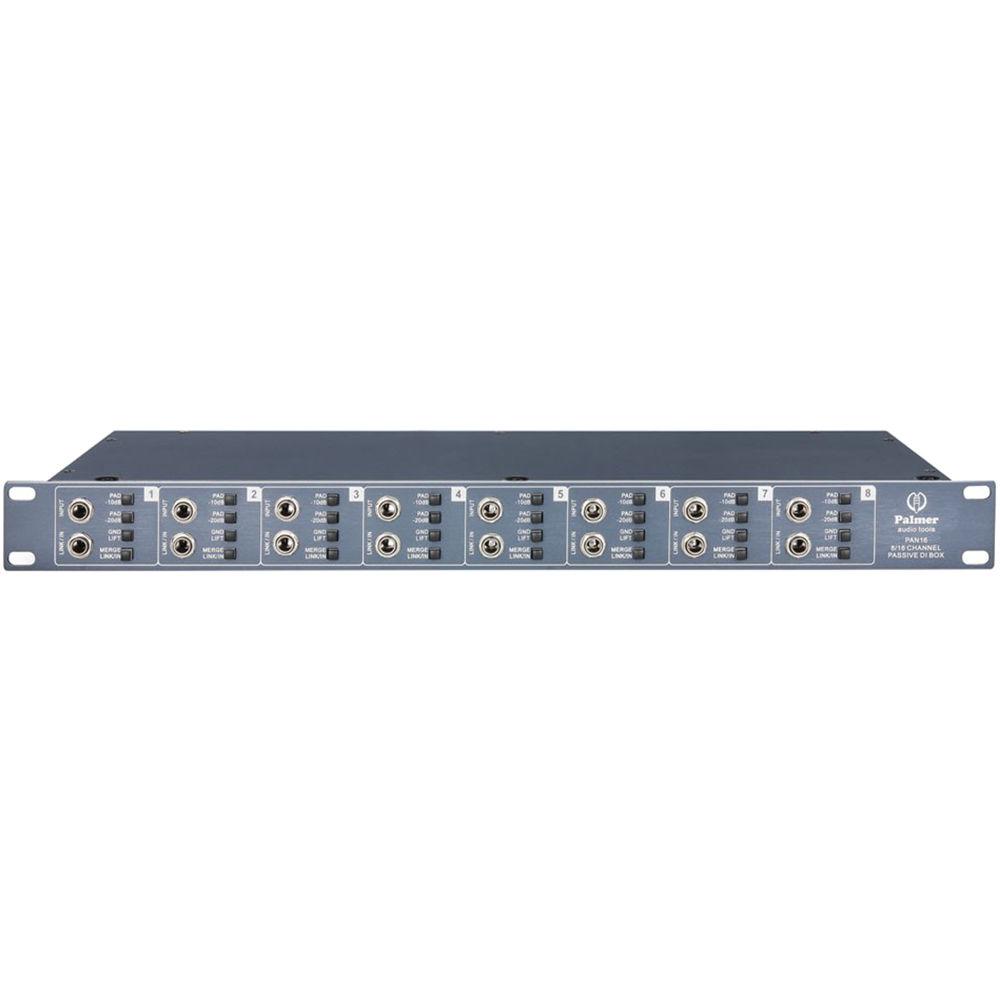

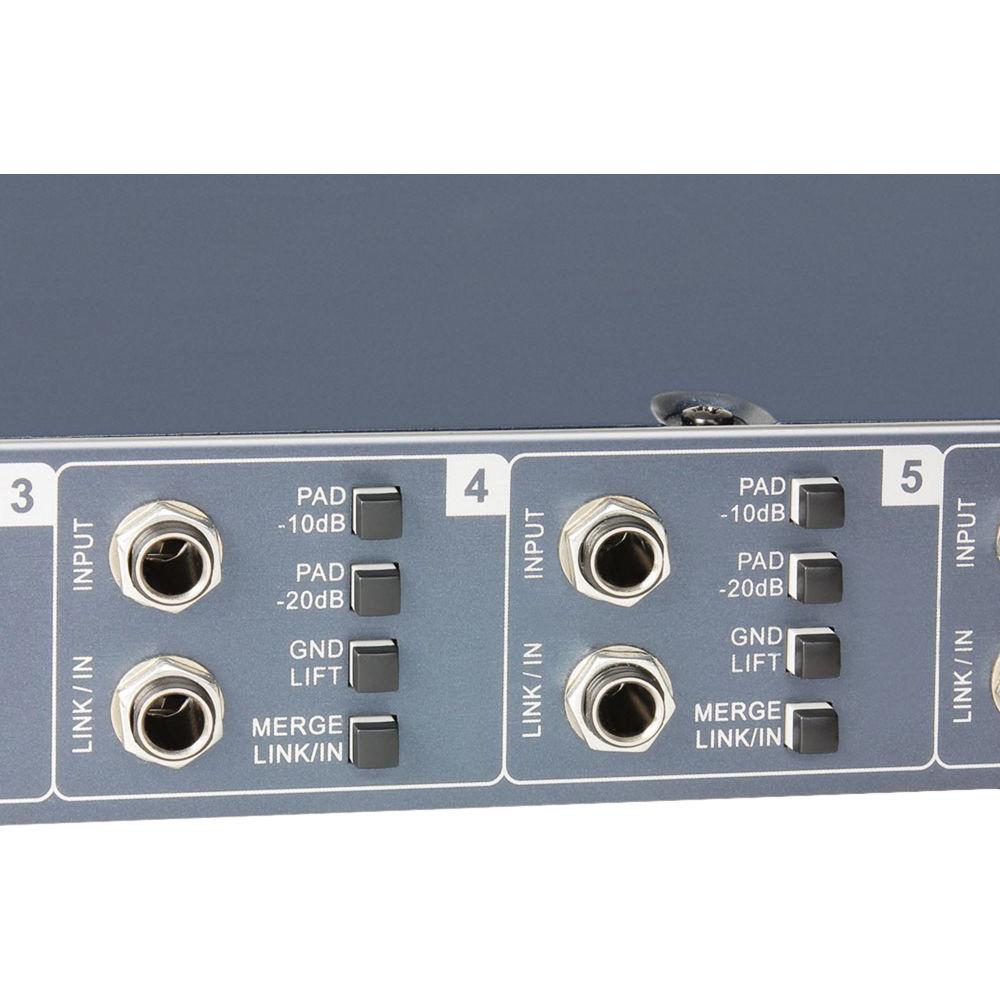

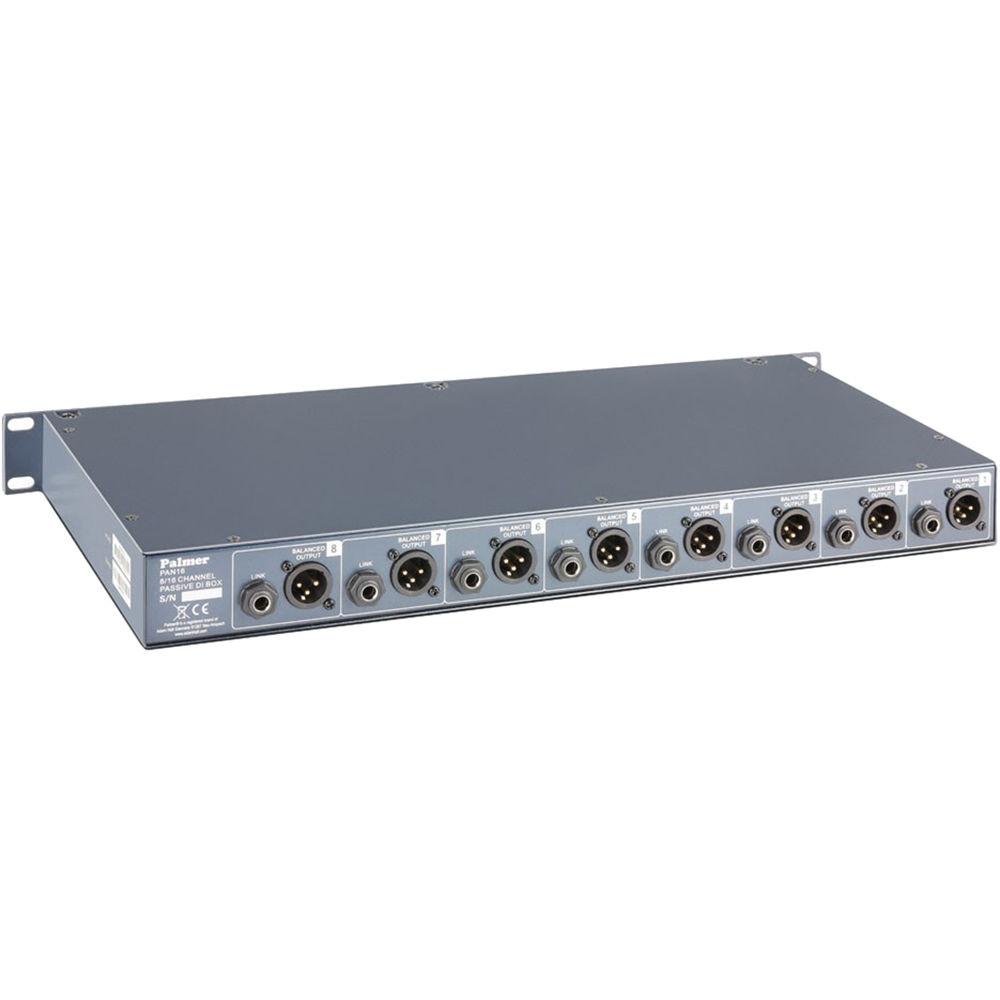

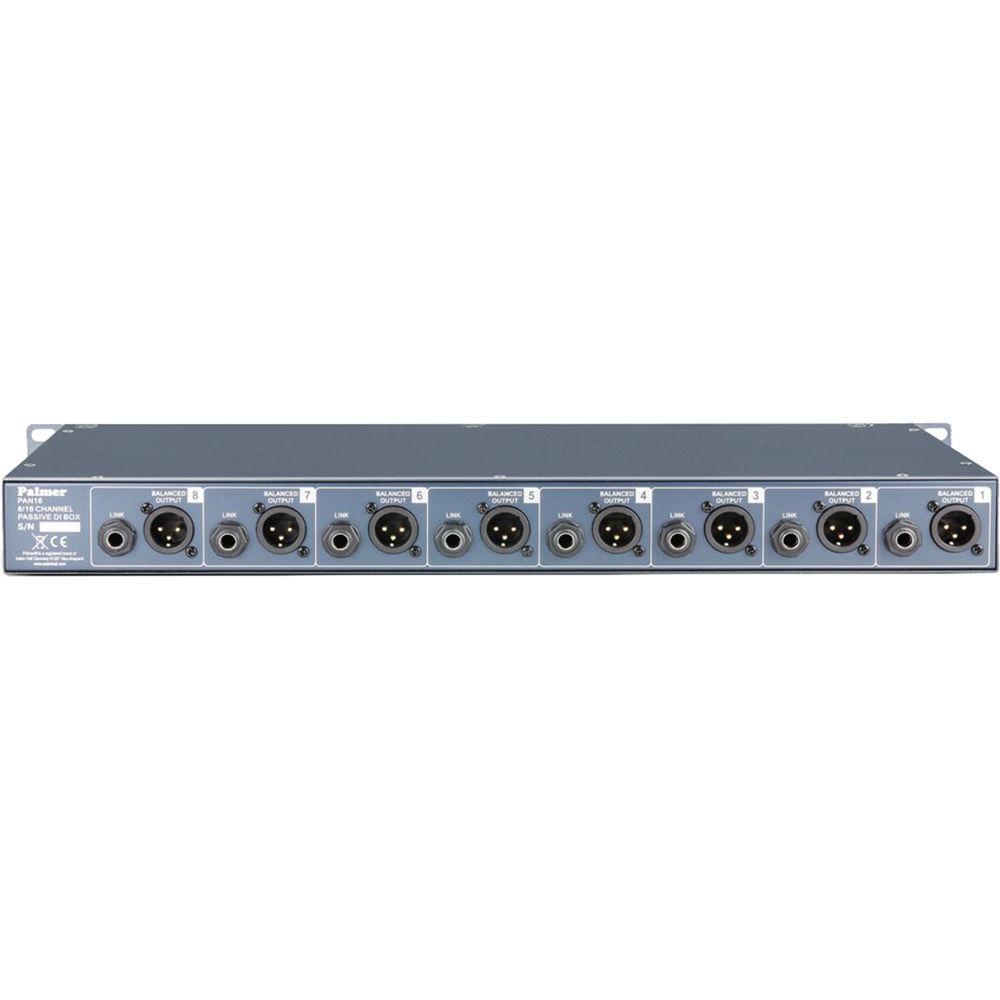

Product description The Pan 16 8-Channel Passive DI Box from Palmer is an 8-channel passive DI box in a 19" 1 RU format. The Pan 16's front LINK input jacks can be routed with the MERGE LINK / IN through to the outputs. This allows the Pan 16 to have a maximum of 16 inputs. In addition, there are two pad buttons on each channel that enable an attenuation of 10, 20, or 30 dB. The XLR outputs are electrically isolated and balanced via transformers, and additional 8 link-sockets are also available on the rear panel of the unit. In the Box Palmer Pan 16 19" 1 RU 8-Channel Passive DI Box Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer Pan 16 19" 1 RU 8-Channel Passive DI Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer Pan 16 Specs | Type | Passive | | Channels | 8 | | Inputs | 8 / 16 | | Input Connectors | 1/4" / 6.3 mm | | Maximum Input Level | + 54 dBu | | Input Impedance | 1 MOhm (@ 60 Hz) | | Input Pad | 0 / -30 dB | | Outputs | 8 (+ 8 parallel thru out) | | Thru | Output/Channel: 2 | | Output Connectors | 1/4" / 6.3 mm, XLR | | Maximum Output Level | +4 dBu | | Output Impedance | 600 Ohms | | Frequency Response | 10 Hz to 40 kHz | | Transformer | Ja balanced | | Ratio | 10 : 1 | | Controls | Ground-lift
Merge
Pad -10 dB, -20 dB | | Material of Construction | Powder-coated sheet metal | | Dimensions (W x D x H) | 18.9 x 7.9 x 1.8" / 48.0 x 20.0 x 4.5 cm | | Weight | 5.3 lb / 2.4 kg | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 22.0 x 9.6 x 3.7" |
