User Manual for Palmer PDI 03 Speaker Simulator and Loadbox Click to enlarge the picture
Contents of the user manual for the Palmer PDI 03 Speaker Simulator and
- Product category: Amplifier Accessories Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Amplifier Accessories
 |
User manual for the Palmer PDI 03 Speaker Simulator and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|

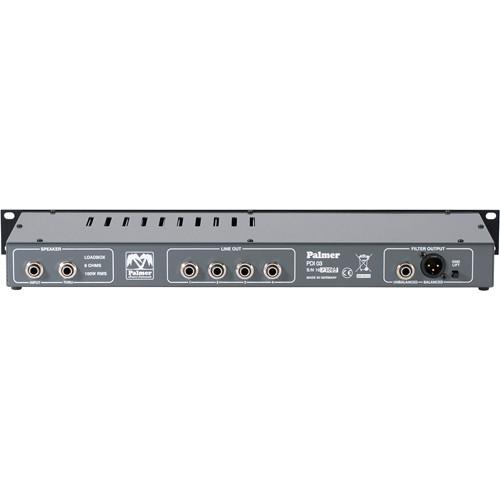

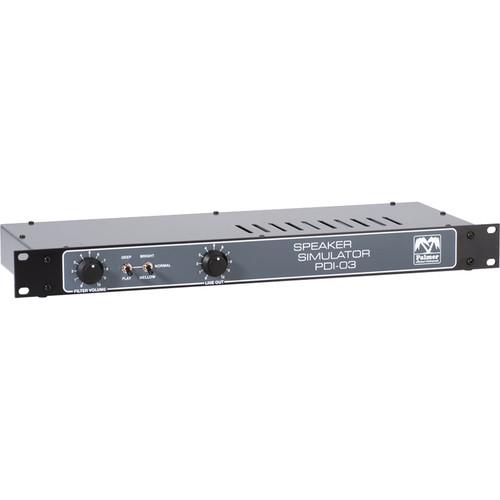

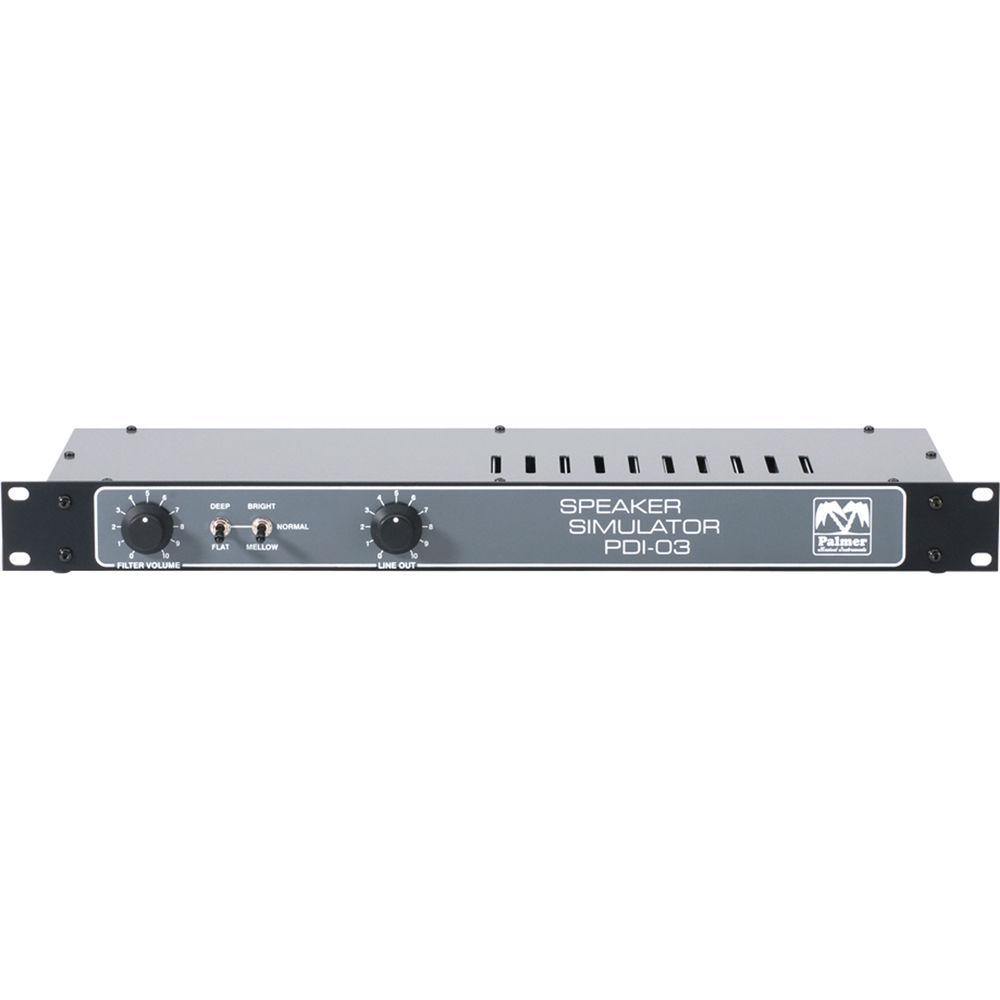

Product description The PDI 03 Speaker Simulator and Loadbox from Palmer is designed to combine load impedance, a signal splitter, and DI box into one device specifically designed for use with guitars. Instead of being connected to a loudspeaker, the PDI 03 connects directly to the amplifier output allowing power amplifiers to be operated to saturation without troublesome volume problems. Two switches are featured on the front of the device for shaping the simulation sound. Nine filter presets are featured for adjusting the cabinet size and general sound. A front knob allows you to control the level of the filter output. Four unsimulated line outputs are included in the back of the device for sending the signal to effect units, or to take it to your recording device to apply software-based simulation as opposed to using the simulated output. For live monitoring, speakers may be connected while the reactive load is automatically switched off. The power handling capacity of the device is 100W RMS without speakers. - Outputs are transformer isolated
- 4 unsimulated line outputs
- Front switches and knobs for quick sound adjustment
In the Box Palmer PDI 03 Speaker Simulator and Loadbox (4 ohms) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer PDI 03 Speaker Simulator and Loadbox in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PDI03L04 Specs | Type | Passive speaker simulator | | Input Type | Unbalanced | | Input Connections | 1 x 6.3 mm jack | | Output Type | Balanced, unbalanced | | Output Connectors | 1 x XLR
1 x 6.3 mm jack
4 x Line out | | Output Impedance | 600 ohms (XLR), 10 kOhms (6.3 mm Jack) | | Dummy Impedance | 4 ohms | | Maximum Load | 100 W | | Controls | Voicing, line out, filter volume | | Material | Powder-coated sheet steel | | Dimensions (WxDxH) | 18.9 x 7.1 x 1.8" / 480.0 x 180.0 x 44.5 mm | | Weight | 6.6 lb / 3.0 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
