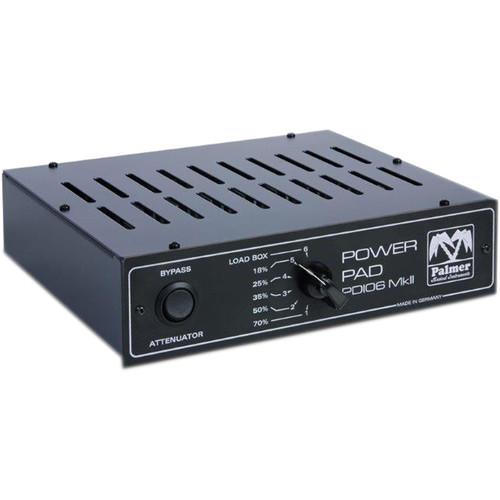

User Manual for Palmer PDI06L04 Power Attenuator Click to enlarge the picture
Contents of the user manual for the Palmer PDI06L04 Power Attenuator
- Product category: Amplifier Accessories Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Amplifier Accessories
|
User manual for the Palmer PDI06L04 Power Attenuator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|
Product description The 4ohms PDI06L04 Power Attenuator from Palmer can be used is live applications and allows for stage distortion of tube aplifiers while reducing the associated high volume level. The device is connected between the amplifier output and the speaker cabinet and permits practical volume reduction in six increments from 100% to 18%. A mute setting silences the speaker, allowing the device to function as a load box and absorb the entire output power of the amplifier. The PDI06L04 features an input for the speaker signal from the amplifier and outputs for connecting to a speaker cabinet. In the Box Palmer PDI06L04 Power Attenuator (4 ohms) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer PDI06L04 Power Attenuator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PDI06L04 Specs | Type | Passive power attenuator | | Channels | 1 | | Input Connections | 1 x 6.3 mm input jack | | Output Type | Unbalanced | | Output Connectors | 2 x 6.3 mm jack | | Controls | Rotary attenuation switch, bypass | | Impedance | 4 ohms (dummy load) | | Power Load | 120 W maximum | | Material | Powder-coated sheet steel | | Dimensions (WxDxH) | 4.7 x 4.7 x 2.0" / 120.0 x 120.0 x 50.0 mm | | Weight | 1.5 lb / 0.7 kg |
