User Manual for Palmer PEAUTO Distortion Effect for Guitar Click to enlarge the picture
Contents of the user manual for the Palmer PEAUTO Distortion Effect for Guitar
- Product category: Effects Pedals Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Effects Pedals
 |
User manual for the Palmer PEAUTO Distortion Effect for Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|

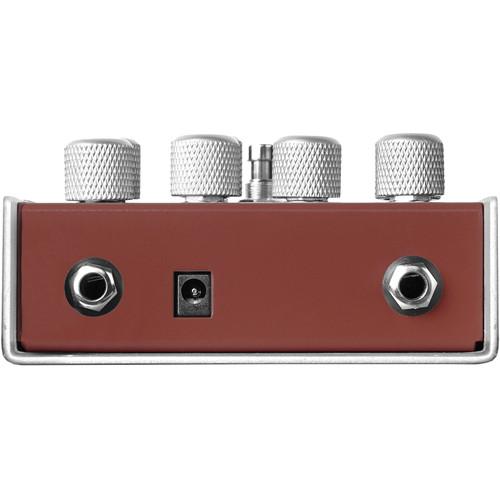

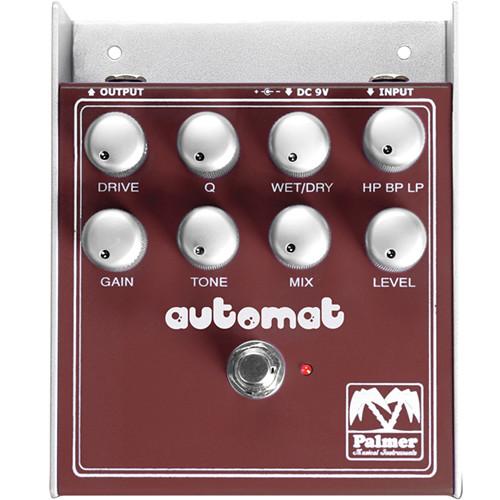

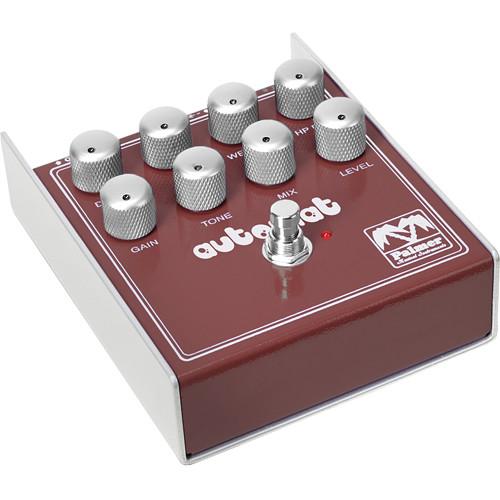

Product description The Palmer PEAUTO Distortion Effect for Guitar contains two effects in one box: an auto wah-wah and a distortion pedal in one. Featuring the distortion circuitry of the Palmer PEDIST and an additional auto wah, the PEAUTO offers a gamut of sounds from gentle to hard, from mellow thickness to the ultimate wall of distortion. Housed in a solid metal case with extended edges for optimum protection of the in- and outputs, the knurled knobs are easy to grip and the sturdy footswitch offers just the right action point. A red LED clearly indicates whether the effect is active or in bypass mode. The unit is powered by an external 9VDC power supply or, alternatively, a 9-volt block battery. In the Box Palmer PEAUTO Distortion Effect for Guitar Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer PEAUTO Distortion Effect for Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PEAUTO Specs | Type | Guitar effect pedal | | Input Connections | 1x 6.3 mm jack, unbalanced | | Input Impedance | 470 kΩ | | Output Connectors | 1x 6.3 mm jack | | Output Impedance | 100 kΩ | | Residual Noise | -85 dB | | Output Level | +30 dB | | Controls | 1 x Knob: HP, BP, LP
1 x Knob: Wet / Dry
1 x Knob: Q - Factor
1 x Knob: Tone
1 x Knob: Level
1 x Knob: Mix
1 x Knob: Gain
1 x Knob: Drive
1 x Footswitch | | Indicators | ON/Off | | Operating Voltage | 9 VDC power supply or 9 VDC battery | | Power Consumption | 14 mA | | Material | Powder-coated sheet steel | | Dimensions (WxDxH) | 4.7 x 9.4 x 2.3" / 120 x 240 x 60 mm | | Weight | 2.2 lb / 1.01 kg |
