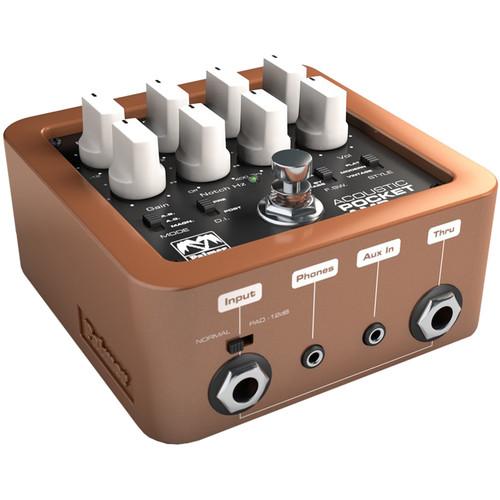

User Manual for Palmer PEPAMPACOUSTIC Portable Preamp for Acoustic String Instruments Click to enlarge the picture
Contents of the user manual for the Palmer PEPAMPACOUSTIC Portable Preamp for Acoustic
- Product category: Effects Pedals Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Effects Pedals
 |
User manual for the Palmer PEPAMPACOUSTIC Portable Preamp for Acoustic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|

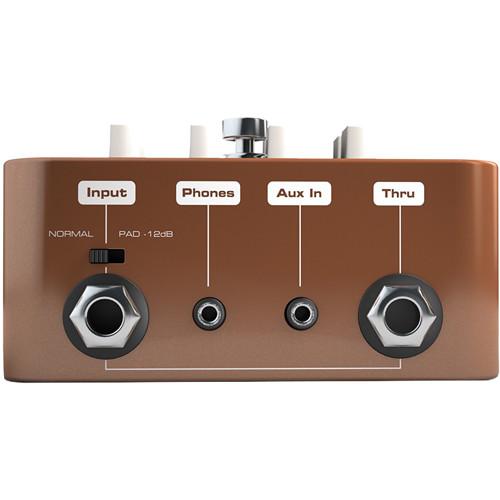

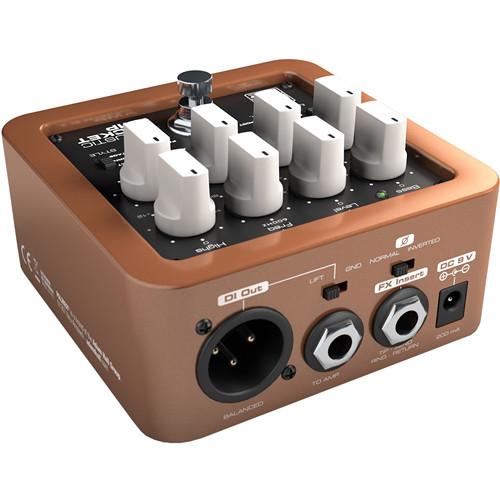

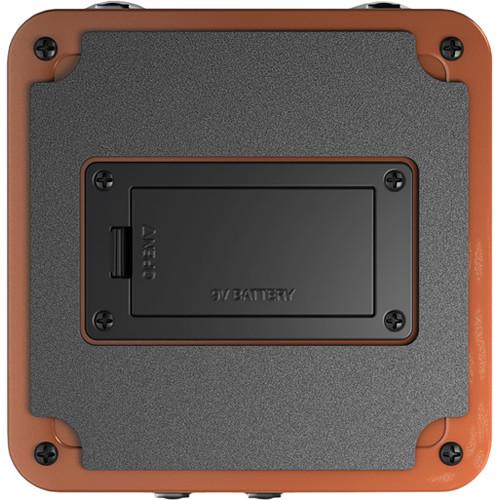

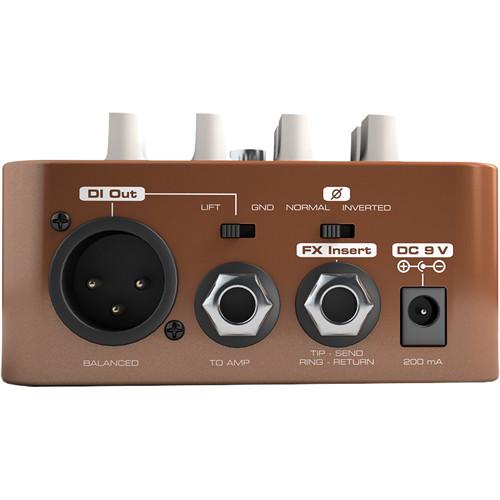

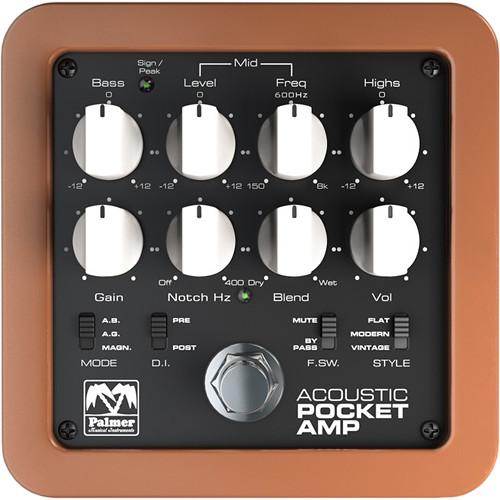

Product description The PEPAMPACOUSTIC Portable Preamp for Acoustic String Instruments from Palmer is a versatile preamp that provides sound shaping options for acoustic and electric guitar and bass instruments. It can be used for gigging, recording, or practicing, and is designed to accommodate both piezo and magnetic pickups. The 3-band, semi-parametric mid control is specifically tuned for acoustic instruments.This pocket preamp features an input limiter to prevent transient distortion while a 5-position rotary notch filter eliminates resonant frequency feedback. A mode switch selects between crisp, contemporary, or warm vintage sounds, and a blend control allows you to mix the direct and processed signals.The portable preamp features an insert for external effects, a 1/8" stereo line input, a headphone output, and a footswitch-assignable thru jack to connect a tuner. For DI applications, the balanced XLR output is pre or post signal processing and is switchable.The PEPAMPACOUSTIC Portable Preamp for Acoustic String Instruments is powered by a 9V battery or power adapter and is enclosed in a rugged, diecast aluminum case with heavy-duty footswitch, convenient LED status indicators, and ground lift. In the Box Palmer PEPAMPACOUSTIC Portable Preamp for Acoustic String Instruments Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer PEPAMPACOUSTIC Portable Preamp for Acoustic String Instruments in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PEPAMP ACOUSTIC Specs | Type | Preamplifier | | Inputs | 2 | | Input Connectors | 2 x 1/4" / 6.3 mm | | Input Impedance | 1 MOhm | | Outputs | 4 | | Output Connectors | 1/4" / 6.3 mm (to amp)
XLR balanced
1/8" 3.5 mm (headphone output)
1/4" / 6.3 mm (thru) | | Output Impedance | XLR: 100 Ohms
1/4" / 6.3 mm
TRS: 500 Ohms | | Controls | Bass, blend, DI, footswitch, gain, highs, mid, mid frequency, mode, notch, style, and volume | | Indicators | On/off, peak, and signal | | Operating Voltage | 9 V battery, 9 to 12 VDC | | Other Features | FX loop | | Material of Construction | Aluminum diecast | | Dimensions (W x D x H) | 3.9 x 3.9 x 2.2" / 10.0 x 10.0 x 5.5 cm | | Weight | 0.9 lb / 0.4 kg |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
