User Manual for Palmer PEPAMPBASS Portable Bass Preamp Pedal Click to enlarge the picture
Contents of the user manual for the Palmer PEPAMPBASS Portable Bass Preamp Pedal
- Product category: Effects Pedals Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Effects Pedals
 |
User manual for the Palmer PEPAMPBASS Portable Bass Preamp Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|

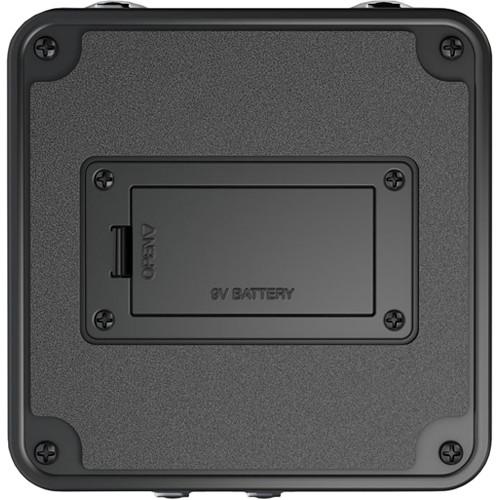

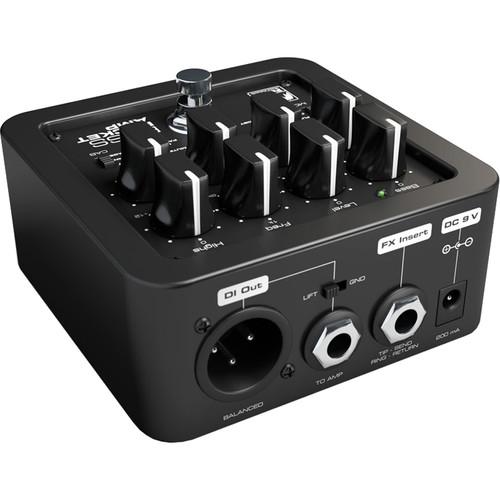

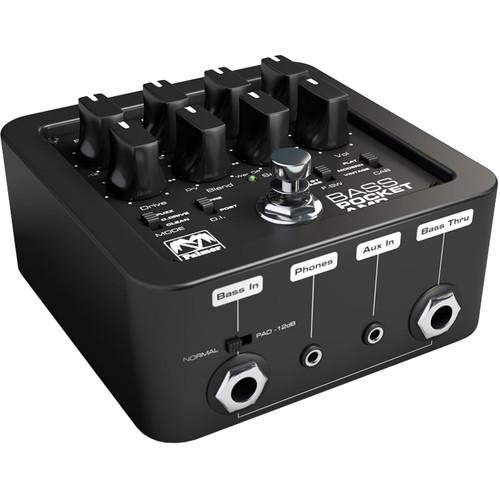

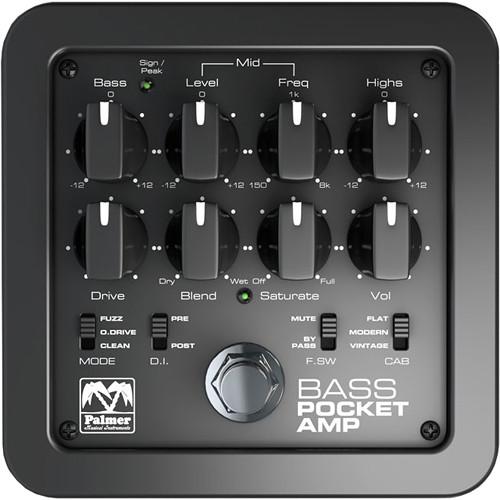

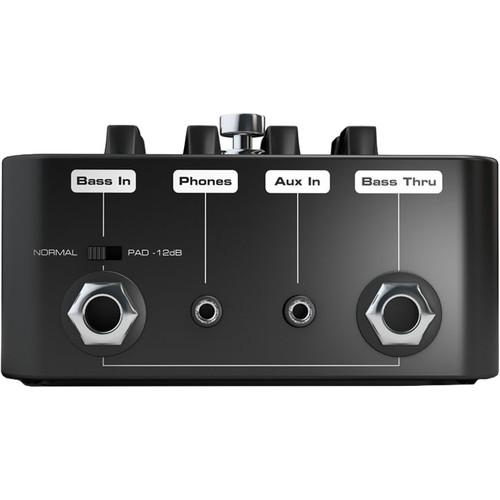

Product description The PEPAMPBASS Portable Bass Preamp Pedal from Palmer is a versatile preamp that provides sound shaping options for active and passive bass guitar instruments. It can be used as a multipurpose effects pedal and preamp for gigging, recording, or practicing, and features clean, overdrive, and fuzz modes, with adjustable drive and saturation controls, 3-band EQ with semi-parametric mid control, and is tuned for bass guitar with vintage or modern cabinet simulations.This pocket preamp provides an insert for external effects, a 1/8" stereo line input, a headphones output for quiet play-along practice, and a footswitch-assignable thru jack for silent tuning. For DI applications, the balanced XLR output is pre-or post-signal processing and is switchable. In addition, the PEPAMPBASS Portable Bass Preamp Pedal is powered by a 9V battery or power adapter and enclosed in a rugged, diecast aluminum case with heavy-duty footswitch, convenient LED status indicators, and a ground lift. In the Box Palmer PEPAMPBASS Portable Bass Preamp Pedal Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer PEPAMPBASS Portable Bass Preamp Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PEPAMP BASS Specs | Type | Guitar amplifier | | Technology | Solid state | | Inputs | 2 | | Input Connectors | 2 x 1/4" / 6.3 mm | | Input Impedance | 1 MOhm | | Outputs | 4 | | Output Connectors | 1/4" / 6.3 mm (to amp)
XLR balanced
1/8" 3.5 mm (headphone output)
1/4" / 6.3 mm (thru) | | Output Impedance | XLR: 100 Ohms
1/4" / 6.3 mm TRS: 500 Ohms | | Channels | 1 | | Indicators | On/off, peak, and signal | | Controls | Bass, drive, ground lift, highs, input pad, mid, mid-frequency, mode, mute, pre/post, and volume | | Effects Loop | Yes | | Operating Voltage | 9 V battery, 9 to 12 VDC | | Material of Construction | Aluminum die-cast | | Dimensions (W x D x H) | 3.9 x 3.9 x 2.2" / 10.0 x 10.0 x 5.5 cm | | Weight | 0.8 lb / 0.4 kg |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
