User Manual for Palmer PHDA02 Reference Class Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the Palmer PHDA02 Reference Class Headphone Amplifier
- Product category: Headphone Amplifiers Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Headphone Amplifiers
 |
User manual for the Palmer PHDA02 Reference Class Headphone Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|

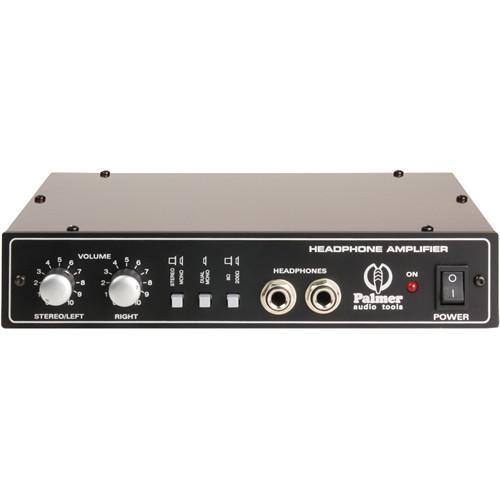

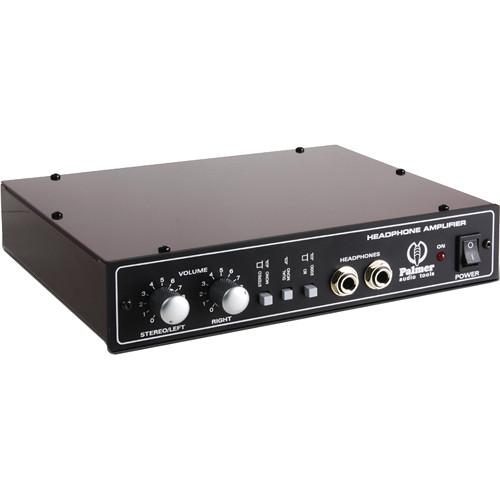

Product description The PHDA02 Reference Class Headphone Amplifier from Palmer can be used in stereo, mono, and dual-mono operation modes. While in stereo mode, the input signal is fed to the left and right earphones and the volume is set by the Stereo/Left control. In mono mode, the left and right channels are summed and the resulting mono signal is fed to both the right and left earphones. In dual-mono mode the left and right channels can be used independently, with individual level controls for the left and right earphones.

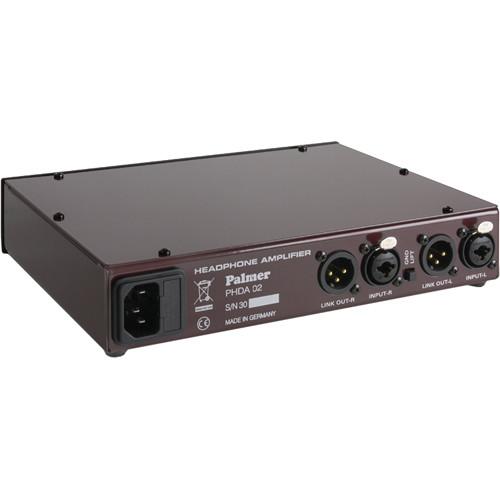

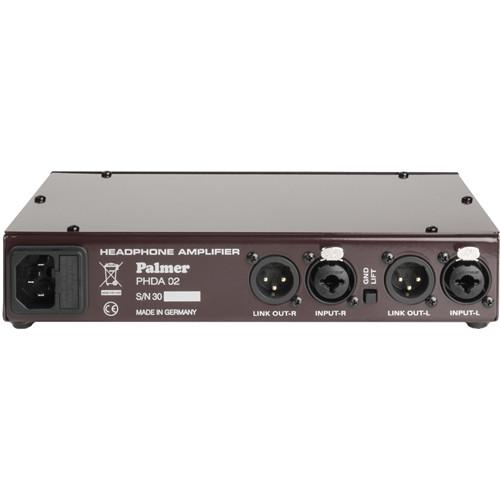

The Reference Class Headphone Amplifier operates with all headphones with an impedance of 8 to 200 Ohms. The front-panel inputs provide simultaneous connection of two parallel headphones. Impedance matching is achieved by a specially designed switchable transformer to provide superior performance, dynamic range and signal-to-noise ratio for all loads. Combo input sockets allow for balanced XLR and unbalanced TS headphone connection, while parallel XLR outputs facilitate daisy chaining multiple units. The amplifier is equipped with low-noise op amps and the output amplifier's discrete power transistors are mounted on heatsinks. In the Box Palmer PHDA02 Reference Class Headphone Amplifier (1 Channel) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer PHDA02 Reference Class Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PHDA02 Specs | | | Inputs | 2 | | Input Connectors | 0.2" / 6.3 mm Jack
XLR | | Input Impedance | 20 kOhms (balanced)
10 kOhms (unbalanced) | | | | Outputs | 2 | | Output Connectors | 0.2" / 6.3 mm Jack
XLR | | Power Output | 2 x 400 mW | | | | Impedance | Minimum connected impedance: 2 x 8 Ohms | | Frequency Response | 20 Hz to 20 kHz | | Controls | Volume | | Indicators | On | | Operating Voltage | Integrated: 115 / 230 V
240 VAC / 50-60 Hz | | Material | Sheet steel / aluminum
Powder coated / anodized surface | | Dimensions (W × H × D) | 8.7 x 1.7 x 6.9" / 222.0 x 44.0 x 175.0 mm
1U 9.5" / 241.3 mm | | Weight | 3.5 lb / 1.6 kg |
