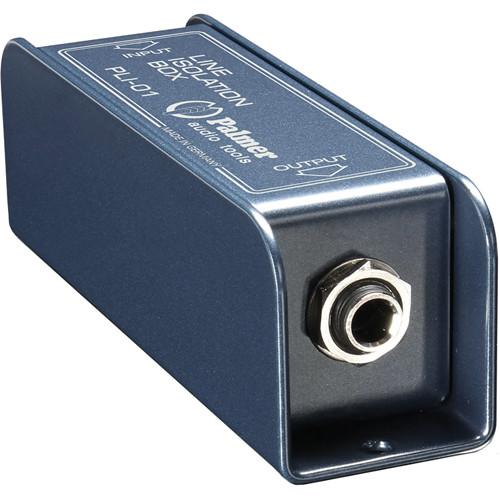

User Manual for Palmer PLI 01 Line Isolation Box Click to enlarge the picture
Contents of the user manual for the Palmer PLI 01 Line Isolation Box
- Product category: Hum Eliminators Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Hum Eliminators
 |
User manual for the Palmer PLI 01 Line Isolation Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|
Product description The PLI 01 Line Isolation Box from Palmer is a mono isolation transformer which features 1/4" TRS jack sockets at both ends for balanced and unbalanced signals. The box can be used to eliminate ground loops that cause hum as well as convert signals from unbalanced to balanced. The box will also minimize noise in your car's hi-fi system when used to isolate power boosters. Uses for the Line Isolation Box include guitar rack systems where multiple signal processors and preamplifiers are combined. In the Box Palmer PLI 01 Line Isolation Box (1 Channel) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer PLI 01 Line Isolation Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PLI01 Specs | | | Inputs | 1 passive | | Input Connectors | 0.2" / 6.3 mm Jack | | Input Type | Balanced/unbalanced (depending on TS/TRS connection) | | Input Impedance | 10 kOhms | | Input Level | Maximum: +6 dBu | | | | Outputs | 1 | | Output Connectors | 0.2" / 6.3 mm Jack | | Output Type | Balanced/unbalanced (depending on TS/TRS connection) | | Output Impedance | 10 kOhms | | Output Level | +6 dB | | | | Type | Passive line isolator | | Transformer | Balanced | | Ratio | 1:1 | | Frequency Response | 20 Hz - 20 kHz | | Material | Die-cast aluminum
Powder-coated surface | | Dimensions (W x D x H) | 4.1 x 1.4 x 1.4" / 105.0 x 35.0 x 35.0 mm | | Weight | 0.4 lb / 0.2 kg | | | | Package Weight | 0.655 lb | | Box Dimensions (LxWxH) | 5.15 x 1.9 x 1.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
