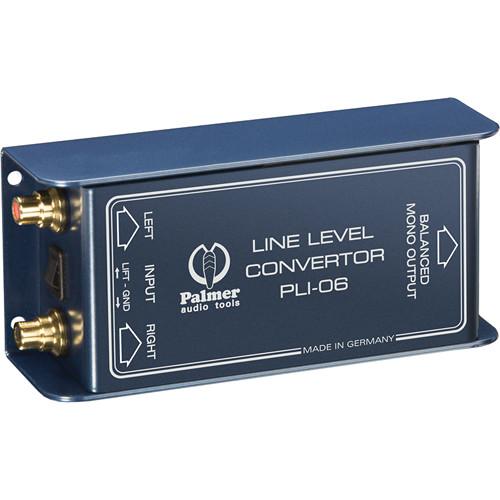

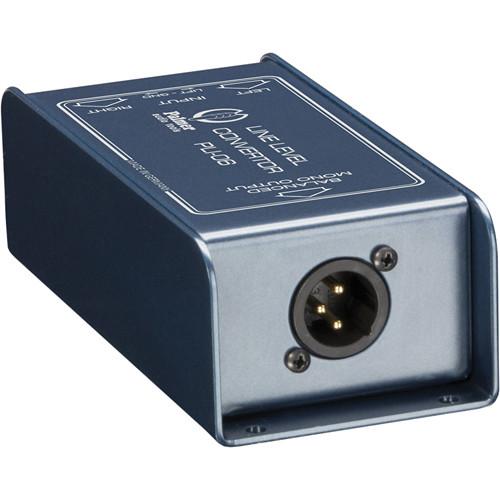

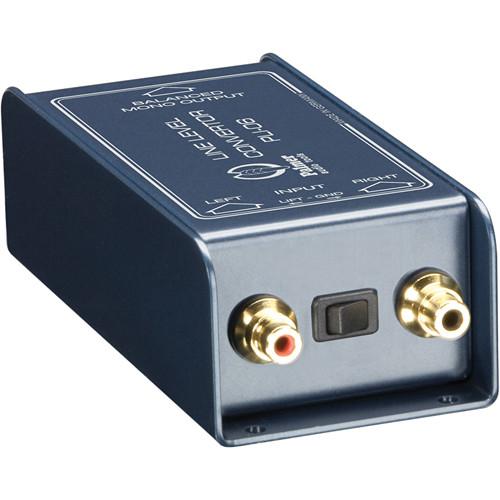

Product description The PLI06 Line-Level Converter from Palmer is designed to feed the unbalanced stereo signal provided by a laptop or similar device to the balanced mono inputs of professional mixing desks. The converter features an audio transformer specifically designed for it, which provides impedance matching, signal balancing and prevents ground loops and ground-loop hums. The Line-Level Converter is passive and does not require mains power or batteries. In the Box Palmer PLI06 Line-Level Converter (2 In, 1 Out) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer PLI06 Line-Level Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PLI06 Specs | | | Inputs | 2 | | Input Connectors | RCA | | Input Type | Unbalanced | | Input Impedance | 6 kOhms | | Input Level | Maximum: +6 dBu | | | | Outputs | 1 | | Output Connectors | XLR | | Output Type | Balanced | | Output Impedance | 600 Ohms | | Output Level | Maximum: +6 dB | | | | Type | Passive line isolator | | Channels | 1 | | Transformer | Balanced | | Ratio | 1:1 | | Frequency Response | 20 Hz to 20 kHz | | Material | Sheet steel and aluminum
Powder-coated surface | | Dimensions (W x D x H) | 5.1 x 2.4 x 1.4" / 130.0 x 60.0 x 35.0 mm | | Weight | 0.6 lb / 0.3 kg |
