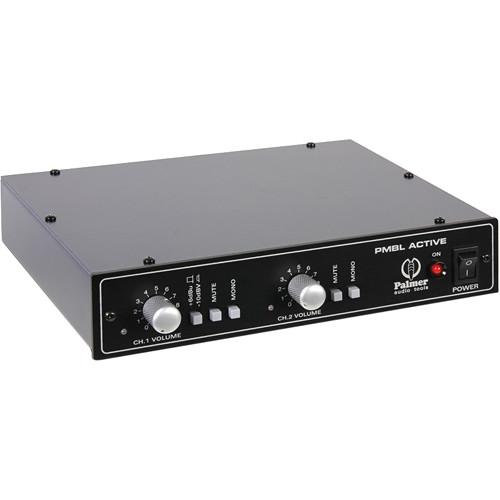

User Manual for Palmer PMBLA 2-Stereo-Channel Active Line-Level Merger Click to enlarge the picture
Contents of the user manual for the Palmer PMBLA 2-Stereo-Channel Active Line-Level Merger
- Product category: Splitters & Combiners Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Splitters & Combiners
|
User manual for the Palmer PMBLA 2-Stereo-Channel Active Line-Level Merger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|
Product description The Palmer PMBLA is a two-channel, stereo line-level merger box with active circuitry, designed to combine two stereo line-level signals into one stereo output, with lossless mixing and signal amplification. It can be used for simultaneously connecting two mixing desks to a single PA system, such as a DJ mixer and mixing console to a studio or live venue sound system.Featuring combo sockets with XLR and 1/4" connectors, channel 1 is designed for both consumer-level equipment and professional gear with input sensitivity switchable from -10 dbV (consumer level) to +6 dBu (professional level). Channel 2 is optimized for +6 dBu professional line levels only. The inputs are galvanically isolated from one another to prevent crosstalk.Both channels feature a mute switch and a mono switch to mix the stereo signal down to mono. Rotary controls set the overall levels with a maximum input signal boost of +16 dB. Individual ground lift switches are provided for each stereo input and the output.The PMBLA is housed in a 1 RU, half-rack case and has a built-in power supply. - Key Features
-
- Merge two stereo line signals into one stereo output
- Active circuitry provides lossless mixing and signal amplification
- Use with consumer and professional line-level signals
- Two stereo, balanced inputs optimized for line-level signals
- Channel 1 inputs are transformer-balanced to prevent ground loops
- Input channels are galvanically isolated from one another
- Individual level control for each channel
- Maximum input signal boost of 16 dB
- Mono and mute switches for each channel
- Ground lift switch for each channel and output
- Integrated universal power supply
In the Box Palmer PMBLA 2-Stereo-Channel Active Line-Level Merger Power Cord Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer PMBLA 2-Stereo-Channel Active Line-Level Merger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PMBLA Specs | Type | Line-level merger with active circuitry | | Input Connectors | Stereo Channel 1 (L/R):
2 x combo XLR - 1/4" / 6.3 mm TRS connectors, transformer-balanced (TS input = unbalanced)
Stereo Channel 2 (L/R):
2 x XLR-F connectors, electronically-balanced (servo) | | Input Impedance | Stereo Channel 1: 2 kOhms
Stereo Channel 2: 10 kOhms | | Input Sensitivity | Stereo Channel 1: -10 dBV/+6 dBu, switchable (nominal)
Stereo Channel 2: +6 dBu (nominal) | | Output Connectors | Stereo Output (L/R): 2 x XLR-M, electronically-balanced (servo) | | Output Impedance | 300 Ohms | | Output Level | +20 dBu into 600 Ohms, maximum (not adjustable) | | Gain Adjustment Range | -∞ to +16 db | | Controls | Power, mute, mono/stereo, +6 dBu/-10 dBV switchable, ground lift | | Operating Voltage | 100-240 VAC | | Power Consumption | 2.5 W | | Material | Powder-coated steel
Aluminum front panel, thickness: 0.11" / 3 mm | | Dimensions (W x D x H) | 8.7 x 6.3 x 1.7" / 222 x 160 x 44 mm
(depth without front-panel and connector overhang)
Rack Space: 1 RU | | Weight | 2.8 lb / 1.3 kg |
