User Manual for Palmer PPB10 Press Patch Box Click to enlarge the picture
Contents of the user manual for the Palmer PPB10 Press Patch Box
- Product category: Press Boxes Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Press Boxes
 |
User manual for the Palmer PPB10 Press Patch Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|

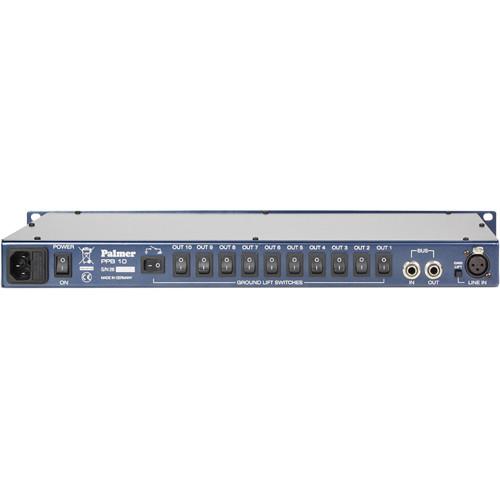

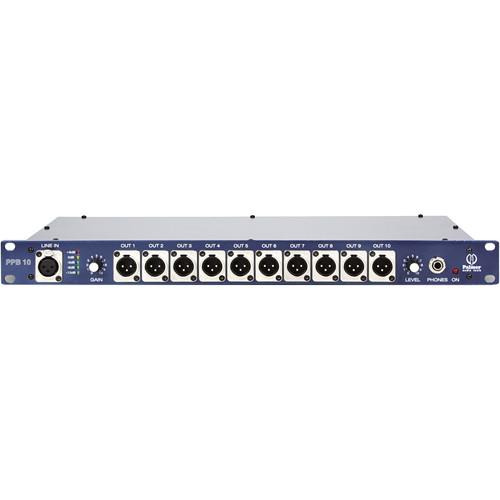

Product description The PPB10 Press Patch Box from Palmer is a 10-channel audio splitter which functions on a transformer-split basis allowing one line input to split out to ten outputs. If one output shorts, the other outputs will remain unaffected, making the Press Patch Box a durable and reliable line splitter. The input gain is adjustable from -8 to +25 dB and all of the inputs and outputs are balanced-transformer-isolated. There is a level meter, an adjustable headphone volume and the headphone output monitors the input level. Individual ground-lift switches and a ground-lift switch for the input reduce ground-related noise while the signal lines are connected. The bus in/out sockets enable you to stack many Press Patch Boxes, expanding your setup. In the Box Palmer PPB10 Press Patch Box (10-Channel) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer PPB10 Press Patch Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PPB10 Specs | | | Inputs | 1 | | Input Connectors | XLR | | Input Level | Maximum: +20 dB | | Input Type | Adjustable | | | | Outputs | Split outputs per canal: 10
THRU outputs: 1 | | Output Connectors | XLR | | Output Level | Maximum: +4 dB | | Output Type | Non-adjustable
Transformer isolated outputs | | | | Type | 1 in 10 Line Splitter | | Channels | 1 | | Controls | Ground lift, power, phones, level, input gain | | Operating Voltage | Integrated: 115 to 230 VAC | | Material | Sheet steel
Powder-coated surface | | Dimensions (W x D x H) | 1.9 x 8.1 x 1.8" / 48.0 x 205.0 x 45.0 mm
1 RU | | Weight | 9.2 lb / 4.2 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
