User Manual for Palmer PTRIAGE Amp Selector Click to enlarge the picture
Contents of the user manual for the Palmer PTRIAGE Amp Selector
- Product category: Effects Pedal Accessories Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Effects Pedal Accessories
 |
User manual for the Palmer PTRIAGE Amp Selector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|

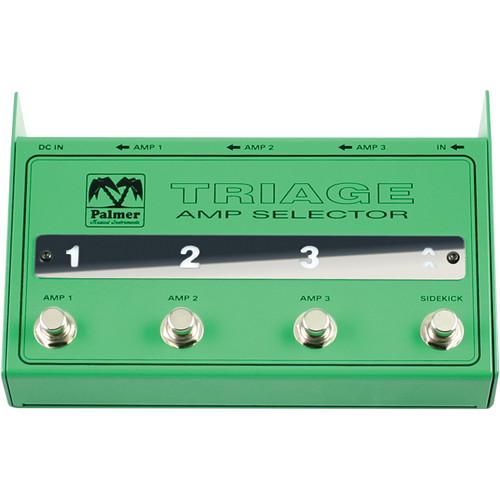

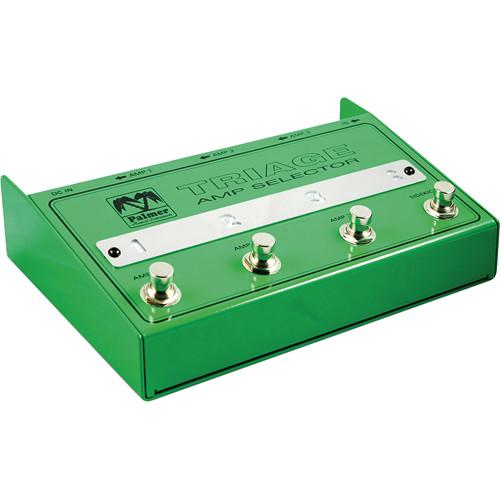

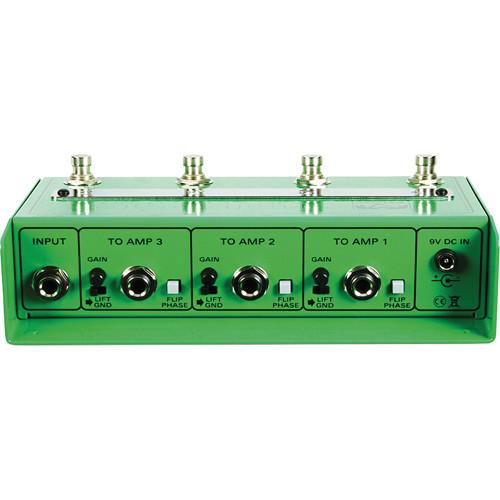

Product description The PRIAGE Amp Selector from Palmer is able to route your guitar signal for up to three footswitch selectable amps. A fourth switch, the sidekick, makes it possible to select two, or all three amplifiers, simultaneously. The outputs are transformer isolated to automatically eliminate ground loop and ground loop hum. An adjustable in-volume buffer amplifier is available for each path, enabling the signal to be boosted up to 12 dB. Each output has its own ground lift switch and a phase reversal switch to rotate the signal by 180°. This can prevent frequency cancellation when playing amps that are out of phase with each other. In the Box Palmer PTRIAGE Amp Selector Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer PTRIAGE Amp Selector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PTRIAGE Specs | | | Inputs | 1 | | Input Connectors | 0.2" / 6.3 mm Jack | | Input Impedance | 1 MOhm | | | | Outputs | 3 | | Output Connectors | 0.2" / 6.3 mm Jack | | Output Impedance | 1 kOhm | | Output Type | Transformer isolated | | | | Type | Amp switcher | | Switch Functions | Output switcher | | Indicators | channel number, sidekick on/off | | Controls | 3 x Output gain
3 x Footswitch
Ground lift
Phase | | Operating Voltage | 9 VDC | | Power Consumption | 250 mA | | Material | Sheet Steel
Powder-Coated surface | | Dimensions (W x D x H) | 8.1 x 5.3 x 2.0" / 205.0 x 135.0 x 50.0 mm | | Weight | 2.8 lb / 1.3 kg |
