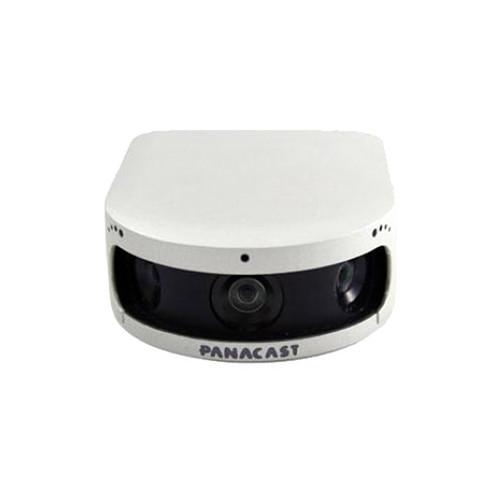

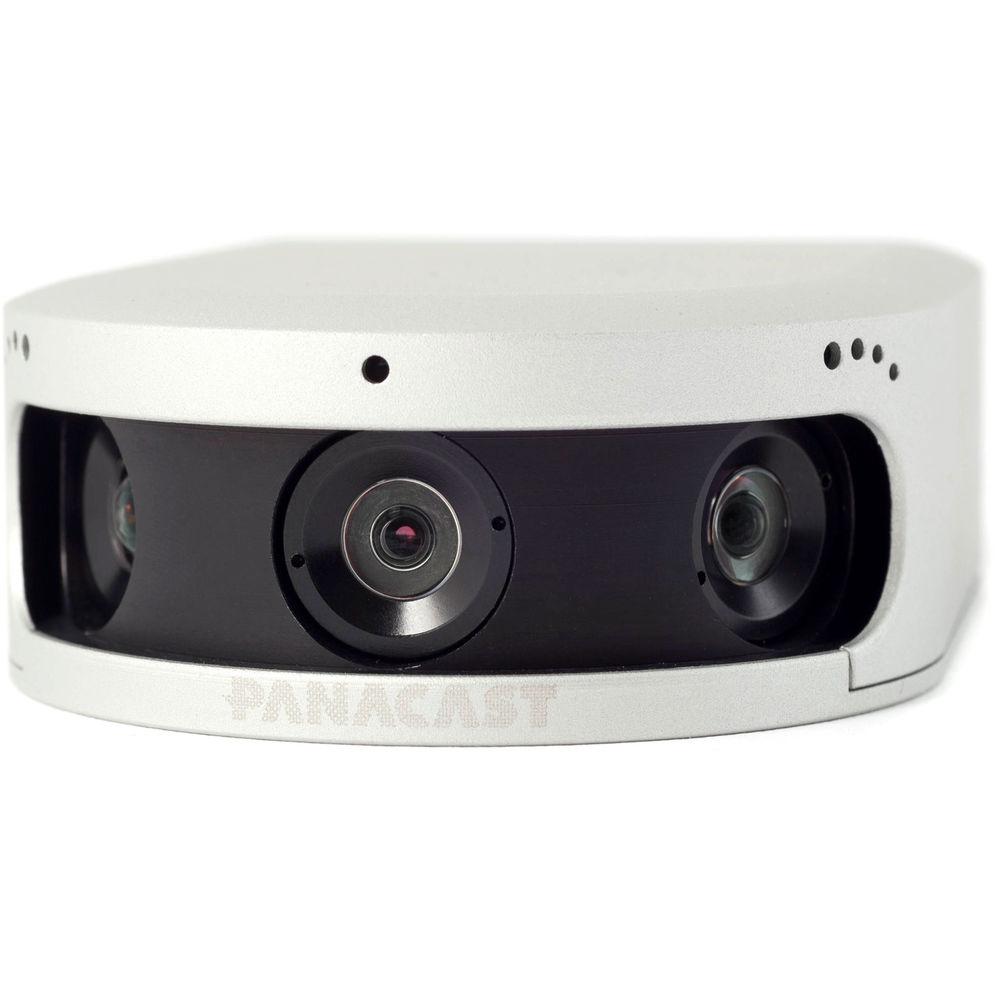

Product description This silver PanaCast 2 Camera with Table Stand provides a seamless and virtually distortion free 180° view over UVC video. Suitable for small offices to larger meeting rooms, the PanaCast2 eliminates the need for PTZ cameras to see an entire meeting space. If you wish to replicate the effects of a PTZ camera, that is possible with a downloadable app which uses all three of the PanaCast 2's discrete sensors to provide a wide angle of view without creating fisheye distortion of your image, so people look the way you are used to seeing them. The camera combines the images and outputs a UHD 4K wide image at up to 30 fps, and can deliver an HD image as well. Please note the camera's resolution at UHD is 3840 x 1088, which yields a 180 x 54° angle of view.

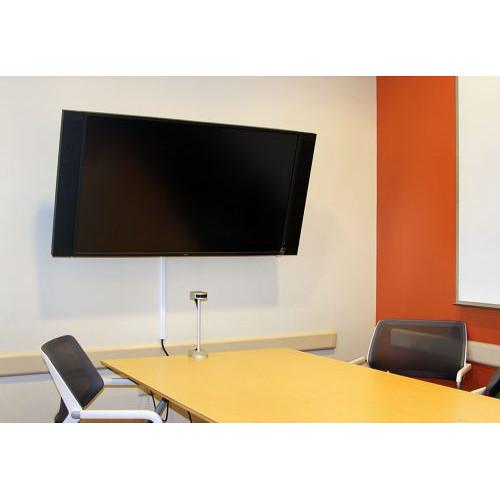

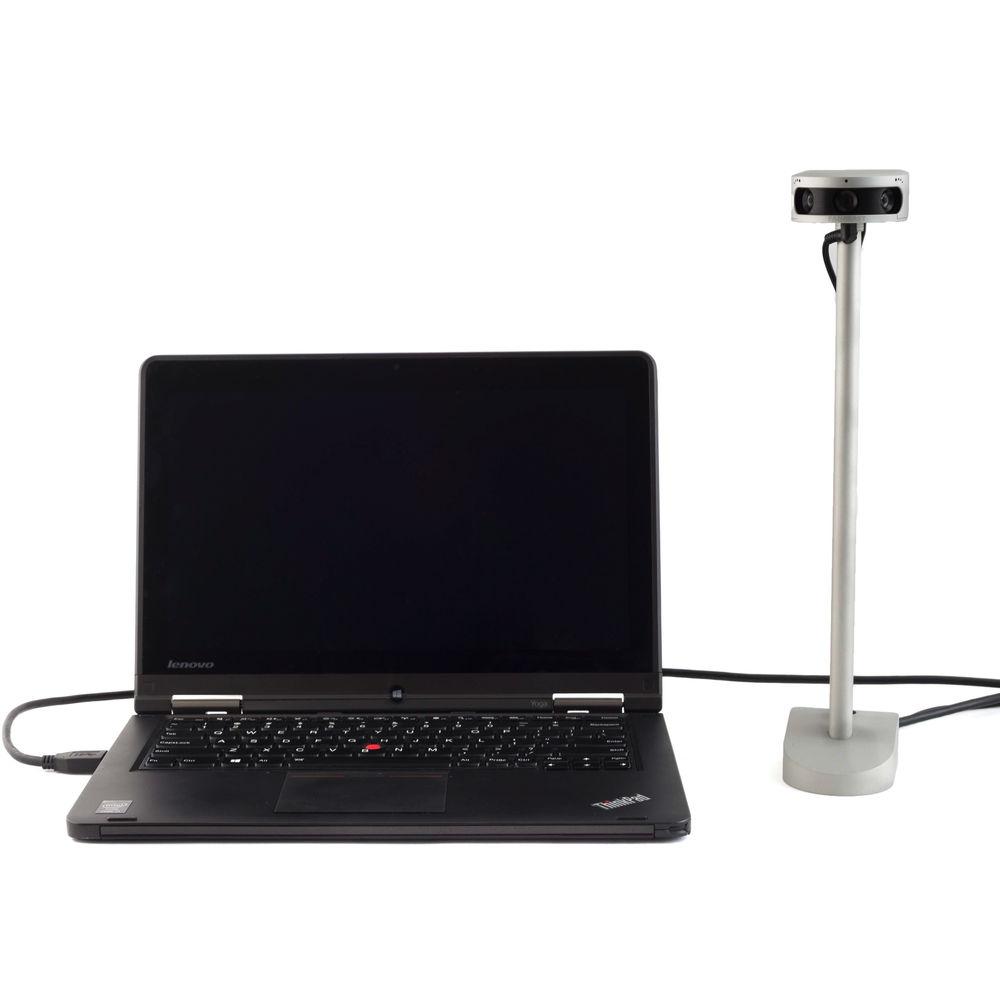

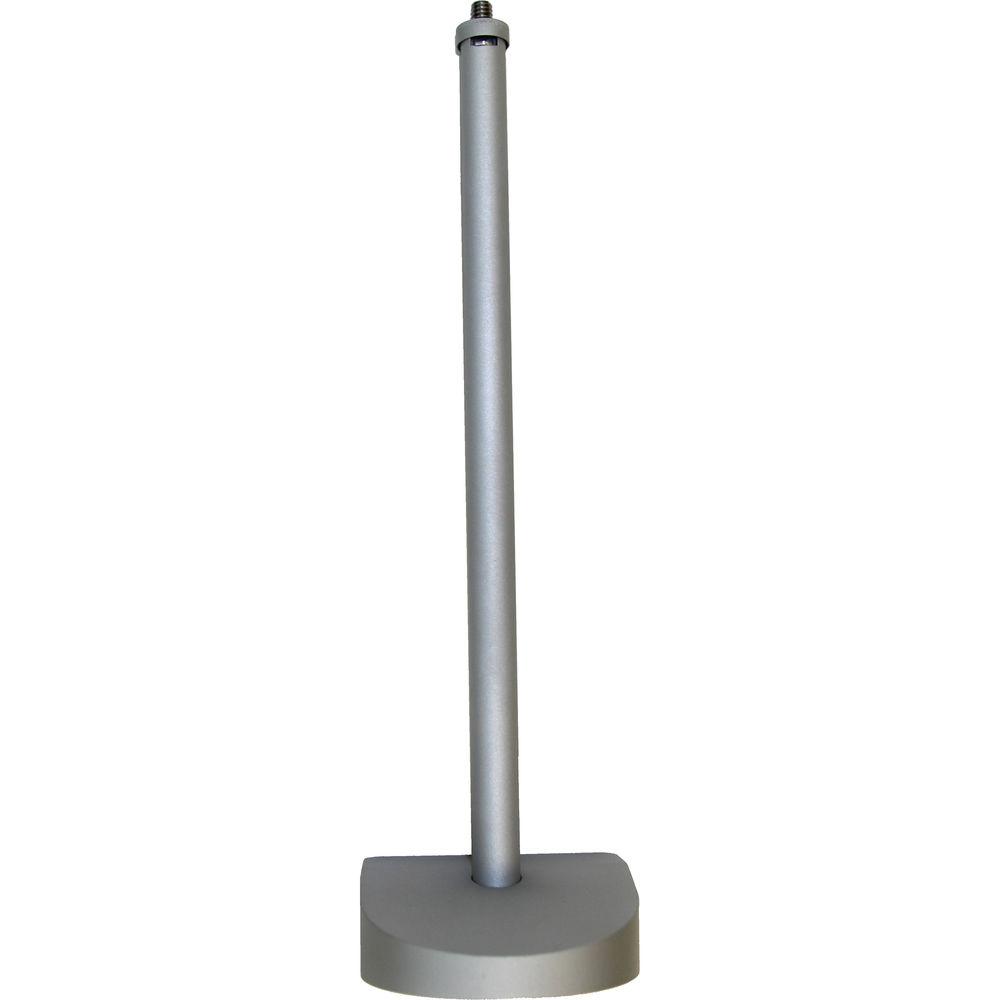

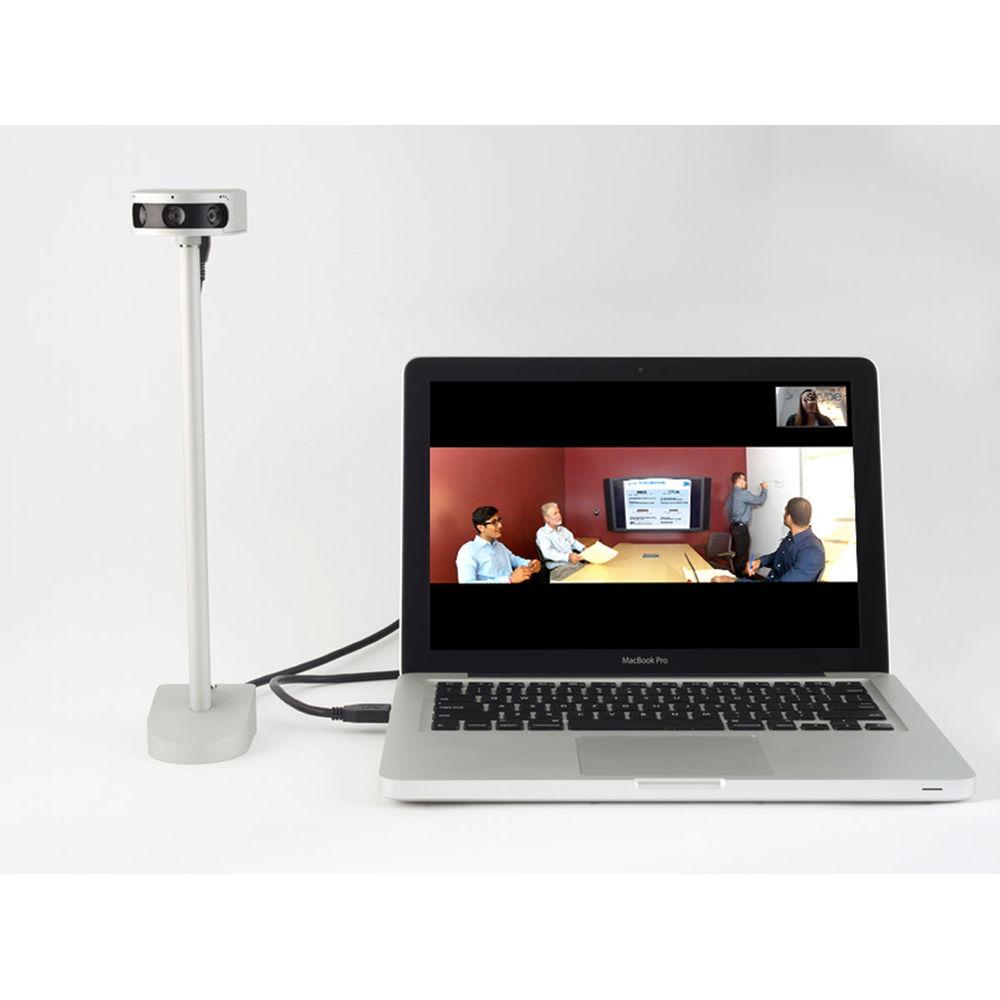

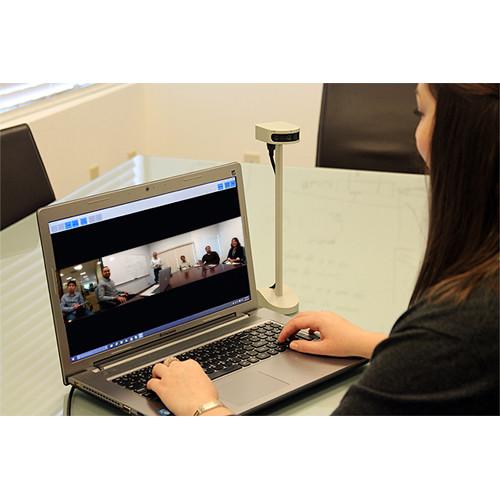

The camera is plug-and-play on Windows and Mac systems and supports UVC video, so you need a computer to record or run the web collaboration software because the camera has no recording capabilities, as it is designed to be used for remote meetings. The camera features an HD stereo audio microphone and built-in noise cancellation for clear audio. The camera is compatible with a slew of web collaboration apps, and an included table stand supports the camera and raises it to approximately 11" tall. - 180° angle of view, without fisheye distortion
- The wide angle of view enables seeing virtually an entire meeting room without requiring the use of a PTZ camera
- The downloadable ePTZ app is available if you require the PTZ effect
- The camera is UVC compliant, so it does not require the installation of any drivers and works with most web collaboration apps including:
- Zoom
- Vidyo
- BlueJeans
- Webex
- Skype
- Skype for Business
- Google Hangouts
- Citrix GoTo Meeting

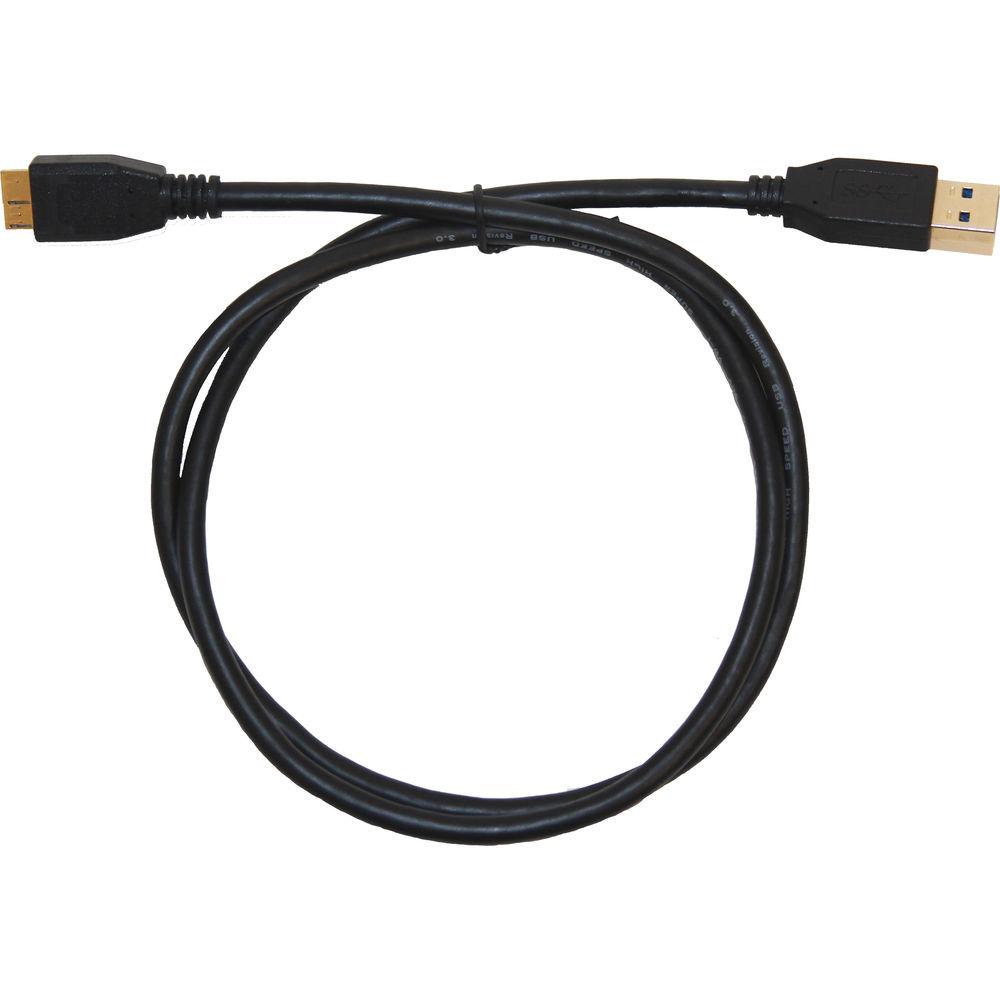

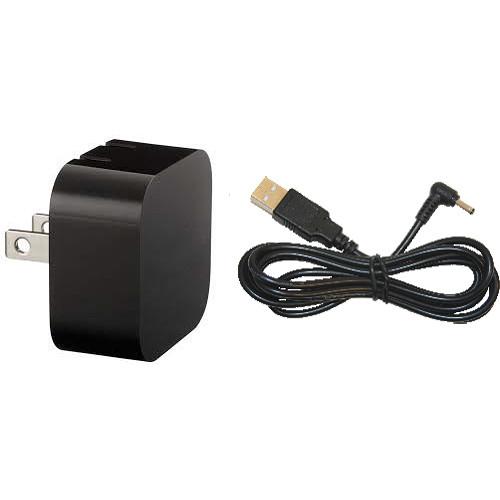

In the Box PanaCast 2 Camera with Table Stand (Silver) Table Stand USB Cable Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PanaCast 2 Camera with Table Stand in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanaCast PanaCast 2 Specs | Sensor | 3 x sensors | | Resolution | Panoramic 4K: 3840 x 1080, 4.15 MP
HD: 1920 x 1080, 2.1 MP | | Angle of View | 180 x 54° | | Frame Rate | Up to 30 fps | | Encoding | 4:2:2 YUV MJPEG
UVC | | Latency | ≤5 ms | | Focus Range | 0.98' to ∞ / 0.3 m to ∞ | | Minimum Illumination | 10 lux | | System Requirements | Plug-and-Play for Windows and Mac applications
Supports USB Video Class (UVC) Driver
USB 2.0/3.0
Windows 7, 8, 8.1 or later
Mac OS X 10.9 or later | | Certifications | FCC Part 15 Class A (for commercial use only)
ROHS, REACH compliant | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Operating Humidity: 15 to 85% (non-condensing) | | Dimensions | Camera Body: 2.91 x 2.36 x 0.98" / 7.4 x 6 x 2.5 cm
Table Stand: 2 x 2 x 11" / 5.08 x 5.08 x 27.94 cm | | Weight | 4.4 oz / 125 g | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 14.1 x 6.7 x 6.2" |
