Product description

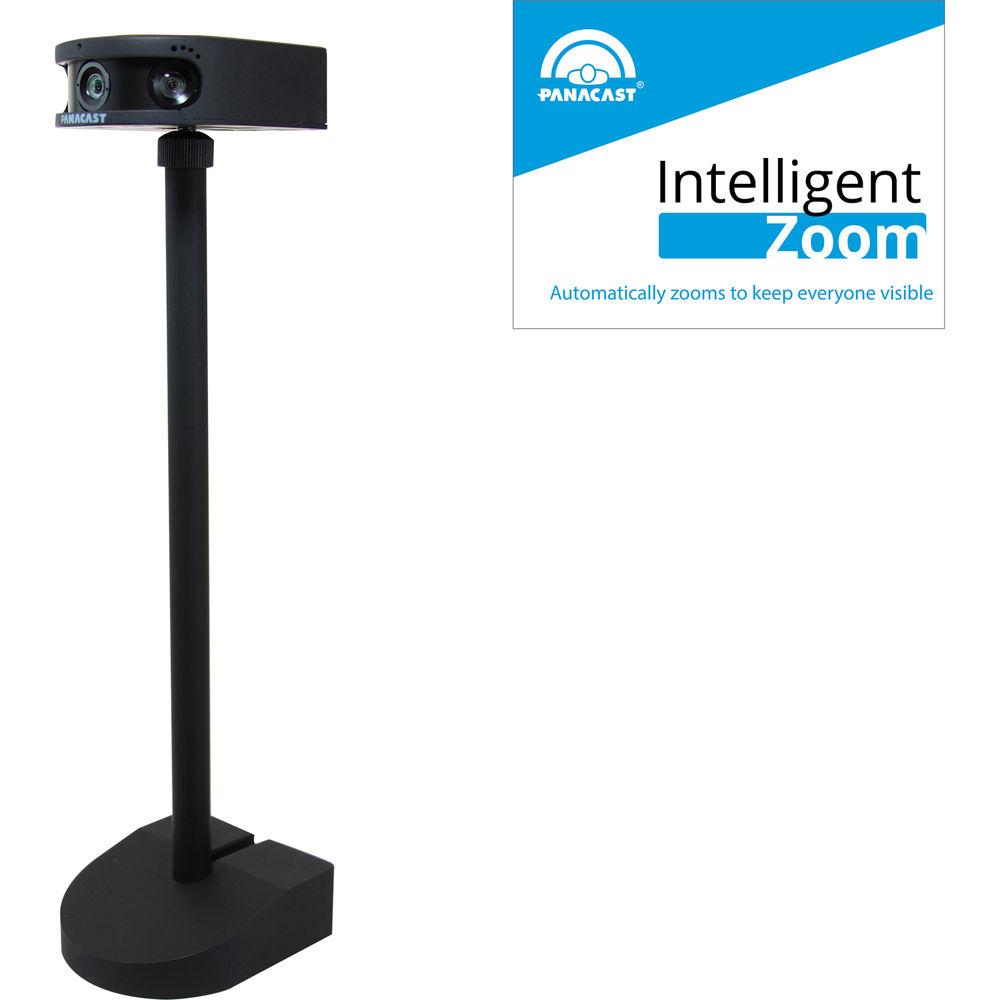

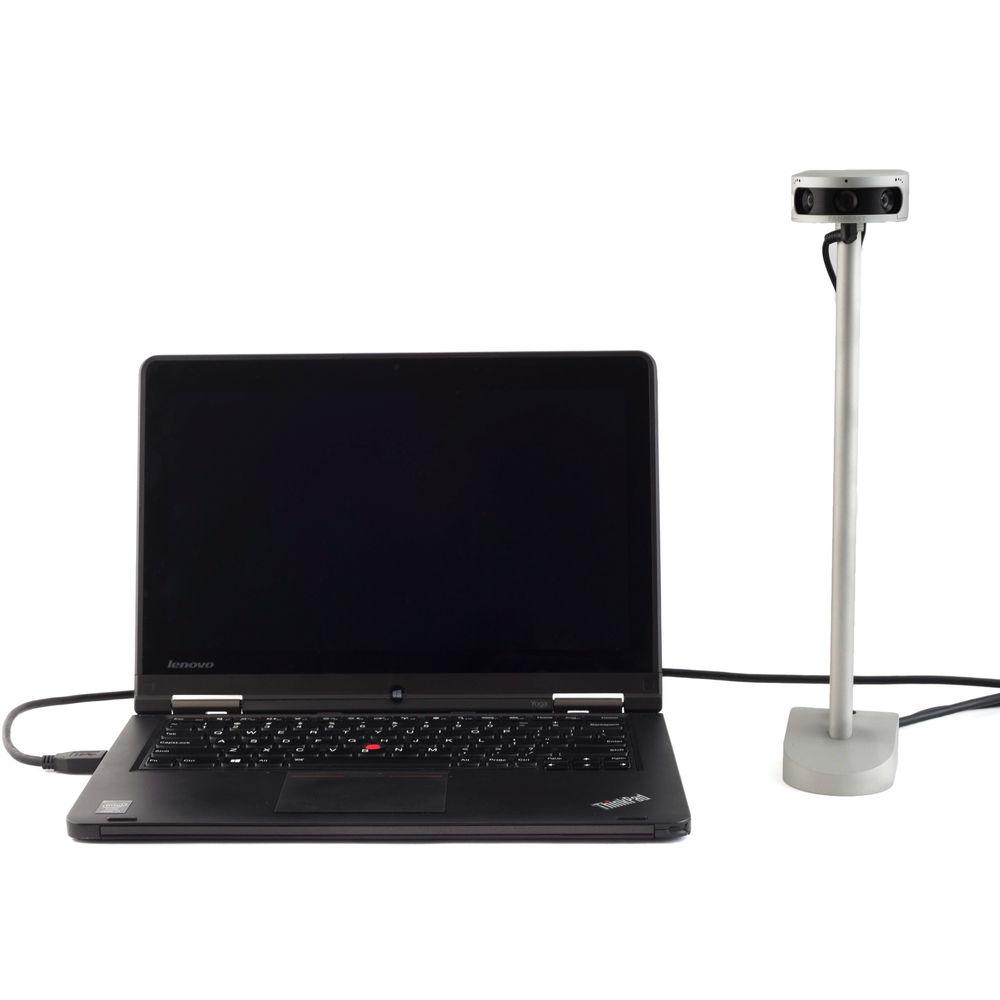

This black PanaCast Intelligent Zoom Enabled PanaCast 2 Camera with Table Stand is a plug-and-play USB intelligent camera system that captures and transmits 180° 3840 x 1080 resolution UVC video.

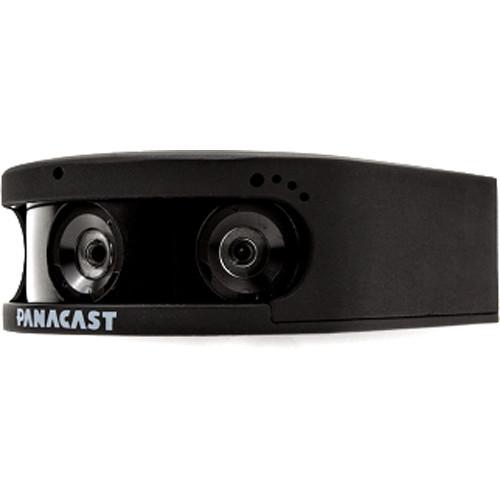

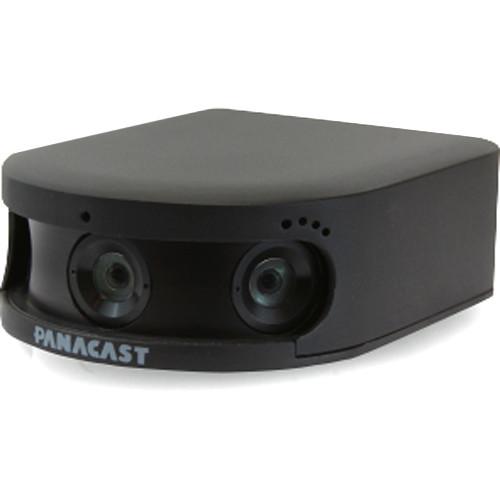

  • PanaCast 2 Camera with Table Stand (Black) This black PanaCast 2 Camera with Table Stand provides a seamless and virtually distortion free 180° view over UVC video. Suitable for small offices to larger meeting rooms, the PanaCast2 eliminates the need for PTZ cameras to see an entire meeting space. If you wish to replicate the effects of a PTZ camera, that is possible with a downloadable app which uses all three of the PanaCast 2's discrete sensors to provide a wide angle of view without creating fisheye distortion of your image, so people look the way you are used to seeing them. The camera combines the images and outputs a UHD 4K wide image at up to 30 fps, and can deliver an HD image as well. Please note the camera's resolution at UHD is 3840 x 1088, which yields a 180 x 54° angle of view.

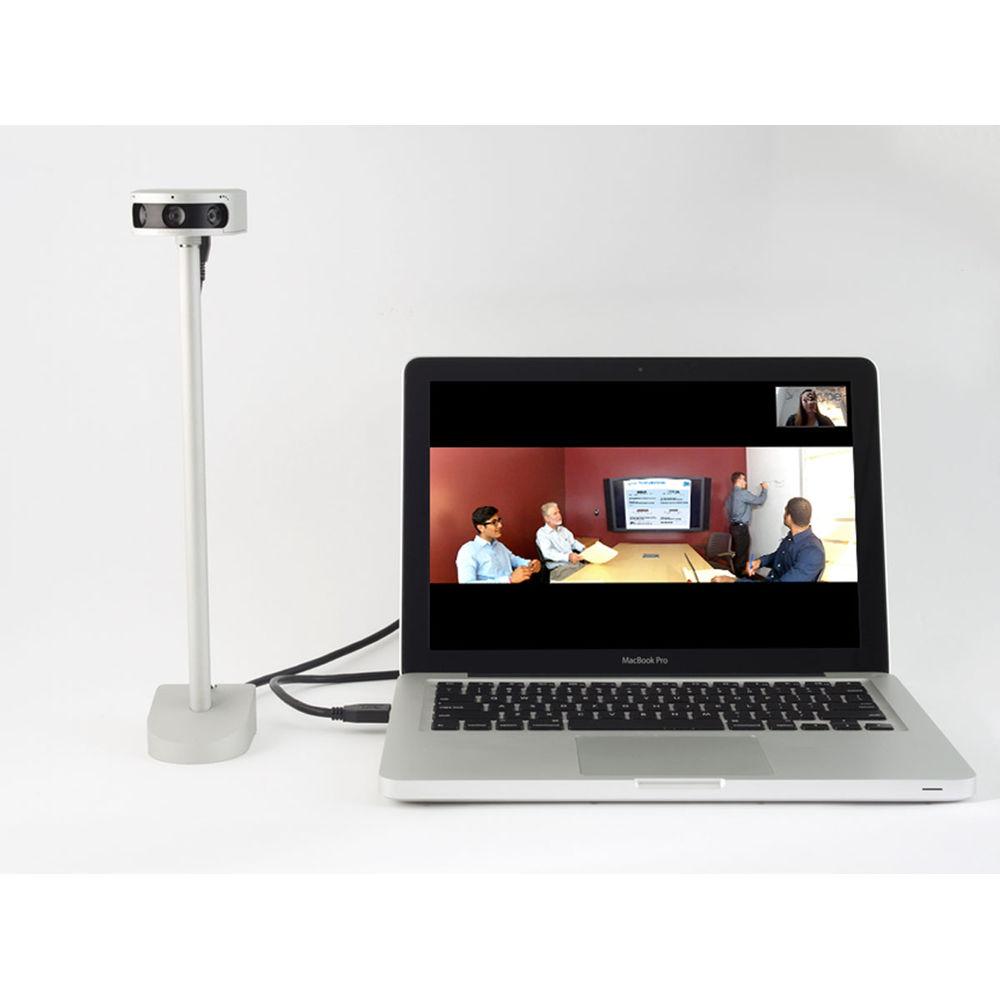

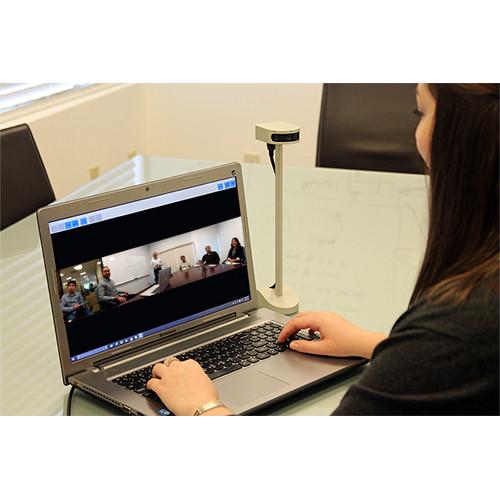

    The camera is plug-and-play on Windows and Mac systems and supports UVC video, so you need a computer to record or run the web collaboration software because the camera has no recording capabilities, as it is designed to be used for remote meetings. The camera features an HD stereo audio microphone and built-in noise cancellation for clear audio. The camera is compatible with a slew of web collaboration apps, and an included table stand supports the camera and raises it to approximately 11" tall.
    • 180° angle of view, without fisheye distortion

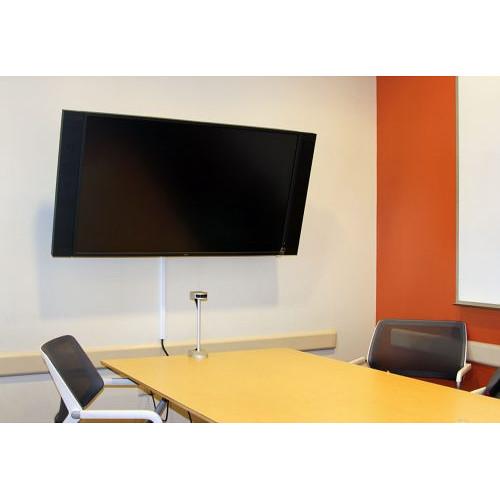

    • The wide angle of view enables seeing virtually an entire meeting room without requiring the use of a PTZ camera
    • The downloadable ePTZ app is available if you require the PTZ effect
    • The camera is UVC compliant, so it does not require the installation of any drivers and works with most web collaboration apps including:
      • Zoom
      • Vidyo
      • BlueJeans
      • Webex
      • Skype
      • Skype for Business
      • Google Hangouts
      • Citrix GoTo Meeting
    UPC: 852349005044
  • Intelligent Zoom Software License Key for PanaCast 2 Camera Activating the PanaCast Intelligent Zoom Software License Key for PanaCast 2 Camera unlocks the intelligent zoom capability of your camera. The software automatically and dynamically changes your camera's field of view to the minimum required to capture all participants. When you use PTZ control from the web conferencing software, the intelligent zoom is temporarily disabled.
    • A 25-character alpha-numeric key is emailed to the purchaser to unlock the software
    UPC: 852349005174
In the Box Bundle Items PanaCast 2 Camera with Table Stand (Black) eaeefuvbtxasvqzardtctvyzqufdxuwsyvvyq

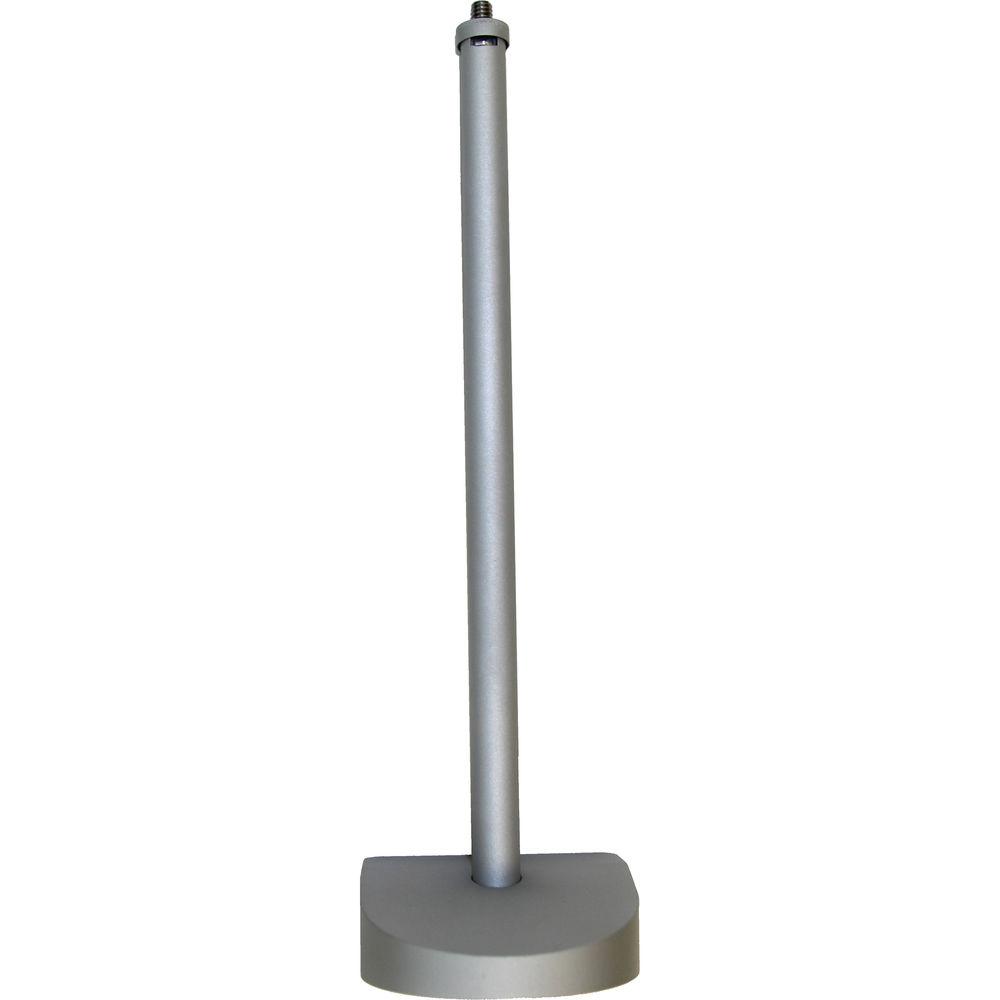

  • Table Stand
  • USB Cable
  • Power Adapter
  • Limited 1-Year Warranty
Intelligent Zoom Software License Key for PanaCast 2 Camera Table of Contents




Upload User Manual

Have you got an user manual for the PanaCast Intelligent Zoom Enabled PanaCast 2 Camera with Table Stand in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • PanaCast 2 Camera with Table Stand (Black)
    Sensor 3 x sensors
    Resolution Panoramic 4K: 3840 x 1080, 4.15 MP
    HD: 1920 x 1080, 2.1 MP
    Angle of View 180 x 54°
    Frame Rate Up to 30 fps
    Encoding 4:2:2 YUV MJPEG
    UVC
    Latency ≤5 ms
    Focus Range 0.98' to ∞ / 0.3 m to ∞
    Minimum Illumination 10 lux
    System Requirements Plug-and-Play for Windows and Mac applications
    Supports USB Video Class (UVC) Driver
    USB 2.0/3.0
    Windows 7, 8, 8.1 or later
    Mac OS X 10.9 or later
    Certifications FCC Part 15 Class A (for commercial use only)
    ROHS, REACH compliant
    Environmental Operating Temperature: 32 to 104°F / 0 to 40°C
    Operating Humidity: 15 to 85% (non-condensing)

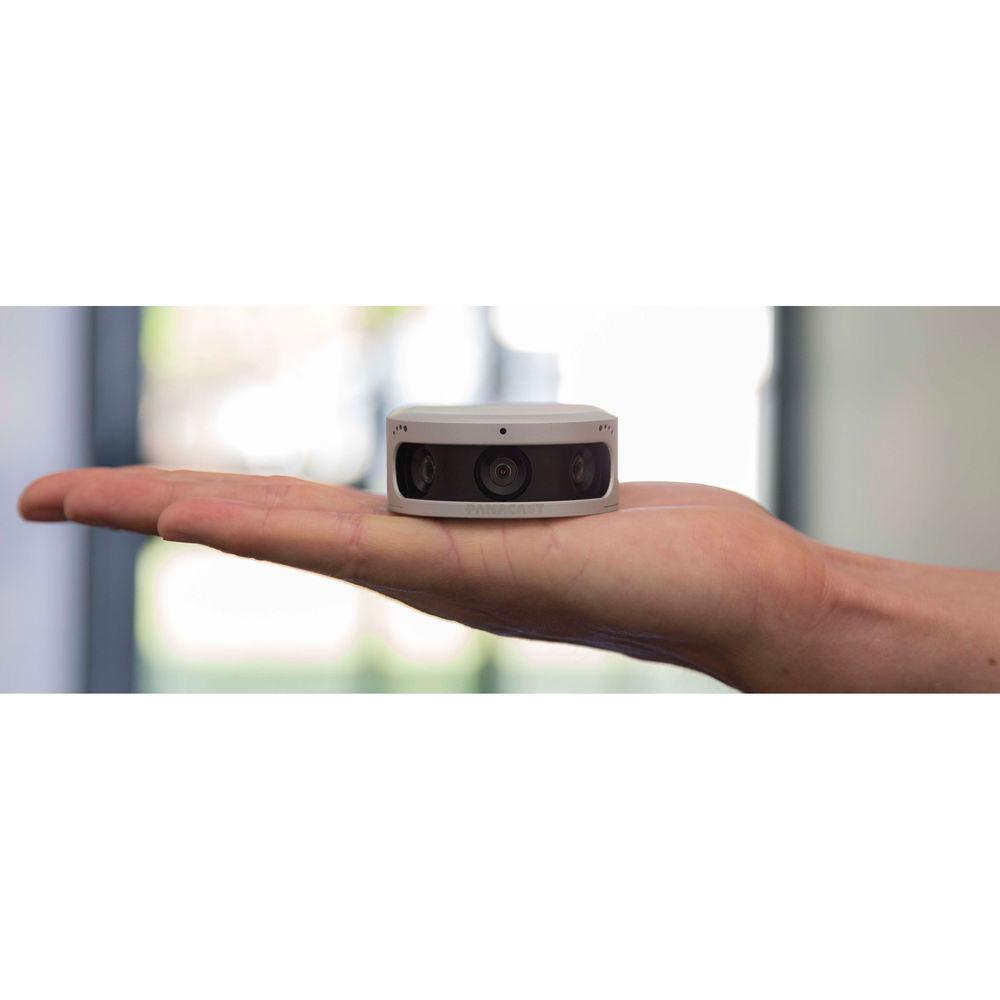

    Dimensions Camera Body: 2.91 x 2.36 x 0.98" / 7.4 x 6 x 2.5 cm
    Table Stand: 2 x 2 x 11" / 5.08 x 5.08 x 27.94 cm
    Weight 4.4 oz / 125 g
    Box Dimensions (LxWxH) 14.05 x 7.55 x 7.0"
