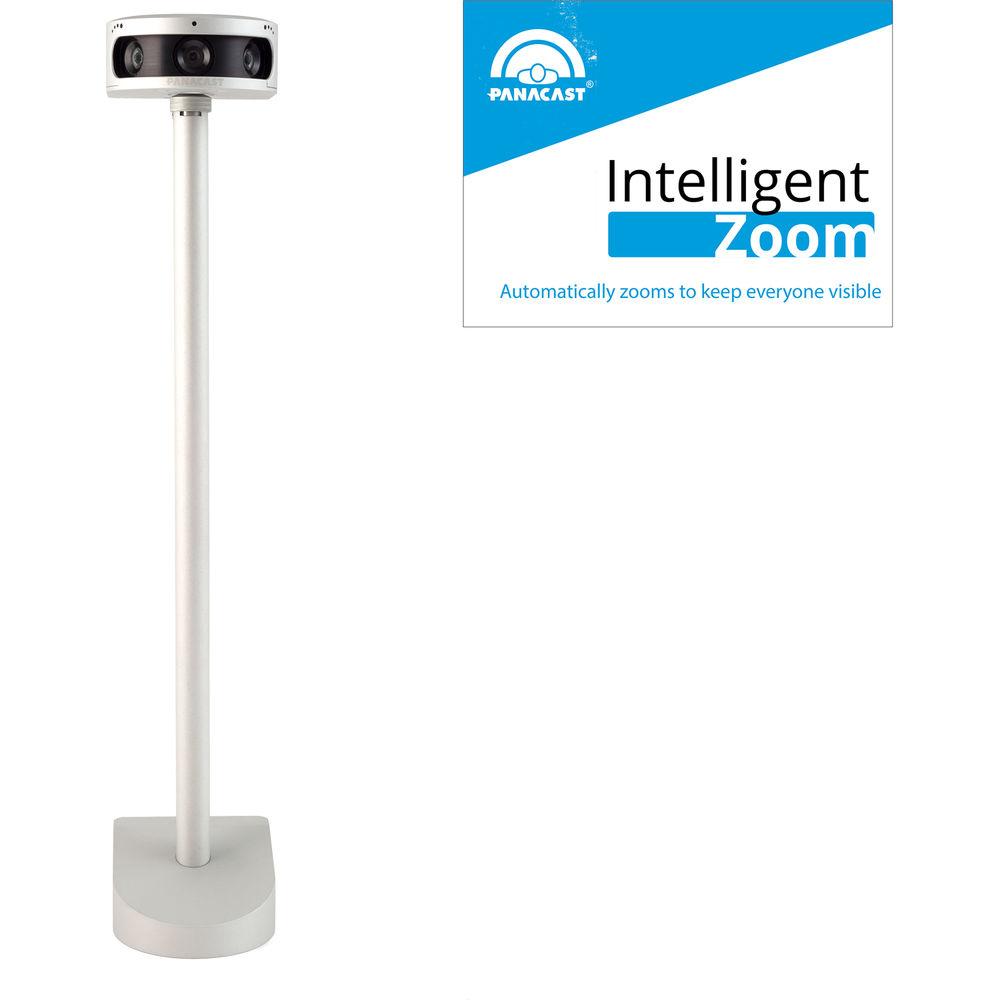

User Manual for PanaCast Intelligent Zoom Enabled PanaCast 2 Camera with Table Stand Click to enlarge the picture
Contents of the user manual for the PanaCast Intelligent Zoom Enabled PanaCast 2
- Product category: Video Conferencing Cameras PanaCast
- Brand: PanaCast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PanaCast Video Conferencing Cameras
 |
User manual for the PanaCast Intelligent Zoom Enabled PanaCast 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PanaCast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PanaCast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PanaCast product will considerably shorten its lifespan!
|

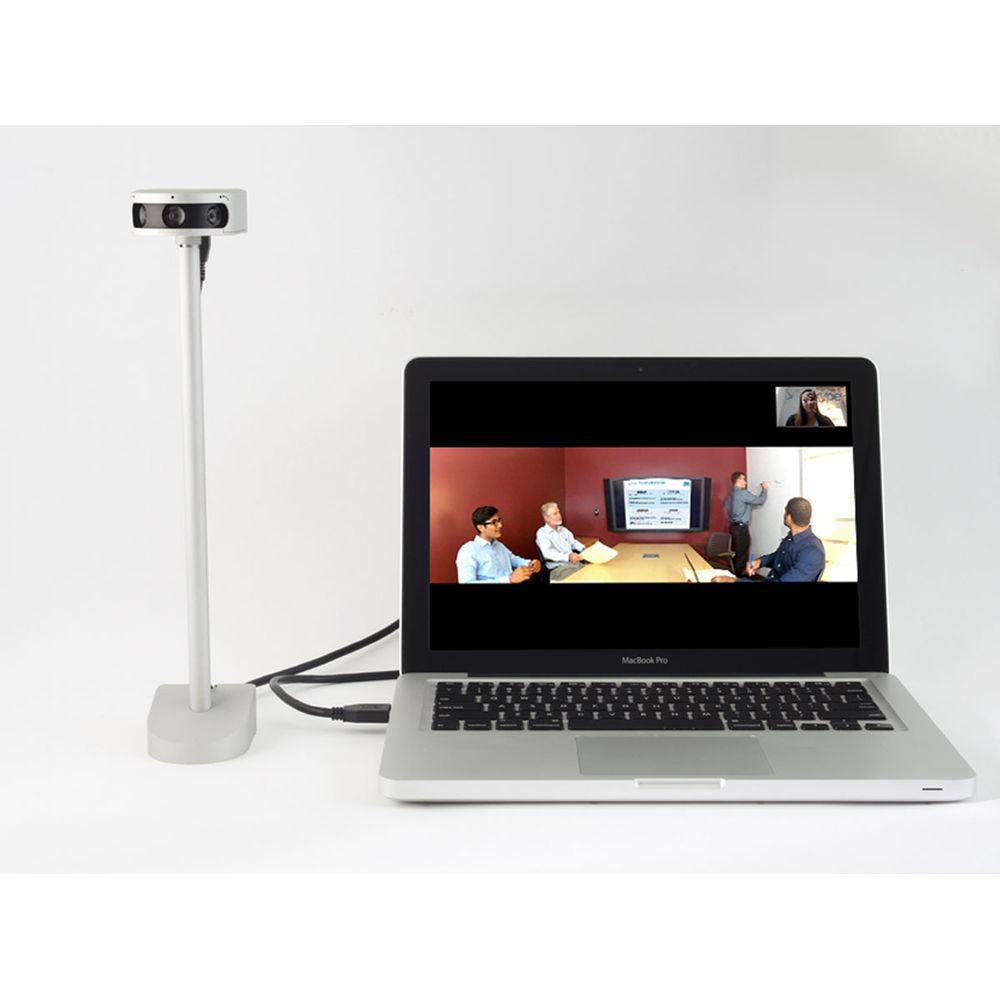

Product description This silver PanaCast Intelligent Zoom Enabled PanaCast 2 Camera with Table Stand is a plug-and-play USB intelligent camera system that captures and transmits 180° 3840 x 1080 resolution UVC video. - PanaCast 2 Camera with Table Stand (Silver) This silver PanaCast 2 Camera with Table Stand provides a seamless and virtually distortion free 180° view over UVC video. Suitable for small offices to larger meeting rooms, the PanaCast2 eliminates the need for PTZ cameras to see an entire meeting space. If you wish to replicate the effects of a PTZ camera, that is possible with a downloadable app which uses all three of the PanaCast 2's discrete sensors to provide a wide angle of view without creating fisheye distortion of your image, so people look the way you are used to seeing them. The camera combines the images and outputs a UHD 4K wide image at up to 30 fps, and can deliver an HD image as well. Please note the camera's resolution at UHD is 3840 x 1088, which yields a 180 x 54° angle of view.

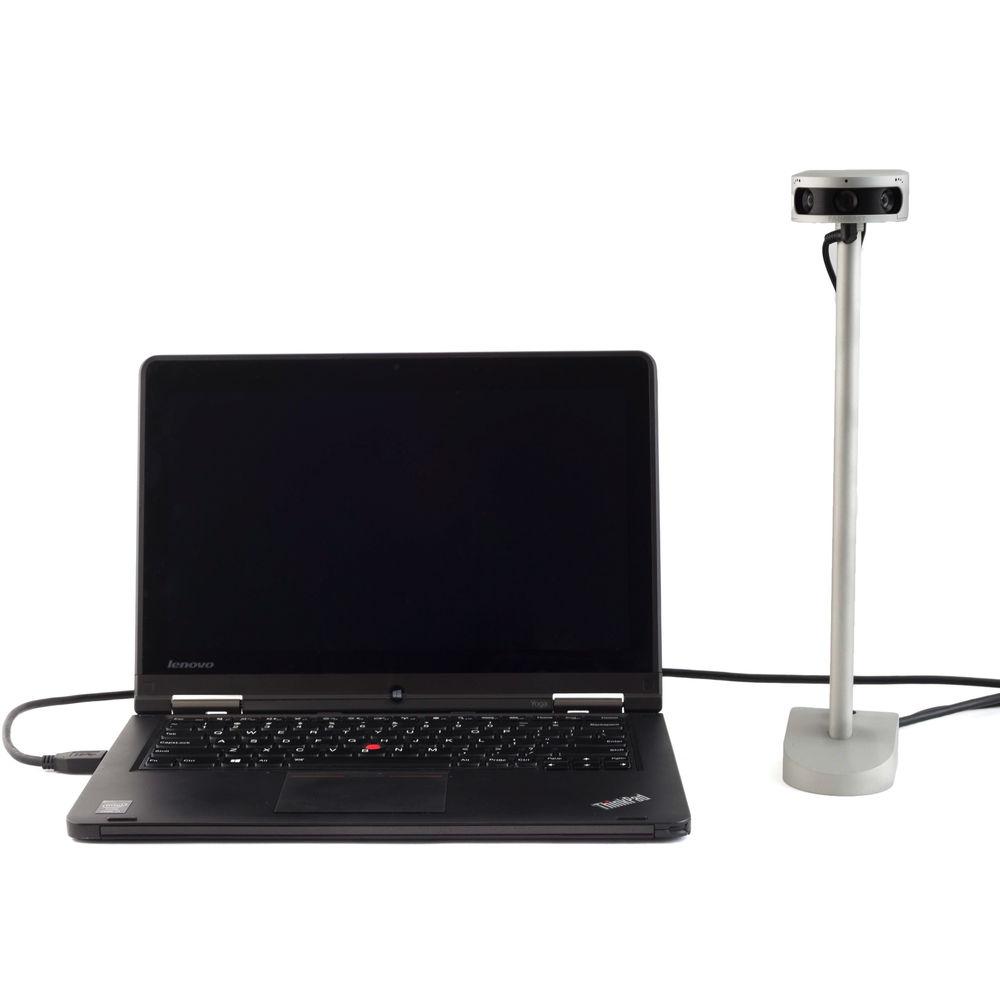

The camera is plug-and-play on Windows and Mac systems and supports UVC video, so you need a computer to record or run the web collaboration software because the camera has no recording capabilities, as it is designed to be used for remote meetings. The camera features an HD stereo audio microphone and built-in noise cancellation for clear audio. The camera is compatible with a slew of web collaboration apps, and an included table stand supports the camera and raises it to approximately 11" tall. - 180° angle of view, without fisheye distortion
- The wide angle of view enables seeing virtually an entire meeting room without requiring the use of a PTZ camera
- The downloadable ePTZ app is available if you require the PTZ effect
- The camera is UVC compliant, so it does not require the installation of any drivers and works with most web collaboration apps including:
- Zoom
- Vidyo
- BlueJeans
- Webex
- Skype
- Skype for Business
- Google Hangouts
- Citrix GoTo Meeting
UPC: 852349005051 - Intelligent Zoom Software License Key for PanaCast 2 Camera Activating the PanaCast Intelligent Zoom Software License Key for PanaCast 2 Camera unlocks the intelligent zoom capability of your camera. The software automatically and dynamically changes your camera's field of view to the minimum required to capture all participants. When you use PTZ control from the web conferencing software, the intelligent zoom is temporarily disabled.
- A 25-character alpha-numeric key is emailed to the purchaser to unlock the software
UPC: 852349005174 In the Box Bundle Items PanaCast 2 Camera with Table Stand (Silver) saztvxryywdadaxvdxsttcux Intelligent Zoom Software License Key for PanaCast 2 Camera Table of Contents
|
Upload User Manual
Have you got an user manual for the PanaCast Intelligent Zoom Enabled PanaCast 2 Camera with Table Stand in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PanaCast 2 Camera with Table Stand (Silver)
| Sensor | 3 x sensors | | Resolution | Panoramic 4K: 3840 x 1080, 4.15 MP
HD: 1920 x 1080, 2.1 MP | | Angle of View | 180 x 54° | | Frame Rate | Up to 30 fps | | Encoding | 4:2:2 YUV MJPEG
UVC | | Latency | ≤5 ms | | Focus Range | 0.98' to ∞ / 0.3 m to ∞ | | Minimum Illumination | 10 lux | | System Requirements | Plug-and-Play for Windows and Mac applications
Supports USB Video Class (UVC) Driver
USB 2.0/3.0
Windows 7, 8, 8.1 or later
Mac OS X 10.9 or later | | Certifications | FCC Part 15 Class A (for commercial use only)
ROHS, REACH compliant | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Operating Humidity: 15 to 85% (non-condensing) | | Dimensions | Camera Body: 2.91 x 2.36 x 0.98" / 7.4 x 6 x 2.5 cm
Table Stand: 2 x 2 x 11" / 5.08 x 5.08 x 27.94 cm | | Weight | 4.4 oz / 125 g | | | | Box Dimensions (LxWxH) | 14.1 x 6.7 x 6.2" | - Intelligent Zoom Software License Key for PanaCast 2 Camera
