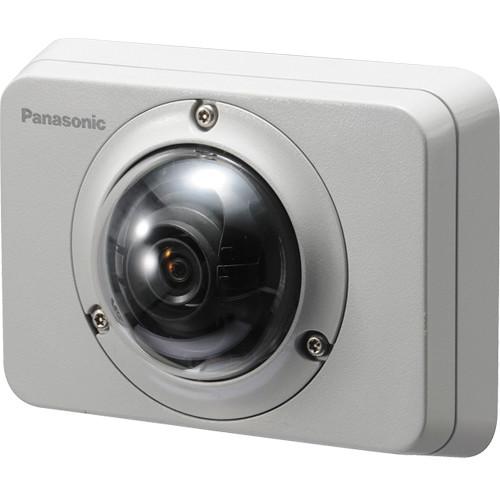

User Manual for Panasonic 1.3MP Outdoor Dome Camera Click to enlarge the picture
Contents of the user manual for the Panasonic 1.3MP Outdoor Dome Camera
- Product category: Wired IP Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired IP Cameras
 |
User manual for the Panasonic 1.3MP Outdoor Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The 1.3MP Outdoor Dome Camera from Panasonic is equipped with a 1.3MP progressive-scan MOS sensor that captures 720p video at 30 fps. It offers high-quality day/night surveillance even in locations with a minimum illumination of 0.6 lux (B&W) via software. This camera allows dual streaming of real-time imagery in H.264 and JPEG formats with the UniPhier system LSI platform.
The Super Dynamic, Adaptive Black Stretch technologies, and 128x wider dynamic range, ensure the visibility of subjects in dark areas of a video scene without compromising the image quality of brighter areas. The Face Super Dynamic technology ensures clear images of the human face. Furthermore, the progressive-scan sensor ensures blur-free images even when the subject is moving. Variable Image Quality on Specified Area (VIQS) technology allows the camera to have higher resolution only on specified areas of the image, which enables optimum bandwidth and storage utilization thanks to images with lower file size and bit rate.
Equipped with 3D-DNR (Digital Noise Reduction) technology, the camera filters signals that could result in grainy images. The camera also offers selectable light control modes including indoor scenes (50/60 Hz) and ELC (maximum exposure time). When movement is detected, alarm sources including VMD and Panasonic alarm command, trigger actions such as FTP image transfer and email notification, indication on browser, and Panasonic alarm protocol output. The camera has an SD/SDHC memory card slot that allows for data backup during network failure. - Up to 720p resolution at up to 30 fps
- 1.3MP progressive-scan MOS sensor
- High-sensitivity with electronic day/night via software
- Minimum illumination of up to 0.8 lux (color) and 0.6 lux (B/W) at f/2.2
- Multiple H.264 and JPEG streams ensure simultaneous real-time monitoring and high-resolution recording by Panasonic UniPhier LSI platform
- Electronic sensitivity enhancement
- 2x extra zoom at VGA resolution
- 2x, 4x digital zoom controlled by browser
- VMD (Video Motion Detection) with 4 programmable detection areas, 15-step sensitivity level, and 10-step detection size
- Privacy Zone feature can mask up to two areas
- Camera title display with up to 20 alphanumeric characters on the browser
- JPEG Image compression ratio can be changed by alarm so that higher quality image can be provided
- Prioritized stream control prioritizes one of the video streams when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate
- SDHC/SD memory card slot for manual recording (H.264/JPEG), alarm recording (H.264/JPEG), and backup upon network failure (JPEG)
- H.264 maximum bit rate/client and total bit rate control allows flexible network traffic management
- Frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate
- H.264 images can be transmitted over HTTP protocol in the Internet mode
- IPv4/IPv6 protocol supported
- Supports SSL, DDNS (viewnetcam, RFC2136)
- Still images (JPEG) can be viewed on mobile phones
- Suitable for railway applications (EN50155 approved)
- Wide coverage of up to 104° horizontal and up to 85° vertical
- IP66-rated for outdoor use
- Vandal-resistant mechanism for installation in high-risk areas
UPC: 885170152373 In the Box Panasonic 1.3MP Outdoor Dome Camera CD-ROM with Tool Software Programs Code Label Required for Network Management Lens Adjuster Tamperproof Screw Bit Waterproof Tape Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic 1.3MP Outdoor Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Panasonic 1.3MP Outdoor Dome Camera can be downloaded in PDF format at the link stated below.
Technical parametersPanasonic WV-SW115 Specs | | | Image Sensor | 1/3" MOS sensor | | Effective Pixels | 1.3 MP | | Scanning Mode | Progressive-scan | | Scanning Area | 0.19 x 0.16" (4.8 x 3.6 mm) | | Minimum Illumination | Color: 0.8 lux (f/2.2, Auto Slow Shutter: Off (1/30 sec), High Gain: On)
0.05 lux (f/2.2, Auto Slow Shutter: Maximum 16/30 sec, High Gain: On Gain: On)
B/W: 0.6 lux at f/2.2 | | White Balance | AWC (2,000 to 10,000 K)
ATW1 (2,700 to 6,000 K)
ATW2 (2,000 to 6,000 K) | | Light Control | Mode: Indoor scene (50/60 Hz) and ELC | | Electronic Shutter Speed | With Super Dynamic On: 1/30 sec
With Super Dynamic Off: 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 sec | | Electronic Sensitivity UP | Off (1/30 sec), maximum 2/30 sec, maximum 4/30 sec, maximum 6/30 sec, maximum 10/30 sec, maximum 16/30 sec | | Day & Night | Electronic | | Dynamic Range | 52 dB typical (Super Dynamic: On, Light Control: ELC) | | Video Motion Detection | Four-zone | | Privacy Zone | Two-zone | | Focus Adjustment | Manual | | | | Focal Length | 1.95mm | | Zoom Ratio | 1x, 2x (at VGA resolution) | | Horizontal Angle of View | 104° | | Vertical Angle of View | 85° | | Maximum Aperture Ratio | 1:2.2 | | Focusing Range | 1.6' (0.5 m) to infinity | | | | Adjusting Angle | Wall Installation:
Horizontal: ±30° Vertical: ±30° | | | | Camera Control | Brightness | | Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different quad screens or 16 split screen (JPEG only)
20 characters camera title available | | Digital Zoom | 1x, 2x, 4x controlled by browser GUI | | Camera Title | Up to 20 alphanumeric characters | | Clock Display | Time: 12 or 24 hour
Date: 5 formats on the browser, summer time (Manual) | | One Shot Capture | A still picture will be displayed on a newly opened window | | SD Memory Data Download | Still or motion images recorded in the SDHC/SD memory card can be downloaded | | System Log | Up to 100 (internal)
Up to 4,000 error logs (SDHC/SD memory when the recording format is set to JPEG) | | Supported OS | Microsoft Windows Vista, 7, 8 | | Supported Browsers | Windows Internet Explorer 7 to 11 (32-bit) | | | | Image Resolution | Aspect Ratio (4:3):
H.264: 1280 x 960, VGA (640 x 480), QVGA (320 x 240), up to 30 fps
JPEG: 1280 x 960, 640 x 480, 320 x 240, up to 30 fps
Aspect Ratio (16:9):
H.264: 1280 x 720, 640 x 360, 320 x 180, up to 30 fps
JPEG: 1280 x 720, 640 x 360, 320 x 180, up to 30 fps | | H.264 Profile | Transmission Mode: Constant bitrate, frame rate priority, best effort, advanced VBR
Frame Rate: 1, 3, 5, 7.5, 10, 15, 20, 30 fps
Bit Rate/Client:
64, 128, 256, 384, 512, 768, 1024, 1536, 2048, 3072, 4096 kb/s
8,192 kb/s in H.264 mode only
Image Quality: Low, normal, fine
Transmission Type: Unicast and Multicast
Note: Transmission for 2 streams can be individually set. | | JPEG | Image Quality: 10 steps
Refresh Interval: 0.1 to 30 fps
Transmission Type: Pull and push
Total Bit Rate: 64, 128, 256, 384, 512, 768, 1024, 2048, 4096, 8192 kb/s, unlimited | | | | Network IF | 10Base-T, 100Base-TX, RJ45 connector (female) with PoE | | Supported Protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP | | FTP Client | Alarm image transmission, FTP periodic transmission When the FTP transmission fails the cameras backups on the SDHC/SD memory cards (available separately). | | Number of Simultaneous Users | Up to 14 users (depends on network conditions) | | Memory Card | SDHC memory card: 4, 8, 16, and 32 GB
SD memory card: 256 and 512 MB, 1 and 2 GB Available separately. Not compatible with miniSD and microSD cards. | | Cellular Phone Compatibility | JPEG image | | Mobile Terminal Compatibility | iPad, iPhone, iPod touch (iOS 4.2.1 or above), Android devices | | | | Alarm Source | VMD, command alarm | | Alarm Actions | SDHC/SD memory recording, E-mail notification, indication on browser, FTP image transfer, Panasonic protocol output | | Alarm Log | 5,000 logs with SDHC/SD memory card
1,000 logs without SDHC/SD memory card | | Schedule | VMD | | | | Safety/EMC Standard | Safety: UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1
EMC: FCC Part15 Class A, ICES-003 Class A, EN55022 Class B, EN55024 | | Power | PoE (IEEE802.3af compliant)
PoE 48 V: 56 mA (Class 1 device) | | Ambient Operating Temperature | -22 to 122°F (-30 to 50°C) | | Ambient Operating Humidity | 20 to 90 % (no condensation) | | Impact Protection | Compliant with 20 J IEC60068-2-75 | | Water and Dust Resistance | IP66 (IEC60529) | | Application | Railway Application: EN50155, EN50121 | | Finish | Main body: Aluminum die cast, light gray
Dome section: Clear polycarbonate resin | | Dimensions (L x W x H) | 1.94 x 4.77 x 3.44" (49.21 x 121.05 x 87.31 mm) | | Weight | Approximately 0.88 lb (0.4 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 8.1 x 6.2 x 4.5" |
