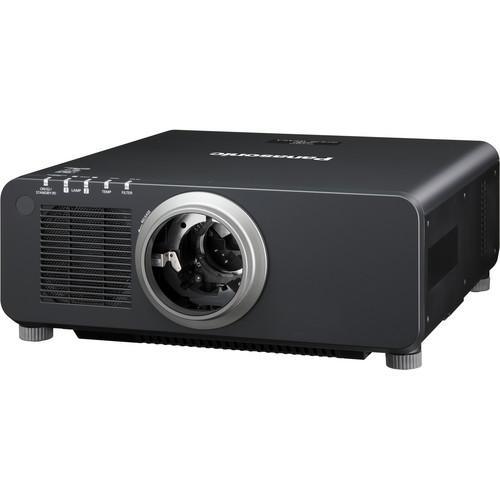

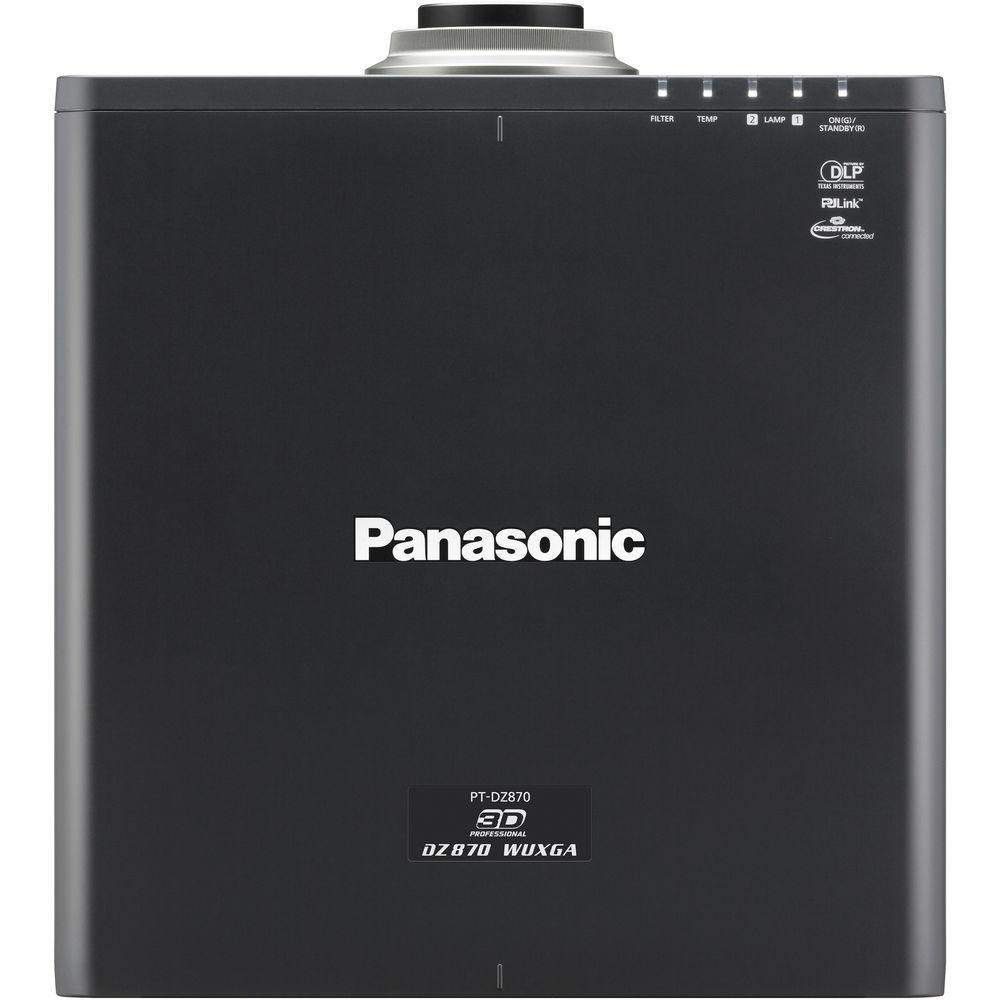

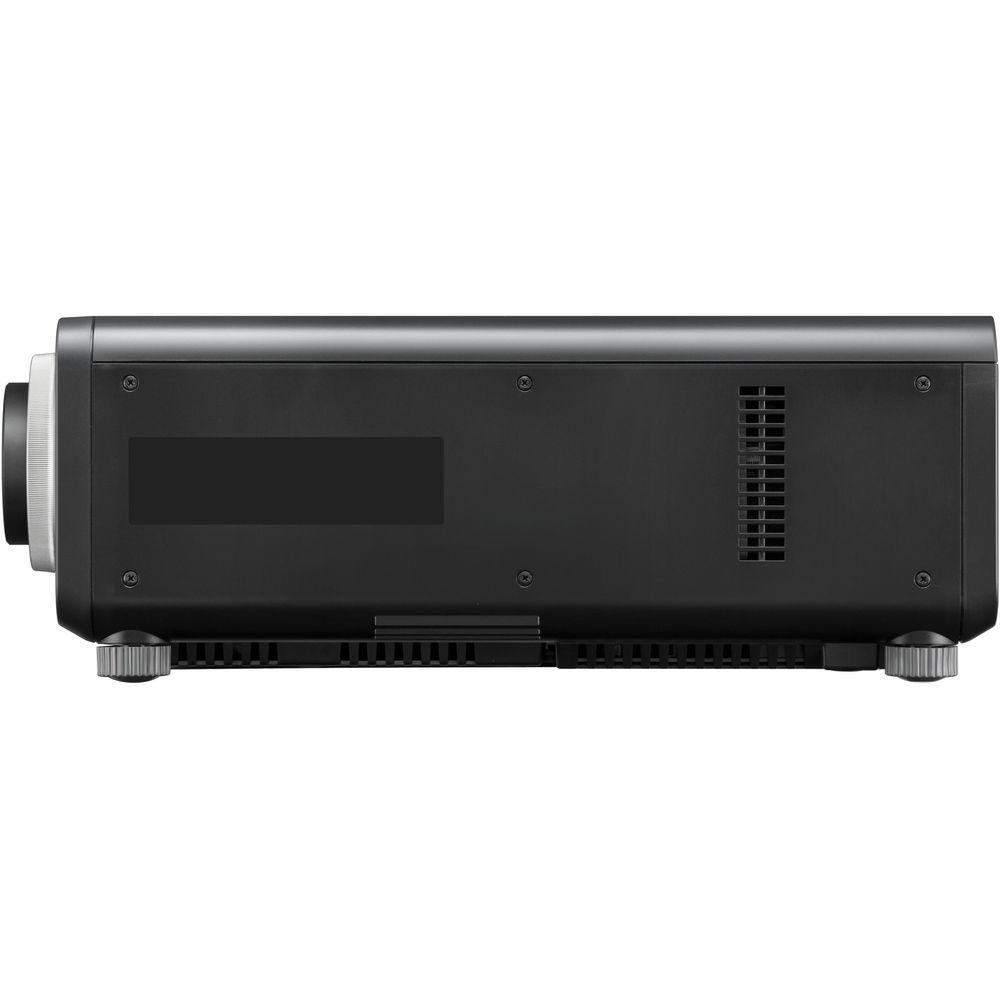

Product description High quality, power and versatility characterize this DZ870UK 1-Chip 8,500 Lumen DLP Projector (without Lens) from Panasonic. Delivering a powerful 8500 lumens, it is well suited for use even in fully-lit rooms as well rear projection applications. Housed in a dust-resistant shroud, the optical block will retain its brilliance and clarity for longer periods, as well as reducing maintenance and repairs. With a unique dual-lamp drive system in a compact body, boasting deeper, richer blacks, and a more detailed, textured image, the projector is optimal for businesses, medical applications and larger venues. The dynamic iris technology with scene-linking aperture mechanism achieve 10,000:1 contrast ratio while maintaining brightness. 3D capability, portrait projection (requiring additional lamp), and multi-screen projection further add to the DZ870's flexibility. - Bright, 10000:1 Contrast & 8500 LM From a Compact Body
- The projector's dual lamp drive allows it to be a compact size. Lamps run on 420 W each, to provide a combined 8500 LM brightness.
- Dynamic RGB Booster Enhances Brightness and Color Reproduction
- The RGB Booster achieves high image quality with levels of color reproduction and brightness that make each color stand out. It combines Panasonic's proprietary Vivid Color Control technology with a Lamp Modulation Drive System, producing bright, vivid colors. Images are analyzed frame by frame, and scene-linking and real-time modulation are used to achieve high brightness and rich color reproduction.
- Dust-Resistant Optical Block Housing
- The optical block, the heart of the projector, is sealed to resist the effects of dust and other particles in the air, enabling easy removal of air filters.
- Rear Lamp Replacement
- Rear access to the lamp makes replacement easy, without dismounting the unit.
- Flexible Installation
- The wide adjustment range of the lens is easily adjusted with the remote control. The unit can be rotated 360° vertically to accommodate various installation conditions. The lens-centered design contributes to easy installation.
- DICOM Simulation Mode
- Optimized for medical applications, this imaging mode is similar to DICOM part 14, a medical imaging standard. It reproduces X-ray images with great clarity.
- Multi-Screen Support System
- The Multi-Screen Support System adjusts multiple screens: Edge blending, color matching and multi-screen processor.
Edge Blending: The edges of adjacent screens can be blended and their luminance controlled.
Color Matching: This function corrects for slight variations in the color reproduction range of individual projectors. The PC software assures easy, accurate control.
Multi-Screen Processor: The PT-DZ870 Series projectors can project large, multi-screen images without any additional equipment. Up to 100 units (10 x 10) can be edge-blended at a time.
- Multi-Unit Brightness Control
- Automatically corrects brightness fluctuations between individual projectors when used as a multi-screen system. Up to eight connected projectors can be controlled via a hub, and can be increased to a maximum of 2,048 projectors using the Multi Projector Monitoring & Control software.
- Compatible with Both Passive and Active 3D Projection Systems
- Combining either separate, external 100/120/144 Hz drives with IR emitter and active shutter glasses, or an active filter and passive glasses, for viewing 3D images.
- Geometric Adjustment
- This function adjusts the image for projection onto spherical, cylindrical or other specially shaped screens. You can make adjustments using only the remote control, with no external equipment needed.
- Environmentally Friendly
- RoHS compliant
Stand-by power consumption of only 0.3 W
Lead-free solder used to mount components on the printed circuit boards
Auto Power Save activates standby mode when no signal is input
No halogenated flame retardants used in the cabinet - Additional Features
-
- Detail Clarity Processor 3
- System Daylight View 2
- Rec 709
- Waveform
- AI Scene Control
- Dual Lamp system
- Filterless dust resistant optical block
- System Integration
- Digital link
- Art-Net compatible
- Optional upgrade kit
- Monitoring and control over LAN
- Selection of optional lenses
- Mechanical lens shutter with fade in/out effect
- Scheduling function
- Direct power off

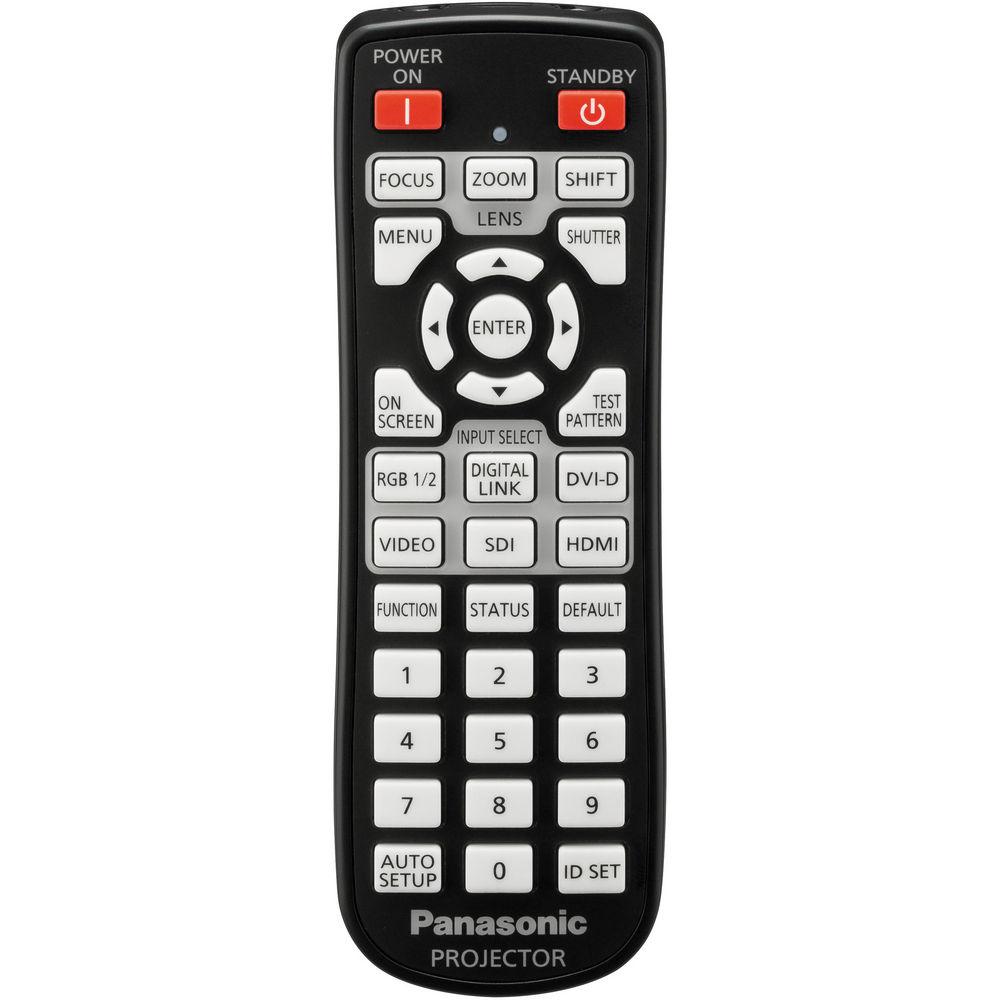

- 30 m long-range wireless remote control
- Anti-theft features with chain opening
- Control device setup function
- ID assignment for up to 64 units
- Built-in test pattern
UPC: 885170123304 In the Box Panasonic 1-Chip 8,500 Lumens DLP Projector (without Lens, Black) Power Cord with Secure Lock Wireless/Wired Remote Control Unit 2 x R03/AAA Type Batteries Software CD-ROM Including Logo Transfer Software, Multi Projector Monitoring & Control Software Limited 3-Year Warranty on Projector Limited 90-Day Warranty on Lamp User Manual PDF 20.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic 1-Chip 8,500 Lumens DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PT-DZ870ULK Specs | | | Display System | 1-Chip 0.67" DLP | | Native Chip Resolution | 1920 x 1080 (WUXGA) | | Supported Resolutions | WUXGA - 1920 x 1080 | | Max Brightness | 8500 Lumens | | Uniformity | 90% | | Aspect Ratio | 16:10 | | Contrast Ratio | 10000:1 Contrast ratio with full on/off, dynamic iris on.
| | DLP Link 3D | Yes | | Scan | Horizontal: 15 to 100 kHz
Vertical: 24 to 120 Hz | | | | Lens Shift | None | | Throw Ratio | None | | Projection Size | None | | | | Keystone Correction | Vertical: ± 40°

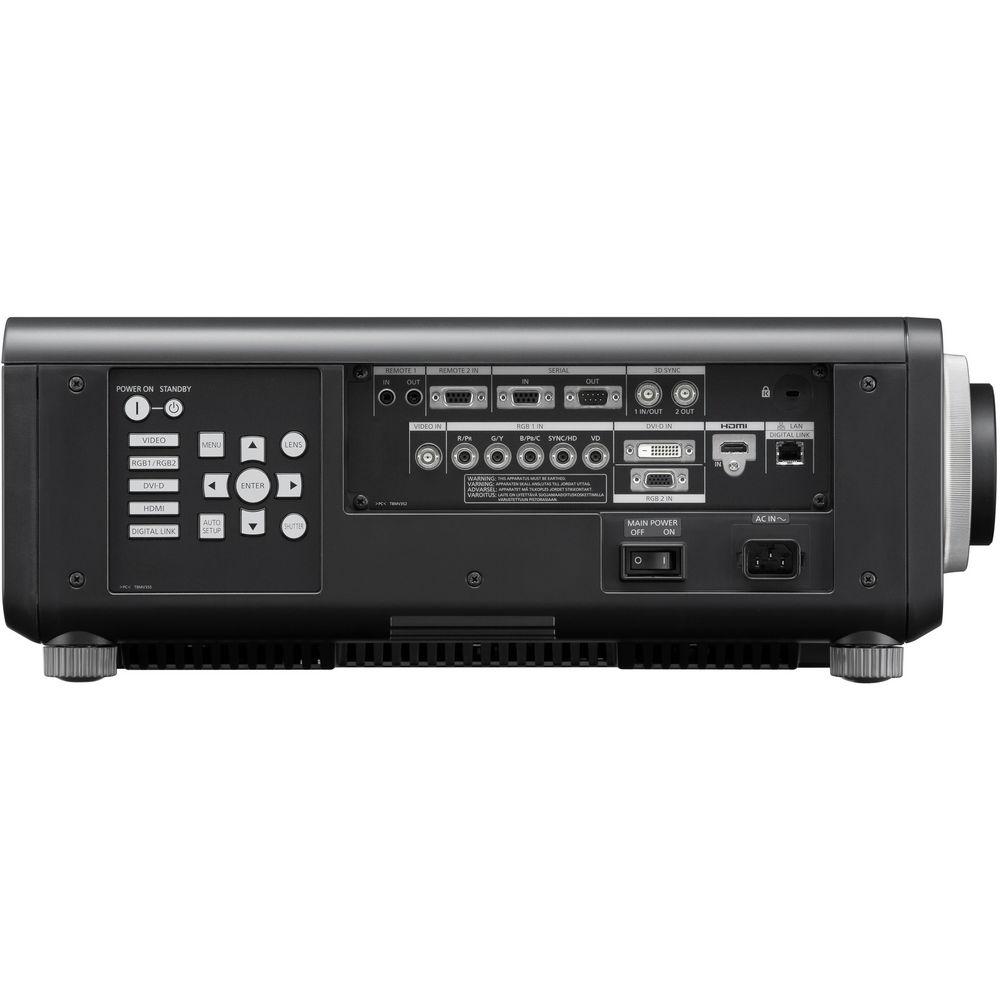

Horizontal: ± 15° | | Ceiling Mountable | Yes | | | | Inputs/Outputs | 1 x SDI (BNC) Video (Input)
1 x HDMI Video (Input)
1 x DVI-D Video (Input)
1 x 5BNC Audio/Video (Input)
1 x VGA (DE-15) Type-A Female (Input)
1 x Composite (BNC) Video (Input/Output)
1 x Composite (BNC) Video (Output)
1 x Composite (BNC) Video (Input)
1 x Unspecified Signal (DE-9) Type-A Female (Input)
1 x Unspecified Signal (DE-9) Type-A Male (Output)
1 x M3 Remote (Input)
1 x M3 Remote (Output)
1 x Unspecified Signal (DE-9) Remote (Input)
1 x Ethernet (RJ45) LAN (Input) | | | | Light Source | Lamp (2 x UHM) | | Lamp Power | 420 W | | Fan Noise | Low Brightness: 35 dB
Medium Brightness: 40 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Heat Dissipation | 3516 BTU without light 3,400 BTU/hour | | Power Consumption | Medium Brightness: 1030 W
Standby Mode (Lamp Off): 3 W
Standby Mode (Lamp Off): 0.3 W | | Temperature | Operating
32 to 113°F (0 to 45°C)
Humidity: 10 - 80% No condensation | | Dimensions (W x H x D) | 19.6 x 7.9 x 20.2" / 498.0 x 200.0 x 513.0 mm approximately Height with legs at shortest position | | Weight | 38.80 lb / 17.6 kg approximately | | | | Package Weight | 50.8 lb | | Box Dimensions (LxWxH) | 28.0 x 26.0 x 14.0" |
