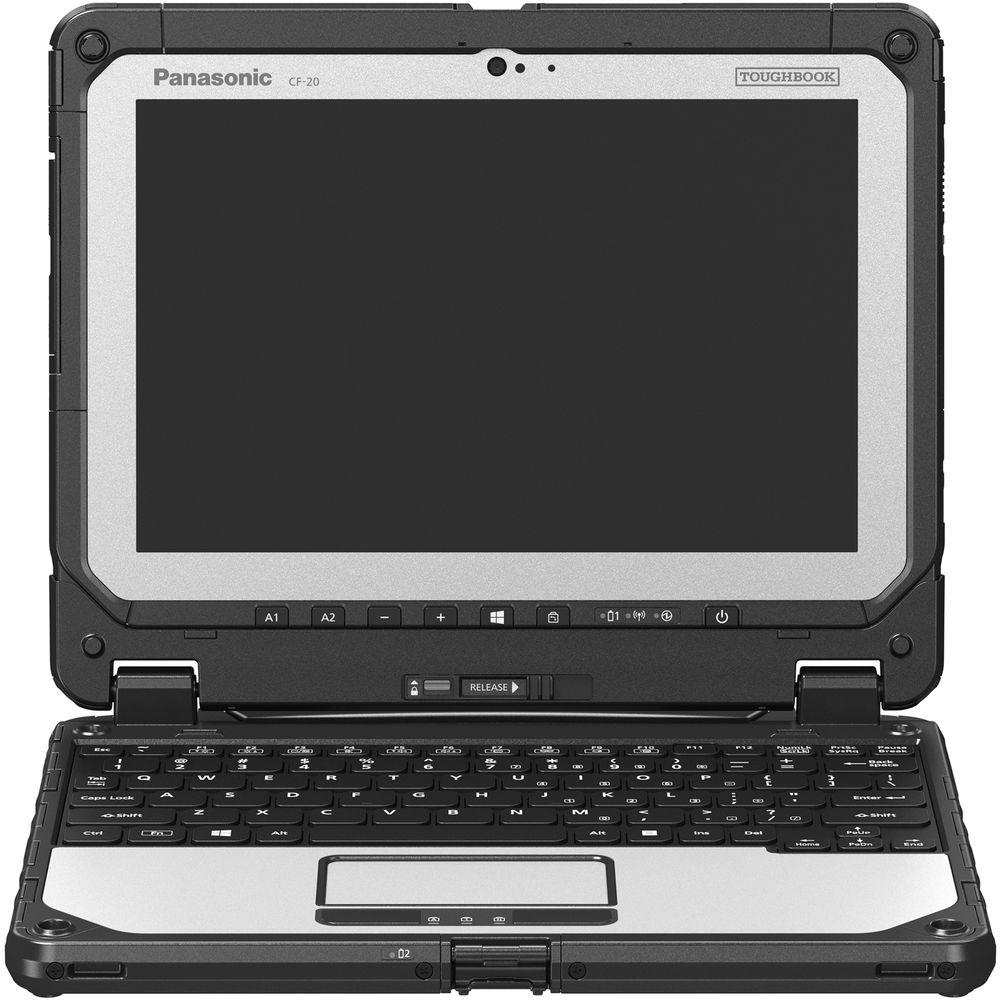

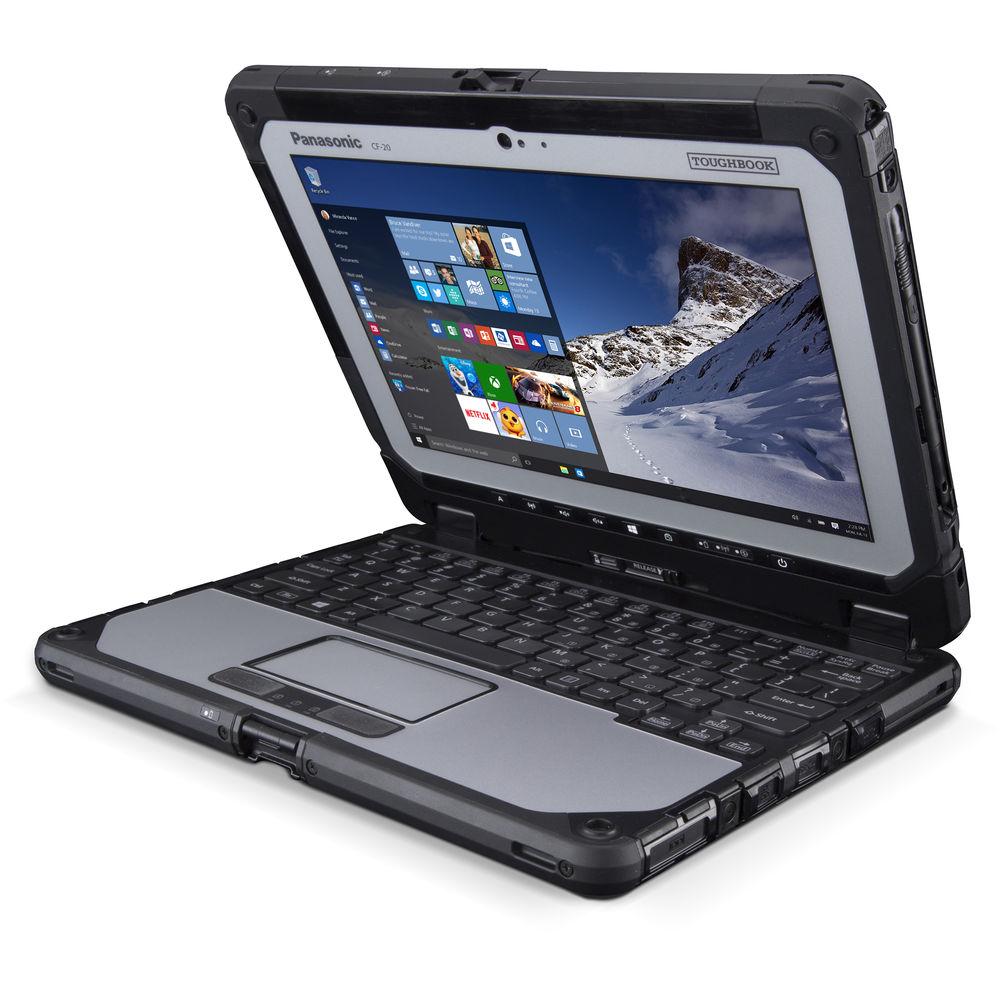

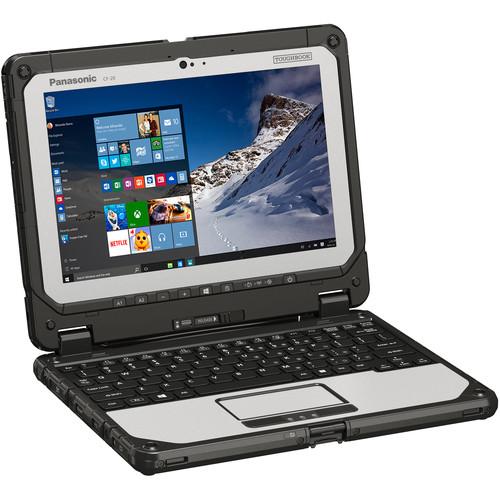

Product description Work Laptops The Panasonic 10.1" Toughbook 20 Multi-Touch 2-in-1 Notebook is a rugged tablet PC with a detachable keyboard that quickly delivers a notebook experience, so you can be productive when you're at the office or outdoors. The Toughbook 20 is powered by a 1.1 GHz Intel Core m5-6Y57 processor along with 8GB of 1600 MHz DDR3L memory to run your apps. The processor operates at a base speed of 1.1 GHz and can achieve speeds of up to 2.8 GHz while running demanding programs. For long-term memory needs, the tablet sports a 128GB SSD with a built-in heater, which enables it to work in cooler environments. There is also an integrated microSDXC slot on the tablet for expanding its storage capabilities.
Panasonic has outfitted the Toughbook 20 with 10.1" IPS display that comes with a screen resolution of 1920 x 1200, powered by integrated Intel HD Graphics 515. The screen is capable of a brightness level of up to 800 cd/m², which allows you to view what is being displayed when outdoors. The screen's multi-touch feature allows you to double tap to activate apps or type using an on-screen keyboard even while wearing gloves. Windows 7 Pro is preinstalled via Microsoft's downgrade option that lets you uninstall the current operating system and install Windows 10 Pro.
The tablet provides a Gigabit Ethernet jack for accessing networks reliably and quickly as well as built-in 802.11ac Wi-Fi, letting it access the Internet wirelessly. Another notable feature is built-in 4G LTE, which allows the Toughbook 20 to access the internet when Wi-Fi is not available. Once connected, you can conduct face-to-face online conversations utilizing the tablet's webcam, speaker, and microphone. To connect with your monitors, printers, and other gear, it offers HDMI, USB 3.0, and headphone ports. Additionally, Bluetooth 4.1 is on board, so you can use your Bluetooth-enabled headset for VOIP calls.

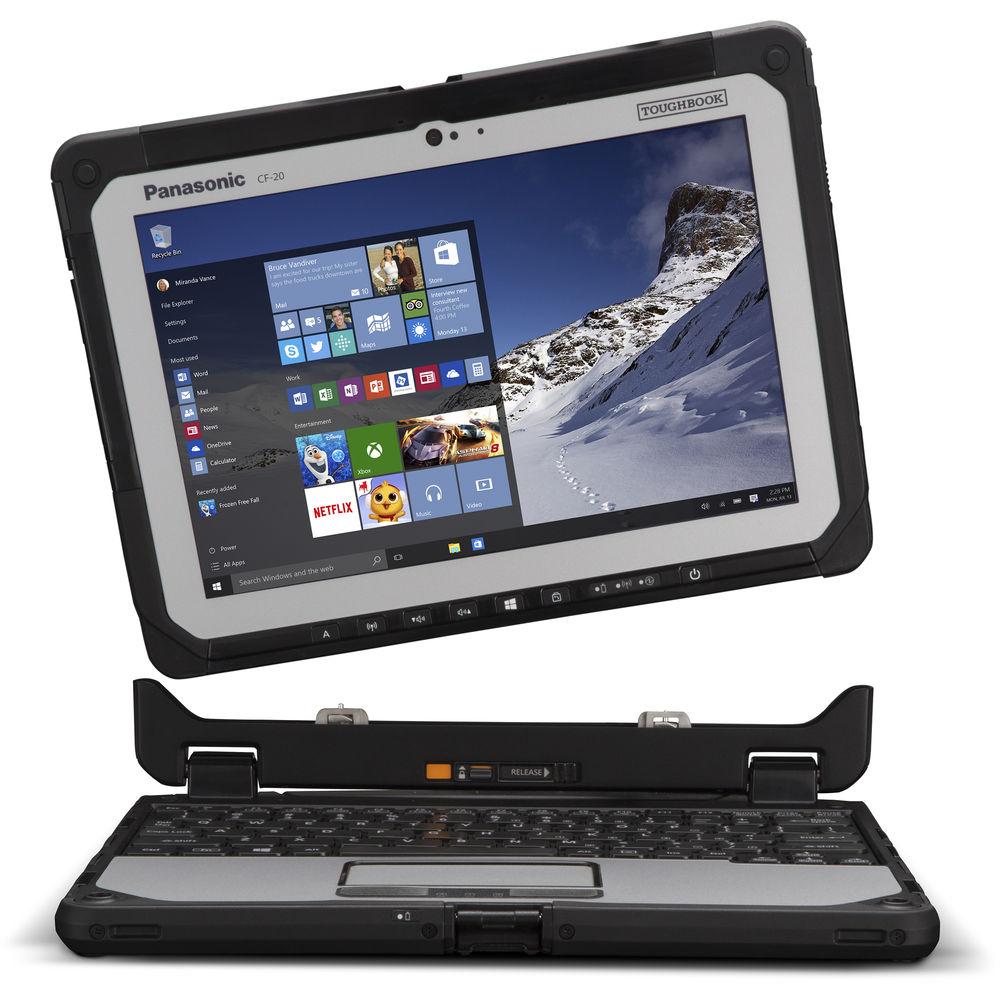

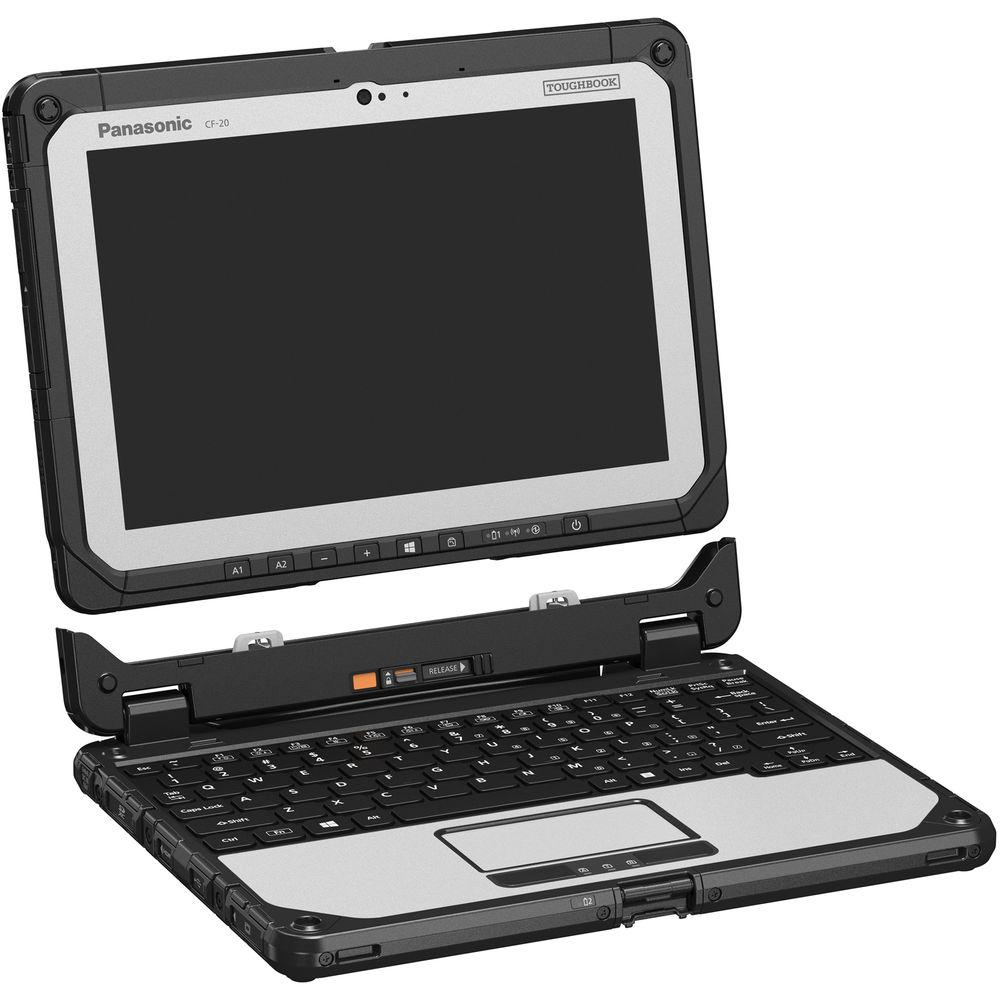

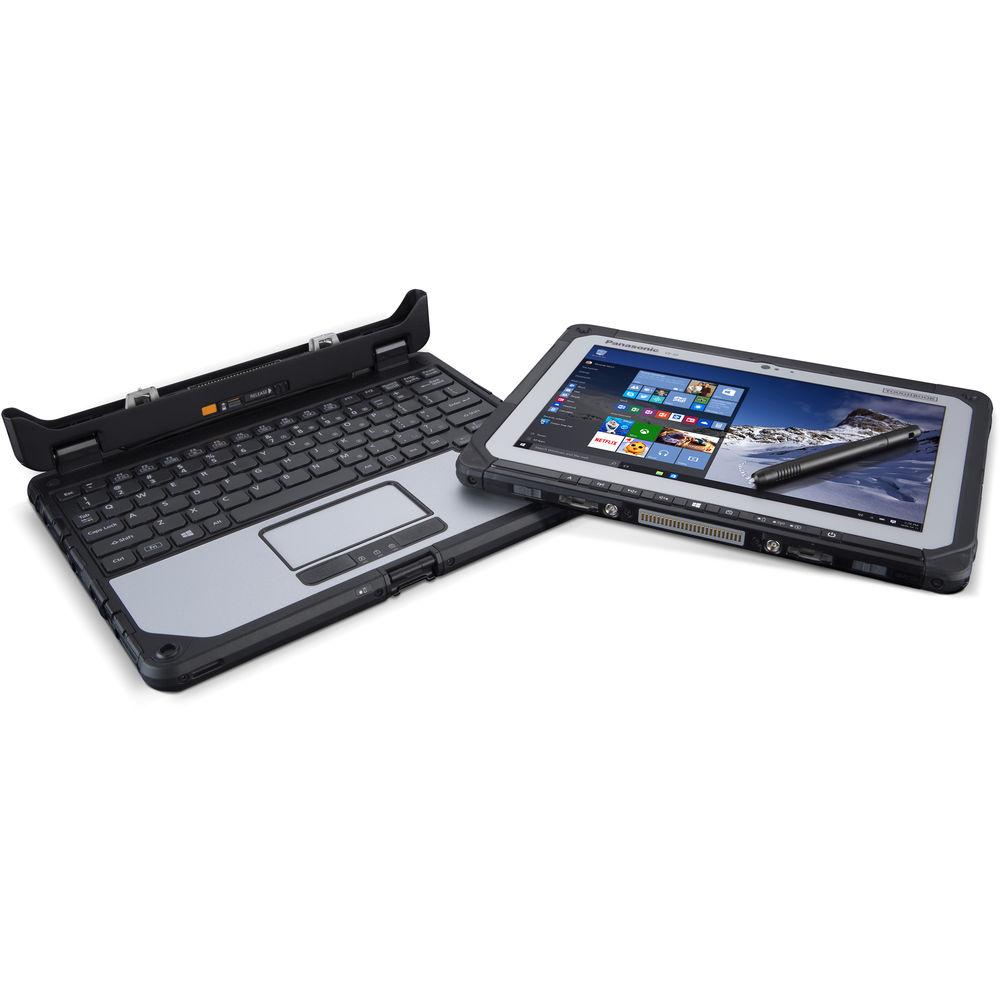

The detachable keyboard expands the tablet's functions by offering a backlit keyboard, touchpad, and SDXC slot as well as HDMI, serial, USB 3.0, and Gigabit Ethernet outputs, which provide quick docking capabilities. In addition to these ports, the keyboard grants the tablet one VGA port and one USB 2.0 port. You can also double the tablet's battery life with an optional second battery inserted into the dock. - Durability and Portability

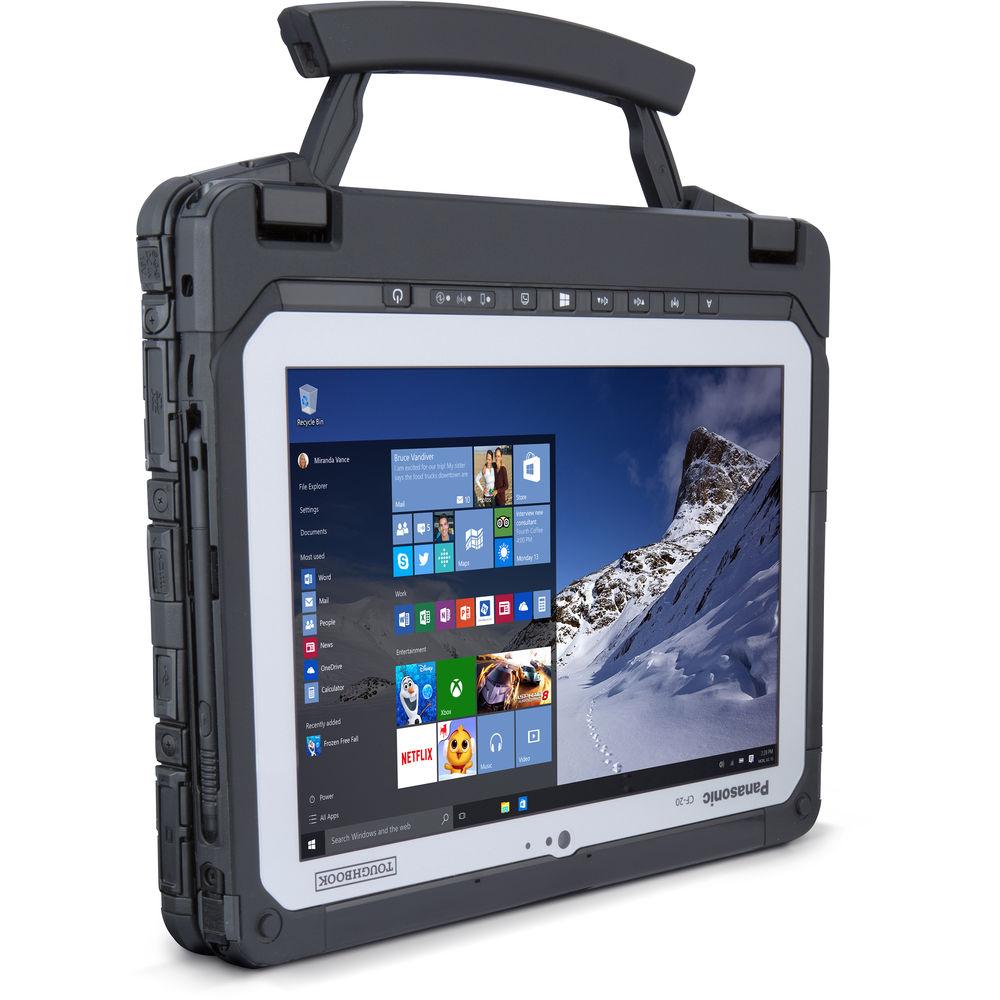

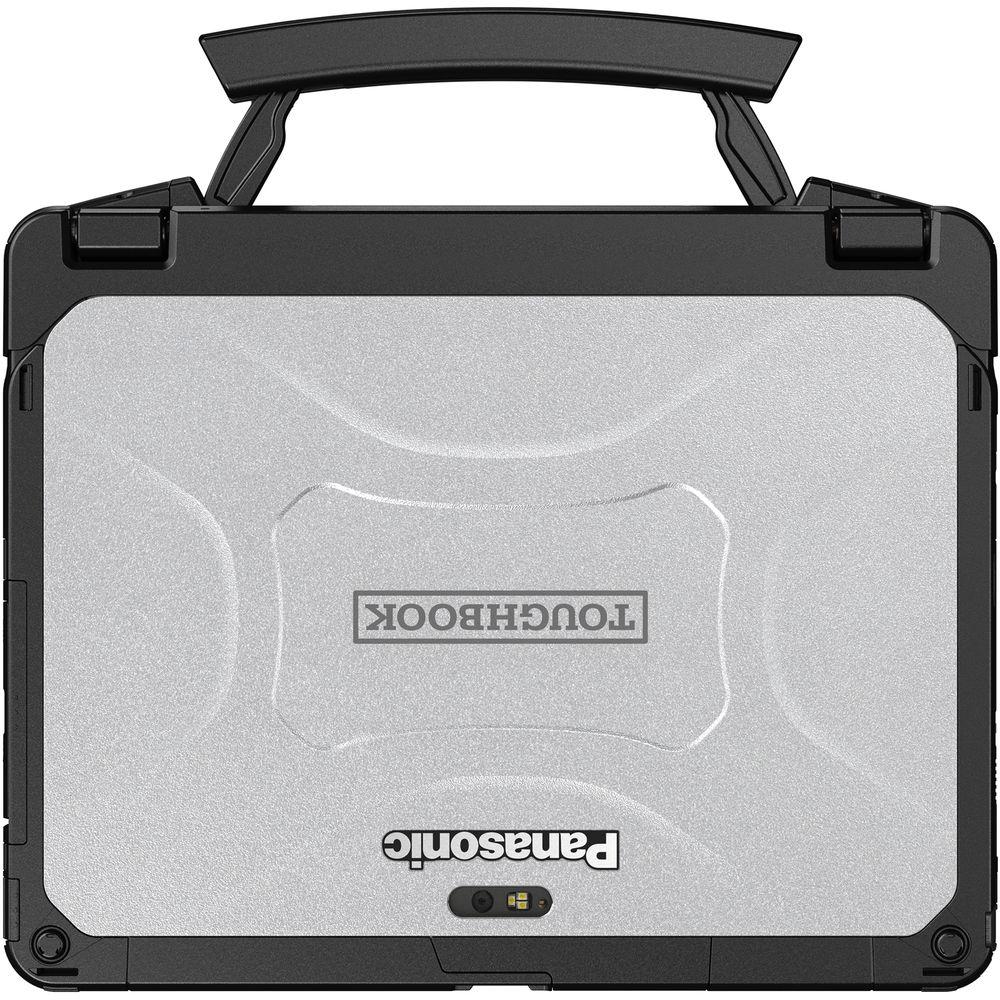

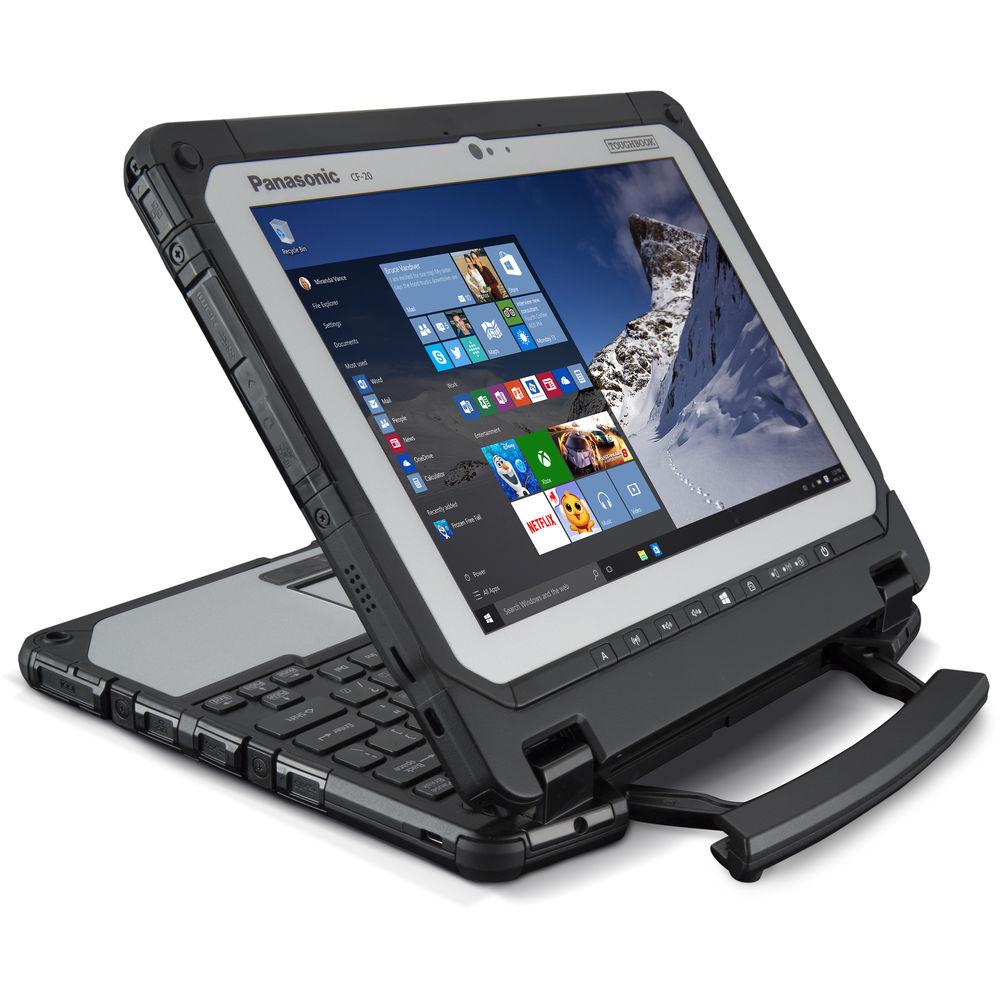

- The Panasonic Toughbook 20 comes with MIL-STD-810G, MIL-STD-461F, and IP65 certifications to help it survive the rigors of travel and outdoor use. Additionally, the Toughbook 20 weighs under 4 lb and has a built-in dual-purpose carrying handle, which also functions as a kickstand.
- MIL-STD-810G certified for shock, vibration, rain, dust, sand, altitude, freeze/thaw, high/low temperature, temperature shock, solar radiation, salt fog, humidity, explosive atmosphere
- Tablet connected to the keyboard is able to withstand 4' drops
- 5' drops with tablet
- Mag bullet
- Reinforced locking port covers
- Raised bezel for LCD impact protection
- Preinstalled replaceable screen film for LCD protection
UPC: 885170276765 In the Box Panasonic 10.1" Toughbook 20 Multi-Touch 2-in-1 Notebook Limited 3-Year Warranty Spec sheet PDF 884.9kbtsctaqywxbeeuefterqtsxqbezs Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic 10.1" Toughbook 20 Multi-Touch 2-in-1 Notebook in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic CF-20 Specs | Operating System | Windows 7 Professional | | | | CPU Socket | BGA 1515 | | CPU | 1.1 GHz Intel Core m5-6Y57 Dual-Core | | Maximum Boost Speed | 2.8 GHz | | L3 Cache | 4 MB | | Memory Type | 1600 MHz DDR3L | | Total Installed Memory | 8 GB | | Memory Configuration | 1 x 8 GB (User-Replaceable) | | Available Memory Slots | None | | Graphics Type | Integrated | | GPU | Intel HD Graphics 515 | | | | Panel Type | IPS | | Size | 10.1" | | Resolution | 1920 x 1200 | | Touchscreen | Yes | | Maximum Brightness | 800 cd/m2 | | Adaptive Sync Technology | None | | | | Total Installed Capacity | 128 GB | | Solid State Storage | 1 x 128 GB 2.5" SATA | | | | Ports | 3 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-A (USB 2.0)
1 x DE-9 (Serial) | | Display | 2 x HDMI
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone Output | | Built-In Speakers | Yes | | Built-In Microphones | Yes | | Media Card Slots | 1 x SDXC | | | | Ethernet | 2 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.1 | | SIM Card Size | 1 x Micro | | GSM 3G/3.5G | Yes | | 4G LTE | LTE | | GPS | Built-in | | Webcam | User-Facing | | | | Battery Chemistry | Lithium-Ion | | Watt Hours / Type | 30 Wh Removable | | Output Voltage | 11.4 VDC | | Maximum Runtime | 10 Hours | | | | Keyboard | 82-Key Notebook Keyboard with Backlight | | Pointing Device | TouchPad | | | | Security | HDD User Password Protection, Kensington Lock Slot, Infineon TPM Software Professional Package | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | 10.7 x 9.2 x 1.3" / 27.18 x 23.37 x 3.3 cm | | Weight | 3.9 lb / 1.8 kg | | | | Package Weight | 6.85 lb | | Box Dimensions (LxWxH) | 15.7 x 12.2 x 5.3" |
