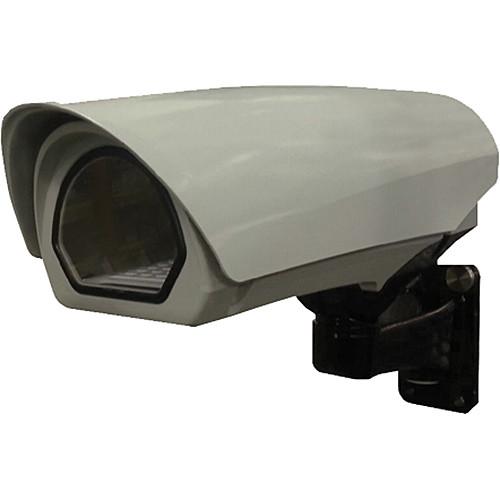

User Manual for Panasonic 10" Rugged Wall Mount Environmental Outdoor Housing with PoE Plus, Heater Blower, & Sunshield for Fixed Network Cameras Click to enlarge the picture
Contents of the user manual for the Panasonic 10" Rugged Wall Mount Environmental
- Product category: Housings Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Housings
|
User manual for the Panasonic 10" Rugged Wall Mount Environmental contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The 10" Rugged Wall Mount Environmental Outdoor Housing with PoE Plus, Heater/Blower, & Sunshield from Panasonic is designed for a wide range of fixed network cameras. It features a side hinge for easy lens adjustment, tool-free snap-in camera tray, back hinge break-away mount to allow cable pass-thru, and a notched mount for pole mounting with banding straps (not included). This environmental housing features an enhanced airflow design to eliminate service calls by providing heating/cooling to the temperature sensitive camera components. In addition, it is IP66-rated to eliminate water ingress. The housing is constructed from impact resistant polycarbonate and the wall / pole mount is made from cast aluminum and features a durable powder-coat finish. The wall / pole mount comes equipped with a 3/4" (21mm) conduit knockout and features a feed-thru cable design. The DPA (Dynamic Power Allocation) PoE technology reduces installation time by simplifying the wiring needs and prioritizing power supply to the camera. It constantly monitors the camera and peripheral components to optimize the power consumption as per requirements. - Meets NEMA Type 4X and IP66 standards
- Accommodates wide-angle lenses up to 135°
- Hinged wall mount allows for easy installation
- Standard wall / pole mounting
- Built-in thermostatically controlled heater and blower
- Intelligent PoE input power
- Supports all Panasonic PoE Plus IEEE802.3at compliant cameras
- True PoE power to the camera (no splitter needed)
- Automatically adjusts for power loss in long cable runs
- DPA (Dynamic Power Allocation) technology ensures maximum power to the camera by constantly monitoring the environmental conditions
Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic 10" Rugged Wall Mount Environmental Outdoor Housing with PoE Plus, Heater Blower, & Sunshield for Fixed Network Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic POH1100NWME Specs | Compatible With | Network Bullet Cameras: WV-SP509 / 508 / 105 / 102 / 306 / 305 / 302
WV-NP502 / 304 | | Construction | Body and Top: Polycarbonate
Mounting Bracket: Cast aluminum
Window: Scratch-resistant polycarbonate | | Mounting | Pattern: 2.00 x 4.25" (51.00 x 108.00 mm)
Style: Wall or pole | | Camera | Maximum Camera Size (L x H x W): 11.0 x 3.5 x 2.7" (28.0 x 8.9 x 6.7 cm) | | Operating Temperature | -50 to 122°F (-45 to 50°C) | | Heater | Activates at 60°F (15.5°C)
De-activates at 80°F (27°C) | | Blower | Yes (continuous) | | Effective Projected Area (EPA) | 101.00 in2 (651.61 cm²) | | Windload | Maximum: 150 mph (240 kph) | | Power Consumption | 25 W for camera, blower, & heater | | Power Output | PoE power to PoE IEEE802.3af compliant Panasonic cameras | | IP Rating | IP66 | | Impact Rating | NEMA 4 | | Certifications & Approvals | CE, cUL, RoHS, UL listed, WEEE, REACH | | Dimensions | 17.9 x 5.7 x 10.5" (45.5 x 14.5 x 26.7 cm) | | Weight | 4.50 lb (2.04 kg) |
