User Manual for Panasonic 16.5" Full HD Rack-Mountable Production Monitor Click to enlarge the picture
Contents of the user manual for the Panasonic 16.5" Full HD Rack-Mountable Production
- Product category: Production Monitors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Production Monitors
 |
User manual for the Panasonic 16.5" Full HD Rack-Mountable Production contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

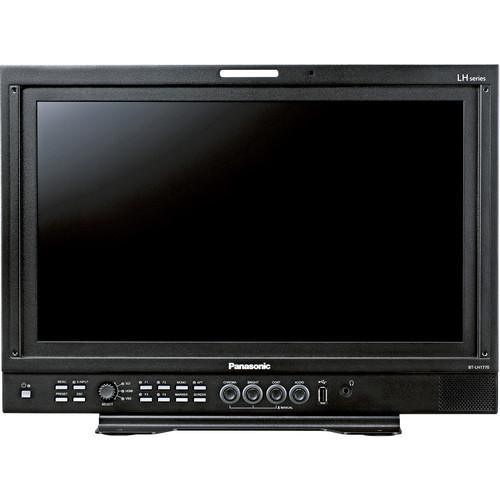

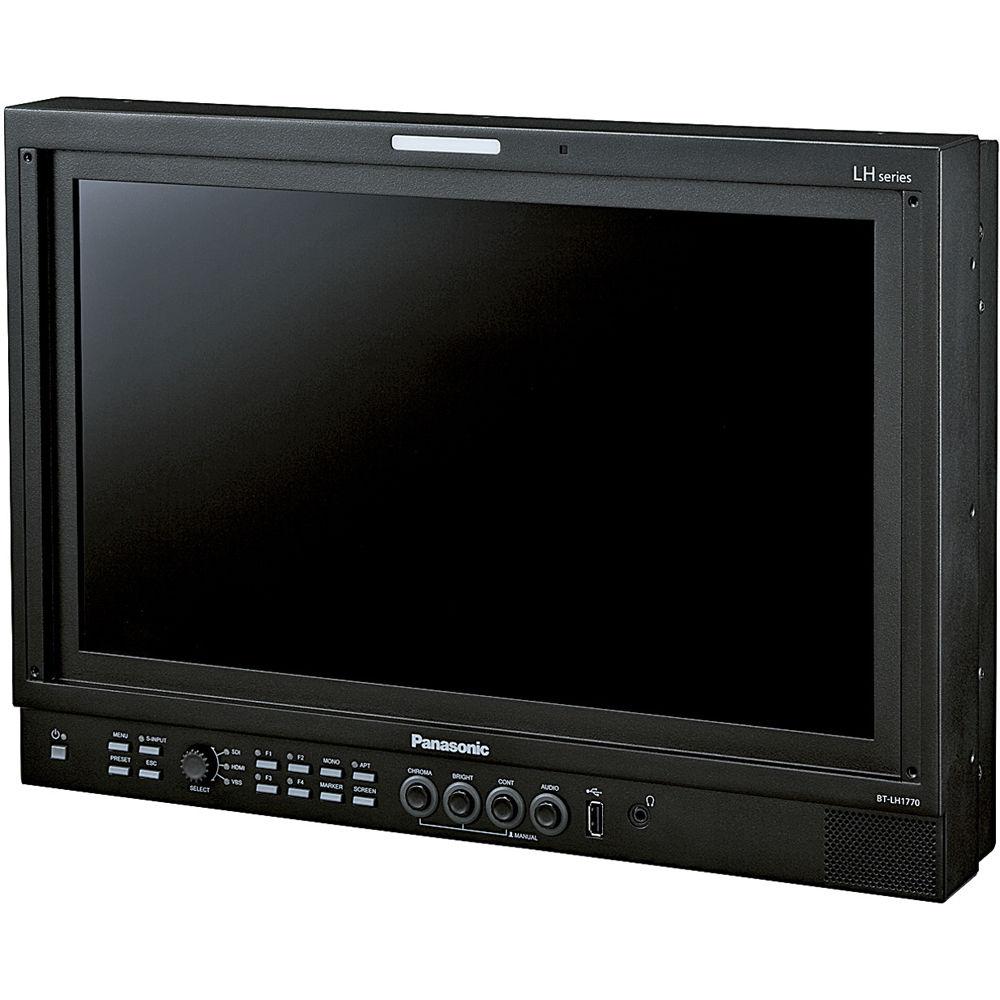

Product description The 16.5" Full HD Rack-Mountable Production Monitor from Panasonic is a 10-bit IPS LCD panel which features 3G/HD/SD-SDI, HDMI, and composite inputs, Full HD resolution, and a 1500:1 contrast ratio. The monitor runs on universal 100 to 240 VAC or 10.5 to 18 VDC power. - 16.5" IPS LCD panel with 10-bit processing
- Supports Full HD (1920 x 1080) resolution
- 3G-SDI, HDMI, and composite analog input terminals
- Waveform monitor and vectorscope
- Timecode (VITC/LTC) displays
- HD closed caption displays (free update)
- Still frame display (frame grab)
- Selected image section can be displayed in an enlarged size
- Up to 100 types of user markers
- Shadow function: Shadow can be applied to the area outside of marker areas
- Embedded audio input/output
UPC: 885170325043 In the Box Panasonic 16.5" Full HD Rack-Mountable Production Monitor Stand AC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic 16.5" Full HD Rack-Mountable Production Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic BT-LH1770P Specs | Panel Type | 16.5" / 42 cm
10-bit, a-Si TFT active matrix | | Resolution | 1920 x 1080 | | Viewing Angle | 178° | | Contrast Ratio | 1500:1 | | Input | 4 x 3G/1.5G/HD/SD-SDI, BNC (SDI out can be assigned to SDI in / max four input)
1 x Composite, BNC
1 x HDMI, with HDCP support
1 x 3.5 mm stereo mini jack | | Output | 2 x 3G/HD/SD-SDI, BNC (active through)
1 x 3.5 mm stereo headphone jack | | Speaker | Yes | | Switch | Power on/off, channel A/B, input (SDI-A, SDI-B, VBS, HDMI), Mono, APT, Screen, Mark, F1, F2, F3, F4, Menu, Preset, ESC | | Markers | Safe Area Markers:
4:3 (in 16:9 mode), 13:9, 14:9, 15:9, 16:9 (in 4:3), crosshatch (5/10) | | Power Requirements | 100-120 VAC, 0.4 A max
200-240 VAC, 0.25 A max
10.5-18 VDC, 39 W max, 3.3 A max | | Dimensions | Not specified by the manufacturer | | Weight | Without Stand: 16 lb / 7.3 kg | | | | Package Weight | 18.45 lb | | Box Dimensions (LxWxH) | 20.5 x 16.0 x 12.0" |
