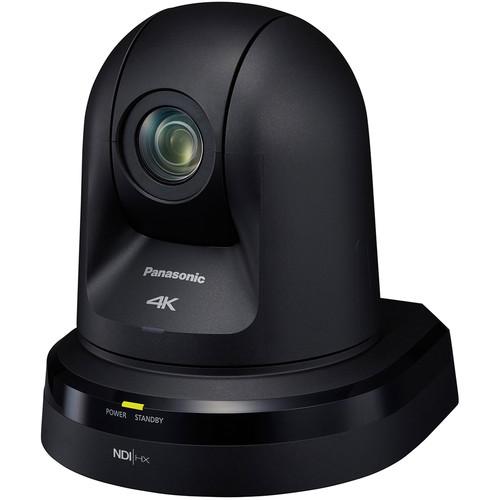

Product description The black Panasonic 20x Zoom 4K PTZ Camera with 3G/HD/SD-SDI & HDMI Output and NDI Output 4K UHD, HD, and SD video over a variety of connections. It features a 1/2.3" 3MOS sensor and outputs over 3G/HD/SD-SDI, HDMI, or you can use the NDI protocol to stream video and audio, control (IP), tally, and power over a single Ethernet cable. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems.
Equipped with a 20x optical zoom, 30x iZoom, and 12x digital zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look. The Dynamic Range Stretch (DRS) minimizes blocked shadows and blown highlights. When it gets too dark to record normal footage, this Full HD PTZ camera uses Night Mode to capture clear images in monochrome. The camera supports audio input, allowing you to capture and embed audio within the video signal. It is PoE+ compatible, allowing you to power the unit using only the single LAN cable. NDI|HX - NDI (Network Device Interface) goes beyond simply sending video over IP, and instead of just encoding video to travel along Ethernet cable, NDI also encodes control, tally, and PoE+. In addition to having to run fewer cables without needing to route power, video, and control to each camera location, now you can connect your camera to your network and have full control. NDI|HX brings automatic discovery, ultra-low latency video transmission, PTZ control and tally, all with a single Ethernet cable.
-
- IP Live Preview
- Simultaneous Multi-Stream
- Electronic Image Stabilization
- Night Mode (for IR)
- Dynamic Range Stretch
- Audio Input / Embedding
- Color Temperature Adjustment
- Up to 100 Presets
- microSD Card Recording
- HDR
- Fanless Design
- Digital Noise Reduction
- Genlock
- ND Filters
UPC: 885170330924 In the Box Panasonic 20x Zoom 4K PTZ Camera with 3G/HD/SD-SDI & HDMI Output and NDI (Black) Mounting Bracket AC to DC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic 20x Zoom 4K PTZ Camera with 3G HD SD-SDI & HDMI Output and NDI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AW-UN70 Specs | Image Sensor | 1/2.3" Type 3MOS | | Lens | Motorized 20x zoom | | Zoom | Optical: 20x
iZoom: 30x
Digital: 12x | | FOV | Horizontal: 65.1° (W) to 3.2° (T)
Vertical: 39.5° (W) to 1.8° (T)
Diagonal: 72.4° (W) to 3.7° (T) | | Focus | Auto/Manual | | Horizontal Resolution | 1300 lines | | Minimum Illumination | 0.35 lux | | Gain | 0 to 48 dB | | Control | Serial/IP/IR | | Output Format | 3840 x 2160: 29.97
1080p: 59.94/50/29.97/25
1080PsF: 29.97/25
1080i: 59.94/50
720p: 59.94/50 | | Synchro Scan Shutter | 59.94: 59.94 Hz to 660.09 Hz (255 steps)
50: 50.00 Hz to 570.12 Hz (255 steps) | | Pan/Tilt Speed | 300°/sec (Preset)/90°/sec | | Pan Range | ±175° | | Tilt Range | -30 to 90° | | Sound Level | NC35 or less | | Input/Output Connectors | LAN: 1 x RJ45
RS232C: 1 x Mini DIN 8-pin (in) / 1 x Mini DIN 8-pin (out)
RS-422: 1 x RJ45 (control in RS-422A)
USB: 1 x Mini-B port
SD Card: 1 x microSD card slot
3G/HD/SD-SDI: 1 x BNC
HDMI: 1 x Type A | | Installation | Tripod, wall, ceiling | | Power | PoE+ or AC | | Dimensions (W x H x D) | 6.3 x 7.3 x 6.5" / 160 x 186 x 166 mm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 7.1 lb | | Box Dimensions (LxWxH) | 13.1 x 12.1 x 10.4" |
