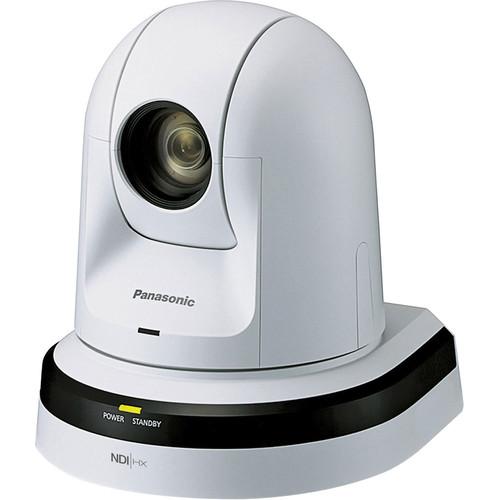

Product description The white Panasonic 22x Zoom PTZ Camera with HDMI Output and NDI features a 1/2.3" MOS sensor and outputs over HDMI, or you can use the NDI protocol to stream video and audio, control (IP), tally, and power over a single Ethernet cable. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems.
Equipped with a 22x optical zoom, 30x iZoom, and 16x digital zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look. The Dynamic Range Stretch (DRS) minimizes blocked shadows and blown highlights. When it gets too dark to record normal footage, this Full HD PTZ camera uses Night Mode to capture clear images in monochrome. The camera supports audio input, allowing you to capture and embed audio within the video signal. It is PoE+ compatible, allowing you to power the unit using only the single LAN cable. - NDI|HX
- NDI (Network Device Interface) goes beyond simply sending video over IP, and instead of just encoding video to travel along Ethernet cable, NDI also encodes control, tally, and PoE+. In addition to having to run fewer cables without needing to route power, video, and control to each camera location, now you can connect your camera to your network and have full control. NDI|HX brings automatic discovery, ultra-low latency video transmission, PTZ control and tally, all with a single Ethernet cable.
-
- IP Live Preview
- Simultaneous Multi-Stream
- Electronic Image Stabilization
- Night Mode (for IR)
- Dynamic Range Stretch
- Audio Input / Embedding
- Color Temperature Adjustment
- Up to 100 Presets
- microSD Card Recording
- HDR
- Fanless Design
- Digital Noise Reduction
- Audio
- The PTZ camera supports input audio either embedded in the NDI signal, or via a mic-level stereo mini jack
UPC: 885170330979 In the Box Panasonic 22x Zoom PTZ Camera with HDMI Output and NDI (White) Ceiling Mount AC to DC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic 22x Zoom PTZ Camera with HDMI Output and NDI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AW-HN38 Specs | Image Sensor | 1/2.3" Type MOS | | Lens | Motorized 22x zoom | | Zoom | Optical: 22x
i.Zoom: 30x
Digital: 16x | | FOV | Horizontal: 61.6° (W) to 2.9° (T)
Vertical: 37.0° (W) to 1.6° (T)
Diagonal: 68.7° (W) to 3.3° (T) | | Focus | Auto/Manual | | Horizontal Resolution | 1000 lines | | Minimum Illumination | 0.35 lux | | Gain | 0 to 48 dB | | Control | Serial/IP/IR | | Output Format | 1080p: 59.94/50/29.97/25
1080PsF: 29.97/25
1080i: 59.94/50
720p: 59.94/50 | | Pan/Tilt Speed | 300°/sec (Preset)/90°/sec | | Pan Range | ±175° | | Tilt Range | -30 to 90° | | Sound Level | NC35 or less | | Input/Output Connectors | LAN: 1 x RJ45
RS232C: 1 x Mini DIN 8-pin (in) / 1 x Mini DIN 8-pin (out)
RS422: 1 x RJ45 (control in RS-422A)
USB: 1 x Mini-B port
SD Card: 1 x microSD card slot
Audio: 1 x Stereo Mini-Jack | | Installation | Tripod, wall, ceiling | | Power | PoE+ or AC | | Dimensions (W x H x D) | 6.3 x 7.3 x 6.5" / 160 x 186 x 166 mm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 7.1 lb | | Box Dimensions (LxWxH) | 13.2 x 12.1 x 10.3" |
