Panasonic 22x Zoom PTZ Camera with

Search your instruction manual in PDF to download

User Manual for Panasonic 22x Zoom PTZ Camera with HDMI Output and NDI

Click to enlarge the picture
Panasonic 22x Zoom PTZ Camera with HDMI Output and NDI Contents of the user manual for the Panasonic 22x Zoom PTZ Camera with
  • Product category: PTZ Cameras Panasonic
  • Brand: Panasonic
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Panasonic PTZ Cameras

User manual for the Panasonic 22x Zoom PTZ Camera with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Panasonic product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!



Product description

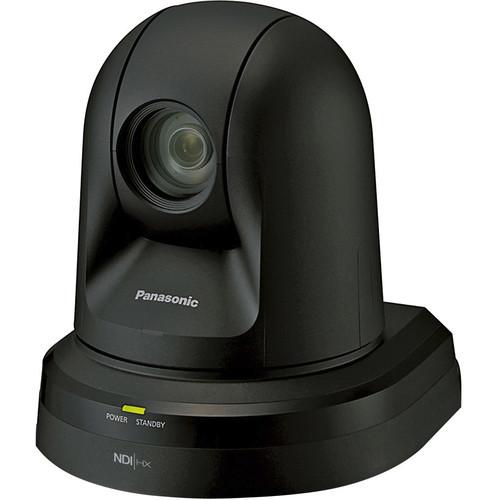

The black Panasonic 22x Zoom PTZ Camera with HDMI Output and NDI features a 1/2.3" MOS sensor and outputs over HDMI, or you can use the NDI protocol to stream video and audio, control (IP), tally, and power over a single Ethernet cable. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems.

Equipped with a 22x optical zoom, 30x iZoom, and 16x digital zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look. The Dynamic Range Stretch (DRS) minimizes blocked shadows and blown highlights. When it gets too dark to record normal footage, this Full HD PTZ camera uses Night Mode to capture clear images in monochrome. The camera supports audio input, allowing you to capture and embed audio within the video signal. It is PoE+ compatible, allowing you to power the unit using only the single LAN cable.
    NDI|HX
  • NDI (Network Device Interface) goes beyond simply sending video over IP, and instead of just encoding video to travel along Ethernet cable, NDI also encodes control, tally, and PoE+. In addition to having to run fewer cables without needing to route power, video, and control to each camera location, now you can connect your camera to your network and have full control. NDI|HX brings automatic discovery, ultra-low latency video transmission, PTZ control and tally, all with a single Ethernet cable.
    • IP Live Preview
    • Simultaneous Multi-Stream
    • Electronic Image Stabilization
    • Night Mode (for IR)
    • Dynamic Range Stretch
    • Audio Input / Embedding
    • Color Temperature Adjustment
    • Up to 100 Presets
    • microSD Card Recording
    • HDR
    • Fanless Design
    • Digital Noise Reduction
    Audio
  • The PTZ camera supports input audio either embedded in the NDI signal, or via a mic-level stereo mini jack
UPC: 885170330962 In the Box Panasonic 22x Zoom PTZ Camera with HDMI Output and NDI (Black)
  • Ceiling Mount
  • AC to DC Adapter
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Panasonic 22x Zoom PTZ Camera with HDMI Output and NDI in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Panasonic AW-HN38 Specs

    Image Sensor 1/2.3" Type MOS
    Lens Motorized 22x zoom
    Zoom Optical: 22x
    i.Zoom: 30x
    Digital: 16x
    FOV Horizontal: 61.6° (W) to 2.9° (T)
    Vertical: 37.0° (W) to 1.6° (T)
    Diagonal: 68.7° (W) to 3.3° (T)
    Focus Auto/Manual
    Horizontal Resolution 1000 lines
    Minimum Illumination 0.35 lux
    Gain 0 to 48 dB
    Control Serial/IP/IR
    Output Format 1080p: 59.94/50/29.97/25
    1080PsF: 29.97/25
    1080i: 59.94/50
    720p: 59.94/50
    Pan/Tilt Speed 300°/sec (Preset)/90°/sec
    Pan Range ±175°
    Tilt Range -30 to 90°
    Sound Level NC35 or less
    Input/Output Connectors LAN: 1 x RJ45
    RS232C: 1 x Mini DIN 8-pin (in) / 1 x Mini DIN 8-pin (out)
    RS422: 1 x RJ45 (control in RS-422A)
    USB: 1 x Mini-B port
    SD Card: 1 x microSD card slot
    Audio: 1 x Stereo Mini-Jack
    Installation Tripod, wall, ceiling
    Power PoE+ or AC
    Dimensions (W x H x D) 6.3 x 7.3 x 6.5" / 160 x 186 x 166 mm
    Weight 3.3 lb / 1.5 kg
    Package Weight 7.15 lb
    Box Dimensions (LxWxH) 13.1 x 12.1 x 10.3"

    Rating

    60% users recommend this product to others. And what about you?
    Rating: 3.0 of 5

    This product has already been rated by 54 owners. Add your rating and experience with the product.

    Discussion
