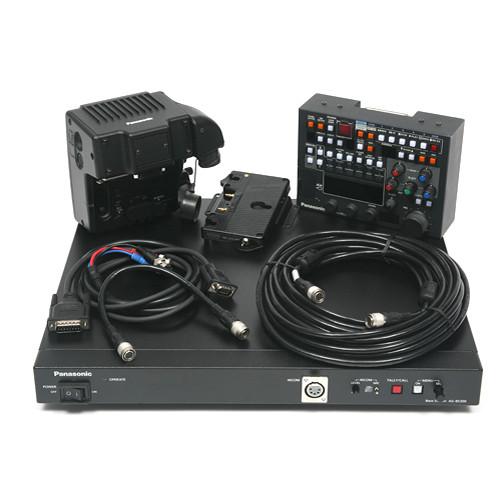

User Manual for Panasonic 300StudioPlus Camcorder Studio System Click to enlarge the picture
Contents of the user manual for the Panasonic 300StudioPlus Camcorder Studio System
- Product category: Studio Systems Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Studio Systems
|
User manual for the Panasonic 300StudioPlus Camcorder Studio System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Panasonic's 300StudioPlus Camcorder Studio System brings HD studio production capability to your P2 and DVCPRO camcorders. Compatible with the AJ-HPX3700, AJ-HPX2700, AJ-HPX3000, AJ-HPX200, AND AG-HPX500 P2 cameras, as well as the DVCPRO AJ-HDX900, the 300StudioPlus enables high-quality digital signal transmission at up to 328 feet, along with remote camera control and other professional features. The system is comprised of three main pieces:The AG-BS300 Digital Base Station is the nucleus of the system. The base station connects to the camera using optional studio cables to allow transmission of HD digital images, return images, tally signals, mic signals and genlock signals over distances of 25, 50, or 100 meters, depending on cable length.The AG-CA300G Camera Adapter, lightweight and compact, mounts directly on the back of the camcorder, boosts mobility and allows the use of various professional batteries (with optional battery plate).The AJ-RC10 is an advanced remote control unit that offers enhanced controls of the system's base station, along with an extended range of up to 90 meters (295 feet) with optional cables. With its "one button per function" capability, the unit lets you see exactly which menus you're using without accessing the camera's menu system. It also includes an SD card slot for saving scene files, as well as a Monitor Out for viewing. - Panasonic AG-CA300GPJ Camera Adapter The Panasonic AG-CA300GPJ Camera Adapter is an integral piece of the 300Studio and P2Studio Camcorder Studio Systems. Mounting to the back of a compatible P2 or DVCPRO HD camcorder, the unit is then attached via optional studio cables to the system's base station, allowing transmission of HD digital images, return images, tally signals, mic signals and genlock signals over distances of up to 100 meters (328 feet). Lightweight and compact, the AG-CA300GPJ boosts mobility and allows the use of various professional batteries (with optional battery plate). This adapter is compatible with AG-HPX300 series, AG-HPX500 series, AJ-HPX3700, AJ-HPX2700, AJ-HPX3000, AJ-HPX2000/2100, AJ-HDX400 and AJ-HDX900 cameras. UPC: 791871305010
- Panasonic AG-BS300PJ Digital Base Station The AG-BS300PJ Digital Base Station is the nucleus of Panasonic's P2Studio and 300Studio camcorder systems. The base station connects to the system's AG-CA300G camera adapter via 2 BNC cables and bundled power cable to allow transmission of HD digital images, return images, tally signals, mic signals and genlock signals over distances of up to 100 meters (328 feet), depending on choice of cable length. Optional Studio300 cables are available in 25, 50, and 100 meters.
- Digital signal transmission ensures high-quality, degradation-free images.
- Up to 70 watts of power can be supplied to the camcorder,* and a compact monitor and servo zoom can also be driven. 1
Please Note: *Power can be supplied only when the AG-BS300 Base Station is driven by an AC power source. A separate power cord is also required between the AG-BS300 Base Station and the AG-CA300G Camera Adaptor. Other manufacture's power cords which Panasonic verified are recommended to use. close - Supports both AC (100 to 240 V) and DC (12V) power supplies. Includes two SDI (HD/SD) outputs and a composite video output.
UPC: 791871305003 - Panasonic AJ-RC10 Remote Control The AJ-RC10 is an advanced remote control unit designed for use with Panasonic's 300Studio and P2Studio camcorder studio systems. An upgrade to the AG-EC4GPJ Extension Control Unit, the AJ-RC10 offers enhanced controls of each system's base station, along with an extended range of up to 90 meters (295 feet) with optional cables. With its "one button per function" capability, the unit lets you see exactly which menus you're using without needing to access the camera's menu system. It also includes an SD card slot for saving scene files, as well as a Monitor Out for viewing. The AJ-RC10 is compatible with the AJ-HPX3700, AJ-HPX2700, AJ-HPX3000, AJ-HPX200, AND AG-HPX500 P2 camcorders, as well as the DVCPRO AJ-HDX900. It comes standard with a 10-pin, 10 meter (32 foot) remote control cable.
- Control Functions Include:
-
- gain up/down
- output camera/bar selection (linked to auto knee)
- white balance A/B/Preset selection
- AWB/ABB execution
- shutter SS/Fix/Off selection and speed setting
- iris auto/manual selection and adjustment
- master pedestal
- painting
- camera menu settings
- recorder operation (Rec/Play/FF/Rew/Rec check)
- scene files
- Dedicated switches are provided for direct operation of some of the camera unit's frequently used functions.
- By switching to the recorder mode, the camcorder can be controlled directly through the VTR operation switch. Recording can also be disabled using a switch.
- Frequently used menus can be set by accessing the menus on the LCD panel of the unit. It is also possible to display the time code on the LCD panel.
- Downconverted images with characters are output from the VIDEO OUT connector. The menus can be operated on the main unit of the camcorder by connecting the external monitor.
- Scene file data can be stored on an SD memory card.
In the Box - AG-CA300GPJ Camera Adapter vqdbwdryay
- 1 Year Limited Warranty
- AG-BS300PJ Digital Base Station
Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic 300StudioPlus Camcorder Studio System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Panasonic AG-CA300GPJ Camera Adapter
| Input Connectors | SDI: BNCx1
BS: BNCx1
DC: 5-pin
Return Ctrl: 6-pin
Battery: 2-pin | | Output Connectors | BS: BNCx1
Genlock: BNCx1
Remote: 10-pin
Incom: XLRx1, 5-pin female
VF: 15-pin Dsub
Return: BNCx1
DC: 2-pin | | Power Supply | Input:
24VDC, 4A
12VDC, 6A
Output:
13VDC, 5A | | Dimensions (WxHxD) | 6.7 x 5.75 x 4.19" (15.9 x 14.6 x 10.5 cm) | | Weight | 3 lbs (1.35kg) | | | | Box Dimensions (LxWxH) | 10.4 x 9.7 x 8.4" | - Panasonic AG-BS300PJ Digital Base Station
| Input Connectors | Incom/Tally: 9-pin Dsub
CA: BNCx1, from AG-CA300G
Return Video: BNCx1
Genlock: BNCx1
DC 12V: XLRx1, 4-pin
AC
Remote: 10-pin | | Output Connectors | SDI: BNCx2
Video: BNCx1
CA: BNCx1
Genlock Loop: BNCx1
DC 24V: 5-pin
Incom: XLRx1, 5-pin female | | Power Supply | Input:
100 - 240VAC, 50/60Hz, 1.6A - 0.6A
12VDC, 1.1A
Output:
13VDC, 5A
13VDC, 0.3A (Remote Power) | | Dimensions (WxHxD) | 17.06 x 1.75 x 14.19" (43.2 x 4.4 x 36 cm) | | Weight | 11 lbs (5kg) | | | | Box Dimensions (LxWxH) | 21.5 x 21.5 x 6.1" | - Panasonic AJ-RC10 Remote Control
| Inputs/Outputs | Camera: 10-pin multi-connector
Monitor: BNC x 1, 1 Vp-p (for menu setting) | | Power Supply | 12VDC | | Power Consumption | 6W | | Operating Temperature | 0° - 40°C (32° - 104°F) | | Dimensions (WxHxD) | 7.3 x 5.2 x 2.6" (18.5 x 13.1 x 6 cm) | | Weight | 2.87 lbs (1.3kg) | | | | Box Dimensions (LxWxH) | 12.3 x 9.9 x 8.4" |
