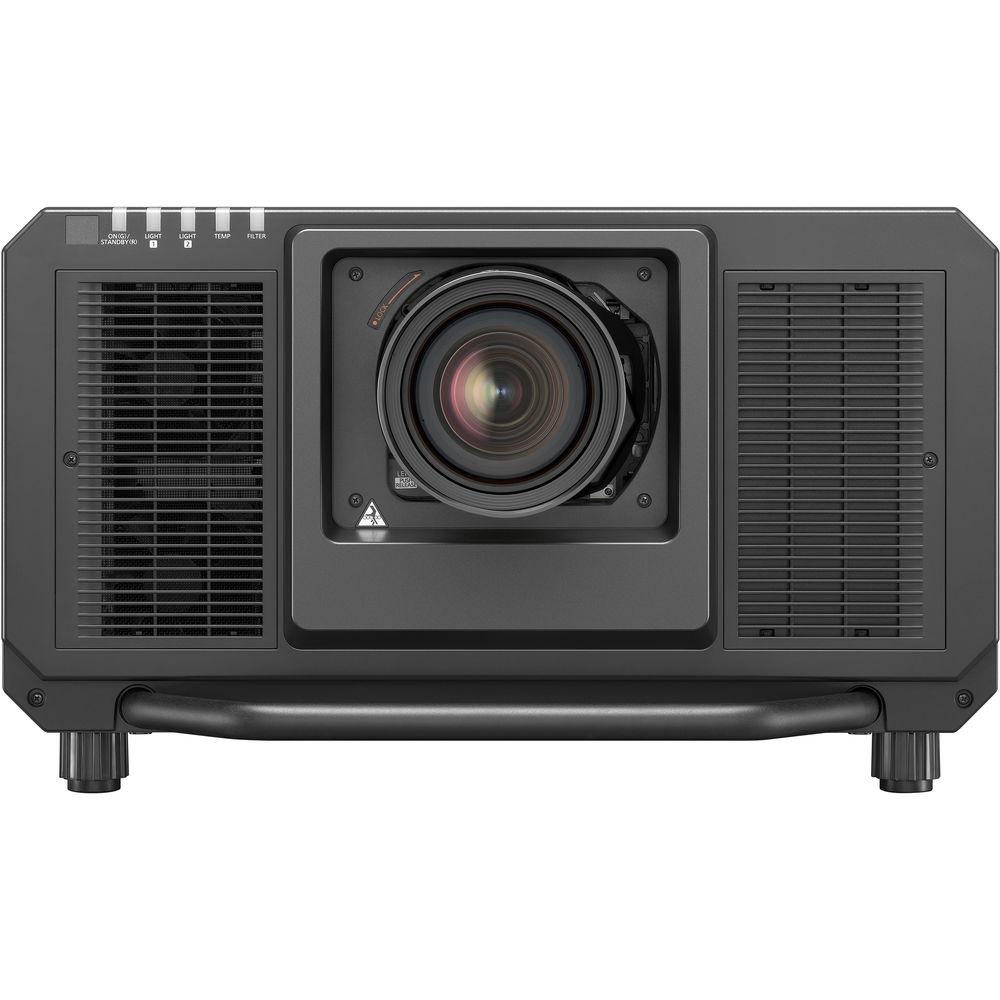

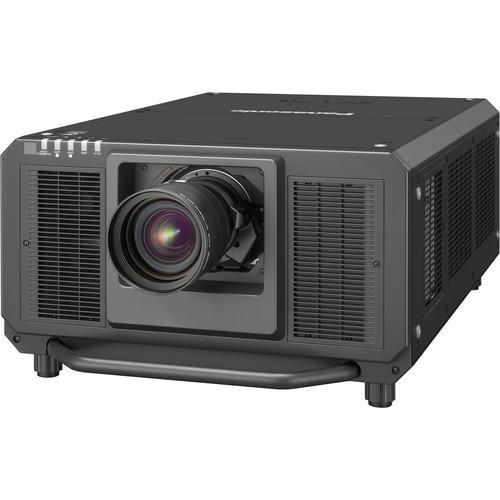

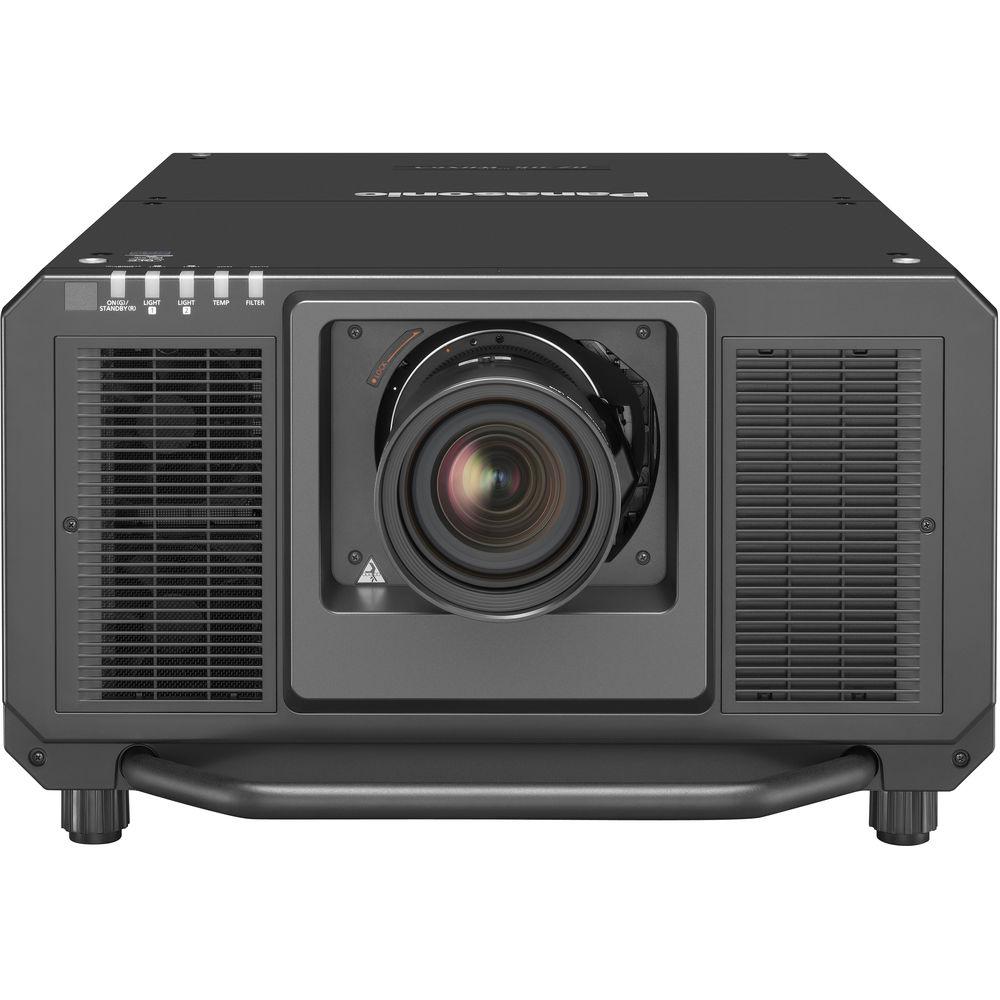

Product description The WUXGA 31,000-Lumen Laser Projector from Panasonic combines 3-Chip DLP with SOLID SHINE laser technology for bright and immersive picture quality. It offers 31,000 lumens of brightness with durable performance and real motion processor 120 Hz frame-creation technology for smooth motion reproduction. The projector has a dynamic contrast laser light-source modulation that helps achieve high 20,000:1 contrast. With ambient temperatures of up to 113°F (45°C), the projector has an efficient cooling system for stable operation.
Furthermore, DIGITAL LINK supports transmission of uncompressed full HD video and control commands through a single Cat5e or higher STP cable for distance up to 492' (150m). The projector's dust-proof design features hermetically sealed laser modules, long-life Eco Filter, and refined air-intake system. - Technology
-
- Combines 3-Chip DLP with SOLID SHINE laser technology for bright and immersive picture quality
- Accurate color-space reproduction
- Dual-drive laser optical engine maintains picture representation for long periods of use
- Minimal maintenance required under continuous operation
- Dustproof design featuring hermetically sealed laser modules, long-life Eco Filter, and refined air-intake system

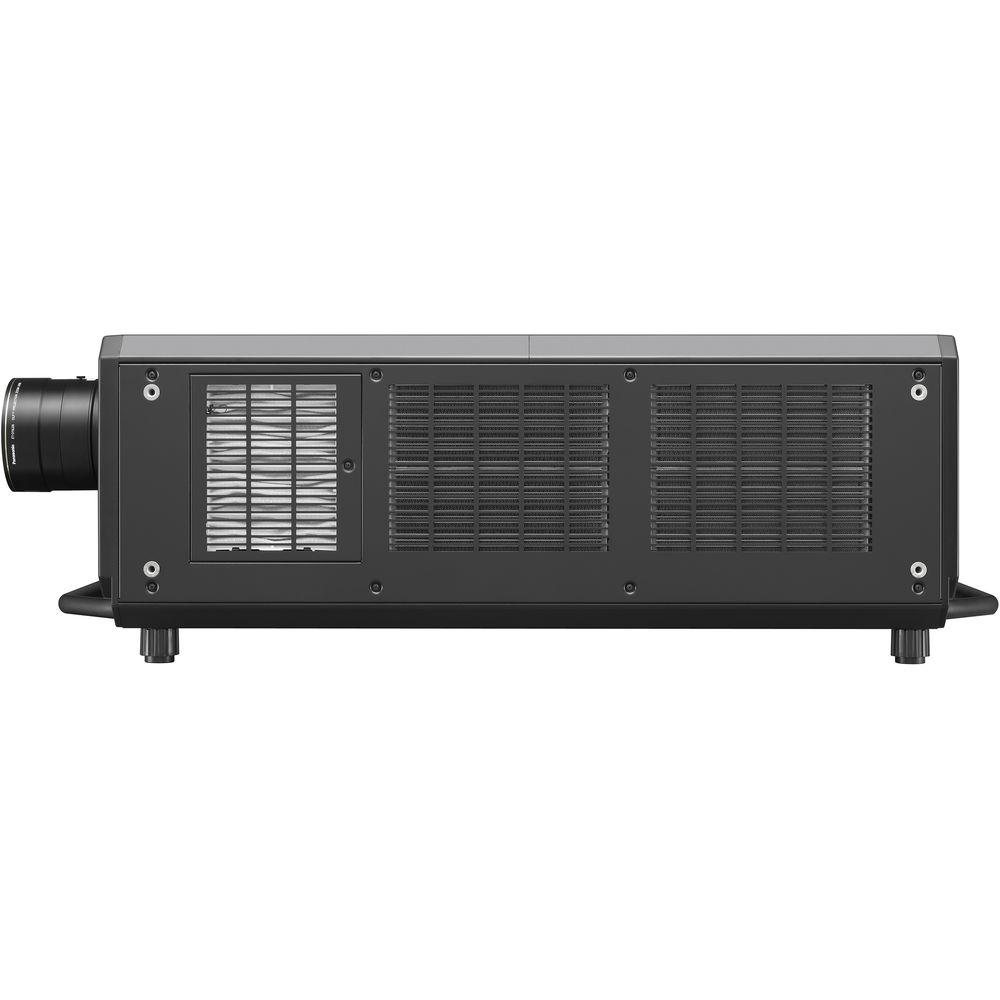

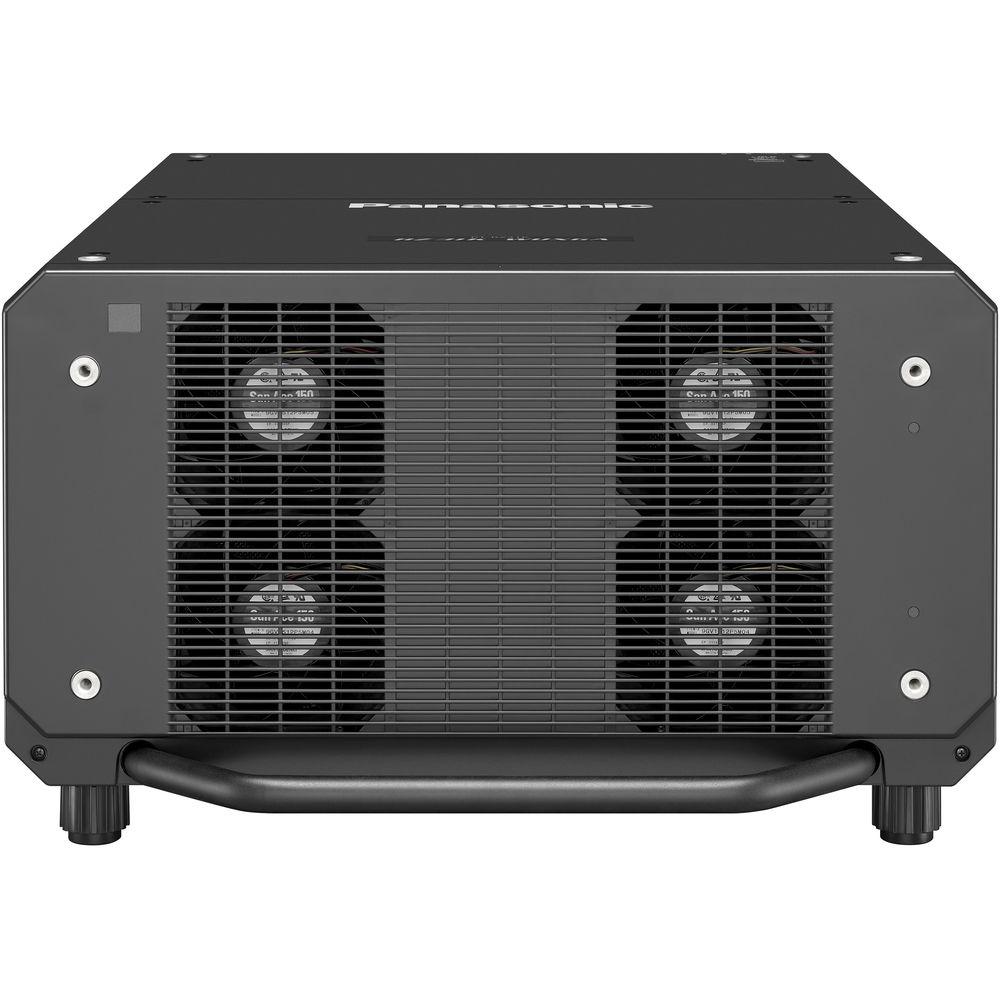

- Efficient liquid cooling system ensures stable operation in ambient temperatures of up to 113°F (45°C)
- Remarkable Image Quality & Reliable Operation
-
- 31,000 lumens of brightness with durable performance
- Real Motion Processor 120 Hz frame-creation technology for smooth motion reproduction
- Dynamic Contrast laser light-source modulation achieves high 20,000:1 contrast
- Detail Clarity Processor 5 clarifies and enhances fine details with advanced processing algorithm
- System Daylight View 3 improves color perception in bright environments and in mapping applications
- Quiet operation with original cooling technology
- Versatile System
-
- Free 360-degree installation (vertical and horizontal)
- Shares optional lenses with Panasonic 3-Chip DLP projector family
- DIGITAL LINK supports transmission of uncompressed full HD video and control commands through a single CAT 5e or higher STP cable for distance up to 492’ (150m)

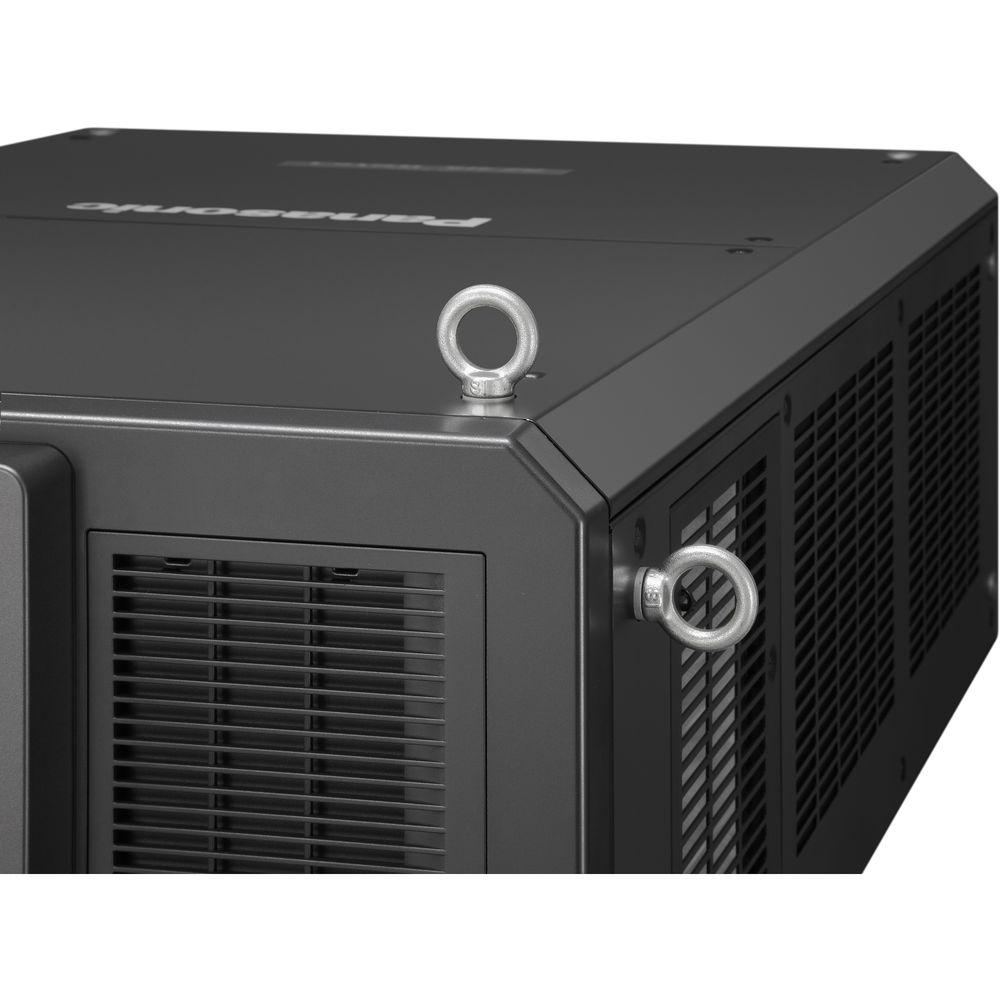

- Eyebolt multi-rigging compatibility
- Multiple projector stacking available without frame
- Convenient one-box design
- Multi-screen support system seamlessly connects multiple screens
- Multi-Unit brightness and color control
- Geometry Manager Pro
In the Box Panasonic 31,000-Lumen WUXGA Laser Projector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic 31,000-Lumen WUXGA Laser Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PT-RZ31KU Specs | | | Display System | 0.96" DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 31,000 Lumens | | Uniformity | 90% | | Aspect Ratio | 4:3 | | Dynamic Contrast Ratio | 20,000:1 Full on/off, with Dynamic Contrast Mode set to 3. | | Scan | Horizontal: 15 to 100 kHz
Vertical: 24 to 120 kHz | | | | Projection Size | 70 - 1000" / 177.80 - 2540.00 cm | | | | Keystone Correction | Vertical: ± 40°

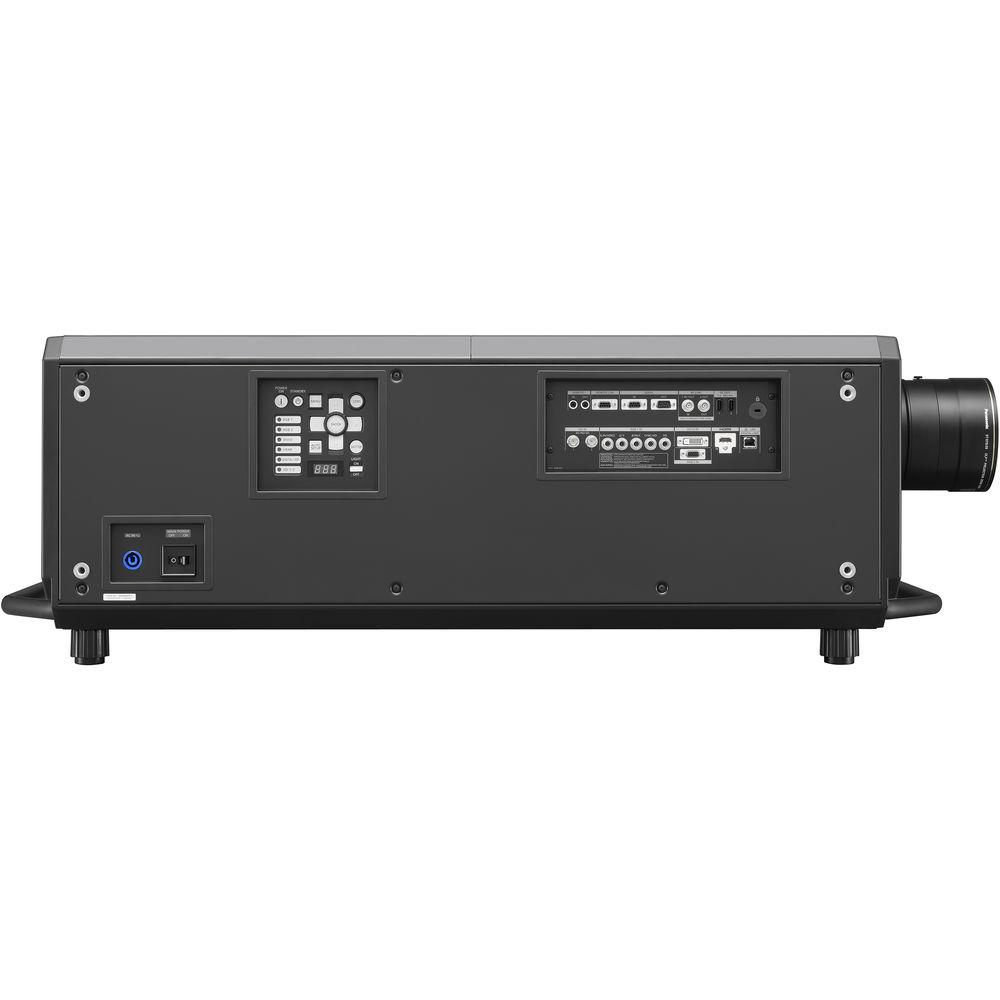

Horizontal: ± 15° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 1 x Composite (BNC) Video (Input)
1 x HDMI Video (Input)
1 x DVI-D Video (Input)
5 x Composite (BNC) Video (Input)
1 x VGA (DE-15) Video (Input)
2 x Composite (BNC) Video (Output)
1 x Unspecified Signal (DE-9) Video (Input)
1 x Unspecified Signal (DE-9) Video (Output)
1 x USB Power (Output) | | | | Temperature | Operating
32 to 113°F (0 to 45°C)
Humidity: 10 - 80% | | Dimensions (W x H x D) | 27.6 x 16.5 x 49.2" / 700.0 x 418.0 x 1250.0 mm with protrusion parts | | Weight | 174.00 lb / 78.92 kg approximately |
