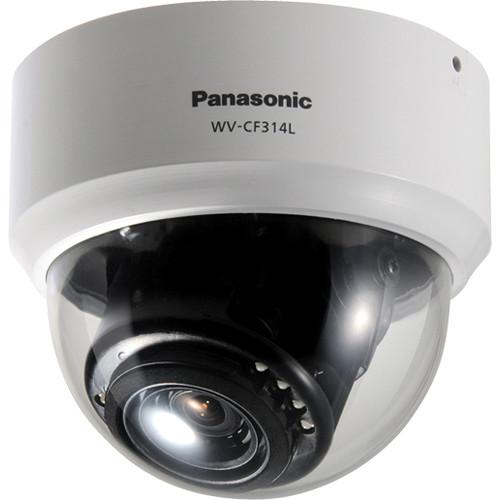

Product description The Panasonic 650TVL Day/Night IR Indoor Dome Camera features a 1/3" interline transfer CCD image sensor that delivers clear and wide images at 650 TVL and a signal-to-noise ratio of 52 dB. Using the varifocal auto-iris lens, the camera is able to zoom on specific areas. The integrated IR LEDs allows the camera to record footage in even totally dark environments. Using features such as adaptive black stretch technology, digital noise reduction, backlight compensation, and auto gain control the camera is designed to provide you with the most accurate footage possible. - High sensitivity with Day/Night function (0.08 lux in color & 0 lux in B&W with LED on) at f/1.3
- IR cut filter switches on/off to enhance the sensitivity in B&W mode
- Equipped with infrared LEDs which make it possible to take pictures at 0 lux
- LED AUTO mode helps achieve the best possible brightness level automatically when the IR LED is on
- ABS (Adaptive Black Stretch) enhances visibility of the dark area without degrading image quality in the bright area
- ABF (Auto Back Focus) ensures easy installation
- Various adjustment features including BLC (Backlight Compensation), ATW (Auto Tracing White Balance), and ALC (Automatic Light Control)
- 16-axis matrix color compensation function enables wider range of natural color adjustment
- Adaptive Digital Noise Reduction (integration of 2D-DNR and 3D-DNR) ensures noise reduction in various conditions
- Electronic sensitivity enhancement up to 32x (auto) & 512x (fix)
- Auto Image Stabilizer for applications where vibration or wind is a concern
- Data communication over coaxial cable
- 16 alphanumeric characters on camera title display
- ELC mode for easy lens adjustment upon installation
UPC: 885170151628 In the Box Panasonic 650TVL Day/Night IR Indoor Dome Camera with 2.8 to 10mm Varifocal Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic 650TVL Day Night IR Indoor Dome Camera with 2.8 to 10mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-CF314L Specs | | | Image Sensor | 1/3" interline transfer CCD | | Effective Pixels (H x V) | 976 x 494 | | Scanning Mode | 2:1 interlace | | Scanning Area (H x V) | 0.18 x 0.14" (4.8 x 3.6 mm) | | Scanning Frequency | Horizontal: 15.73 kHz
Vertical: 59.94 Hz | | Horizontal Resolution | 650 TVL | | Minimum Illumination | Color: 0.08 lux (0.008 fc) (color mode)
B&W: 0.008 lux (0.0008 fc) (B&W mode - IR LED Off)
B&W: 0 lux (0 fc) (B&W mode - IR LED On) | | S/N Ratio | 52 dB (AGC: Off) | | White Balance | AWC (2000 to 10,000 K), ATW1 (2,700 to 6,000 K), ATW2 (2,000 to 6,000 K) | | Light Control | ALC / ALC+ / ELC | | BLC | On / Off | | Adaptive Black Strech | On / Off | | AGC (Automatic Gain Control) | On (low, mid, high) / Off | | Electronic Shutter | Off (1/60); Auto, 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000, 1/120,000 | | Electronic Sensitivity UP | 32x maximum Auto, 512x maximum Fix | | Day/Night | IR: Auto1 / Auto2 / On / Off | | LED | Off / Auto / Fix Available for D&N AUTO2 mode or D&N ON mode. | | Digital Noise Reduction (DNR) | High or low | | Scene File | 2 patterns | | Video Motion Detection | Off / Motion Detection / Scene Change | | Privacy Zone | On (1) / On (2) / Off | | Image Stabilizer | On / Off | | Auto Focus System | Lens AF / Manual | | IR LED Range | 66' (20 m) | | Camera Titles | 16 alphanumeric characters | | Synchronization | Internal (INT) / Multiplexed vertical drive (VD2) | | | | Focal Length | 2.8 to 10 mm | | Lens Type | Varifocal | | Zoom Ratio | 3.6x | | Angular Field of View | Horizontal: 27.39° (tele) to 100.5° (wide)
Vertical: 20.45° (tele) to 73.51° (wide) | | Maximum Aperture Ratio | f/1.3 (wide) to 3.1 (tele) | | Focusing Range | 0.98' (0.30 m) to infinity | | | | Video Output | 1 Vpp / NTSC composite 75 Ω | | Controller Interface Type | Coaxial multiplex system | | Setup Method | OSD setup menu | | Password Lock | All menus | | Language | English, French, Italian, Spanish, German, Russian, Chinese, and Japanese | | Safety / EMC Standard | UL (UL60065), FCC (Part 15 Class A), C-UL (E60065), DOC (ICES-003) | | Power Source and Consumption | 12 VDC, 410 mA (LED On)
24 VAC, 3.6 W | | Operating Temperature & Humidity | 14 to 122°F (-10 to 50°C), <90% without condensation | | Dimensions (Diam. x H) | 4.85 x 4.17" (123.19 x 105.9 mm) | | Weight | 0.86 lb (39.00 kg) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 7.9 x 6.8 x 6.1" |
