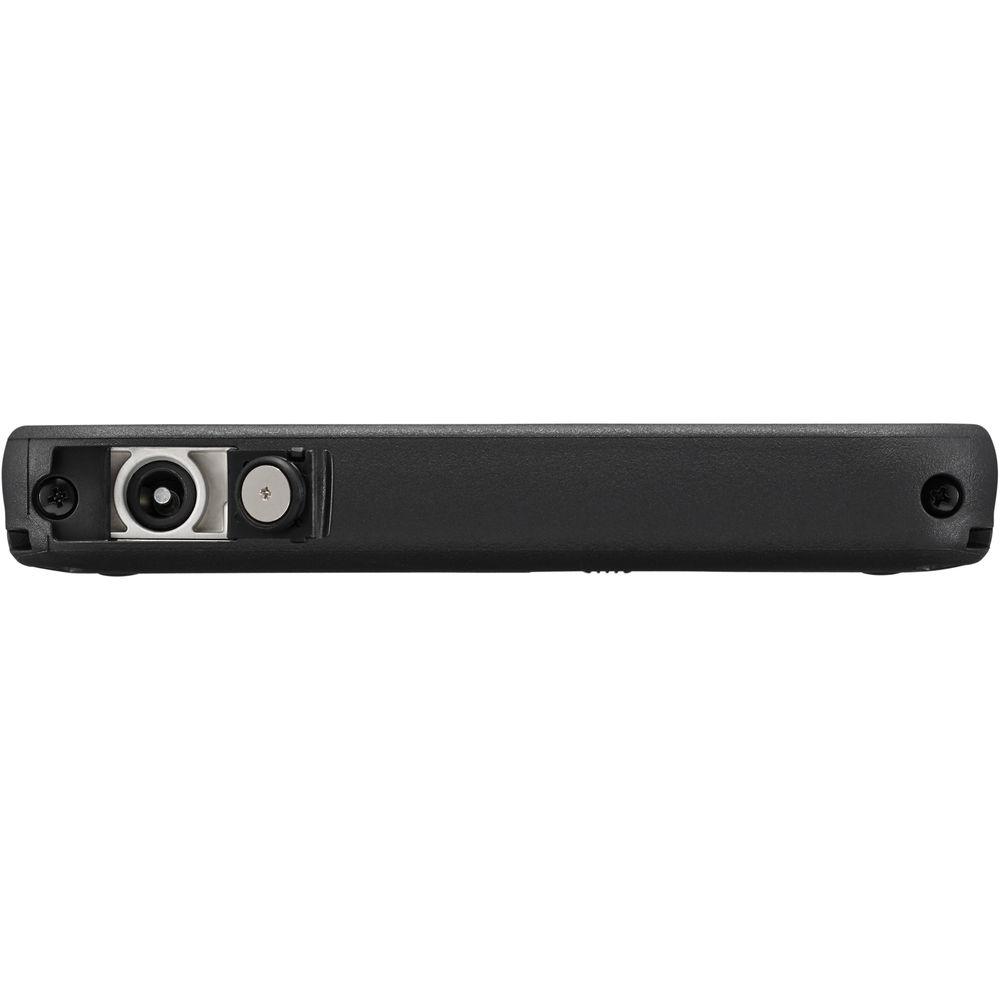

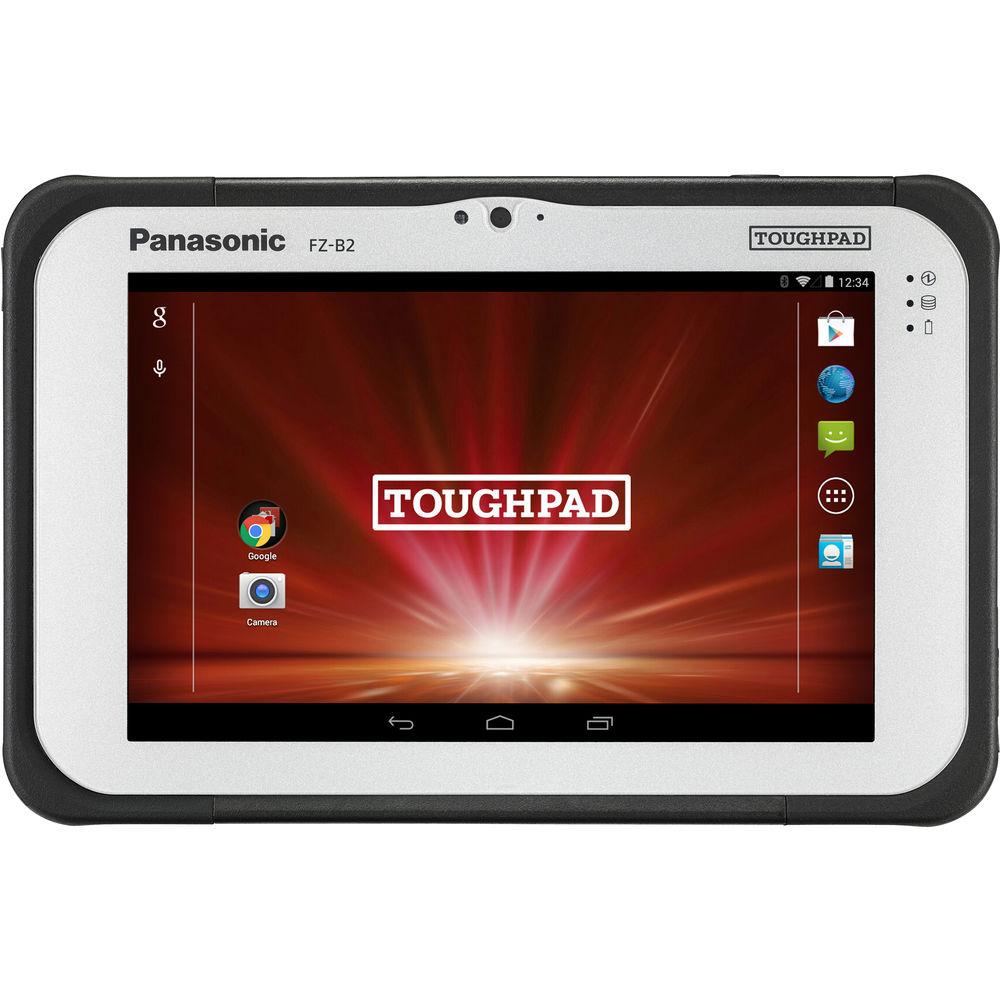

User Manual for Panasonic 7" Toughpad FZ-B2 32GB Tablet Click to enlarge the picture
Contents of the user manual for the Panasonic 7" Toughpad FZ-B2 32GB Tablet
- Product category: iPads & Tablets Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic iPads & Tablets
 |
User manual for the Panasonic 7" Toughpad FZ-B2 32GB Tablet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

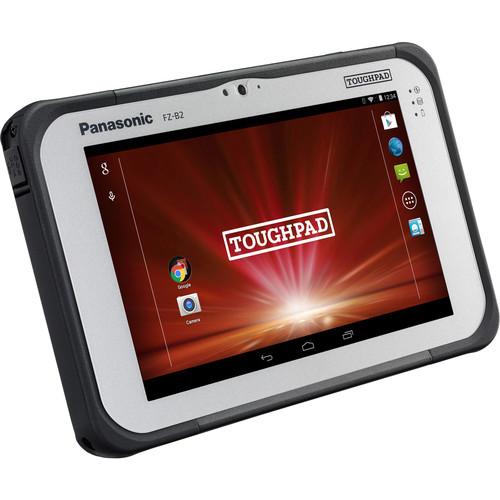

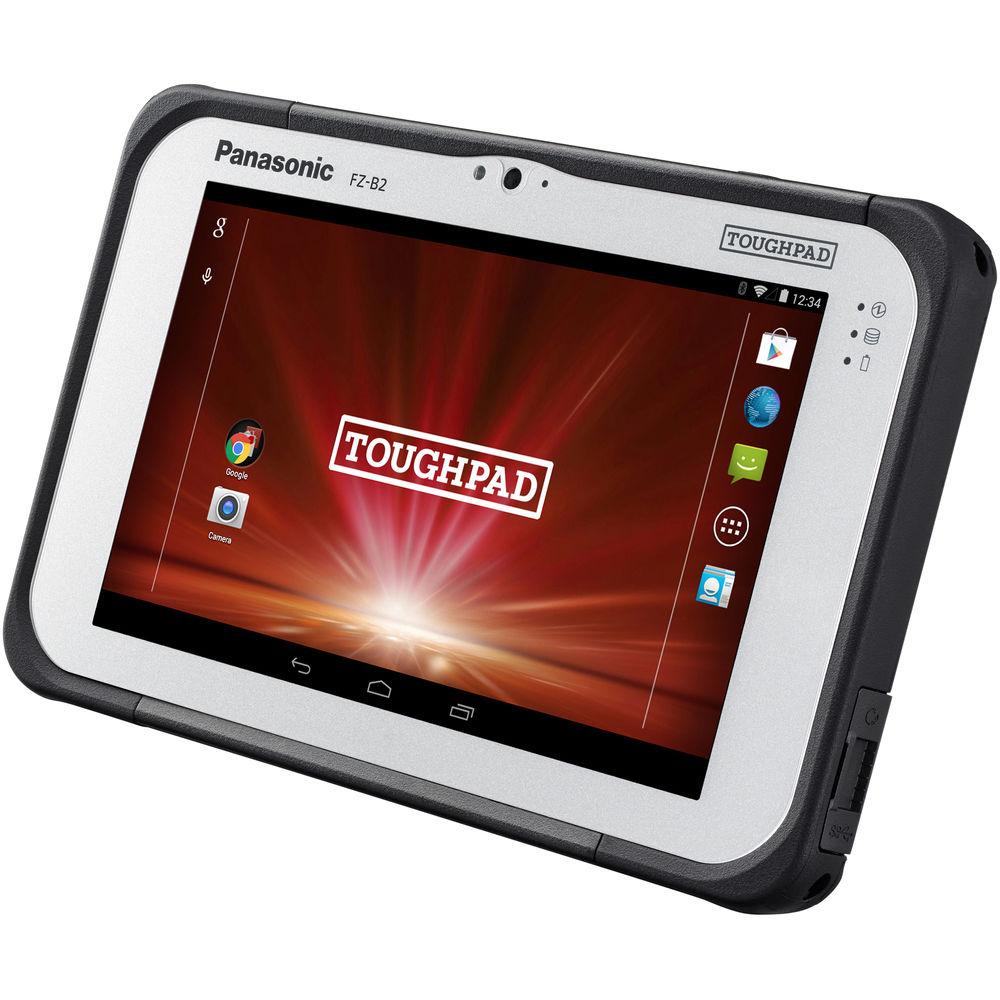

Product description Microsoft Surface Pro, an Ideal Mobile Video Editing Machine? Read More The Panasonic 7" Toughpad FZ-B2 is an Android 6.0 tablet that is designed to survive 5' drops, prevent liquid and dust ingress, and withstand both high and low temperatures. The Android-based operating system runs on an Intel Atom x5-Z8550 quad-core processor, operating between 1.44 and 2.4 GHz, along with 2GB of SDRAM. The tablet has 32GB of eMMC storage and a microSDHC slot for supporting memory card capacities of up to 32GB. For visuals, it sports a 7" touch display that supports 10-point gestures and offers a screen resolution of 1280 x 800, driven by an integrated Intel HD Graphics 400 chipset. Moreover, the screen features a brightness level of up to 500 cd/mÿ² for daylight readability.

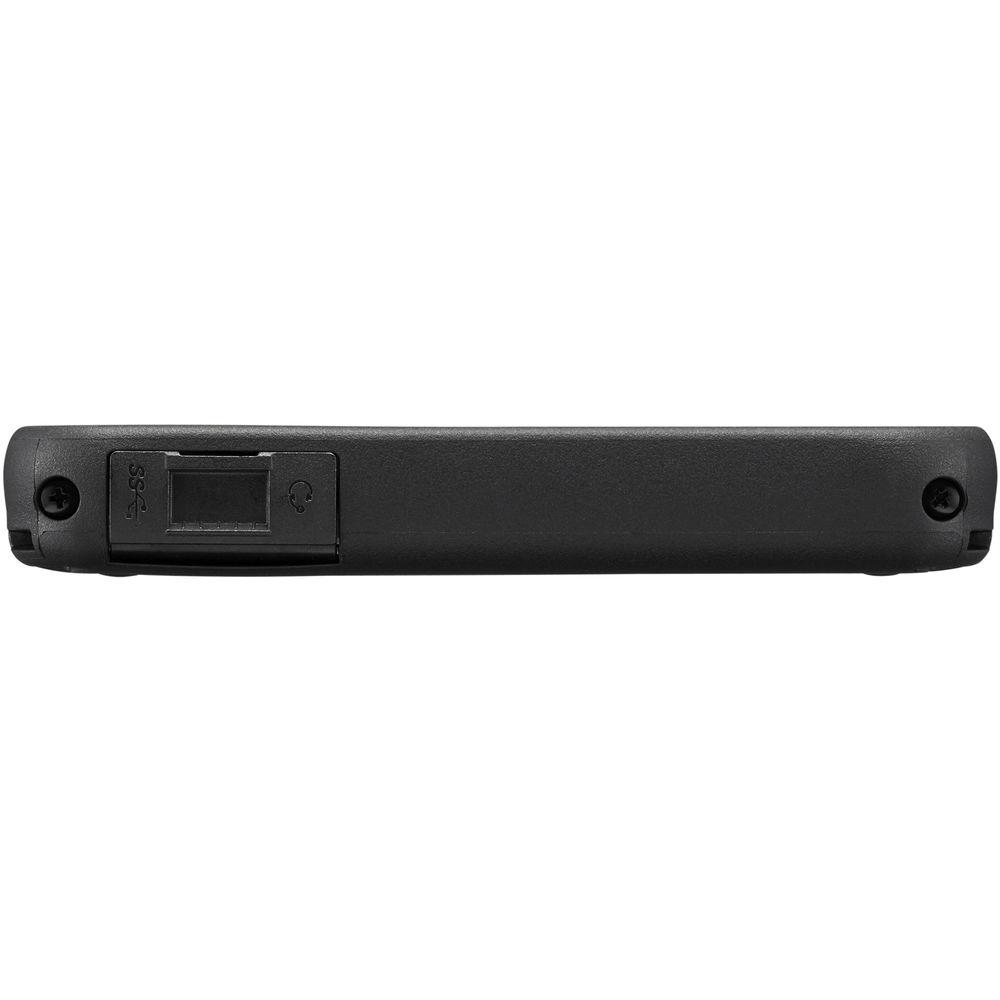

The Toughpad FZ-B2 connects to networks via 802.11ac and provides Bluetooth 4.2 connectivity for wireless access to headsets and keyboards. For wired connections, the tablet is equipped a USB 3.0 Type-C port, a headphone jack, and a security cable lock slot. To conduct face-to-face conversions, the tablet is armed with a 720p front-facing camera, a speaker, and a pair of microphones. Capturing the environment can be accomplished using its 8MP rear camera.
It includes a standard 3200 mAh lithium-ion battery pack that can last up to 8 hours before recharging. Other notable features include an ambient light sensor, digital compass, gyroscope, and accelerometer. There's also a passive stylus provided for signatures or sketchin - Android 6.0 Marshmallow
- The Android operating system integrates heavily with Google's services. Using the card-based Google Now, Android quickly surfaces information for you whenever you need it, powered by the same Knowledge Engine that runs Google's web search. It's a personalized and customizable OS, allowing you to add your favorite apps or widgets to your homescreen. You can even download new themes using the Google Play Store, which offers access to more than one million apps, games, books, music, movies, and more. Android 6.0 Marshmallow overhauls permissions, allowing you to have finer control over what your applications have access to. It also marks the debut of Now on Tap, a context-sensitive update to Google Now that checks your current screen for keywords and then searches for them automatically. Other performance and security enhancements are included as well.
- Durability
- The Panasonic Toughpad FZ-B2 series tablets feature an IP65 rating that is designed to withstand dust and liquids. In addition to all-weather protection, the Toughpad FZ-B2 has been tested to survive 5' drops, shock, vibration, and temperature extremes. It comes outfitted with a magnesium alloy chassis encased with ABS and elastomer corner guards along with port covers. For LCD protection, the display has a preinstalled replaceable screen film and raised bezel. Moreover, a hand strap is on board to help you maintain a firm grip.
UPC: 885170295674 In the Box Panasonic 7" Toughpad FZ-B2 32GB Tablet (Wi-Fi) Stylus Limited 3-Year Warranty Spec sheet PDF 1009.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic 7" Toughpad FZ-B2 32GB Tablet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic FZ-B2 Specs | | | Operating System | Android 6.0 Marshmallow | | Memory | 2 GB | | CPU | 1 x 1.44 GHz Intel Atom x5-Z8550 Quad-Core | | GPU | Intel HD Graphics 400 | | Storage | Embedded MMC 32 GB | | Sensors | Accelerometer, Ambient light sensor, Compass, Gyroscope | | | | Panel Type | TN LCD | | Size | 7" | | Aspect Ratio | 16:10 | | Native Resolution | 1280 x 800 | | Pixel Density | 251 ppi | | Brightness | 500 cd/m² | | Ports | USB 3.0 - Type C | | Audio | 2x Integrated Microphone
1x Integrated Speaker
1x 1/8" (3.5 mm) Headphone | | Flash Media Slot | 1 x microSDHC | | ExpressCard Slot | None | | | | Network | None | | Wi-Fi | Yes, Wi-Fi 5 (802.11ac) | | Bluetooth | Bluetooth 4.2 + EDR | | NFC | No | | GNSS Support | GPS | | | | Keyboard | Virtual | | Pointing Device | Stylus | | Battery | Lithium-IonProviding up to 8 Hours per Charge (3200.0 mAh) | | Dimensions (W x H x D) | 5.2 x 0.7 x 8.0" / 132.1 x 17.8 x 203.2 mm | | Weight | 1.2 lb / .5 kg |
