Product description The 9” LCD Color Viewfinder from Panasonic Is equipped with tilt mechanism and extensive functions such as focus assist and external video input. - Key Features
-
- High-resolution 9" color LCD panel displays Full HD 1920 x 1080
- Focus assist peaking function
- External 3G/HD-SDI input
- External DC input (+12 VDC)
- Four assignable function buttons
- Contrast, brightness, and peaking are adjustable

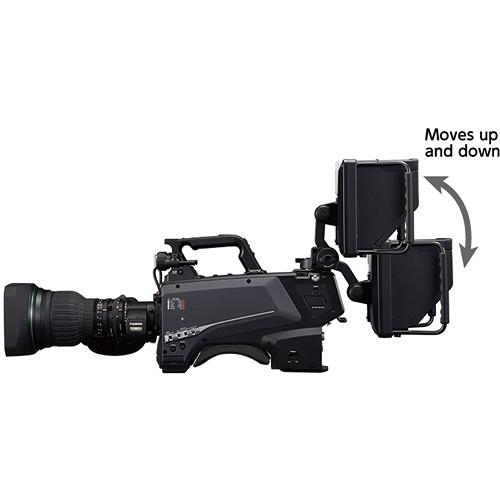

- Pan, tilt, and lift structure
In the Box Panasonic 9" LCD Color Viewfinder with Tilt Hood Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic 9" LCD Color Viewfinder with Tilt in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

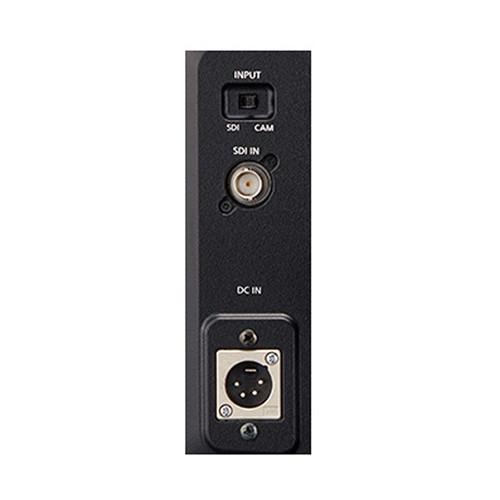

Technical parametersPanasonic AK-HVF100GJ Specs | Display Panel | 9.0" / 23 cm | | Number of Pixels | 1920 x 1080 (FHD) | | Display Colors | Approximately 16.77 million colors | | Operation | Power, Menu, Select (F1/F2/F3/F4), Bright, Contrast, Peaking, Input | | Connector | Camera I/F: 1 x D-Sub, 29-pin
SDI In: 1 x BNC
DC In: 1 x XLR, 4-pin | | Supported Signals | Cam:
1080i: 59.94/50
SDI:
1080p: 59.94/50
1080i: 59.94/50i
720p: 59.94/50 | | Power Supply | 12 VDC (supplied from camera or XLR) | | Power Consumption | 18 W | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 10 to 85% (no condensation) | | Dimensions | 13.4 x 9.21 x 7.62" / 34.0 x 23.4 x 19.3 cm, not including hood
13.4 x 9.21 x 9.12" / 34.0 x 23.4 x 23.1 cm, including hood | | Weight | 5.73 lb / 2.6 kg. without hood
6.61 lb / 3.0 kg. with hood |
