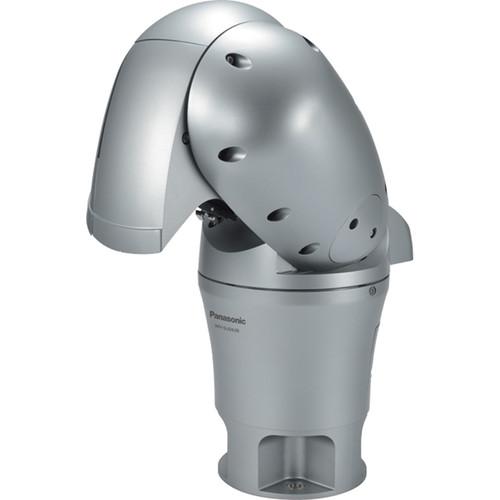

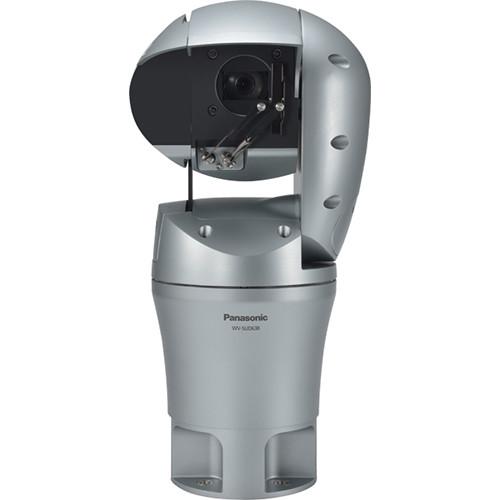

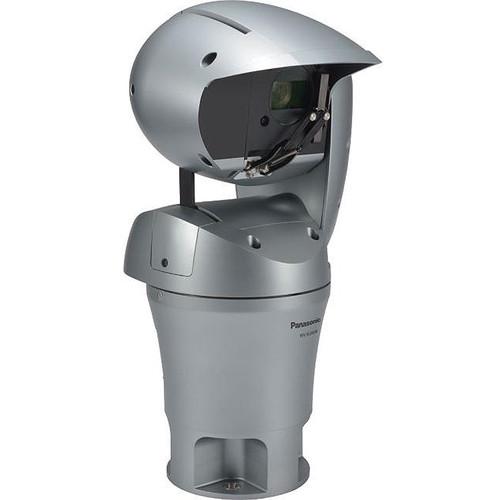

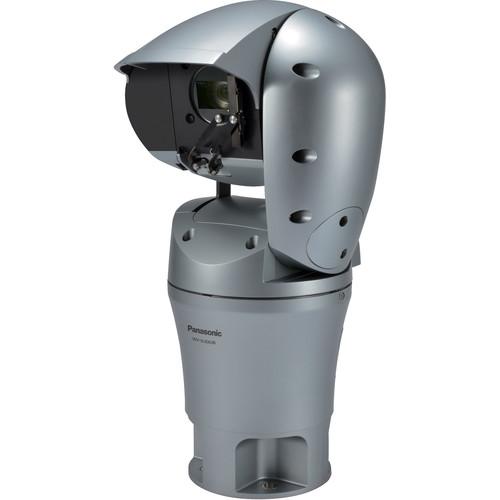

User Manual for Panasonic AeroPTZ 1080p Rugged Outdoor PTZ Network Camera Click to enlarge the picture
Contents of the user manual for the Panasonic AeroPTZ 1080p Rugged Outdoor PTZ
- Product category: Wired IP Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired IP Cameras
 |
User manual for the Panasonic AeroPTZ 1080p Rugged Outdoor PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Capture 1080p surveillance video undeterred by tropical storms, arctic blizzards, or extreme temperatures with the natural silver AeroPTZ PTZ Network Camera from Panasonic. Featuring an aerodynamic design and a salt-air corrosion-resistant glass fiber body, the AeroPTZ can withstand gale-force winds as well as extreme temperatures as low as -58°F and as high as 140°F. Additionally, Panasonic Video SAS (Stability Augment System) delivers hybrid image stabilization to minimize the impact of external vibrations. The AeroPTZ is equipped with a 1/3" MOS image sensor and a 30x zoom lens, and captures video at resolutions up to 1920 x 1080 at 60 fps. It is suitable for use in monitoring ports, cities, highways, transit hubs, airports, and other outdoor mission-critical environments. - Up to 1920 x 1080p resolution at 60 fps
- 30x zoom lens, with 3x ePTZ
- Built-in wiper and auto defroster
- Records in winds as high as 135 mph and can survive gusts of 180 mph
- Video SAS (Stability Augment System) for hybrid image stabilization
- Sphere vision provides 360° 3D viewing
|
Upload User Manual
Have you got an user manual for the Panasonic AeroPTZ 1080p Rugged Outdoor PTZ Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-SUD638 Specs | | | Sensor | 2 MP 1/3" MOS | | Focal Length | 4.3 to 129mm | | Maximum Aperture | f/1.6 - f/4.7 | | Zoom | Optical: 30x
Digital: 3x | | Lens Field of View | Horizontal: 2.3 to 64°
Vertical: 1.3 to 38°
Horizontal: 1.8 to 50°
Vertical: 1.3 to 38° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.004 Lux
B&W: 0 Lux | | Shutter Speed | 1/10000 to 1/60 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps (H.264) | | Supported Video Compression | H.264, MJPEG | | Automatic Gain Control | Yes | | | | Audio Formats | AAC, ADPCM | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS | | Supported Protocols | ARP, DHCP, DNS, DiffServ, DynDNS, FTP, HTTP, , ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile S, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Event Trigger | Yes | | Event Action | Recording | | Data Streaming | Yes | | Built-In Installation Aids | None | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | None | | Pan/Tilt | Remote Pan: 360° at 100°/s
Remote Tilt: 180° (-90 to 90°) | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45 | | Certifications | IEC60068-2-6, ISO14993, as per Manufacturer | | Internal Storage | None | | External Storage Options | None | | Power Source | AC | | Material of Construction | Fiberglass, Plastic | | Operating Temperature | -58 to 140°F / -50 to 60°C | | Operating Humidity | 10 to 100% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions | H: 17.7 x W: 8.7 x L: 10.5" / H: 450.0 x W: 220.0 x L: 266.0 mm | | Weight | 18.7 lb / 8.5 kg |
