Panasonic AG-AC30 Full HD Camcorder with

Search your instruction manual in PDF to download

User Manual for Panasonic AG-AC30 Full HD Camcorder with Touch Panel LCD Screen & Built-In LED Light

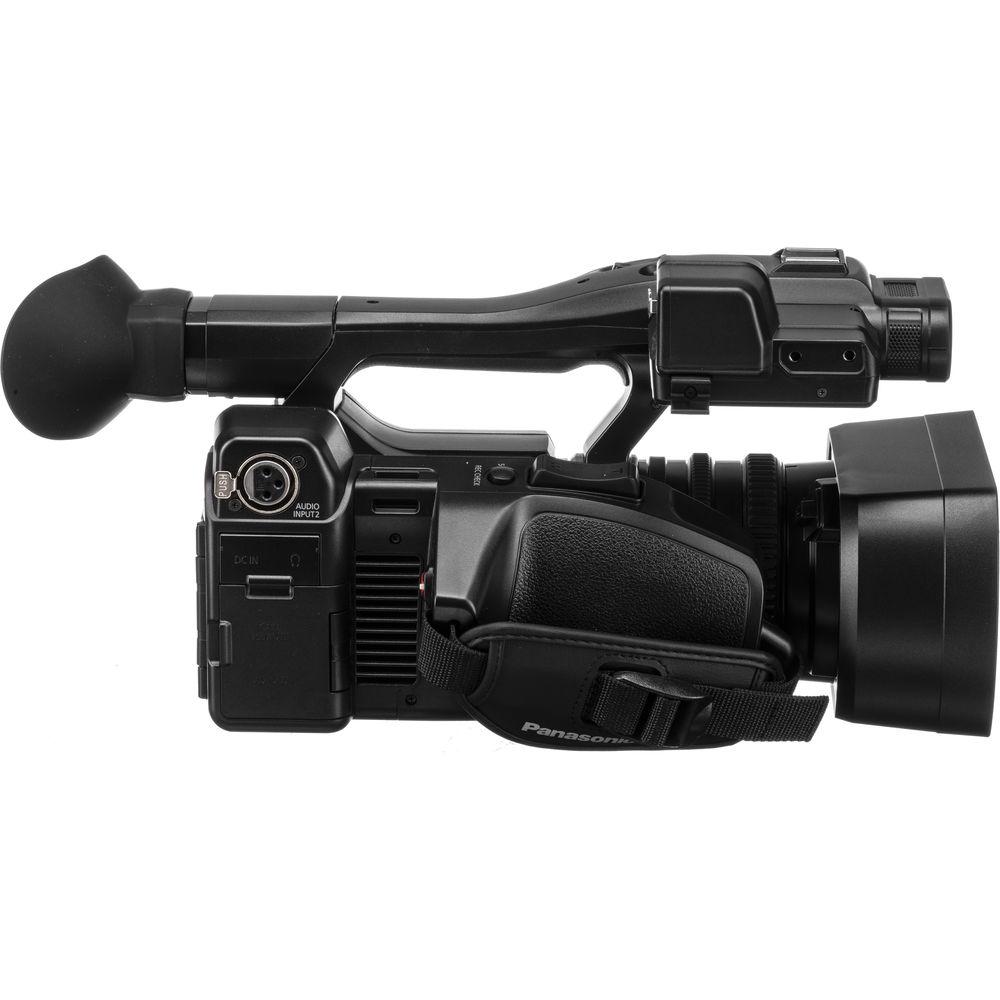

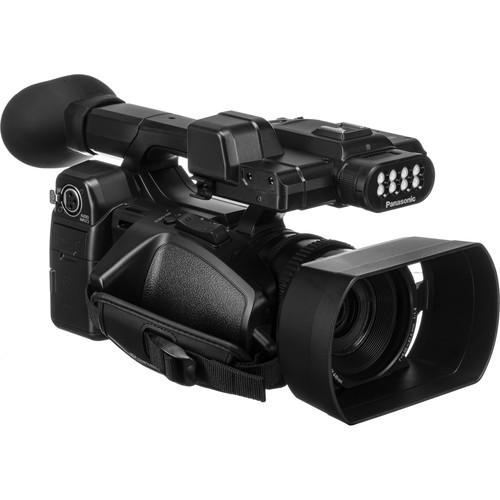

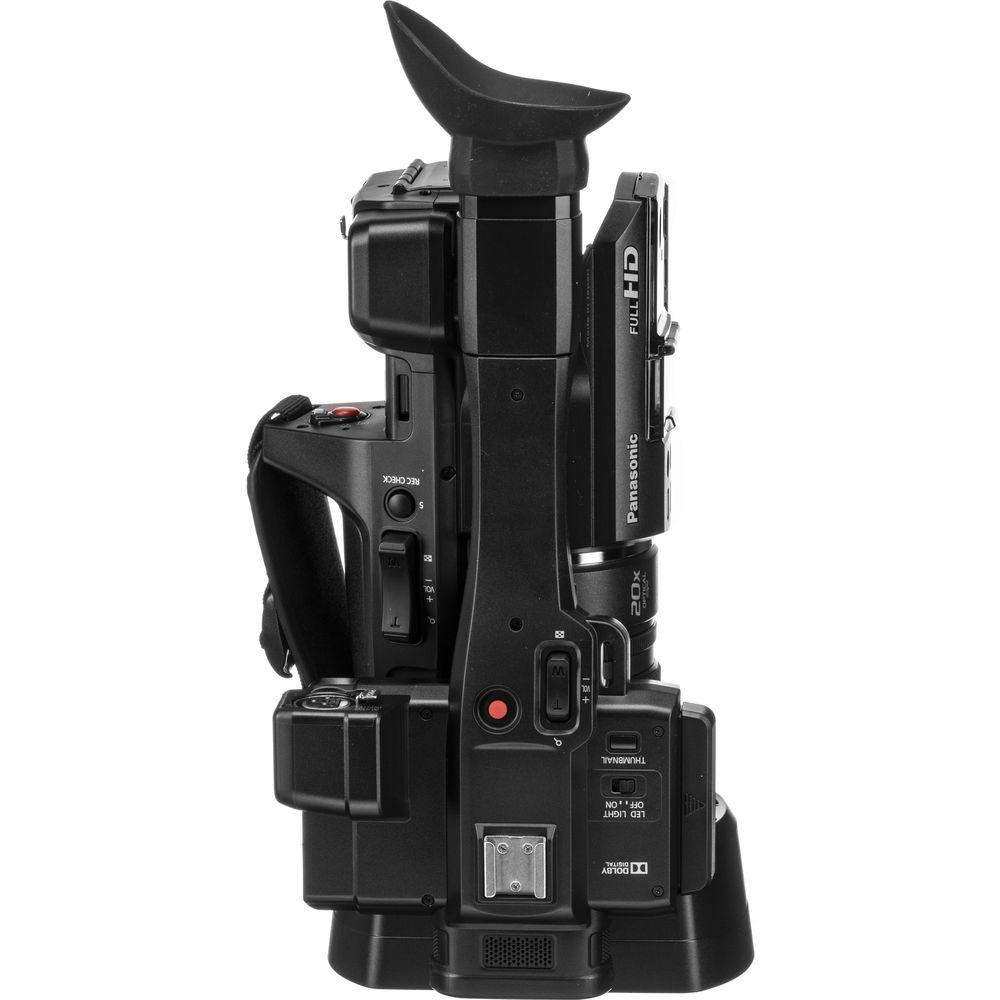

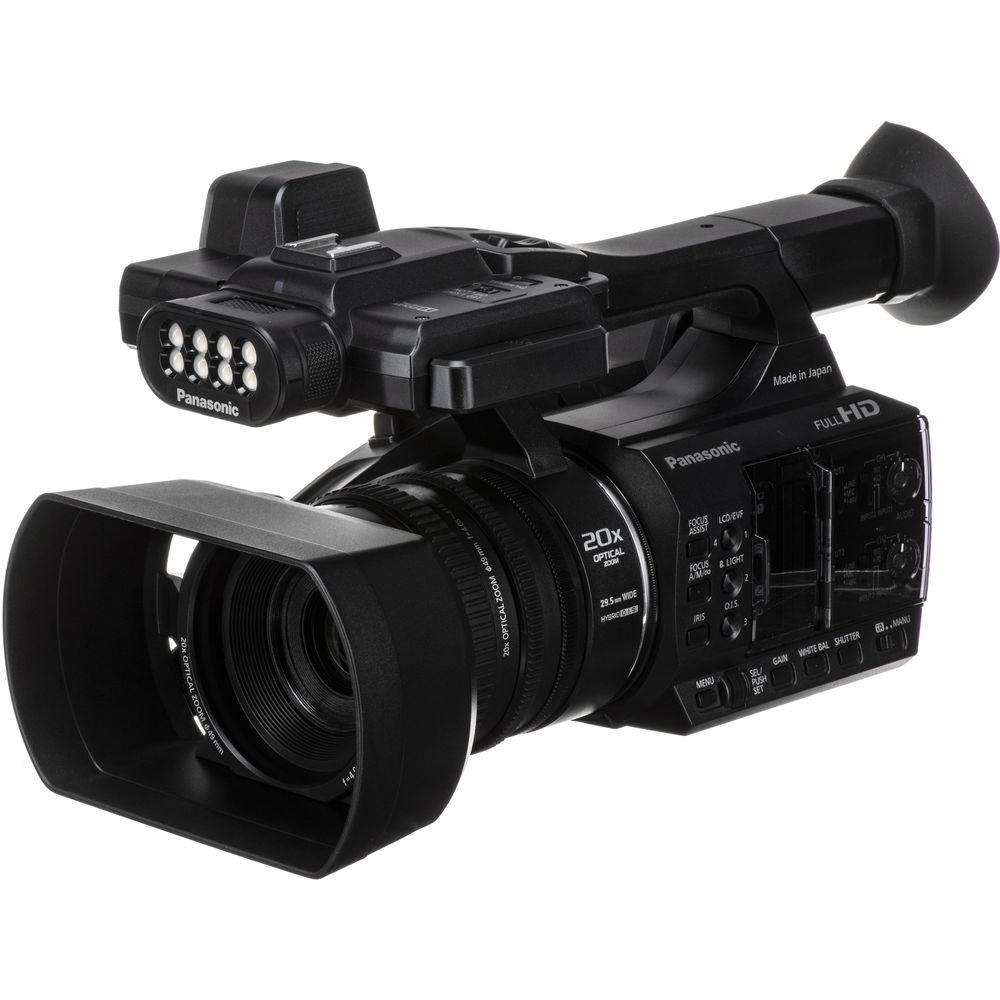

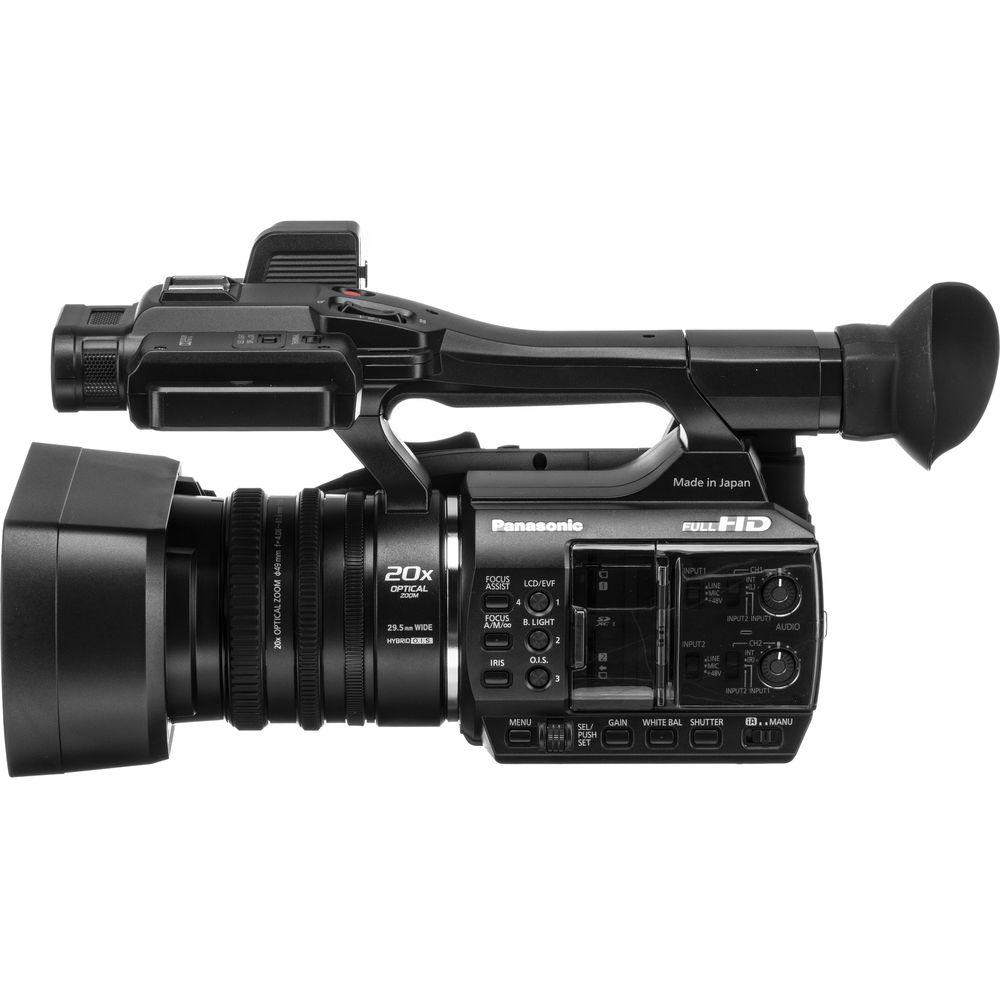

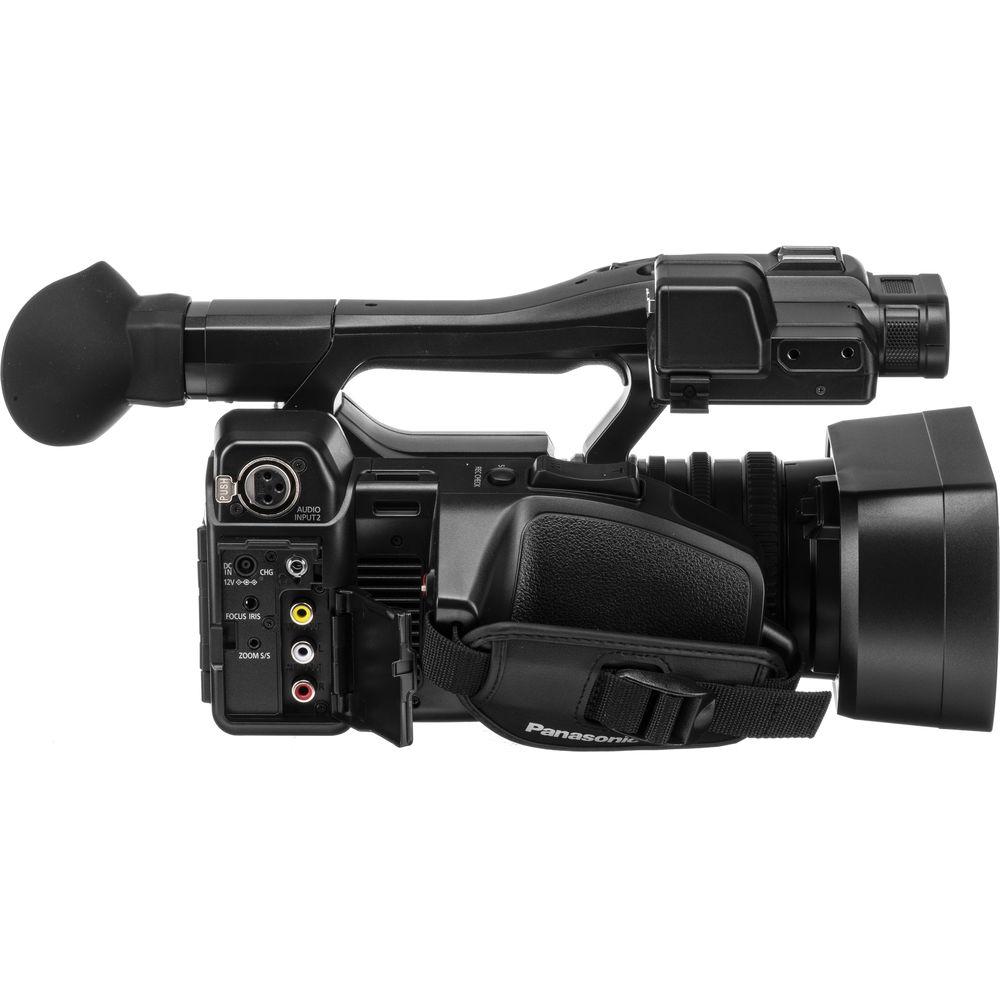

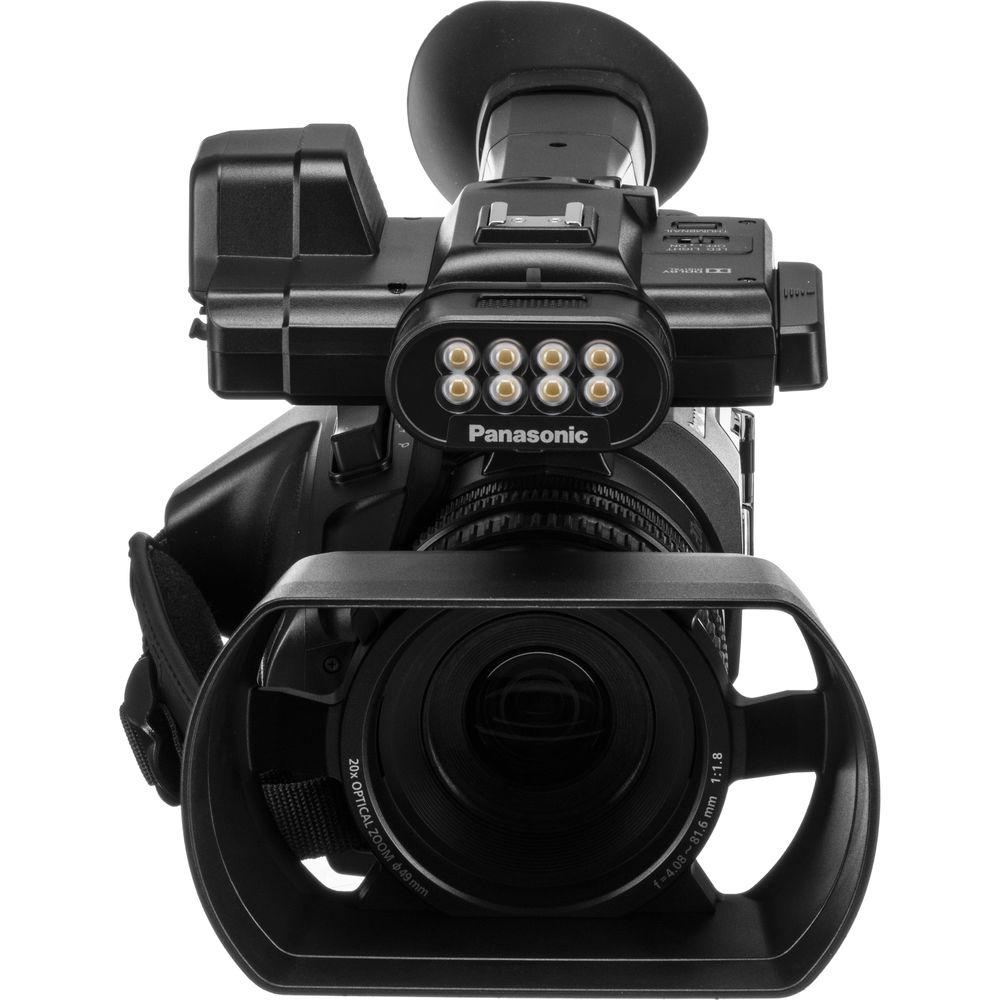

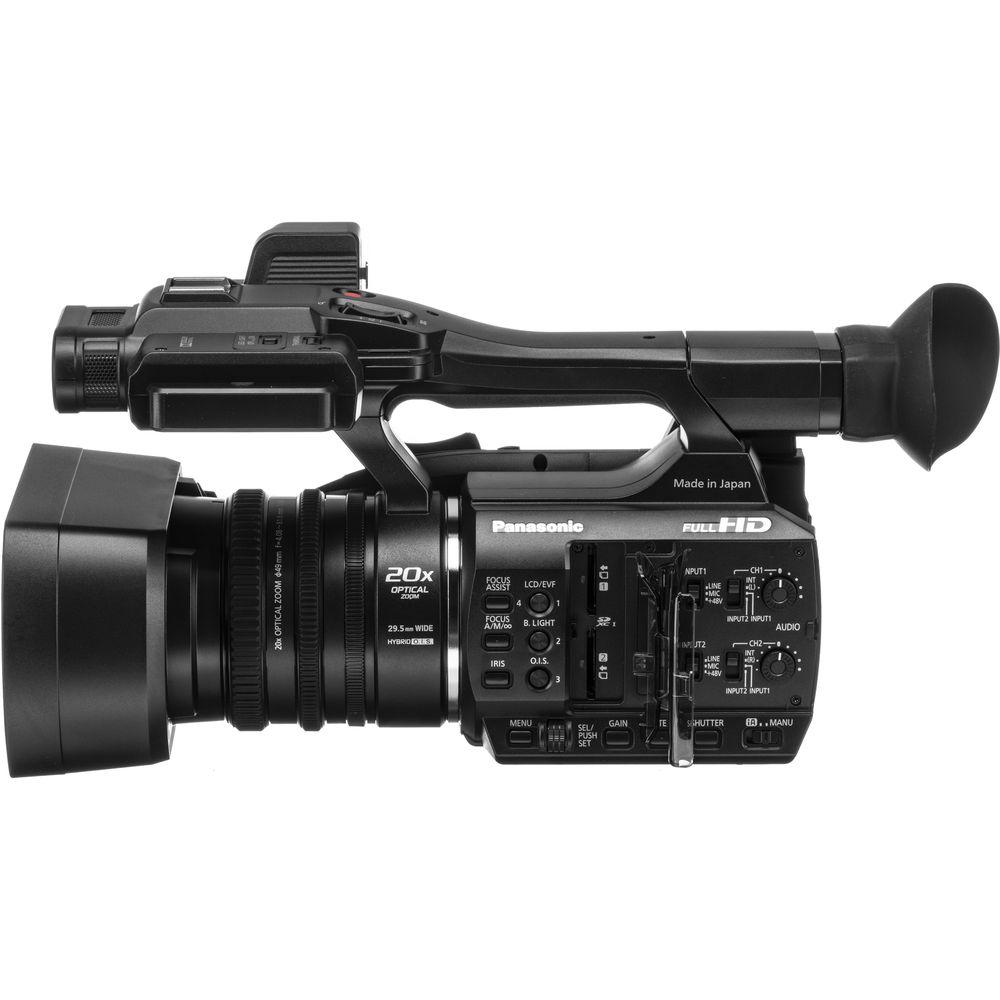

Click to enlarge the picture
Panasonic AG-AC30 Full HD Camcorder with Touch Panel LCD Screen & Built-In LED Light Contents of the user manual for the Panasonic AG-AC30 Full HD Camcorder with
  • Product category: Camcorders Panasonic
  • Brand: Panasonic
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Panasonic Camcorders

Panasonic AG-AC30 Full HD Camcorder with Touch Panel LCD Screen & Built-In LED Light Panasonic AG-AC30 Full HD Camcorder with Touch Panel LCD Screen & Built-In LED Light Panasonic AG-AC30 Full HD Camcorder with Touch Panel LCD Screen & Built-In LED Light Panasonic AG-AC30 Full HD Camcorder with Touch Panel LCD Screen & Built-In LED Light Panasonic AG-AC30 Full HD Camcorder with Touch Panel LCD Screen & Built-In LED Light Panasonic AG-AC30 Full HD Camcorder with Touch Panel LCD Screen & Built-In LED Light Panasonic AG-AC30 Full HD Camcorder with Touch Panel LCD Screen & Built-In LED Light Panasonic AG-AC30 Full HD Camcorder with Touch Panel LCD Screen & Built-In LED Light Panasonic AG-AC30 Full HD Camcorder with Touch Panel LCD Screen & Built-In LED Light
User manual for the Panasonic AG-AC30 Full HD Camcorder with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Panasonic product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!



Product description

Panasonic AG-AC30 Full HD Camcorder: Built-In LED Light and More Read More Panasonic's AG-AC30 Full HD Camcorder with Touch Panel LCD Screen and Built-In LED Light is at home shooting corporate, event, and indie projects. It features a 1/3.1" BSI MOS sensor for improved low-light performance and incorporates a 20x zoom lens with 5-axis hybrid image stabilization. The lens also features electronically linked geared iris rings for manual control of focus, zoom, and iris. Built-into the top handle is an LED light for illuminating your subject in dim light.

Two viewfinders provide you a choice when operating the camera with either a traditional tilt up color EVF, or a pullout LCD high resolution touchscreen. The LCD touchscreen is positioned above the lens for a more natural viewing experience when shooting handheld. Slow motion recording functionality is included, allowing you to record in Full HD up to 120 fps. The camera records in MP4, MOV, or AVCHD codecs, and features dual SDXC media card slots. allowing you to use relay recording or simultaneous recording.
  • A built-in LED light illuminates your subjects with a bright (300 lux at 1 meter) beam of daylight balanced light. If the beam is too harsh, an included diffusion filter covers and softens the light. If you need tungsten balanced light, a color conversion filter is included as well.
  • The integrated 20x optical zoom lens provides sharp images and an equivalent 35mm focal length range of 29.5 to 612mm (16:9). The lens also features a 49mm filter thread.
  • The camera employs 5-axis hybrid O.I.S. compensating for side-to-side, up-down, forward-back handheld shake.
  • The AG-AC30 features electronically linked zoom, focus, and iris rings on the lens. The rings are textured for better tactile feel.
  • The camera shoots and records HD at 23.98p, 29.97p, 59.94i, and 59.94p in MP4/MOV at 50Mb/s. AVCHD recording at 59.94p averages 25Mb/s for FHD, and as well at 59.94i and 23.98p at lower data rates. You can also shoot in 1280 x 720 or 720 x 480i, although that signal is cropped and squeezed.
  • A selection for super slow motion allows you to shoot FHD (1920 x 1080) at 120 fps.
  • The camera records in either MP4, MOV, AVCHD, or AVCHD Progressive.
  • The sensor features a design that moves the circuitry normally found in front of the photosites to the back of the sensor's substrate. this allows more photons to strike the photosites, increasing the sensitivity of the sensor.
  • An illuminated ring lets your subject know when you are recording by changing from blue to red. Although this is pleasant in appearance, this feature can be disabled in the camera's menu.
  • You can activate a level indicator overlay, which can be useful to check the camera is level when shooting handheld or with a stabilizer.
  • The camera incorporates a built-in microphone, and two 3-pin XLR audio inputs for line or mic level input.
UPC: 885170288409 In the Box Panasonic AG-AC30 Full HD Camcorder with Touch Panel LCD Screen & Built-In LED Light
  • AC Adapter
  • AC Cable
  • 2900 mAh Rechargeable Battery
  • AV Cable
  • Microphone Holder
  • 2 x Microphone Holder Screw
  • 2 x Input Terminal Cap
  • EVF Eyepiece Cup
  • Lens Cap
  • LED Light Diffusion Filter
  • LED Light Color-Conversion Filter
  • Limited 1-Year Warranty
  • Brochure PDF 1.2mb Table of Contents




    Upload User Manual

    Have you got an user manual for the Panasonic AG-AC30 Full HD Camcorder with Touch Panel LCD Screen & Built-In LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Panasonic AG-AC30 Specs

    Image Sensor 1-Chip 1/3.1" MOS Sensor
    Effective Sensor Resolution 6.03 MP
    Minimum Illumination 1.4 lux at 1/30 Shutter Speed
    Focal Length 4.1 to 81.6mm
    35mm Equivalent Focal Length 29.5 to 612mm
    Max Digital Zoom 200x
    Maximum Aperture f/1.8 to 3.6
    Filter Size 49 mm
    Image Stabilization Optical
    Digital
    Shutter Speed 1/6 to 1/8000 sec
    Built-In ND Filter None
    Recording Media 2 x SDXC Card Slots
    Broadcast System Compatibility NTSC
    Still Photo JPEG: 1920 x 1080 (2.1 MP)
    Audio Recording 2-Channel
    Video Connectors 1 x 1/8" (3.5 mm) TRRS A/V (Composite) Output
    1 x HDMI Output
    Audio Connectors 2 x 3-Pin XLR Mic Level Input
    1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Headphone Output
    Other I/O 1 x 3.5 mm Control
    1 x 2.5 mm LANC Control
    1 x USB Type-A
    1 x USB Micro-B
    Display Type LCD
    Screen Size 3"
    Touchscreen Yes
    Screen Resolution 460,000 Dots
    Screen Size .24"
    EVF Resolution 1,555,000 Dots
    Accessory Mount 1 x Cold Shoe Mount
    Tripod Mount 1/4"-20 Female
    Built-In Light Yes
    Dimensions 6.7 x 6.7 x 13.2" / 17 x 17 x 33.5 cm
    Weight 3.3 lb / 1.5 kg
    Package Weight 8.1 lb
    Box Dimensions (LxWxH) 14.3 x 12.1 x 11.4"

    Rating

    88% users recommend this product to others. And what about you?
    Rating: 4.4 of 5

    This product has already been rated by 42 owners. Add your rating and experience with the product.
