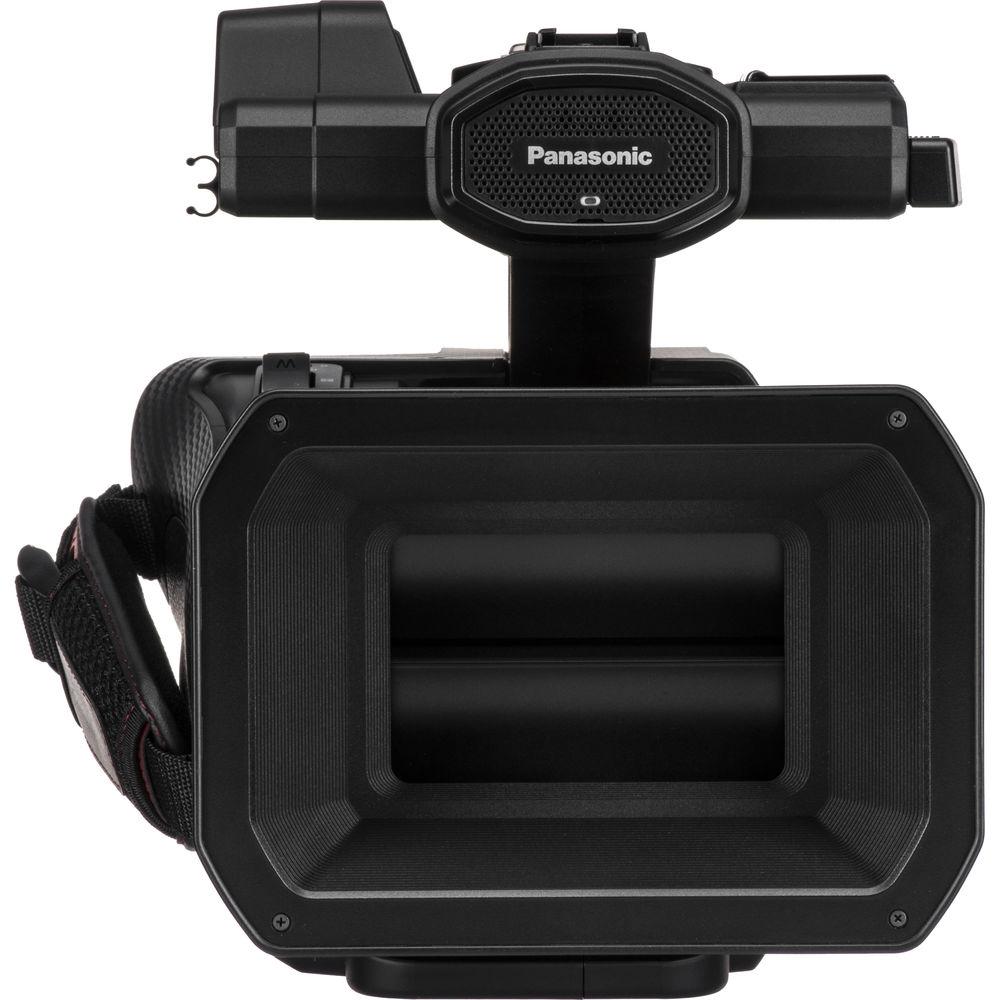

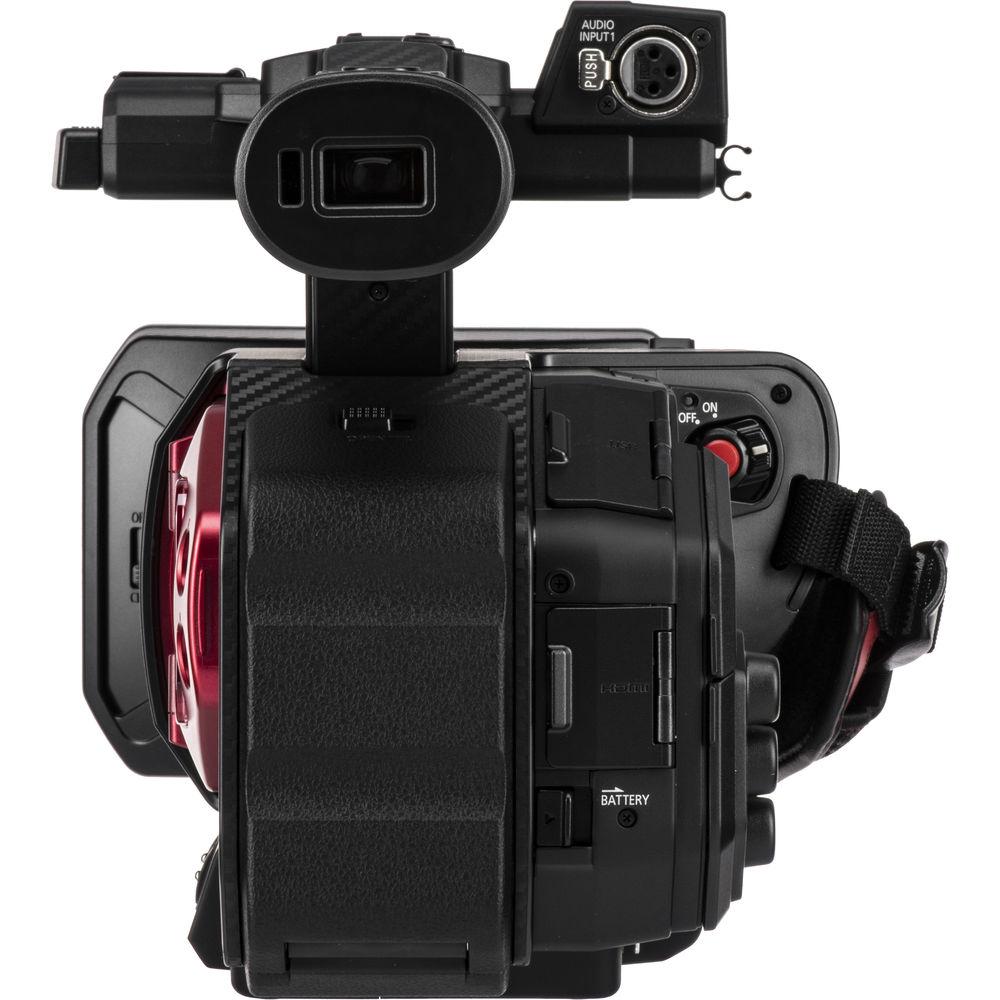

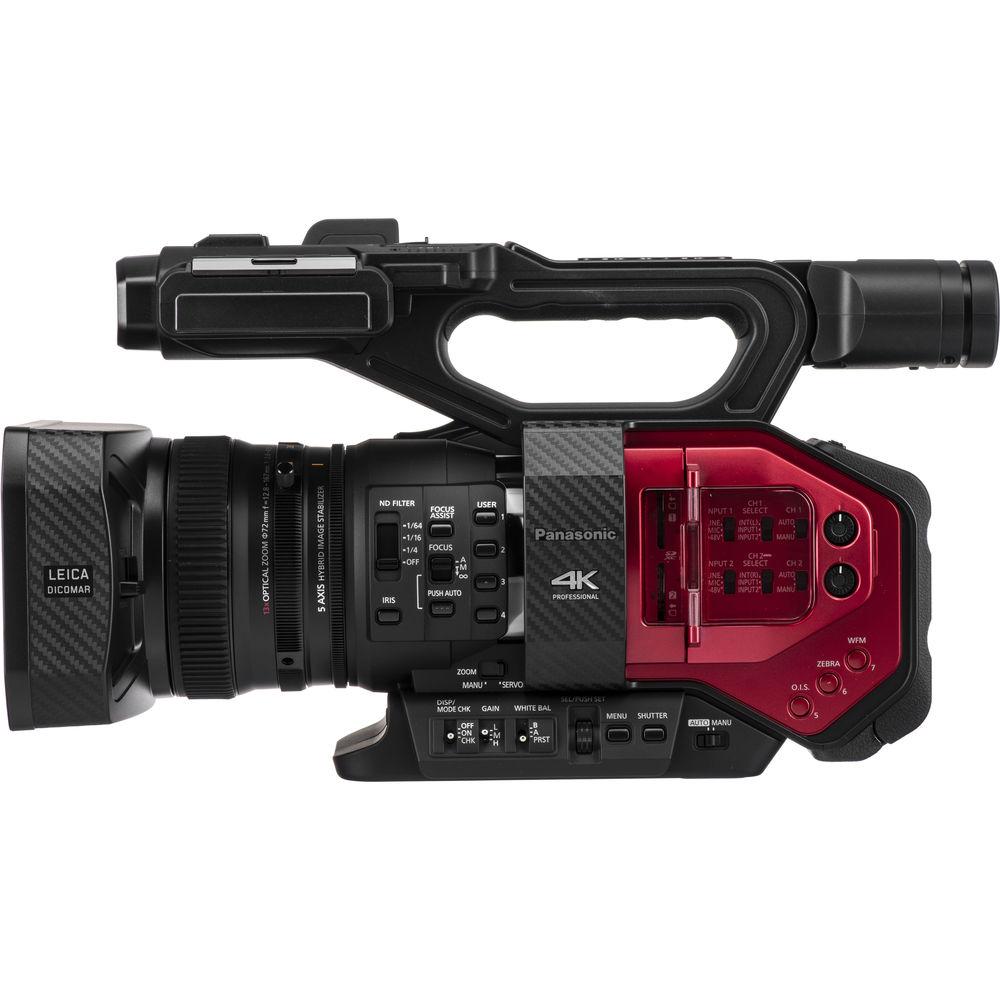

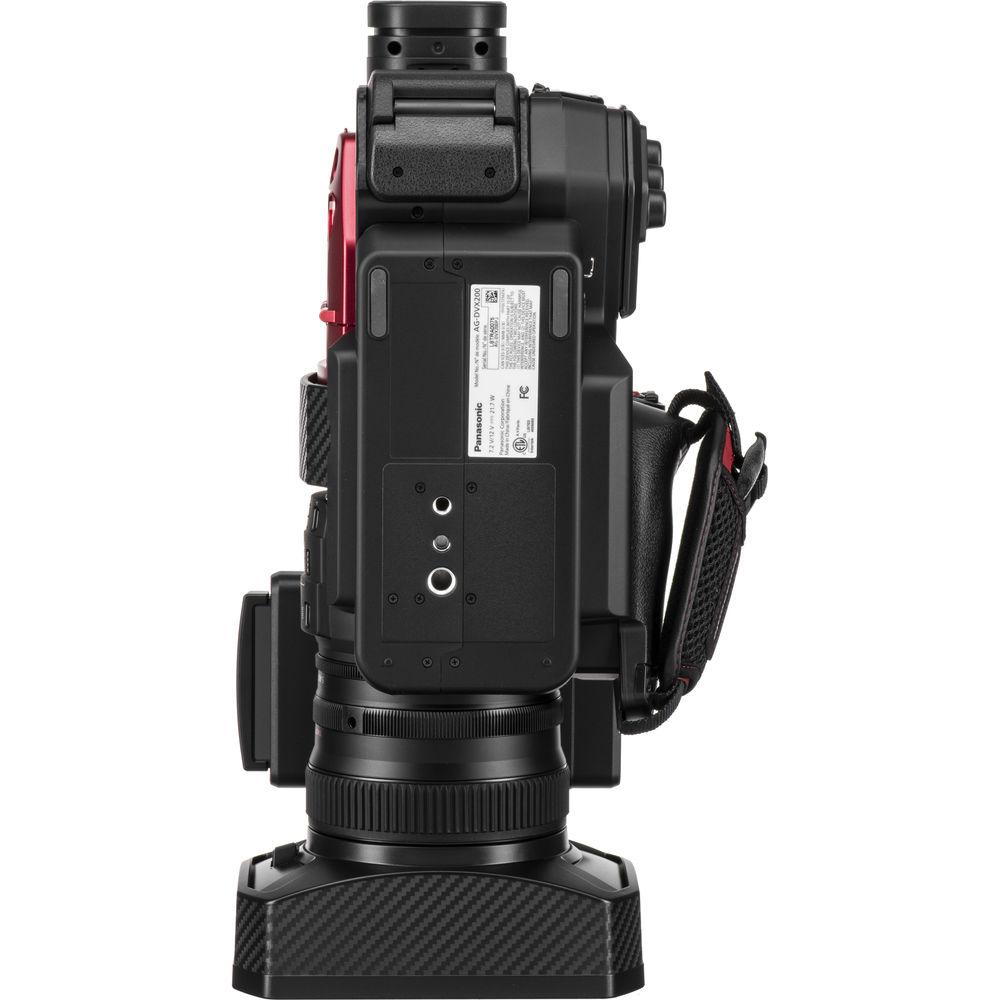

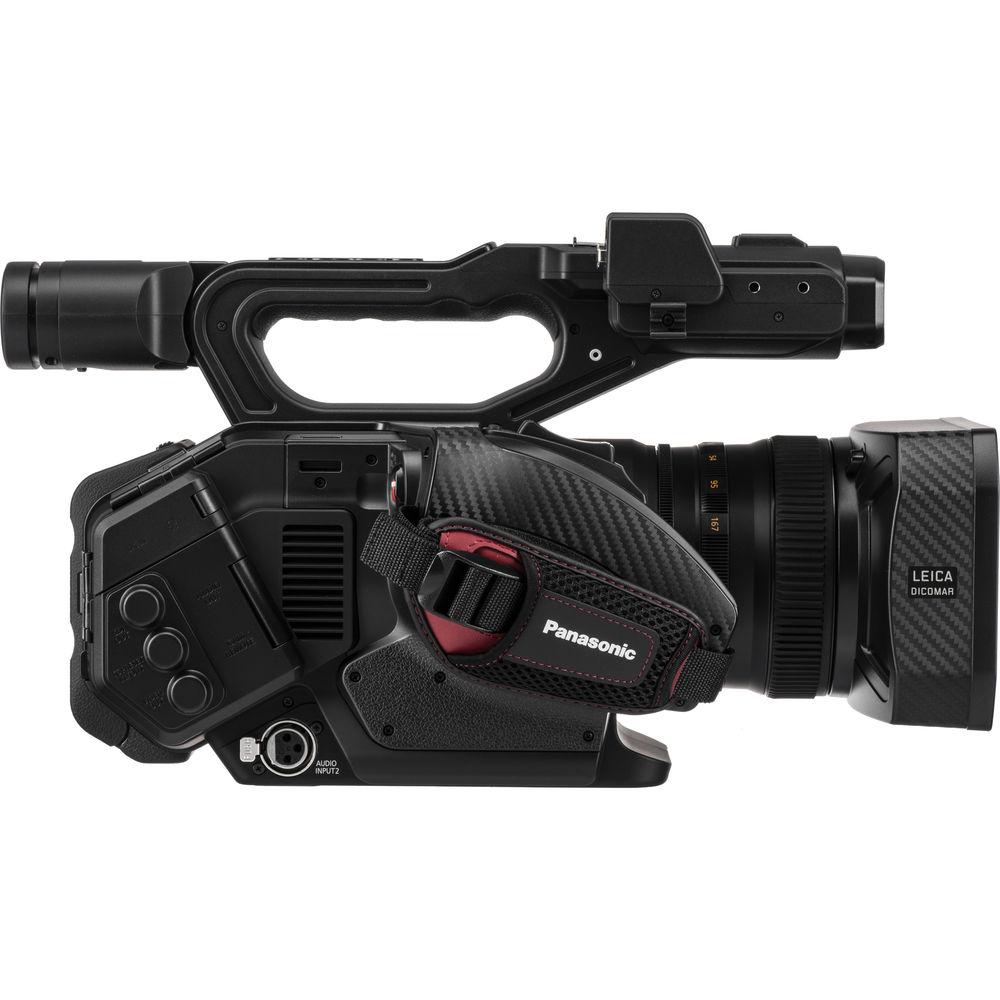

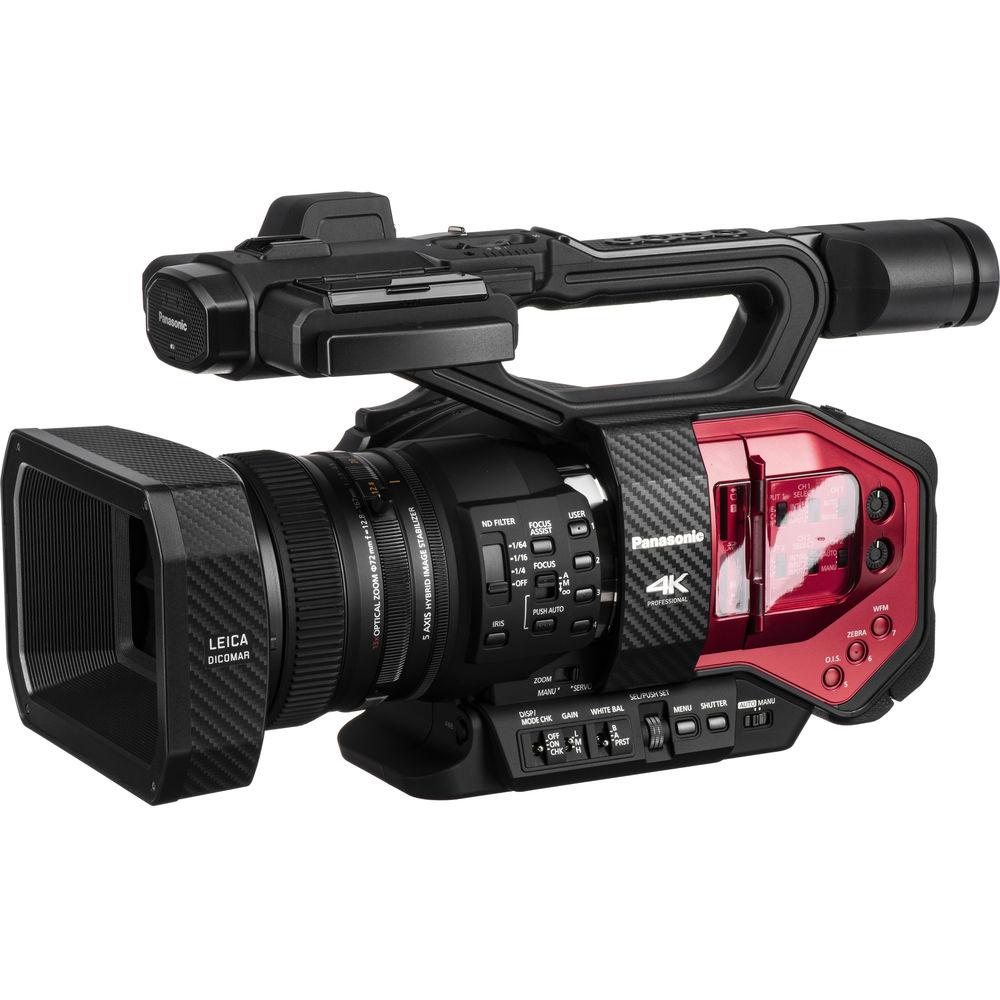

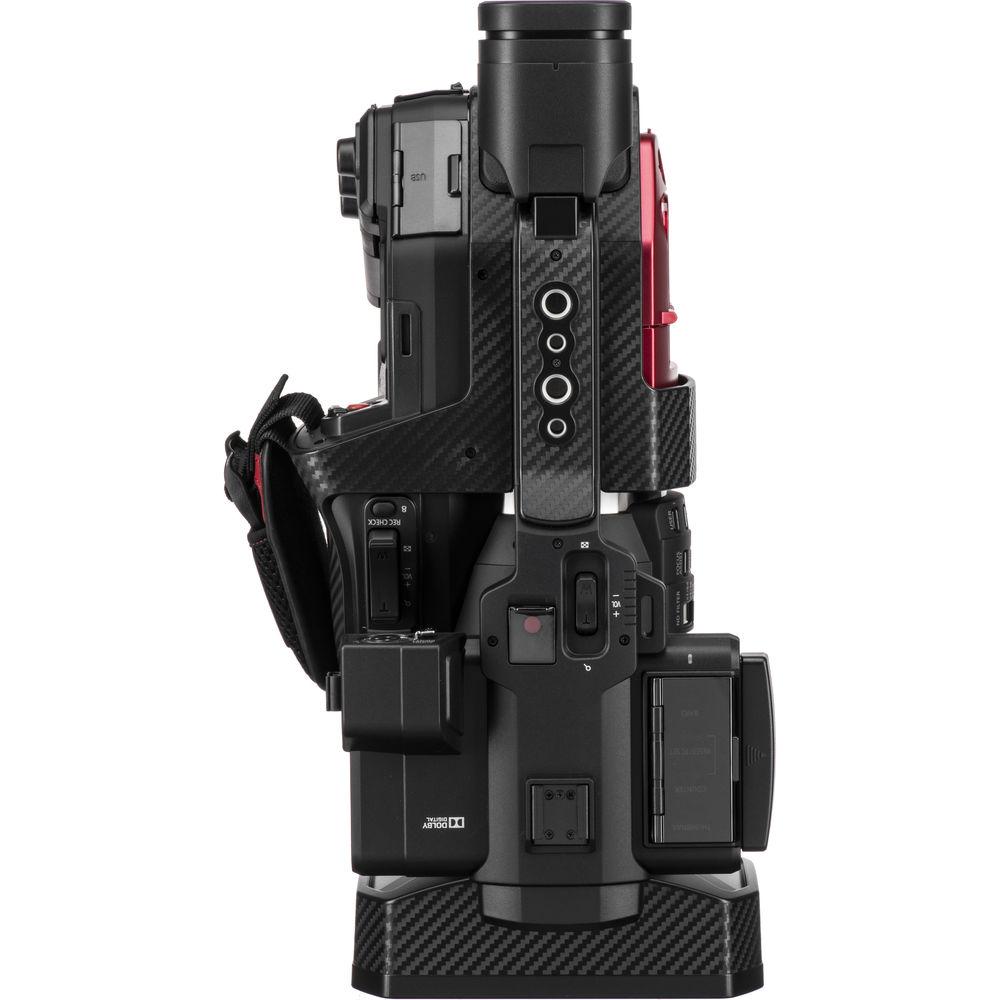

User Manual for Panasonic AG-DVX200 4K Professional Camcorder Click to enlarge the picture
Contents of the user manual for the Panasonic AG-DVX200 4K Professional Camcorder
- Product category: Camcorders Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Camcorders
 |
User manual for the Panasonic AG-DVX200 4K Professional Camcorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description For a wide range of high-resolution and professional options when mobile or in the studio, use the Panasonic AG-DVX200 4K Camcorder for recording up to 4K60p 4096 x 2160 video and 8-mode V-Log L gamma with 12 stops of dynamic range.
The AG-DVX200 features a large, 4/3-type MOS sensor that creates a dramatic bokeh with its wide-angle lens, and its focal length with 13x optical zoom ranges from 28 to 365.3mm. The camera's 5-axis Hybrid Image Stabilizer and Optical Image Stabilizer (O.I.S.) provide anti-shake correction for smooth movement, and the 3-ring lens design allows for precision iris/focus/zoom manual control. The shutter system functions in three modes: System, Slow, and Syncro Scan, which allow for shutter speeds from 1/60 to 1/8000 sec. Four-step, built-in ND filters and variable gain settings allow for greater control over brightness and shutter.
Recording functions include DCI 4K, UHD 4K, Full HD, and SD resolutions, MOV, MP4, and AVCHD formats with MPEG-4 and H.264 compression, slow-motion video up to 120 fps, Pre Rec pre-recording function, interval recording for time-lapse, freeze frame, time stamp and timecode, JPEG still recording up to 8MP 4096 x 2160 resolution, and 16-bit / 48 kHz LPCM or Dolby stereo audio. Two SD slots record onto SDHC/SDXC media, and UHS-I format is supported. Rollover recording is supported, which allows recording to continue by automatically switching to the second slot when the first card is full. Recording to external media is also supported via a USB 3.0 output. The camera supports dual XLR input, HDMI/3G-SDI/SD-SDI audio and video output, 3.5mm stereo line/mic/headphone output, and BNC timecode output.
The camera's auto-assist operations feature a variety of tasks such as high-speed 4K autofocus, automatic white balance, one-touch AF, manual focus assist, and focus preset transition as well as peaking, auto iris, and brightness display functions. Image adjustment presets include 16-axis color correction, skin and master detail, and six preset scene files with slots for custom scene files. Use the 4.3-type HD display or the .39-type OLED viewfinder to preview your video and view your settings.
The AG-DVX200 also supports infrared shooting with a separately available IR light, as well as wireless transmission with a separately available wireless module. Accessory mounting options include a cold shoe mount on top. A 5800mAh VW-VBD58 battery, a shoulder strap, a battery charger, a microphone holder, an AC adapter, an eyecup, a lens hood with lens cover, and an INPUT terminal cap are included. - 4/3-type MOS sensor for dramatic bokeh effects and 4K 4096 x 2160 resolution
- Twelve stops of latitude from V-Log L gamma; eight selectable gamma modes including Cine-Like
- Variable frame rate HD recording up to 120 fps
- Includes a built-in 28 to 365.3mm lens with 13x optical zoom and intelligent full-auto functions
- High-quality 4K 10-bit 4:2:2 images can be output via the HDMI terminal
- Microdrive focus unit provides a high-speed, high-precision intelligent autofocus
- Advanced Optical Image Stabilizer (O.I.S.) expands correction area with ball OIS system
- The 5-axis Hybrid Image Stabilizer effects handshake correction in various directions (does not work in UHD/DCI 4K modes)
- Dual-codec recording allows images to be simultaneously recorded into two different formats, main UHD/FHD and sub FHD (UHD 60/50p mode is not supported)
- Two SDHC/SDXC memory card slots boost recording reliability with the option of background, relay, or simultaneous recording, as well as SD card copy
- The three manual focus/iris/zoom rings and other controls are specially designed to satisfy professional users
- Equipped with professional interfaces such as HDMI out, 3G-SDI out, XLR in, and timecode preset in/out
- Optional wireless remote control from an iPad with iOS 7.1, iOS 8.1, or iOS 9. The optional AJ-WM30/WM50 Wireless Module is required for wireless connection
UPC: 885170348462 In the Box Panasonic AG-DVX200 4K Professional Camcorder VW-VBD58 Battery Battery Charger AC Adapter 2 x Power Cord Microphone Holder 12mm Screw (for Microphone Holder) Eye Cup Lens Hood INPUT Terminal Cap Shoulder Strap Limited 1-Year Warranty Brochure PDF 5.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AG-DVX200 4K Professional Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AG-DVX200 Specs | | | Image Sensor | 1-Chip 4/3" MOS Sensor | | Sensor Resolution | 4096 x 2160 (13.35 MP) | | Effective Sensor Resolution | 4096 x 2160 (13.35 MP) | | Gain | 0 to 24 dB (Native) | | Sensitivity | f/11 at 2000 lux 89.9% Reflectance When in HIGH SENS. mode | | Minimum Illumination | 0.2 lux at 1/2 Shutter Speed | | White Balance Range | 2000 to 15,000K | | | | Focal Length | 12.8 to 167mm | | 35mm Equivalent Focal Length | 29.5 to 384.9mm When in 4K mode | | Optical Zoom Ratio | 13x | | Max Digital Zoom | 10x | | Maximum Aperture | f/2.8 | | Minimum Aperture | f/4.5 | | Filter Size | 72 mm | | Control Rings | Focus
Zoom
Iris | | Image Stabilization | Optical | | Focus Control | Autofocus
Manual Focus | | | | Shutter Speed | 1/60 to 1/8000 sec | | Shutter Angle | 5 to 360
