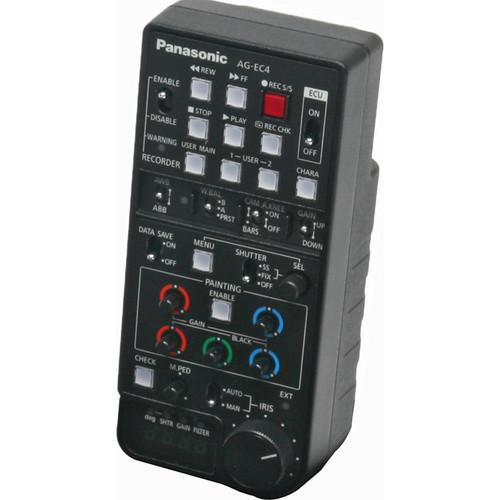

User Manual for Panasonic AG-EC4GPJ Extension Control Unit Click to enlarge the picture
Contents of the user manual for the Panasonic AG-EC4GPJ Extension Control Unit
- Product category: RCPs & MCPs Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic RCPs & MCPs
|
User manual for the Panasonic AG-EC4GPJ Extension Control Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The AG-EC4GPJ Extension Control Unit is designed for use with Panasonic's 300Studio and P2Studio camcorder studio systems. The AG-EC4GPJ offers remote control of each system's base station, up to 50 meters (164 feet) away, or can be attached directly to the camera for control use. The AG-EC4GPJ is compatible with the AJ-HPX3700, AJ-HPX2700, AJ-HPX3000, AJ-HPX200, AND AG-HPX500 P2 camcorders, as well as the DVCPRO AJ-HDX900. It comes standard with a 10-pin, 10 meter (32 foot) remote control cable. - Control Functions Include:
-
- gain up/down
- output camera/bar selection (linked to auto knee)
- white balance A/B/Preset selection
- AWB/ABB execution
- shutter SS/Fix/Off selection and speed setting
- iris auto/manual selection and adjustment
- master pedestal
- painting
- camera menu settings
- recorder operation (Rec/Play/FF/Rew/Rec check)
- Functions and cost-performance are ideally matched to the AG-HPX300 series and AG-HPX500 series camcorders.
- In addition to providing remote control of the AG-BS300 Base Station, the AG-EC4GPJ can be connected directly to a supported camcorder for control use.
- The AG-EC4GPJ includes 3 programmable buttons. Users can save camera settings onto SD cards for later use or to load into another camera.
UPC: 791871305027 In the Box Panasonic AG-EC4GPJ Extension Control Unit 32' (10m) Remote Control Cable 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AG-EC4GPJ Extension Control Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AG-EC4GPJ Specs | Inputs/Outputs | Camera/Base Station: 10-pin multi-connector
Video Out: BNC x 1 | | Power Supply | 12VDC | | Power Consumption | 25W | | Dimensions (WxHxD) | 3.25 x 7.12 x 2.25" (8.2 x 18 x 5.6 cm) | | Weight | 1.4 lbs (620g) | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 9.7 x 9.0 x 6.6" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
