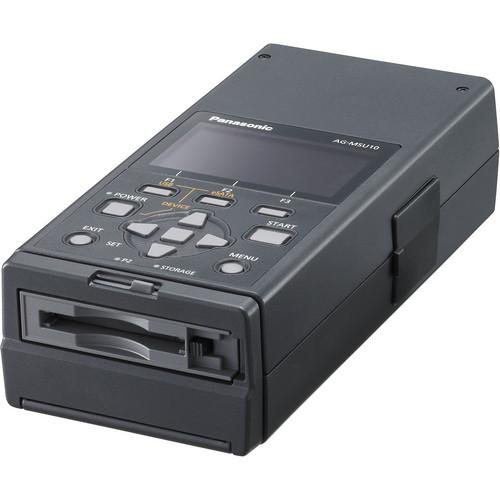

User Manual for Panasonic AG-MSU10 P2 Media Storage Unit Click to enlarge the picture
Contents of the user manual for the Panasonic AG-MSU10 P2 Media Storage Unit
- Product category: Recorders & Duplication Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Recorders & Duplication
|
User manual for the Panasonic AG-MSU10 P2 Media Storage Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Panasonic AG-MSU10 P2 Media Storage Unit is a mobile storage device designed for backing up and transferring video footage from P2 memory cards to an internal solid state drive, external hard drive, or to a Mac or PC. With its rugged design, built-in P2 card slot, AC/DC operation, and USB 2.0 and eSATA interfaces, the AG-MSU10 offers a range of options to insure your P2 video remains safe while in the field. The included removable interface tray is designed to hold a 2.5" solid state drive (purchased separately), which can be used internally or, with its own eSATA and USB connectors, as removable media hooked directly to a PC or Mac editing system. Note: SSD drive and eSATA cable not included. - Fast Copying from a P2 Card to a Built-in Removable SSD
- The AG-MSU10 has a P2 card slot and an interface box for housing a commercially available 2.5 type solid state drive (SSD) with Serial ATA interface (use a commercially available removable SSD that is recommended by Panasonic). Copying from a P2 card to the SSD can be done. HD files recorded with an AVC-Intra 100 codec (video bit rate: approximately 100 Mbps) can be copied at about four times normal speed, and about eight times normal speed for files recorded with an AVC-Intra 50 (video bit rate: approximately 50 Mbps).
- Backup onto an External HDD with eSATA/USB 2.0
- The AG-MSU10 is equipped with eSATA and USB 2.0 interfaces (both Host and Device). In Host mode, files in the internal P2 card can be copied onto an external HDD at high speed without a PC /Mac. In Device mode, the AG-MSU10 can be used as an external drive for reading and writing data between a PC, Mac or nonlinear editing system and a P2 card or SSD.
- The Removable SSD Connects Directly to a PC/Mac
- The removable SSD interface box is equipped with both eSATA and USB 2.0 connectors. It can be removed from the AG-MSU10 and connected directly to a PC, Mac or nonlinear editing system for use in Device mode. This enables flexible operation as a removable media.
- Single Button Copy and Thumbnail Display
- Copying from a P2 card to a built-in SSD can be done swiftly with single-button operation. A clip thumbnail can also be displayed onto the built-in 82mm (3.2") LCD panel and images can be copied clip by clip. The condition and status displays enable easy-to-understand operation.
- Compact, Lightweight, Robust Design and Battery Drive
- The AG-MSU10, which has superb portability features and a compact, lightweight and robust design, can also be battery driven. The P2 card and SSD ensure reliable use even in extremely harsh shooting conditions.
UPC: 885170016859 In the Box Panasonic AG-MSU10 P2 Media Storage Unit SSD Interface Box AC Adapter CGA-D54 Battery Battery Charger 2 x AC Power Cables USB Cable 3mm Screws for SSD Installation Silicone Jacket for Interface Box Operating Instructions CD-ROM w/Software 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AG-MSU10 P2 Media Storage Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AG-MSU10 Specs | Compatibility | Compatible 2.5" Solid State Drives - as of July 2011:
CFD SSD WJ3 Series: CSSD-SM128WJ3
Samsung 470 Series: MZ-5PA256
Crucial m4: CT512M4SSD2
Intel X25-M: SSDSA2MH160G2C1
Intel X25-M: SSDSA2MH080G2C1
Intel X25-E: SSDSA2SH064G101
Samsung PM800: MMDOE56G5MXP-0VB
SUPER TALENT MasterDrive SX: SAM56GM25S
SUPER TALENT UltraDrive GX: FTM56GX25H
SUPER TALENT UltraDrive DX: FTM12DX25T
PhotoFast G-Monster V3: PF25S64GSSDV3
I/O Data SSDN-STH: SSDN-ST256H
I/O Data SSDN-STH: SSDN-ST128H
Crucial M225: CT128M225
Crucial RealSSD C300: CTFDDAC128MAG-1G1
OCZ Technology Agility Series: OCZSSD2-1AGT120G
OCZ Technology Vertex Series: OCZSSD2-1VTX120G
Corsair Performance Series: CMFSSD-128GBG2D
Corsair Extreme Series: CMFSSD-128D1
Corsair Force Series: CSSD-F120GB2
Kingston SSDNow V+: SNVP325-S2/128GB
Patriot Torqx: PFZ128GS25SSDR
Silicon Power SSD E10: SP128GBSSDE10S25 These listed drives currently max out at 512 GB, though that is not the upper limit for what the AG-MSU10 will accept. | | Connectivity | eSATA (1x Host, 1x Device)
USB 2.0 Host: Mini-B
USB 2.0 Device: Type A | | Built-In Card Slot | (1) P2
(1) SSD Interface Tray | | Battery Type | CGA-D54 (5400mAh) | | Power Requirements | 7.2VDC (w/5400mAh battery) | | Power Consumption | 1.1A | | Operating Temperature | 32° - 104°F (0° - 40°C) | | Dimensions (WxHxD) | 3.9 x 2.3 x 8.3" (9.9 x 5.8 x 21.2 cm) | | Weight | 1.7 lbs (770g) - Main unit only (no SSD or battery) | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 12.5 x 11.0 x 9.0" |
