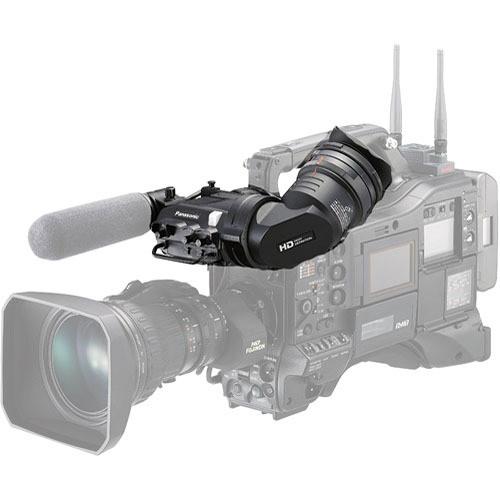

User Manual for Panasonic AJ-HVF21KG Electronic HD Viewfinder Click to enlarge the picture
Contents of the user manual for the Panasonic AJ-HVF21KG Electronic HD Viewfinder
- Product category: Viewfinders Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Viewfinders
|
User manual for the Panasonic AJ-HVF21KG Electronic HD Viewfinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Panasonic AJ-HVF21KG Electronic HD Viewfinder is a 2” (50.8mm) viewfinder for the Panasonic AJ-HPX3100GJ High Definition Camcorder. - High-resolution CRT delivers superb picture sharpness, making focusing easier
- Low-flare CRT makes the screen clear and easy on the eyes
- Large eyepiece aperture makes it possible to see the screen even when the viewfinder is at some distance from your eye
- Eyepiece is easily detachable
- Image system can be switched between 1080/60 fields and 1080/50 fields depending on the control signal from the camera
In the Box Panasonic AJ-HVF21KG Electronic HD Viewfinder 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AJ-HVF21KG Electronic HD Viewfinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AJ-HVF21KG Specs | Power Supply | 12 VDC (10.3 to 17 V) | | Power Consumption | 3.8 W | | Picture Tube | 2" (50.8 mm) high-resolution monochrome picture tube | | Image Recording System | 1080 Lines, 50/60 fields selectable | | Adjustments | External: Controls (Bright, Contrast, Peaking), Switches (Tally High/Off/Low, Zebra On/Off) | | Operating Temperature Range | 32 to 104°F (0 to 40°C) | | Operating Humidity Range | 85% or less (no condensation) | | Weight | 1.65 lb (0.74 kg) | | External Dimensions | 9.5 x 3.19 x 8.13" (240 x 80 x 206 mm) | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 13.5 x 10.6 x 6.7" |
