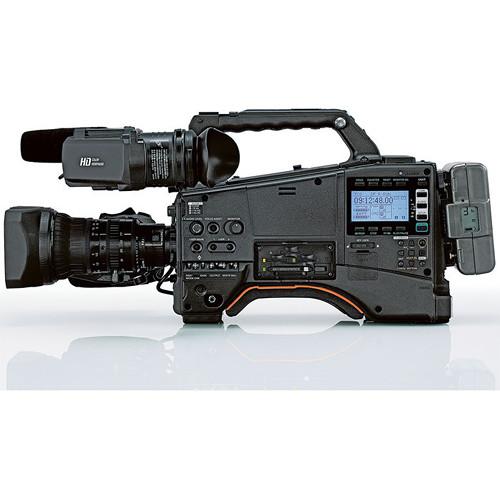

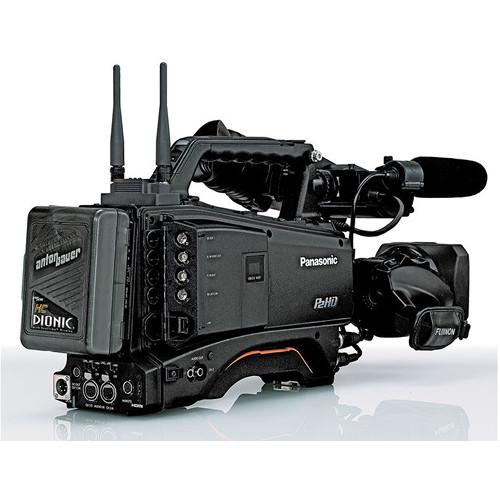

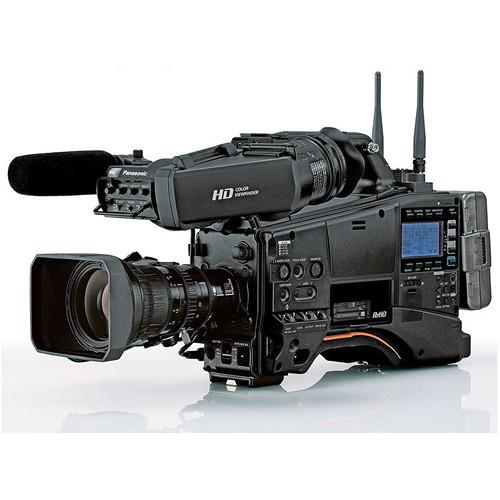

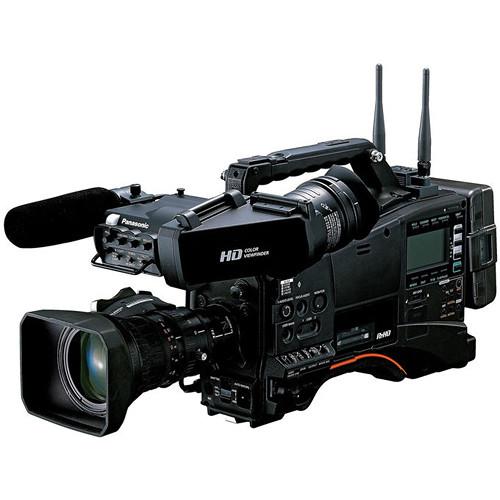

Product description The Panasonic AJ-PX380 Camcorder Studio Package fleshes out this P2 HD video camera with a variety of studio-style components. The AJ-PX380 is a 1/3" ENG-style HD video camera featuring advanced wireless and network functions, as well as the versatility of an interchangeable lens system. This Panasonic kit includes the AJ-PX380 camcorder with a color viewfinder, 17x Fujinon zoom lens, rear lens control, tripod plate, the AK-HRP200GJ remote panel, cables, and power supply. The included AG-BS300PJ Digital Base Station provides compatibility with Panasonic's P2Studio and 300Studio camcorder systems. Use this package as is for handheld mode, or add your own on-board monitor and tripod to the mix.The shoulder mount AJ-PX380 camcorder captures Full HD at rates up to 59.94p, recording to optional microP2 cards, and supporting a P2 card slot. With the included AG-BS300PJ studio base station, HD and return images, tally, mic, and genlock signals can be transmitted up to 328' using optional cables. A 9' Studio 300 cable is included in the package. - AJ-PX380 P2 HD AVC-Ultra Camcorder with AG-CVF15 Color Viewfinder and 17x Fujinon Zoom Lens With advanced wireless and network functionality, the Panasonic AJ-PX380 P2 HD AVC-Ultra Camcorder with AG-CVF15 Color Viewfinder and 17x Fujinon Zoom Lens is a full-featured 1/3" ENG-style video camera with an interchangeable lens system. Please note that this item only includes the camera body and does not include the lens or viewfinder. Suitable for newsgathering, the camera captures Full HD at up to 59.94p, recording to optional micro P2 cards and supporting a P2 card slot. Using codecs in the AVC-Ultra family allows you a choice of compression and data rate to suit your needs, and you can record proxy files on optional SD cards using the built-in SD media card slot.
It features a 3G-SDI, HD-SDI, and an HDMI output as well as a monitor output switchable between SD/HD and Composite. With both Genlock In and Timecode In/Out, the camera is suitable for multi-camera and single-camera news coverage. The camera comes ready to interface with your network via the built-in Ethernet connector. You can attach an optional USB dongle to the camera for wireless connectivity using Wi-Fi, 4G, or LTE. The camera features a variety of in camera image settings, including Flash Band compensation, which minimizes the effects of still photo camera flashes captured on video. The built-in Uni Slot accepts optional wireless audio recording. - 1/3" Type Interchangeable Lenses
- Compatible with 1/3"-type mount interchangeable lenses allows you to choose from a variety of 1/3"-type zoom lenses for broadcasting and other professional uses from third-party manufacturers.
- Included Zoom Lens and Color EVF

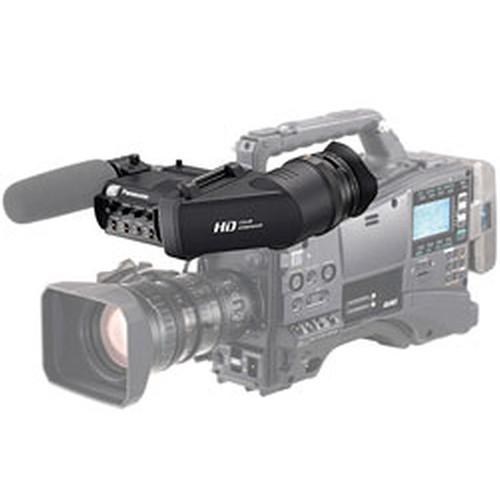

- This version of the camera includes a Fujinon 17x zoom lens, and the Panasonic AG-CVF15G HD Color Viewfinder, which features a 3.45" LCD display with an eyepiece. The eyepiece can be flipped up and out of the way, allowing the LCD be viewed as a direct monitor. The display can also rotate on two axis, allowing users to reposition the monitor for optimal viewing angles. The hub features a series of control knobs for adjusting peaking, chroma, contrast, and brightness. There are also selector switches for backlight brightness, zebra, and tally.
- Sensor
- Featuring a 2.2-megapixel 1/3-type 3MOS image sensor, this advanced camera recorder achieves high F11 (59.94 Hz)/F12 (50 Hz) sensitivity and excellent picture quality.
- NTSC & PAL Support
- The camera is switchable between NTSC and PAL compatible recording.
- HD/SD Multi Format/Multi Codec
- The camera supports 59.94 Hz/50 Hz switching for convenient use in productions headed for global use, and records 1080/60i,* 50i, 24p,* 25p, 30p* and 720p HD/SD multiple format. DVCPRO HD/DVCPRO50/DVCPRO/DV recording is also supported.
Note: 60i, 60p, 24p, and 30p are actually 59.94i, 59.94p, 23.98p, and 29.97p AVC-Ultra Codec Family - AVC-Intra: An intra-frame compression method that is highly suited to image production, AVC-Intra100/50.
- AVC-LongG: An intra-frame compression method that is ideal for providing on-air content direct from the shooting location and for workflows that use content transferred over the internet. Three bit rates are available: AVC-LongG50/25/12 Mbps. AVC-LongG25 provide 10 bit/4:2:2 quality at a bit rate of approximately 25 Mbps
- AVC-Proxy: Low-bit-rate, high-resolution, high-sound quality proxy video (Quick Time/H.264) includes metadata for efficient offline editing that can later be used to conform that original master files.
Dual MicroP2 Card Slots - Simul Rec: Records simultaneously onto two microP2 cards.
- Dual-codec recording: Records a low-rate AVC-Proxy file while recording main data in AVC-Intra/AVC-LongG.
- Hot-Swap Rec: You can hot-swap microP2 cards for continuous non-stop rec, replacing one card as it fills up.
- P2 Card Slot
- A single P2 card slot allows you to use P2 card, however, the P2 slot does not support using a P2 to microP2 card adapter.
- 24-Bit Four Channel Audio Recording
- AVC-Intra and AVC-LongG modes support 24bit/48 kHz/4CH digital audio recording. Audio source for each channel can be selected for each channel, choosing from mic-in, line-in and wireless receiver.
Note: AVC-LongG12 mode does not support 24 bit digital audio recording. Audio can be played back by using 24-bit digital audio equipment. - Wired/Wireless LAN Network Functions
-
- Wired LAN, wireless LAN, and 4G/LTE connectivity. FTP server uploading and Streaming are supported.
- Rec during Uploading, automatically uploads recorded clips to an FTP server or cloud server. Uploading is done in the background, and recording/playback continues during the transfer.
- On-Air Streaming can also be conducted while recording. In addition to selecting from 800 kbps to 6 Mbps (Full-HD), a QoS (Quality of Service) mode is available for streaming. It automatically controls the bit rate and frame rate to match the network conditions, for stable streaming performance.
- When connected by wireless LAN, recorded clips can be previewed and metadata can be checked and edited with a PC/Mac, smartphone or tablet device.
- Downlable P2ROP App for iPad, enables an advanced wireless camera remote function.
- USB Dongle Slot
- Accepts optional 4G/LTE/Wi-Fi dongles providing wireless connectivity including file transfer and proxy streaming.
UPC: 885170251885 - MS-01 Rear Zoom and Focus Lens Control Kit The Fujinon MS-01 is a semi-servo kit consisting of the SRD-92B zoom servo demand, CFH-3 focus handle/grip, CFC-12-990 flexible cable, and FMM-6B manual focus module. The kit provides precision control for ENG/EFP lenses over a variety of applications.
- SHAN-TM700 Quick Release Tripod Adapter The Panasonic SHAN-TM700 is a quick release camera mounting plate for The AJ-D700 camcorder. This plate allows the camcorder to release from the support and be used handheld in a very easy and fast fashion. It is reattached to the tripod just as fast and easy.

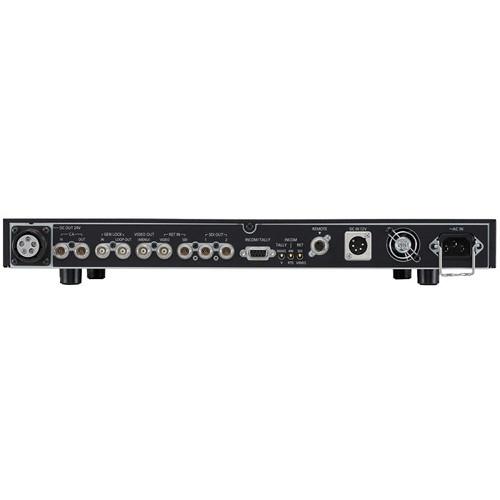

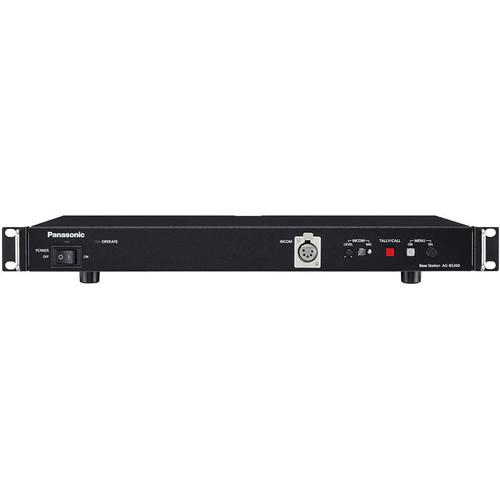

- AG-BS300PJ Digital Base Station The AG-BS300PJ Digital Base Station is the nucleus of Panasonic's P2Studio and 300Studio camcorder systems. The base station connects to the system's AG-CA300G camera adapter via 2 BNC cables and bundled power cable to allow transmission of HD digital images, return images, tally signals, mic signals and genlock signals over distances of up to 100 meters (328 feet), depending on choice of cable length. Optional Studio300 cables are available in 25, 50, and 100 meters.
- Digital signal transmission ensures high-quality, degradation-free images.
- Up to 70 watts of power can be supplied to the camcorder,* and a compact monitor and servo zoom can also be driven. 1
Please Note: *Power can be supplied only when the AG-BS300 Base Station is driven by an AC power source. A separate power cord is also required between the AG-BS300 Base Station and the AG-CA300G Camera Adaptor. Other manufacture's power cords which Panasonic verified are recommended to use. close - Supports both AC (100 to 240 V) and DC (12V) power supplies. Includes two SDI (HD/SD) outputs and a composite video output.

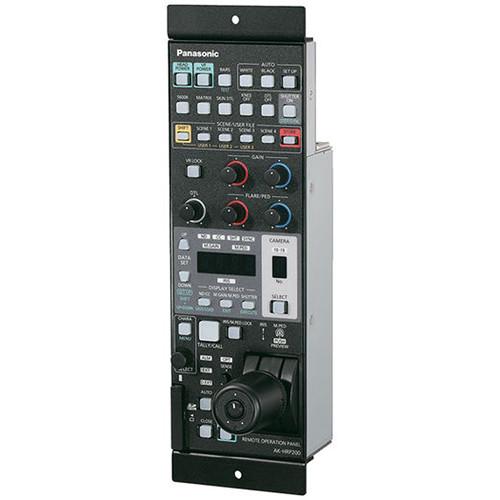

UPC: 791871305003 - AK-HRP200 Remote Operation Panel for Panasonic Cameras The Panasonic AK-HRP200 Remote Operation Panel is used for controlling a compatible studio handy camera and a camera controller unit like the AK-HCU200. This compact, lightweight, joystick-type ROP provides precise, rapid, and comprehensive control of the compatible cameras’ powerful capabilities. It can be used to control up to 19 cameras via an IP or serial connection.The ROP can also be used to set up and control Panasonic PTZ cameras such as the AW-HE120 via IP. Scene files, user files, and lens files can be stored on and retrieved from SD memory cards (not included) at both the controller unit and ROP.The ROP can be connected to the camera control unit via an ROP serial cable (e.g., ROP-50M, sold separately) up to a distance 164’ (50m). Connection between the camera and a CCU is established via a dedicated optical fiber cable (sold separately). Note: Memory cards used with the unit should conform to SD or SDHC standards. 8MB to 2GB SD memory cards and 4 to 32GB SDHC memory cards can be used. SDXC memory cards are not supported. Avoid use in areas with high temperature and humidity, water droplets, and static electricity.
Control of up to 19 Cameras with IP Connection - The AK-HRP200 Remote Operation Panel supports both serial (1:1) and IP connection. IP connection enables up to 19 cameras to be controlled by a single remote operation panel. 1
Please Note: External power supply (12VDC) required when LAN cable is used for IP connection. Power is supplied by the camera control unit in serial connection. close Supports a Variety of Cameras - Four connection modes-CCU Serial, CCU IP, Remote Camera Serial, and Remote Camera IP-enable single or combined remote control of studio handy cameras, multi-purpose cameras, HD convertible cameras, and HD integrated cameras.
ROP Menu Setting - The menu can be displayed on a monitor connected to the camera control unit, so detailed camera settings can be made by operating the remote operation panel.
Joystick Control Lever - A simple button layout and an iris control lever ensure intuitive and stable operation. The joystick control lever enables fine manual iris / pedestal operation.
SD Memory Card Slot - Scene files and user files can be saved with the SD/SDHC memory card slot. SD memory cards (not included) can also be used for firmware upgrades. 2
Please Note: Memory cards used with the unit should conform to SD or SDHC standards. 8MB to 2GB SD memory cards and 4 to 32GB SDHC memory cards can be used. SDXC memory cards are not supported. close Compact 6U Size - The unit is compact, with a width of 3.6" (92mm) and a 6U height for easy rack mounting. It is shipped with the rack mount brackets pre-installed.
UPC: 885170098466 In the Box Bundle Items AJ-PX380 P2 HD AVC-Ultra Camcorder with AG-CVF15 Color Viewfinder and 17x Fujinon Zoom Lens ywfxqwyzafasdwswfzyqvsyxeeyyaxervu - AG-CVF15G HD Color Viewfinder
MS-01 Rear Zoom and Focus Lens Control Kit - SRD-92B Zoom Servo Demand
- CFC-12-990 Flexible Cable
- FMM-6B Manual Focus Module
SHAN-TM700 Quick Release Tripod Adapter ywfxqwyzafasdwswfzyqvsyxeeyyaxervu AG-BS300PJ Digital Base Station AK-HRP200 Remote Operation Panel for Panasonic Cameras
Also Includes - Remote Operation Panel Cable
- Titan-70 Power Supply
Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AJ-PX380 Camcorder Studio Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AJ-PX380 P2 HD AVC-Ultra Camcorder with AG-CVF15 Color Viewfinder and 17x Fujinon Zoom Lens
| Image Sensor | 3-Chip 1/3" MOS Sensor | Sensor Resolution | 2.2 MP | Horizontal Resolution (TV Lines) | 1000 TV Lines or More | | Lens Mount | B4 Mount | Built-In ND Filter | None | Recording Media | 2 x microP2 Card Slots 1 x P2 Card Slot | | Broadcast System Compatibility | NTSC, PAL | | Video Connectors | 1 x BNC (3G-SDI) Output 1 x BNC (SD-SDI) Input/Output 1 x HDMI Output | Other I/O | 1 x BNC Genlock Input 1 x BNC Timecode Input/Output | | Box Dimensions (LxWxH) | 23.4 x 19.2 x 15.4" | - MS-01 Rear Zoom and Focus Lens Control Kit
| Box Dimensions (LxWxH) | 12.835 x 9.685 x 5.354" | - SHAN-TM700 Quick Release Tripod Adapter
| Box Dimensions (LxWxH) | 11.4 x 3.95 x 1.8" | - AG-BS300PJ Digital Base Station
Input Connectors | Incom/Tally: 9-pin Dsub CA: BNCx1, from AG-CA300G Return Video: BNCx1 Genlock: BNCx1 DC 12V: XLRx1, 4-pin AC Remote: 10-pin | Output Connectors | SDI: BNCx2 Video: BNCx1 CA: BNCx1 Genlock Loop: BNCx1 DC 24V: 5-pin Incom: XLRx1, 5-pin female | Power Supply | Input: 100 - 240VAC, 50/60Hz, 1.6A - 0.6A 12VDC, 1.1A Output: 13VDC, 5A 13VDC, 0.3A (Remote Power) | Dimensions (WxHxD) | 17.06 x 1.75 x 14.19" (43.2 x 4.4 x 36 cm) | Weight | 11 lbs (5kg) | | Box Dimensions (LxWxH) | 21.5 x 21.5 x 6.1" | - AK-HRP200 Remote Operation Panel for Panasonic Cameras
Compatible Cameras | Via Serial Control Only: AK-HC3500 Professional Studio Camera; AK-HC1800G/HC1500G & AW-HE870N/E Multi-Purpose HD Box Cameras Via Serial and IP Control: AK-HC3800 Professional Studio Camera and AW-HE120WP/WE/KP/KE & AW-HE60SN/SE/HN/HE Integrated Pan-Tilt Cameras AK-HC3800 and AK-HC3500 can be controlled via a camera control unit (CCU). Some functions of AK-HC3500 are not supported. | Power Supply | 12 VDC Power supply can be provided from a CCU or AC adapter. | Power Consumption | 4.2 W | CCU | Control: Control signals (camera, CCU control) Power supply (12 VDC) Tally control signal | Compatible Memory Cards | SD Memory Cards: 8 MB to 2 GB SDHC Memory Cards: 4 to 32 GB SDXC memory cards are not supported. | File Type | Scene, reference, user, factory, lens, ROP configuration | Preview | Control: Contact output | Maximum Cable Length | 164' (50 m) | Operating Temperature | 32 to 104°F (0 to 40°C) | Storage Temperature | -4 to 140°F (-20 to 60°C) | Operating Humidity | 90% or less | Dimensions (W x H x D) | Approximately 3.6 x 12.1 x 2.1" (9.2 x 30.8 x 5.5 mm) excluding protrusions | Weight | Approximately 2.9 lb (1.3 kg) | | Box Dimensions (LxWxH) | 15.0 x 9.0 x 5.4" |
