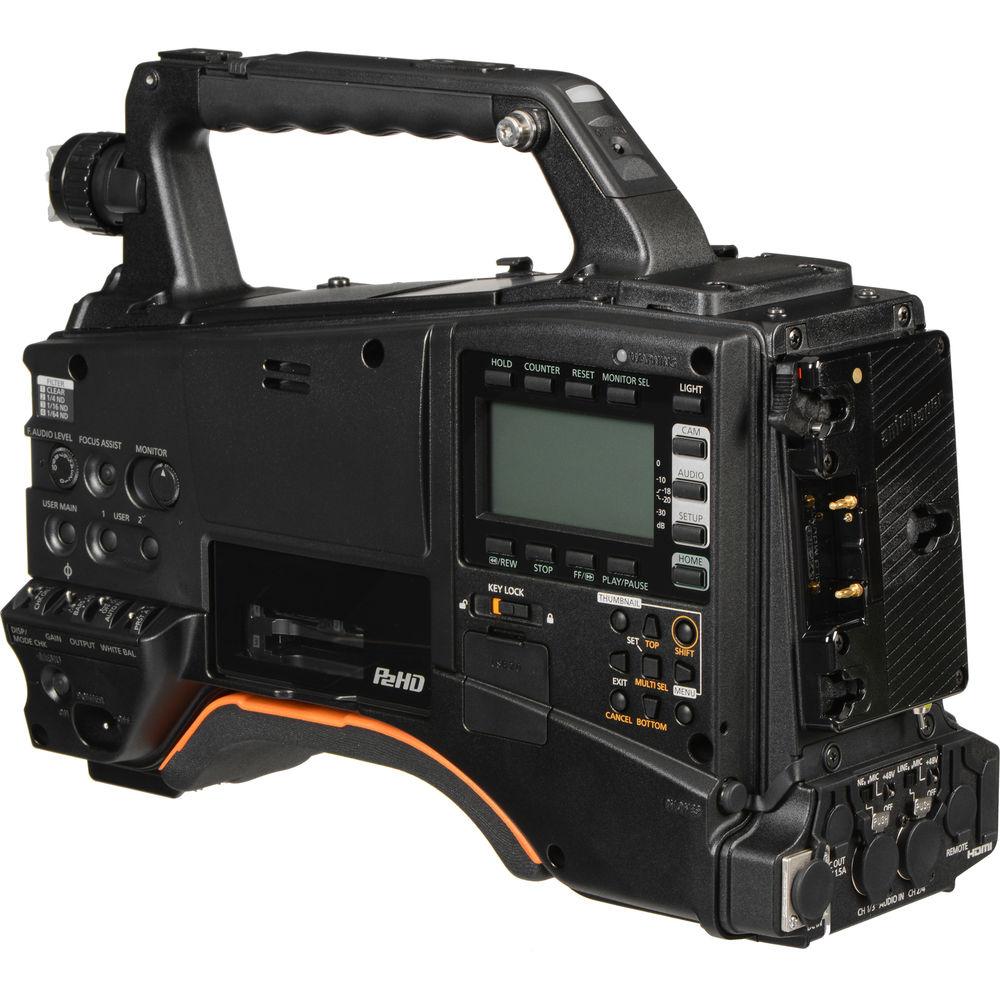

User Manual for Panasonic AJ-PX380 P2 HD AVC-Ultra Camcorder Click to enlarge the picture
Contents of the user manual for the Panasonic AJ-PX380 P2 HD AVC-Ultra Camcorder
- Product category: Camcorders Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Camcorders
 |
User manual for the Panasonic AJ-PX380 P2 HD AVC-Ultra Camcorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

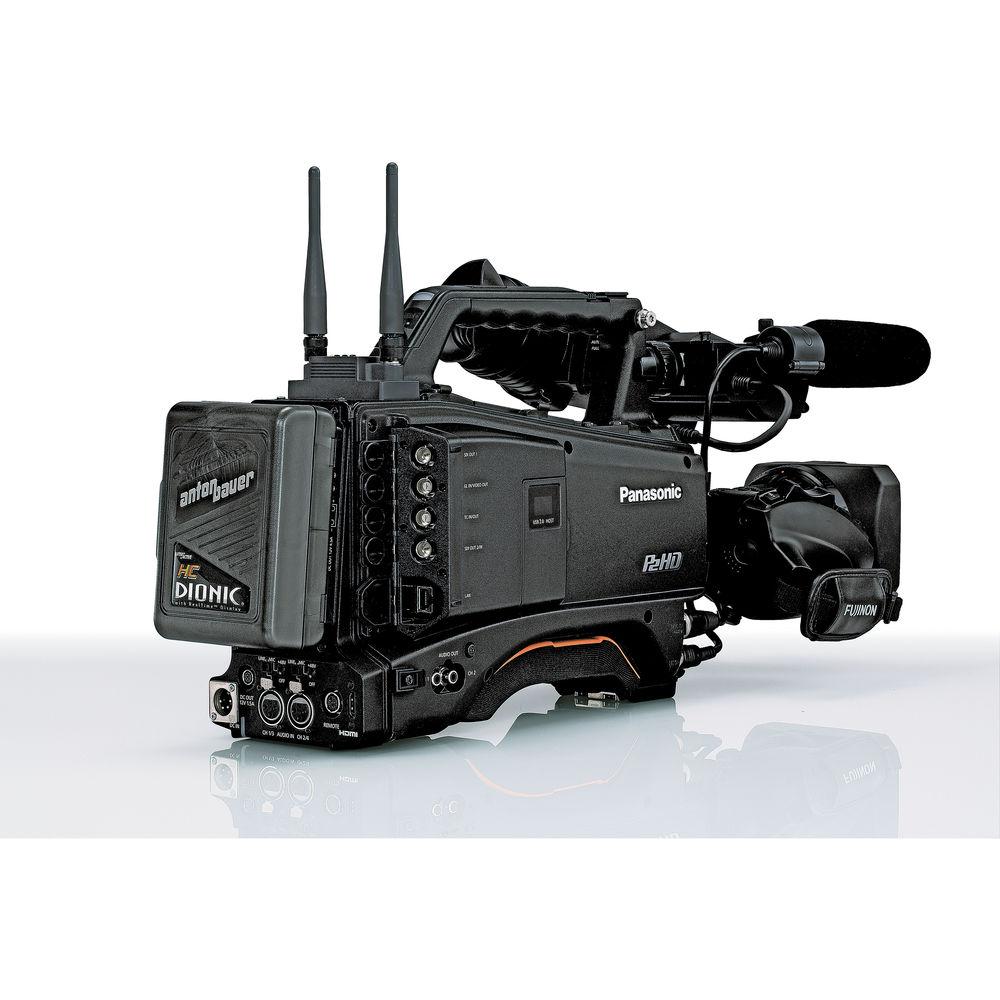

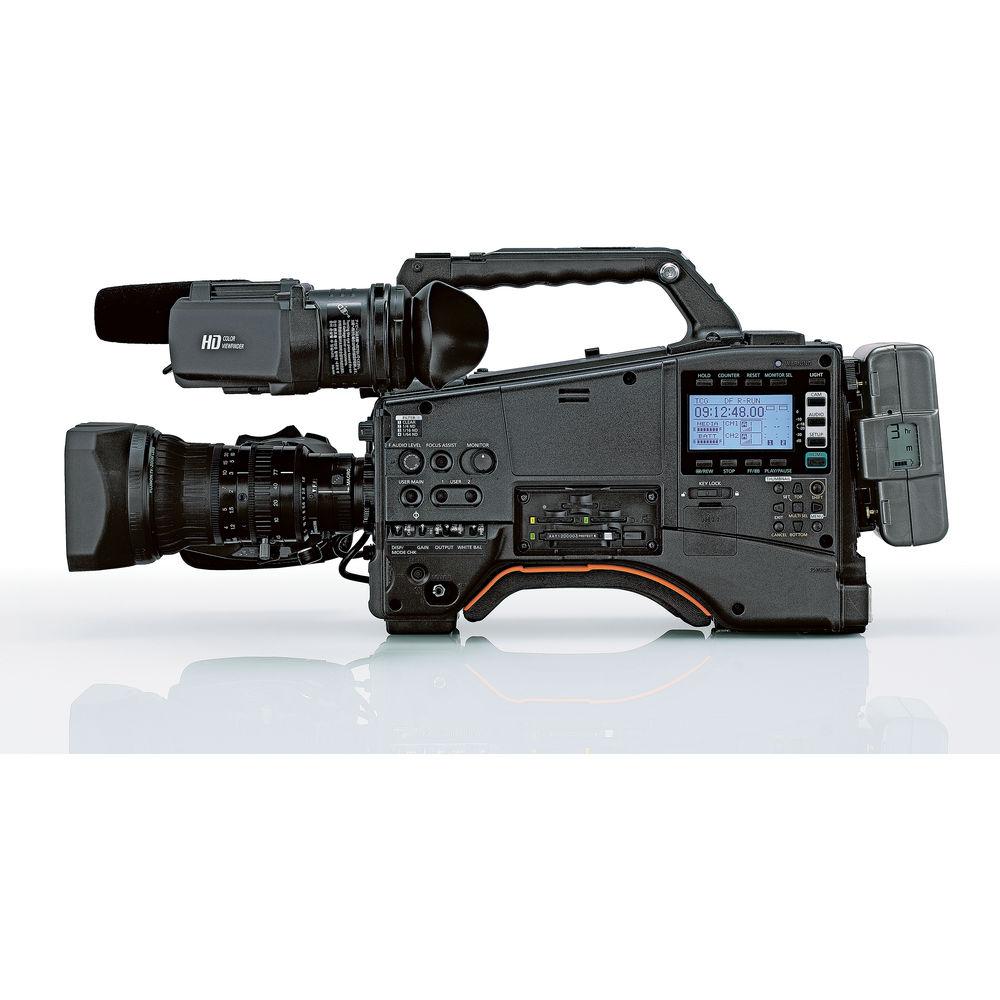

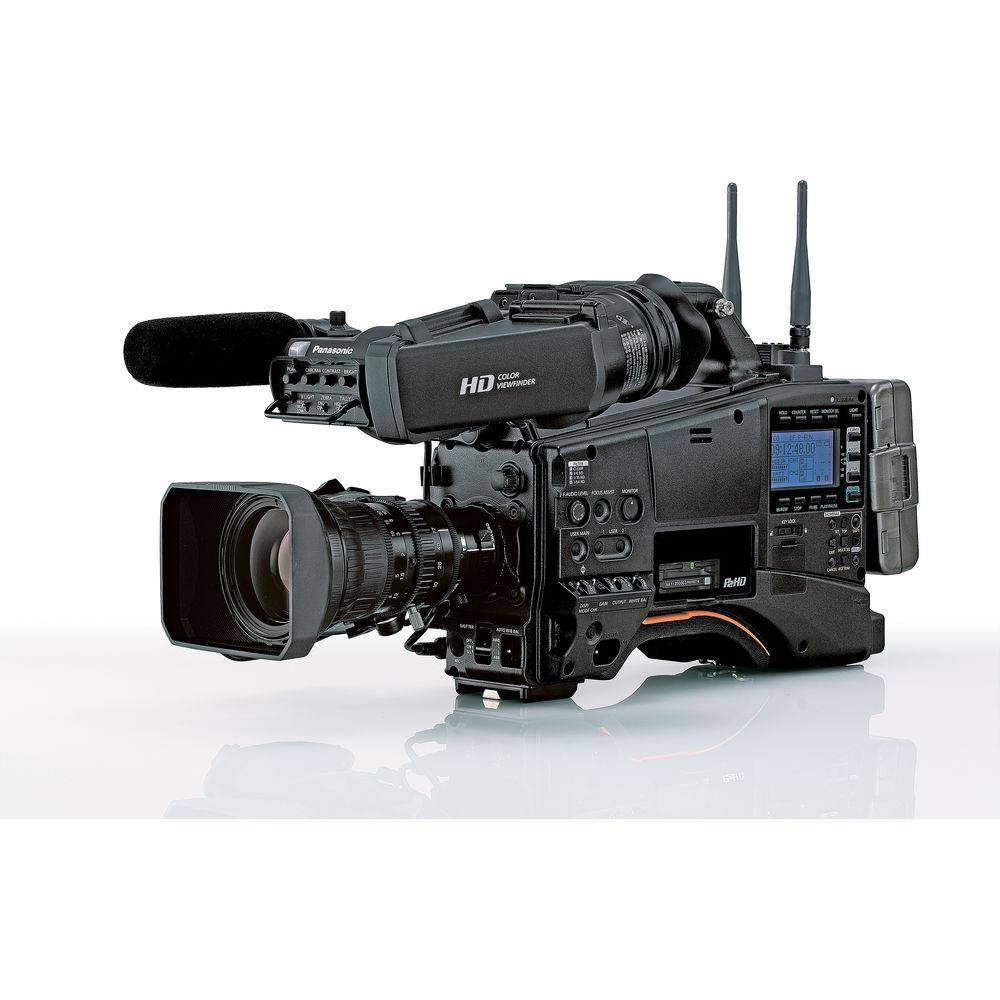

Product description With advanced wireless and network functionality, the Panasonic AJ-PX380 P2 HD AVC-Ultra Camcorder is a full-featured 1/3" ENG-style video camera with an interchangeable lens system. Please note that this item only includes the camera body and does not include the lens or viewfinder. Suitable for newsgathering, the camera captures Full HD at up to 59.94p, recording to optional micro P2 cards and supporting a P2 card slot. Using codecs in the AVC-Ultra family allows you a choice of compression and data rate to suit your needs, and you can record proxy files on optional SD cards using the built-in SD media card slot.
It features a 3G-SDI, HD-SDI, and an HDMI output as well as a monitor output switchable between SD/HD and Composite. With both Genlock In and Timecode In/Out, the camera is suitable for multi-camera and single-camera news coverage. The camera comes ready to interface with your network via the built-in Ethernet connector. You can attach an optional USB dongle to the camera for wireless connectivity using Wi-Fi, 4G, or LTE. The camera features a variety of in camera image settings, including Flash Band compensation, which minimizes the effects of still photo camera flashes captured on video. The built-in Uni Slot accepts optional wireless audio recording. - 1/3" Type Interchangeable Lenses
- Compatible with 1/3"-type mount interchangeable lenses allows you to choose from a variety of 1/3"-type zoom lenses for broadcasting and other professional uses from third-party manufacturers.
- Sensor
- Featuring a 2.2-megapixel 1/3-type 3MOS image sensor, this advanced camera recorder achieves high F11 (59.94 Hz)/F12 (50 Hz) sensitivity and excellent picture quality.
- NTSC & PAL Support
- The camera is switchable between NTSC and PAL compatible recording.
- HD/SD Multi Format/Multi Codec
- The camera supports 59.94 Hz/50 Hz switching for convenient use in productions headed for global use, and records 1080/60i,* 50i, 24p,* 25p, 30p* and 720p HD/SD multiple format. DVCPRO HD/DVCPRO50/DVCPRO/DV recording is also supported.
Note: 60i, 60p, 24p, and 30p are actually 59.94i, 59.94p, 23.98p, and 29.97p AVC-Ultra Codec Family - AVC-Intra: An intra-frame compression method that is highly suited to image production, AVC-Intra100/50.
- AVC-LongG: An intra-frame compression method that is ideal for providing on-air content direct from the shooting location and for workflows that use content transferred over the internet. Three bit rates are available: AVC-LongG50/25/12 Mbps. AVC-LongG25 provide 10 bit/4:2:2 quality at a bit rate of approximately 25 Mbps
- AVC-Proxy: Low-bit-rate, high-resolution, high-sound quality proxy video (Quick Time/H.264) includes metadata for efficient offline editing that can later be used to conform that original master files.
Dual MicroP2 Card Slots - Simul Rec: Records simultaneously onto two microP2 cards.
- Dual-codec recording: Records a low-rate AVC-Proxy file while recording main data in AVC-Intra/AVC-LongG.
- Hot-Swap Rec: You can hot-swap microP2 cards for continuous non-stop rec, replacing one card as it fills up.
- P2 Card Slot
- A single P2 card slot allows you to use P2 card, however, the P2 slot does not support using a P2 to microP2 card adapter.
- 24-Bit Four Channel Audio Recording
- AVC-Intra and AVC-LongG modes support 24bit/48 kHz/4CH digital audio recording. Audio source for each channel can be selected for each channel, choosing from mic-in, line-in and wireless receiver.
Note: AVC-LongG12 mode does not support 24 bit digital audio recording. Audio can be played back by using 24-bit digital audio equipment. - Wired/Wireless LAN Network Functions
-
- Wired LAN, wireless LAN, and 4G/LTE connectivity. FTP server uploading and Streaming are supported.
- Rec during Uploading, automatically uploads recorded clips to an FTP server or cloud server. Uploading is done in the background, and recording/playback continues during the transfer.
- On-Air Streaming can also be conducted while recording. In addition to selecting from 800 kbps to 6 Mbps (Full-HD), a QoS (Quality of Service) mode is available for streaming. It automatically controls the bit rate and frame rate to match the network conditions, for stable streaming performance.
- When connected by wireless LAN, recorded clips can be previewed and metadata can be checked and edited with a PC/Mac, smartphone or tablet device.
- Downlable P2ROP App for iPad, enables an advanced wireless camera remote function.
- USB Dongle Slot
- Accepts optional 4G/LTE/Wi-Fi dongles providing wireless connectivity including file transfer and proxy streaming.
UPC: 885170251861 In the Box Panasonic AJ-PX380 P2 HD AVC-Ultra Camcorder Shoulder Strap Lens Port Cap Limited 2-Year Warranty Brochure PDF 697.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AJ-PX380 P2 HD AVC-Ultra Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AJ-PX380 Specs | | | Image Sensor | 3-Chip 1/3" MOS Sensor | | Sensor Resolution | 2.2 MP | | Horizontal Resolution (TV Lines) | 1000 TV Lines or More | | | | Lens Mount | B4 Mount | | Built-In ND Filter | None | | Recording Media | 2 x microP2 Card Slots
1 x P2 Card Slot | | | | Broadcast System Compatibility | NTSC, PAL | | | | Video Connectors | 1 x BNC (3G-SDI) Output
1 x BNC (SD-SDI) Input/Output
1 x HDMI Output | | Other I/O | 1 x BNC Genlock Input
1 x BNC Timecode Input/Output | | | | Package Weight | 10.15 lb | | Box Dimensions (LxWxH) | 19.0 x 14.8 x 11.8" |
