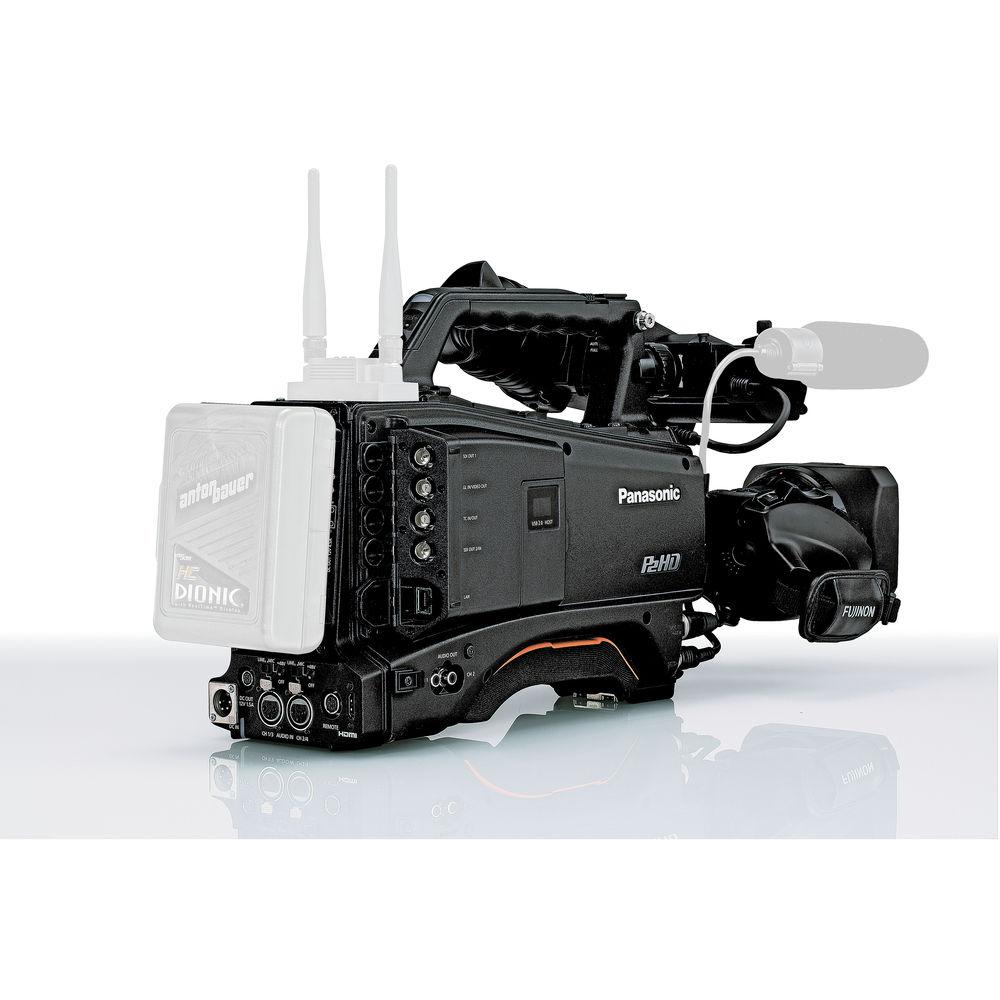

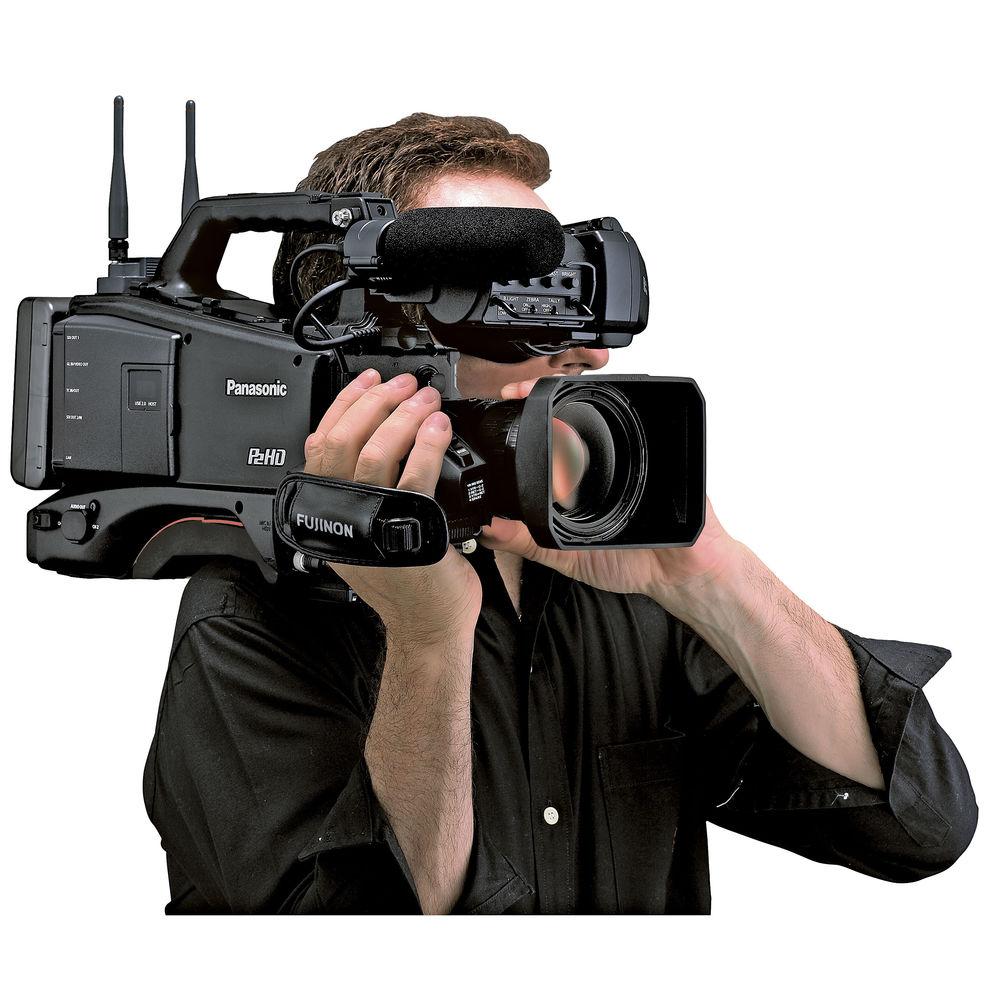

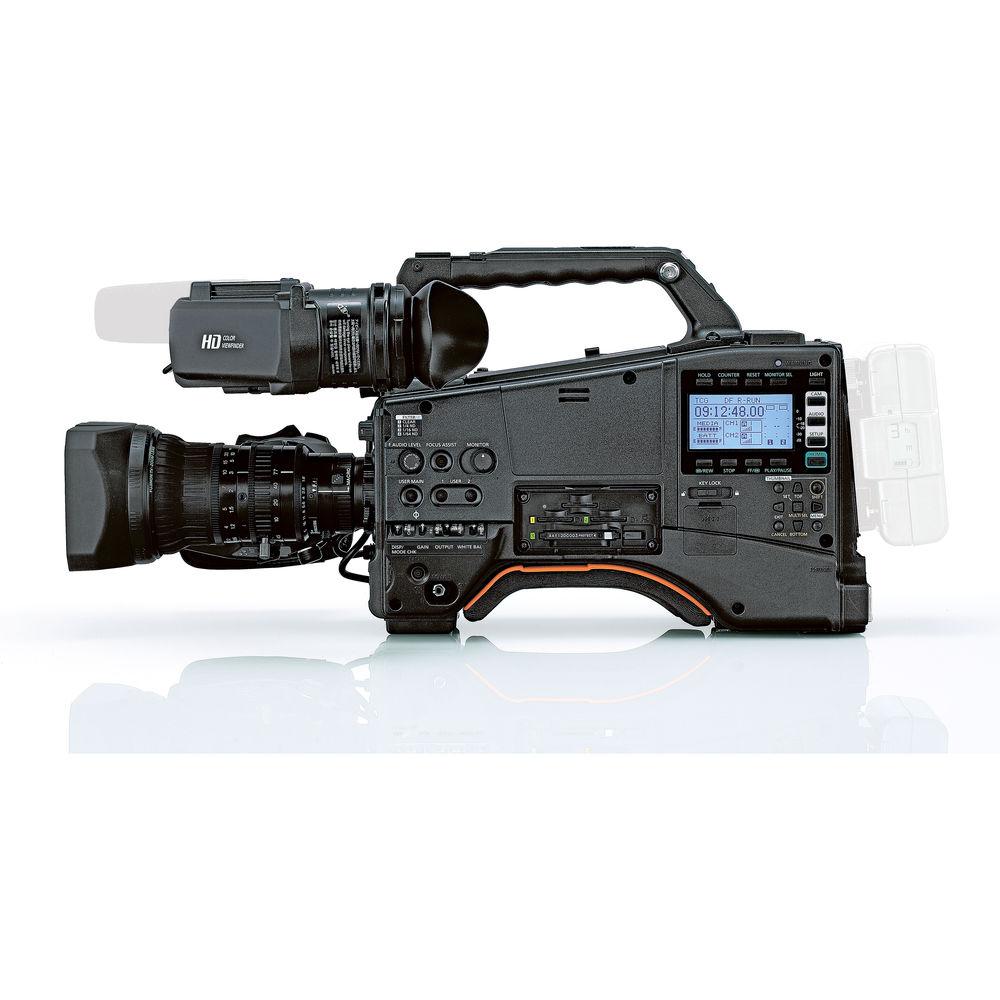

User Manual for Panasonic AJ-PX380 P2 HD AVC-Ultra Camcorder  with AG-CVF15 Color Viewfinder and 17x Fujinon Zoom Lens

• Product category: Camcorders Panasonic
• Brand: Panasonic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Panasonic Camcorders

Product description

1/3" Type Interchangeable Lenses
• Compatible with 1/3"-type mount interchangeable lenses allows you to choose from a variety of 1/3"-type zoom lenses for broadcasting and other professional uses from third-party manufacturers.

Included Zoom Lens and Color EVF
• This version of the camera includes a Fujinon 17x zoom lens, and the Panasonic AG-CVF15G HD Color Viewfinder, which features a 3.45" LCD display with an eyepiece. The eyepiece can be flipped up and out of the way, allowing the LCD be viewed as a direct monitor. The display can also rotate on two axis, allowing users to reposition the monitor for optimal viewing angles. The hub features a series of control knobs for adjusting peaking, chroma, contrast, and brightness. There are also selector switches for backlight brightness, zebra, and tally.

Sensor
• Featuring a 2.2-megapixel 1/3-type 3MOS image sensor, this advanced camera recorder achieves high F11 (59.94 Hz)/F12 (50 Hz) sensitivity and excellent picture quality.

NTSC & PAL Support
• The camera is switchable between NTSC and PAL compatible recording.

HD/SD Multi Format/Multi Codec
• The camera supports 59.94 Hz/50 Hz switching for convenient use in productions headed for global use, and records 1080/60i,* 50i, 24p,* 25p, 30p* and 720p HD/SD multiple format. DVCPRO HD/DVCPRO50/DVCPRO/DV recording is also supported.

  Note: 60i, 60p, 24p, and 30p are actually 59.94i, 59.94p, 23.98p, and 29.97p

AVC-Ultra Codec Family

• AVC-Intra: An intra-frame compression method that is highly suited to image production, AVC-Intra100/50.

• AVC-LongG: An intra-frame compression method that is ideal for providing on-air content direct from the shooting location and for workflows that use content transferred over the internet. Three bit rates are available: AVC-LongG50/25/12 Mbps. AVC-LongG25 provide 10 bit/4:2:2 quality at a bit rate of approximately 25 Mbps

• AVC-Proxy: Low-bit-rate, high-resolution, high-sound quality proxy video (Quick Time/H.264) includes metadata for efficient offline editing that can later be used to conform that original master files.

Dual MicroP2 Card Slots

• Simul Rec: Records simultaneously onto two microP2 cards.

• Dual-codec recording: Records a low-rate AVC-Proxy file while recording main data in AVC-Intra/AVC-LongG.

• Hot-Swap Rec: You can hot-swap microP2 cards for continuous non-stop rec, replacing one card as it fills up.

P2 Card Slot
• A single P2 card slot allows you to use P2 card, however, the P2 slot does not support using a P2 to microP2 card adapter.

24-Bit Four Channel Audio Recording
• AVC-Intra and AVC-LongG modes support 24bit/48 kHz/4CH digital audio recording. Audio source for each channel can be selected for each channel, choosing from mic-in, line-in and wireless receiver.

  Note: AVC-LongG12 mode does not support 24 bit digital audio recording. Audio can be played back by using 24-bit digital audio equipment.

Wired/Wireless LAN Network Functions
• • Wired LAN, wireless LAN, and 4G/LTE connectivity. FTP server uploading and Streaming are supported.
  • Rec during Uploading, automatically uploads recorded clips to an FTP server or cloud server. Uploading is done in the background, and recording/playback continues during the transfer.
  • On-Air Streaming can also be conducted while recording. In addition to selecting from 800 kbps to 6 Mbps (Full-HD), a QoS (Quality of Service) mode is available for streaming. It automatically controls the bit rate and frame rate to match the network conditions, for stable streaming performance.
  • When connected by wireless LAN, recorded clips can be previewed and metadata can be checked and edited with a PC/Mac, smartphone or tablet device.
  • Downlable P2ROP App for iPad, enables an advanced wireless camera remote function.

USB Dongle Slot
• Accepts optional 4G/LTE/Wi-Fi dongles providing wireless connectivity including file transfer and proxy streaming.
