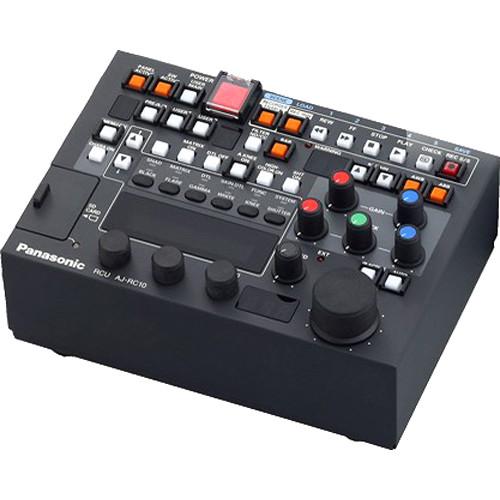

User Manual for Panasonic AJ-RC10 Remote Control Click to enlarge the picture
Contents of the user manual for the Panasonic AJ-RC10 Remote Control
- Product category: RCPs & MCPs Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic RCPs & MCPs
|
User manual for the Panasonic AJ-RC10 Remote Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The AJ-RC10 is an advanced remote control unit designed for use with Panasonic's 300Studio and P2Studio camcorder studio systems. An upgrade to the AG-EC4GPJ Extension Control Unit, the AJ-RC10 offers enhanced controls of each system's base station, along with an extended range of up to 90 meters (295 feet) with optional cables. With its "one button per function" capability, the unit lets you see exactly which menus you're using without needing to access the camera's menu system. It also includes an SD card slot for saving scene files, as well as a Monitor Out for viewing. The AJ-RC10 is compatible with the AJ-HPX3700, AJ-HPX2700, AJ-HPX3000, AJ-HPX200, AND AG-HPX500 P2 camcorders, as well as the DVCPRO AJ-HDX900. It comes standard with a 10-pin, 10 meter (32 foot) remote control cable. - Control Functions Include:
-
- gain up/down
- output camera/bar selection (linked to auto knee)
- white balance A/B/Preset selection
- AWB/ABB execution
- shutter SS/Fix/Off selection and speed setting
- iris auto/manual selection and adjustment
- master pedestal
- painting
- camera menu settings
- recorder operation (Rec/Play/FF/Rew/Rec check)
- scene files
- Dedicated switches are provided for direct operation of some of the camera unit's frequently used functions.
- By switching to the recorder mode, the camcorder can be controlled directly through the VTR operation switch. Recording can also be disabled using a switch.
- Frequently used menus can be set by accessing the menus on the LCD panel of the unit. It is also possible to display the time code on the LCD panel.
- Downconverted images with characters are output from the VIDEO OUT connector. The menus can be operated on the main unit of the camcorder by connecting the external monitor.
- Scene file data can be stored on an SD memory card.
In the Box Panasonic AJ-RC10 Remote Control 32' (10m) Remote Control Cable 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AJ-RC10 Remote Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AJ-RC10 Specs | Inputs/Outputs | Camera: 10-pin multi-connector
Monitor: BNC x 1, 1 Vp-p (for menu setting) | | Power Supply | 12VDC | | Power Consumption | 6W | | Operating Temperature | 0° - 40°C (32° - 104°F) | | Dimensions (WxHxD) | 7.3 x 5.2 x 2.6" (18.5 x 13.1 x 6 cm) | | Weight | 2.87 lbs (1.3kg) | | | | Package Weight | 6.15 lb | | Box Dimensions (LxWxH) | 12.3 x 9.9 x 8.4" |
