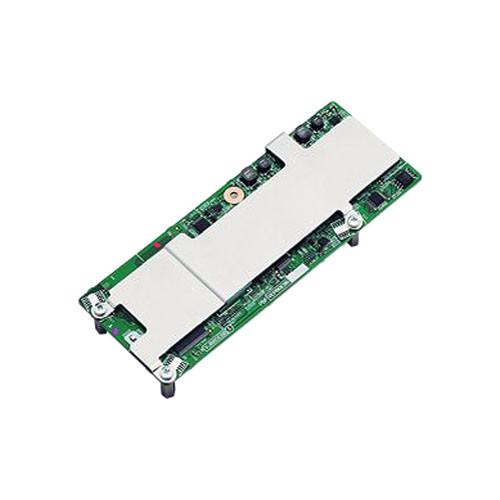

User Manual for Panasonic AJ-YDX30G Proxy Encoder Click to enlarge the picture
Contents of the user manual for the Panasonic AJ-YDX30G Proxy Encoder
- Product category: Camcorder Boards & Software Upgrades Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Camcorder Boards & Software Upgrades
|
User manual for the Panasonic AJ-YDX30G Proxy Encoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Panasonic AJ-YDX30G Proxy Board enables the HPX3100GJ P2 HD 2/3" camcorder to record compact proxy video files at selectable bit rates on SD memory cards. Meanwhile, the HPX3100 simultaneously records full-res, full-bit-rate video to P2 cards. Four H.264 and MPEG-4 proxy profiles are selectable, with image sizes ranging from 960×540 (3.5 Mb/s) down to 320×240 (1.5 Mb/s). Bit rates go as low as 800 kb/s in H.264 format. The largest of the proxy profiles supports uncompressed audio, so an audio cut can be committed even before full-resolution video is available to the nonlinear editing system.The small size and relative high quality of the proxy encoding make the AJ-YDX30G board suitable for high-volume, high-speed editing workflows such as those required for reality TV and long-form documentary work. The proxy board essentially creates instant offline files for logging, review, and edit on leading NLEs. Note: Contact your NLE provider for current compatibility with the proxy files. - Profile 1
- 960x540 image size
H.264 (3.5 Mb/s) files
16-bit/48 kHz 2-channel (uncompressed) audio - Profile 2
- 640x360 image size
H.264 (1.5 Mb/s) files
16-bit/48 kHz 4-channel/2-channel audio - Profile 3
- 480x270 image size
H.264 (800 kb/s) files
16-bit/48 kHz 2-channel audio - Profile 4
- 320x240 image size
MPEG-4 (1.5 Mb/s) files
16-bit/24 kHz 2-channel audio Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AJ-YDX30G Proxy Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AJ-YDX30G Specs | Image Size | 960×540
640×360
480×270
320×240 | | File Format | H.264 (3.5 Mb/s)
H.264 (1.5 Mb/s)
H.264 (800 kb/s)
MPEG-4 (1.5 Mb/s) | | Audio Recording | 16-bit/48 kHz 2-channel (uncompressed)
16-bit/48 kHz 4-channel/2-channel
16-bit/48 kHz 2-channel
16-bit/24 kHz 2-channel | | Clip Splitting | Enables proxy recording to SD card | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 9.0 x 6.0 x 2.0" |
