User Manual for Panasonic AK-HRP200 Remote Operation Panel for Panasonic Cameras Click to enlarge the picture
Contents of the user manual for the Panasonic AK-HRP200 Remote Operation Panel for
- Product category: RCPs & MCPs Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic RCPs & MCPs
|
User manual for the Panasonic AK-HRP200 Remote Operation Panel for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

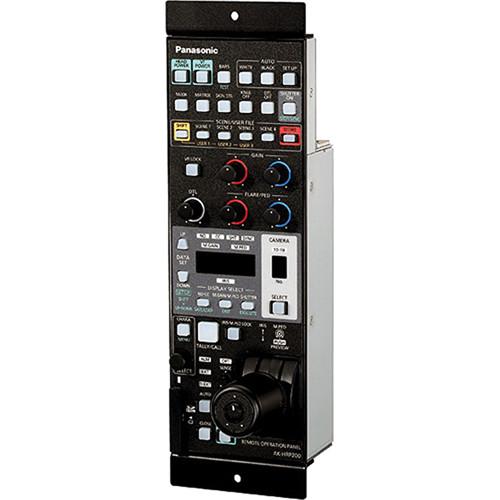

Product description The Panasonic AK-HRP200 Remote Operation Panel is used for controlling a compatible studio handy camera and a camera controller unit like the AK-HCU200. This compact, lightweight, joystick-type ROP provides precise, rapid, and comprehensive control of the compatible cameras’ powerful capabilities. It can be used to control up to 19 cameras via an IP or serial connection.The ROP can also be used to set up and control Panasonic PTZ cameras such as the AW-HE120 via IP. Scene files, user files, and lens files can be stored on and retrieved from SD memory cards (not included) at both the controller unit and ROP.The ROP can be connected to the camera control unit via an ROP serial cable (e.g., ROP-50M, sold separately) up to a distance 164’ (50m). Connection between the camera and a CCU is established via a dedicated optical fiber cable (sold separately). Note: Memory cards used with the unit should conform to SD or SDHC standards. 8MB to 2GB SD memory cards and 4 to 32GB SDHC memory cards can be used. SDXC memory cards are not supported. Avoid use in areas with high temperature and humidity, water droplets, and static electricity. Control of up to 19 Cameras with IP Connection - The AK-HRP200 Remote Operation Panel supports both serial (1:1) and IP connection. IP connection enables up to 19 cameras to be controlled by a single remote operation panel. 1
Please Note: External power supply (12VDC) required when LAN cable is used for IP connection. Power is supplied by the camera control unit in serial connection. close Supports a Variety of Cameras - Four connection modes-CCU Serial, CCU IP, Remote Camera Serial, and Remote Camera IP-enable single or combined remote control of studio handy cameras, multi-purpose cameras, HD convertible cameras, and HD integrated cameras.
ROP Menu Setting - The menu can be displayed on a monitor connected to the camera control unit, so detailed camera settings can be made by operating the remote operation panel.
Joystick Control Lever - A simple button layout and an iris control lever ensure intuitive and stable operation. The joystick control lever enables fine manual iris / pedestal operation.
SD Memory Card Slot - Scene files and user files can be saved with the SD/SDHC memory card slot. SD memory cards (not included) can also be used for firmware upgrades. 2
Please Note: Memory cards used with the unit should conform to SD or SDHC standards. 8MB to 2GB SD memory cards and 4 to 32GB SDHC memory cards can be used. SDXC memory cards are not supported. close Compact 6U Size - The unit is compact, with a width of 3.6" (92mm) and a 6U height for easy rack mounting. It is shipped with the rack mount brackets pre-installed.
UPC: 885170098466 In the Box Panasonic AK-HRP200 Remote Operation Panel for Panasonic Cameras Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AK-HRP200 Remote Operation Panel for Panasonic Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AK-HRP200 Specs | Compatible Cameras | Via Serial Control Only: AK-HC3500 Professional Studio Camera; AK-HC1800G/HC1500G & AW-HE870N/E Multi-Purpose HD Box Cameras
Via Serial and IP Control: AK-HC3800 Professional Studio Camera and AW-HE120WP/WE/KP/KE & AW-HE60SN/SE/HN/HE Integrated Pan-Tilt Cameras AK-HC3800 and AK-HC3500 can be controlled via a camera control unit (CCU). Some functions of AK-HC3500 are not supported. | | Power Supply | 12 VDC Power supply can be provided from a CCU or AC adapter. | | Power Consumption | 4.2 W | | CCU | Control: Control signals (camera, CCU control)
Power supply (12 VDC)
Tally control signal | | Compatible Memory Cards | SD Memory Cards: 8 MB to 2 GB
SDHC Memory Cards: 4 to 32 GB SDXC memory cards are not supported. | | File Type | Scene, reference, user, factory, lens, ROP configuration | | Preview | Control: Contact output | | Maximum Cable Length | 164' (50 m) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 90% or less | | Dimensions (W x H x D) | Approximately 3.6 x 12.1 x 2.1" (9.2 x 30.8 x 5.5 mm) excluding protrusions | | Weight | Approximately 2.9 lb (1.3 kg) | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 15.0 x 9.0 x 5.4" |
