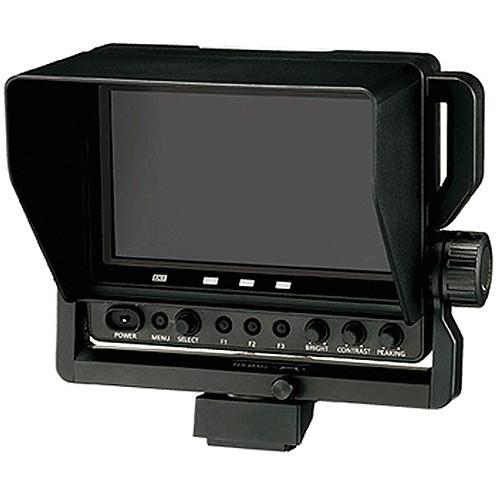

Product description The Panasonic AK-HVF70G 7" LCD Color Viewfinder is a compact and lightweight unit used with AK-HC3800 Studio Handy Camera (sold separately). This viewfinder features a high-resolution 7" (17.8cm) color LCD panel that displays 1024 x 600 pixel (WSVGA) images and approximately 16,200,000 colors. It has wide viewing angles of 130° (vertical) and 160° (horizontal), and offers a contrast of >10:1.
The viewfinder offers 2 functions namely Focus-in-Red and Pixel-to-Pixel. The Focus-in-Red function emphasizes the image parts that are in focus by marking their edges in red, and the Pixel-to-Pixel function displays an enlarged image without resizing.
When mounted on the AK-HC3800 Studio Handy Camera, the viewfinder can be tilted upwards as far as up to 90° & downwards up to 60° and panned horizontally up to 90°. - Lightweight LCD viewfinder with low power consumption (10W)
- High-resolution WSVGA monitor
- Focus-assist and pan/tilt functions
- Three function switches can be allocated for functions like contrast, bright, and peaking adjustments
UPC: 885170098497 In the Box Panasonic AK-HVF70G 7" LCD Color Viewfinder Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AK-HVF70G 7" LCD Color Viewfinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AK-HVF70G Specs | Panel Size | 7.0" (17.8 cm) | | Number of Pixels | WSVGA: 1024 x 600 pixels | | Display Colors | Approximately 16,200,000 colors | | Operation Panel | 1 x Power switch
1 x Menu button
1 x Select dial
3 x Function button
3 x Picture adjusting knob (BRIGHT, CONTRAST, and PEAKING) | | Connectors | 1 x D-Sub 29-pin (Camera I/F connector) | | Power Supply | 12 VDC (supplied by the camera) | | Power Consumption | 10 W | | Temperature | Operating: 32 to 113°F (0 to 45°C)
Storage: -4 to 140°F (-20 to 60°C) | | Operating Humidity | 10 to 85% (no condensation) | | Dimensions (W x H x D) | With Hood: 9.58 x 8.34 x 6.70" (24.35 x 21.20 x 17.20 cm)
Without Hood: 9.58 x 8.34 x 3.34" (24.35 x 21.20 x 8.50 cm) | | Weight | Without Hood: Approximately 3.53 lb (1.60 kg) | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 14.6 x 12.9 x 6.7" |
