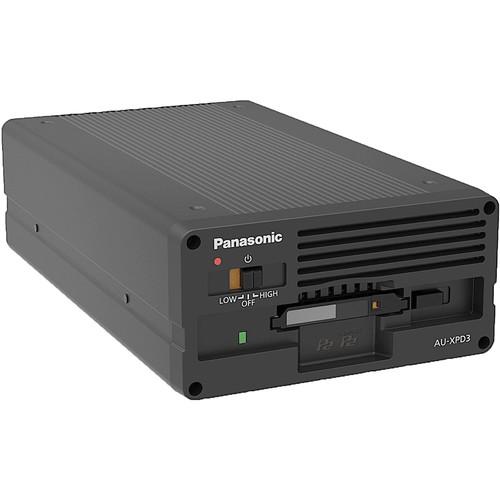

User Manual for Panasonic AU-XPD3 ExpressP2 Thunderbolt 3 Drive Click to enlarge the picture
Contents of the user manual for the Panasonic AU-XPD3 ExpressP2 Thunderbolt 3 Drive
- Product category: Memory Card Readers Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Memory Card Readers
|
User manual for the Panasonic AU-XPD3 ExpressP2 Thunderbolt 3 Drive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Panasonic AU-XPD3 ExpressP2 Thunderbolt 3 Drive is a compact, single-slot P2 card reader that takes advantage of a Thunderbolt 3 interface to download your expressP2 B-series memory card at up to 10 Gb/s, and up to 8.8 Gb/s with Thunderbolt 2 enabled computers (requires adapter). The AU-XPD3 is also compatible with expressP2 A-series cards, P2 cards, and when using an available adapter, microP2 cards are supported as well.
You can daisy chain up to six AU-XPD3 devices, which enables downloading multiple cards simultaneously. Daisy chaining will lower the top speed of each device on the chain, but transferring multiple cards at the same time will shorten the overall download process. The unit requires AC power to function. - Transfer Speeds
- You can daisy chain up to six AU-XPD3 units together to increase the transfer speeds as opposed to using a single reader. For example, daisy chaining two units together enable you to download from two cards simultaneously. Although the maximum transfer speed of 10 Gb/s will be reduced for each unit, since you are transferring from two cards simultaneously it is actually faster. Transferring from a single 512GB expressP2 B-series card takes about 7 minutes, and if you have one AU-XPD3, then it will take about 14 minutes to transfer from two cards, but when you daisy chain two units together the maximum speed of both units drops to about 8.8 Gb/s, enabling you to transfer a 512GB card in about 8 minutes. If you are transferring from two 512GB cards, each one will take about 8 minutes, but since they are transferring simultaneously you will be done much faster than if you were transferring the cards one at a time.
Connecting your device to a computer with Thunderbolt 2 capabilities will limit you to approximately 8.8 Gb/s transfer speed. - expressP2 B Series versus espressP2 A Series
- The B-series cards support a transfer speed of up to 10 Gb/s and the A-series cards are limited to 2 Gb/s. The AU-XPD1, which is USB 3.0, is capable of transferring data from an A-series card at up to 2.4 Gb/s. The AU-XPD3 is designed and tuned for B-series cards, and can transfer data more than four times faster from a B-series card than an AU-XPD1.
- To take full advantage of the AU-XPD3, you need a computer with full Thunderbolt 3 ports.
In the Box Panasonic AU-XPD3 ExpressP2 Thunderbolt 3 Drive AC Universal Switching Power Supply Thunderbolt 3 Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AU-XPD3 ExpressP2 Thunderbolt 3 Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AU-XPD3 Specs | Card Slot | 1 x expressP2 | | Compatible Memory Cards | expressP2 B
expressP2 A
P2
microP2 (using optional AJ-P2AD1G adapter) | | Connectors | 2 x Thunderbolt 3 | | Data Transfer Rate | expressP2 B-Series: 10.0 Gb/s
expressP2 A-Series: 2.0 Gb/s
P2: 1.2 Gb/s
microP2: 1.0 Gb/s (card reader adapter required) The actual transfer rate may be lower due to various factors, such as the file being transferred, the performance of the system (computer/OS) used, the application software, and the P2 card version. | | Dimensions (WxHxD) | 4.96 x 2.44 x 8.52" / 12.60 x 6.20 x 21.65 cm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 12.0 x 10.0 x 9.0" |
