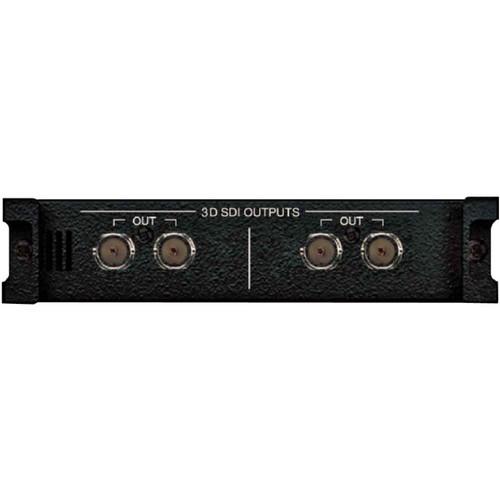

User Manual for Panasonic AV-HS04M7D 3D SDI Output Board Click to enlarge the picture
Contents of the user manual for the Panasonic AV-HS04M7D 3D SDI Output Board
- Product category: Switcher Accessories Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Switcher Accessories
|
User manual for the Panasonic AV-HS04M7D 3D SDI Output Board contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Panasonic AV-HS04M7D 3D SDI Output Board is an optional 3D board for the AV-HS450, and allows for live production. It supports up to nine 3D cameras in 3D mode, and is suitable for use with applications having multiple inputs/outputs. The output board supports 1080/59.94i and 1080/50i formats, in 2D and in 3D modes.
Using SDI standard inputs, it offers vertical/horizontal reversing and position correction for all 16 channels. The AV-HS04M7D 3D SDI Output Board allows correction to be carried out on site using a 3D rig (optional). Chroma key compositing can also be done on site with Primatte chroma key, for both left and right channels. The board allows simultaneous video transmission using cross point buttons. Effects such as cut, dissolve and wipe can be used as simultaneous transitions in sports recording, commercial production, event recording, and other 3D productions. Note: AV-HS450 manufactured before February 2011 requires a software version upgrade to use AV-HS04M7D Contact a local sales outlet for details.AV-HS04M7D can only be mounted to AV-HS450 slot B. It will not operate even in 2D mode if mounted to slot A.AV-HS04M7D is not compatible with AV-HS400/HS400A.2D and 3D modes are switchable in the menu. 2D and 3D modes cannot be used simultaneously. Internal settings are reset when switching between 2D and 3D modes.3D-compliant monitors are required for the monitoring in 3D mode. - Optional 3D board for the AV-HS450
- Allows for live production
- Supports up to nine 3D cameras in 3D mode
- Can be used in applications with multiple I/O
- Offers vertical/horizontal reversing and position correction for all 16 channels using SDI standard inputs
- Simultaneous video transmission using cross points button
- Correction on site via a 3D rig (optional)
- On site chroma key compositing using primate chroma key
- Supports up to 9 cameras in 3D mode
- Can be used in applications with multiple inputs/outputs
- Compatible formats in 3D mode - 1080/59.94i, 1080/50i, 1080/23.98PsF, 1080/24PsF, 720/59.94p, and 720/50p
- Compatible formats in 2D mode - 1080/59.94i, 1080/50i, 1080/23.98PsF, 1080/24PsF, 720/59.94p, 720/50p, 480/59.94i, and 576/50i
- Effects such as cut, dissolve and wipe can be used as simultaneous transitions in sports recording, commercial production, event recording, and other 3D productions
In the Box Panasonic AV-HS04M7D 3D SDI Output Board 10 days Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AV-HS04M7D 3D SDI Output Board in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AV-HS04M7D Specs | Input | Number of Channels- (L, R) × 8 [9] channels Frame Synchronizer, Freeze- Yes Up-converter (IN13 to 16)- Yes Color collector (IN 9 to 16)- Yes Input signal reversing function(horizontal/vertical)- Yes Input signal position correction function(horizontal/vertical)- Yes | | SDI Output | Number of Channels- 6 [8] ch L, R- Yes MIX- Yes Side-by-Side- Yes | | DVI OUT | Number of Channels- 2 [3] channels L, R- Yes MIX- Yes | | BKGD | CUT- Yes MIX- Yes WIPE- Yes | | Keys | Number of Channels- (L, R) x 1 ch CUT- Yes MIX- Yes WIPE- Yes DVE-Yes Lum, Linear, Chroma, Full- Yes | | PinP | Number of Channels- (L, R) x 1 ch Square (PinP1)- Yes | | DSK | Number of Channels- (L, R) x 2 ch Lum, Linear- Yes | | FMEM | Number of Channels- 4 channels | | MV | Number of Channels- (L, R) x 1 ch | | Aux | Number of Channels- (L, R) x 4 ch | | Format Support | 1080/59.94i, 1080/50i, 1080/23.98PsF, 1080/24PsF,720/59.94p, 720/50p |
