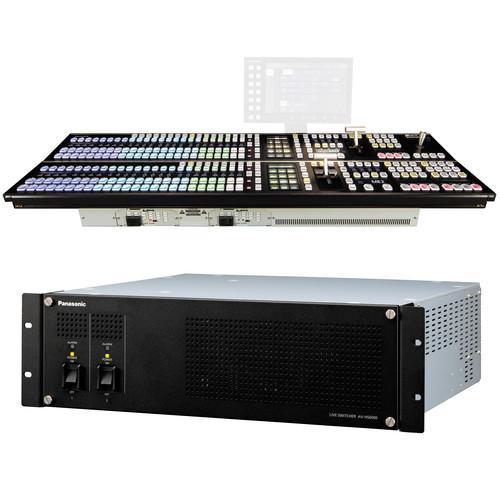

User Manual for Panasonic AV-HS6000 2 M E Live Switcher Main Frame & Control Panel

• Product category: Production Switchers Panasonic
• Brand: Panasonic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Panasonic Production Switchers

Product description

• AV-HS60U2P Main Frame w/ Dual Power Supply for AV-HS6000 Switcher The AV-HS60U2P Main Frame w/ Dual Power Supply for AV-HS6000 Switcher from Panasonic features the input and output connectors and processing engine that drives the AV-HS6000 2 M/E switcher. It features 32 HD-SDI inputs, along with two DVI-D (digital only) inputs for incorporating content from computer sources. It will support video resolutions up to 1080p at 10-bit, 4:2:2 in YUV color space, and up to 1080p 8-bit, 4:4:4 in RGB color space. Additionally, it will accept VESA computer resolutions up to 1600 x 1200 for 4:3 and 1920 x 1200 for 16:10.

  It features 16 output channels, with each output channel mirrored on two SDI outputs. Not only can these outputs be used for an isolated, program, or aux feed, it is also possible to combine up to 16 ISO channels and send to one display using the MultiView function. Additional display arrangements are also possible, including a "squeeze mode" which reduces the image size to fit audio levels and other data around the outside. A total of 4 channels may be used in conjunction with the MultiView function.

  The system features two mix and effects (M/E) buses with fades, transitions, and other effects possible. Additionally, the switcher features both upstream and downstream keyers (USK and DSK) for filling in black space, logo and graphic insertion, and compositing. Frequently used effects, setting, video clips, and still images can be save to the internal memory for later recall during a production.

  The AV-HS60U2P is designed to be operated using the AV-HS60C1P/AV-HS60C1E or RAV-HS60C2P/AV-HS60C2E control panel. In addition, software plug-ins allow operation over an IP network or using certain Panasonic and third-party RS-422 serial devices. In addition, the AV-HS60C3G Menu Panel is required to access and change settings locally at the switcher.

  This version of the AV-HS60U features dual redundant power supplies. This way , if the first power fails the second will instantly takeover so that there is no interruption in service.

  Connectivity

  32 HD-SDI and 2 DVI Inputs
  • Despite being enclosed in a 3RU frame, the mainframe provides wide variety of inputs/outputs with frame synchronizer, format converter, and color correctors:
    • Colors can be adjusted to correspond to different video source formats, camera properties, and displays
    • All inputs feature a 10-bit frame synchronizer
    • 8 inputs are equipped with color correctors
    • 4 inputs are equipped with upconverters
    • Signals can be delayed by up to 8 frames
  16 SDI Outputs with 2 Outputs Per Channel
  • Each output features two mirrored SDI connectors
    • 4 outputs are equipped with color correctors
    • 2 outputs are equipped with downconverters
  4-Channel MultiViewer Function
  • An independent 4-channel MultiViewer output function is provided that features a total of 9 patterns, and allowing up to 16 images to be displayed on one screen:
    • MultiViewer can be selected from a total of 9 patterns, including: 4 split, 5 split (2 patterns), 6 split (2 patterns), 9 split, 10 split (2 patterns), and 16 split
    • Source names, tallies, audio level meters, clock, and safety markers can be displayed
    • Squeeze Mode can be selected to place the source name and level meter placed outside of the image

  Mix and Effects (M/E)

  Diverse DVE Transitions
  • In addition to wipe, mix, and cut transitions, DVE (digital video effects) transitions with 2-channel 3D DVE, such as size reduction and sliding, can be performed. Image rendering effects such as mosaic or defocus are also possible
    • 4 channels of 3D DVE and 2 channels of 2D DVE systems are provided to support background and keys for each M/E bus
    Multiple Keyers
    • The system feature a variety of keyers to promote creative live content creation:
      • Chroma Key: Thanks to the proprietary Primatte algorithm, real time and high quality key compositions are possible
      • PinP (Picture-in-picture): 4 channels per M/E bus (8 channels total)
      • Key Preset: The Key Preset function allows memorization and recall of the a key's particular settings. 4 settings for each channel of key and 4 settings for each channel of DSK (downstream key) can be registered
      • Upstream Key (USK): 4 channels of USK are provided for applications such as adding the CG elements to fill the gap when inserting a 4:3 image in 16:9 frame
      • Downstream Key (DSK): 4 channels DSK are available -- these can be assigned to PGM1 or PGM2 output
      Memory Functions
      • The memory function allows mixer, video, and effects settings to be stored for later recall. It is designed to save time, allowing the operator to quickly engage frequently used settings and effects during a live broadcast where there is little or no margin for error
        • Shot Memory: This function recalls background transition patterns or other video effects, including PinP size, position, border width, and key
        • Event Memory: This function allows continuous image effects to be to registered and played back in a timeline
        • Macro Memory: This function allows the recording and playback of a series of operations on the Control Panel. It can also record and playback setting information, such as input/output and keyers. Macro memories can be played back by assigning them to the cross point buttons, such as macro bus, PGM, and PST
        • Video Memory: Moving image (Clip) and still image (Still) can be recorded for 4 channels each for later reuse as video sources. A maximum 60 seconds of moving images can be saved in standard mode, and Maximum 30 seconds in high image quality mode
        Intuitive Switching
        • • Multi-Selection Panel: A color panel that can display thumbnail images with high visibility
          • Animation Wipe: With moving images (clip) and still images (still) recorded in video memory, it is possible to create animation wipes

        System Scalability

        • • 16 AUX buses are provided. MIX transition is available from the AUX1 to AUX4 buses
          • The system can be operated remotely from a PC via a network connection
          • Supports interoperability with various third-party software plug-ins and connectivity with other devices. In addition to pre-installed plug-in software, customized software solutions can be created using the SDK
          Included Plug-in Software
          • Serial Control Software
            This software controls switching and transition of crosspoint with GVG200-compliant external controllers and editors using an RS-422 serial interface -- external controllers and control software are available separately

            IP Connected AUX Bus Control Software
            This software controls switching from a VS-R45 remote operation panel to crosspoint via an IP network

            Serial Tally Software
            This software provides tally output and source names to an external tally display and I/F, and features UMD protocol v3.1 support. Tally is connected via an RS-422 serial interface
        • Panasonic AV-HS60C2P Control Panel for AV-HS6000 (Dual Redundant Power Supply) The Panasonic AV-HS60C2P is a multi-selection, 2M/E control panel for the Panasonic AV-HS6000 Live Switcher. It supports dual redundant power supplies and is further upgradeable with the AV‑HS60C3G touch menu panel, sold separately.
          ME1 KEY Bus Selector Buttons
          • Switches bus column and functions operated by ME1 KEY bus

            • KEY 1 to 4 key source/key fill bus
            • AUX1 to 16 bus (AUX1 to 4 support the MIX transition function) (AUX bus 1/2 to 15/16 have the crosspoint link coupling function)
            • Display bus 1 selects images to be displayed on AV-HS60C3 Menu Panel
            • Utility bus 2 selects sources to be inserted in border background or key edge
            • MACRO bus 3 plays back the macro memory
          KEY Bus Crosspoint Buttons
          • • Select source for the bus switched with KEY bus select buttons
            • Can playback macro memory
          Source Name Display Panel
          • • Displays crosspoint numbers, source display names, and macro names
            • Bit map characters can be displayed for source names
          Crosspoint Buttons
          • • 8 colors can be used for grouping to matched sources
            • Switching is possible among 24 crosspoints x 4 pages (96 total crosspoints)
            • Assign and play back the macro memory
          ME2 KEY Bus Selector Buttons
          • • Switches bus column and functions operated by ME2 KEY bus
            • KEY 1 to 4 key source/key fill bus
            • DSK 1 to 4 key source/key fill bus (can be assigned to PGM1/PGM2)
            • Utility bus 2 selects sources to be inserted in the border background or key edge
            • MACRO bus 3 plays back the macro memory
          Memory Card Slot
          • • Settings and log data can be stored/accessed on an SD memory card or SDHC memory card
          Joystick Positioner
          • • Provides cursor operation for positioning WIPE / PinP, size adjustment, chroma key
          Transition
          • • Background/key transition: operate fader, AUTO, or CUT transitions
            • Select transition type: select from WIPE, MIX, or NAM transitions
            • Fader playback of the event memory (EMEM link): performs fader operation of the event memory
            • ME change: switches the Control Panel ME1/ME2 columns
            • Switch on/off the macro memory attachment function (macro attach): enable/disable the macro memory playback trigger assigned to PGM bus, PST bus, or AUX bus buttons
          Key, DSK Operation
          • • KEY/DSK transition: operates KEY 1 to 4, DSK 1 to 4 AUTO, CUT transition of each ME
            • Key preset: for KEY 1 to 4 and DSK 1 to 4 of each ME, register and access key preset
        In the Box Bundle Items AV-HS60U2P Main Frame w/ Dual Power Supply for AV-HS6000 Switcher rxvcrwruruxvacbbrtaybutrsswdrzxxx
        • Limited 1-Year Warranty
        Panasonic AV-HS60C2P Control Panel for AV-HS6000 (Dual Redundant Power Supply)
        • 2 x AC Power Supply Cable
        • Set of 24 Switch Blank Caps (Large)
        • Set of 12 Switch Blank Caps (Small)
        • Limited 1-Year Warranty
      Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AV-HS60U2P Main Frame w/ Dual Power Supply for AV-HS6000 Switcher

  SDI Input	Lines: 32 Connectors: 32 x BNC female SDI channels 27, 28, 31, and 32 are equipped with up-converters SDI channels 25 to 32 are equipped with color correctors Signal Standards HD-SDI SMPTE292M (BTA S-004) standard compliant 0.8 V (p-p) ±10% at 75 ohm Automatic equalizer for runs more than 328' (100 m) -- when 1.5 Gbps/5C-FB cable is used Signal Standards SD-SDI SMPTE259M standard compliant 0.8 V (p-p) ±10% at 75 ohm Automatic equalizer for runs more that 656' (200 m) -- when 5C-2V cable is used
  DVI Input	Lines: 2 Connectors: 2 x DVI-D Supported Resolutions (Computer): XGA (1024 x 768), WXGA (1280 x 768), SXGA (1280 x 1024), WSXGA+ (1680 x 1050), UXGA (1600 x 1200), WUXGA (1920 x 1200) Vertical Frequency (Computer): 60 Hz Supported Video Formats: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p Note: Cable lengths up to 16.4' (5 m) are supported A DVI-I cables are not supported HDCP is not supported
  SDI Output	Lines: 16 -- two distributed outputs per line Connectors: 32 x BNC female Assignments: ME1PGM, ME1PVW, ME1CLN, ME1KEYPVW, ME2PGM, ME2PVW, ME2CLN, ME2KEYPVW, DSKPGM1, DSKPGM2, DSKPVW1, DSKPVW2, DSK1CLN, DSK2CLN, DSK3CLN, DSK4CLN, SEL KEYPVW, MV1 to MV4, and AUX1 to AUX16 Signal Standards HD-SDI SMPTE292M (BTA S-004) standard compliant 0.8 V (p-p) ±10% at 75 ohm Signal Standards SD-SDI SMPTE259M standard compliant 0.8 V (p-p) ±10% at 75 ohm
  Video Formats	SD: 480/59.94i, 576/50i HD: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 1080/24PsF, 1080/23.98PsF, 1080/25PsF
  Signal Processing	Y: PB: PR: 4:2:2, 10-bit R:G:B: 4:4:4: 8-bit
  Mix / Effect Buses	2 ME

  Reference Input	Connectors: 2 x BNC female -- input with loop-through Supports same field frequencies as those of the system formats supported: In Genlock Mode: Black burst or tri-level sync (with loop-through) Note: If the loop-through output is not used, 75 ohm termination is required In the 1080/24PsF and 1080/23.98PsF formats, only Genlock mode supported In the 1080/23.98PsF format, black burst signals with 10 Field ID (SMPTE318M compliant) or Tri-level Sync signals are supported In the 1080/24PsF format, Tri-level sync signals supported In internal sync mode black burst signal is output through both connectors
  LTC Input	Connector: BNC female Impedance: 1 kohm Level: 1 to 2 V (p-p)
  Video Delay	1 Line (H): When the frame synchronizer is set to "Off" and the upconverter is set to "OFF" 1 Frame (H): When the frame syncronizer is set to "ON", or the upconverter is set to "ON" Note: When the signals have passed through PinP, DVE, MultiView, down-converter, or DVI-IN, a maximum delay of 1 frame is applied in each case

  LAN Terminal	Connector: 1 x RJ-45 Compatible with 100Base-TX and AUTO-MDIX -- for IP control Supported Cable: CAT5E or better, up to 328' (100m) -- STP (Shielded Twisted Pair) cable recommended
  PANEL Terminal	Connector: RJ-45 Compatible with 100Base-TX and AUTO-MDIX -- for Control Panel (AV-HS60C1/AV-HS60C2) connection Supported Cable: CAT5E or better, up to 328' (100m) -- STP (Shielded Twisted Pair) cable recommended
  Serial Interface	Connectors: 4 x D-sub 9-pin female Terminals 1 to 3: For master connection to control external devices Terminal 4: For master/slave connection to control external devices
  GPI In/Out	Connectors: 3x D-sub 25-pin female Terminal 1 GPI Input: 18 inputs, general-purpose, photocoupler sensing Alarm Output: 1 output, open collector output (negative logic) Terminal 2 and 3 GPI Output: 48 outputs, selectable general purpose or tally -- open collector output

  Power Requirements	100 to 240 VAC at 50 or 60 Hz
  Power Consumption	110 W
  Operating Temperature	32 to 104°F (0 to 40°C)
  Storage Temperature	32 to 104°F (0 to 40°C)
  Operating Humidity	10 to 90% RH, no condensation
  Storage Humidity	10 to 90% RH, no condensation
  Dimensions	19 x 5.2 x 16.5" (482 x 132 x 418 mm)
  Weight	29.7 lb (13.5 kg) -- excluding accessories

• Panasonic AV-HS60C2P Control Panel for AV-HS6000 (Dual Redundant Power Supply)

  Power Supply	100 - 240 VAC, 50/60 Hz (supports dual redundant power supply)
  Connections	1x RJ-45 1x DVI-D for optional Menu Panel only (cannot be used concurrently with a DVI-D monitor connected to the DVI-D terminal) 1x DVI-D for displaying menus to the DVI monitor (cannot be used concurrently with the Menu Panel terminal) 1x USB type A, female for DVI monitor menu operation 1x RS-422 control terminal, D-sub 9-pin female (for master connection for controlling external devices) 1x RS-232 control terminal, D-sub 9-pin female (for master/slave connection for controlling external devices) 8x GPI inputs D-sub 25-pin female 10x GPI outputs D-sub 25-pin female 1x Alarm output D-sub 25-pin female
  Power Consumption	40 W
  Operating Temperature	32 to 104°F (0 to 40°C)
  Storage Temperature	32 to 104°F (0 to 40°C)
  Operating Humidity	10 to 90% (no condensation)
  Storage Humidity	10 to 90% (no condensation)
  Dimensions	38.6 x 6 x 10.5" (98 x 15.3 x 26.7 cm)
  Weight	Approx. 31 lb (13.9 kg) (excluding accessories)
