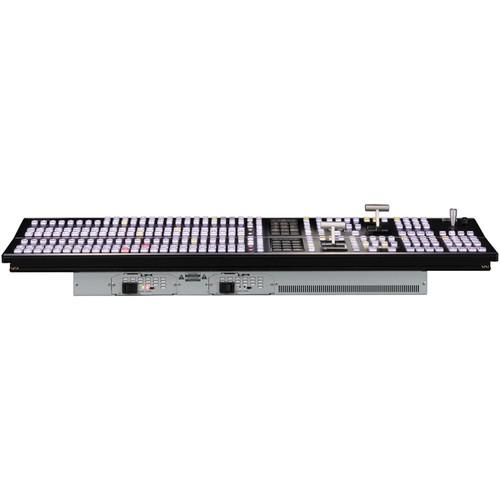

Product description The Panasonic AV-HS60C2P is a multi-selection, 2M/E control panel for the Panasonic AV-HS6000 Live Switcher. It supports dual redundant power supplies and is further upgradeable with the AV‑HS60C3G touch menu panel, sold separately. - ME1 KEY Bus Selector Buttons
- Switches bus column and functions operated by ME1 KEY bus
- KEY 1 to 4 key source/key fill bus
- AUX1 to 16 bus (AUX1 to 4 support the MIX transition function) (AUX bus 1/2 to 15/16 have the crosspoint link coupling function)
- Display bus 1 selects images to be displayed on AV-HS60C3 Menu Panel
- Utility bus 2 selects sources to be inserted in border background or key edge
- MACRO bus 3 plays back the macro memory
- KEY Bus Crosspoint Buttons
-
- Select source for the bus switched with KEY bus select buttons
- Can playback macro memory
- Source Name Display Panel
-
- Displays crosspoint numbers, source display names, and macro names
- Bit map characters can be displayed for source names
- Crosspoint Buttons
-
- 8 colors can be used for grouping to matched sources
- Switching is possible among 24 crosspoints x 4 pages (96 total crosspoints)
- Assign and play back the macro memory
- ME2 KEY Bus Selector Buttons
-
- Switches bus column and functions operated by ME2 KEY bus
- KEY 1 to 4 key source/key fill bus
- DSK 1 to 4 key source/key fill bus (can be assigned to PGM1/PGM2)
- Utility bus 2 selects sources to be inserted in the border background or key edge
- MACRO bus 3 plays back the macro memory
- Memory Card Slot
-
- Settings and log data can be stored/accessed on an SD memory card or SDHC memory card
- Joystick Positioner
-
- Provides cursor operation for positioning WIPE / PinP, size adjustment, chroma key
- Transition
-
- Background/key transition: operate fader, AUTO, or CUT transitions
- Select transition type: select from WIPE, MIX, or NAM transitions
- Fader playback of the event memory (EMEM link): performs fader operation of the event memory
- ME change: switches the Control Panel ME1/ME2 columns
- Switch on/off the macro memory attachment function (macro attach): enable/disable the macro memory playback trigger assigned to PGM bus, PST bus, or AUX bus buttons
- Key, DSK Operation
-
- KEY/DSK transition: operates KEY 1 to 4, DSK 1 to 4 AUTO, CUT transition of each ME
- Key preset: for KEY 1 to 4 and DSK 1 to 4 of each ME, register and access key preset
In the Box Panasonic AV-HS60C2P Control Panel for AV-HS6000 (Dual Redundant Power Supply) 2 x AC Power Supply Cable Set of 24 Switch Blank Caps (Large) Set of 12 Switch Blank Caps (Small) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AV-HS60C2P Control Panel for AV-HS6000 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AV-HS60C2P Specs | Power Supply | 100 - 240 VAC, 50/60 Hz (supports dual redundant power supply) | | Connections | 1x RJ-45
1x DVI-D for optional Menu Panel only (cannot be used concurrently with a DVI-D monitor connected to the DVI-D terminal)
1x DVI-D for displaying menus to the DVI monitor (cannot be used concurrently with the Menu Panel terminal)
1x USB type A, female for DVI monitor menu operation
1x RS-422 control terminal, D-sub 9-pin female (for master connection for controlling external devices)
1x RS-232 control terminal, D-sub 9-pin female (for master/slave connection for controlling external devices)
8x GPI inputs D-sub 25-pin female
10x GPI outputs D-sub 25-pin female
1x Alarm output D-sub 25-pin female | | Power Consumption | 40 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 10 to 90% (no condensation) | | Storage Humidity | 10 to 90% (no condensation) | | Dimensions | 38.6 x 6 x 10.5" (98 x 15.3 x 26.7 cm) | | Weight | Approx. 31 lb (13.9 kg) (excluding accessories) |
