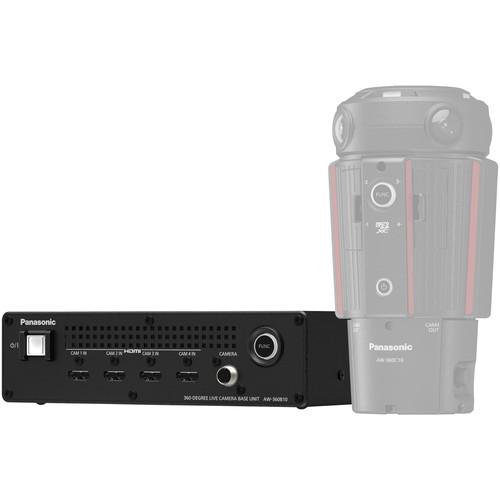

Product description For optimal stitching and processing video output from the AW-360C10 camera, the Panasonic AW-360B10 360-Degree Live Camera Base Unit is a requirement. Connect the camera head to the base unit via four HDMI cables and the four video streams can be stitched, processed, and output in real time for a natural-looking, high-resolution video with minimal stitching artifacts. The 20-pin interface on the front panel provides power to the camera head and allows control commands to be passed through as well. The base unit also features LAN connectivity for monitoring and controlling via networked devices, such as a PC or a tablet, via a web app. Note: A 12V 4-pin XLR power supply is not included and is required for operation of the Base Unit and the Camera Head In the Box Panasonic AW-360B10 360-Degree Live Camera Base Unit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AW-360B10 360-Degree Live Camera Base Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AW-360B10 Specs | Inputs | 4 x HDMI Type-A
1 x 20-pin, dedicated AW-360C10 input | | Outputs | 1 x HDMI Type-A | | Other I/O | 1 x RJ-45, LAN | | Video Output Signal | 8-bit, RGB | | Audio Output Signal | 2-channel, 16-bit, 48 kHz | | Video Compression | Motion JPEG
Transfer Modes: 1240 x 620 resolution, 15 fps (59.94 Hz), 12.5 fps (50 Hz) | | Protocol Support | IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, DHCP, DNS, SSL(TLS)
Note: iPad does not support HTTPS or SSL (TLS) protocols | | Power Input | 4-pin XLR
12 VDC
Note: A 4-pin XLR power supply capable of delivering 43.4 W of power is not included and is required to operate this device | | Power Consumption | 43.4 W (including connected camera head) | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: 14 to 140°F / -10 to 60°C
Operating Humidity: 10-80% (non-condensing)
Storage Humidity: 30-80% | | Dimensions | 8.2 x 7.9 x 2.2" / 21 x 20 x 5.5 cm | | Weight | 3.4 lb / 1.6 kg |
