User Manual for Panasonic AW-360C10 360-Degree Live Camera Head Click to enlarge the picture
Contents of the user manual for the Panasonic AW-360C10 360-Degree Live Camera Head
- Product category: All 360 Video Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic All 360 Video Cameras
|
User manual for the Panasonic AW-360C10 360-Degree Live Camera Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

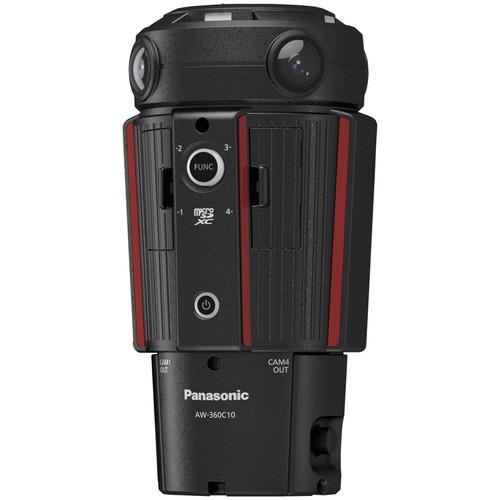

Product description Combining four cameras in a compact form factor enables the Panasonic AW-360C10 360-Degree Live Camera Head to output high-quality spherical VR video to a separate base unit, without excessive setup times and rigging. The cylindrical body houses four cameras with wide-angle lenses, each one outputting uncompressed video via an HDMI output. Because of its slim design, the camera can be easily placed close to subjects, such as musicians during a concert or athletes during a competition. Using a 20-pin connector, the camera head is designed to be controlled and powered via the separately available base unit. - Uncompressed UHD 4K Output
- UHD 4K video is output uncompressed via HDMI for low-latency, high-quality live broadcasting.
- Exposure and White Balance Coordination
- Select one camera as the master balance camera and the other three will be adjusted to match the exposure and white balance of that camera. This can be done without a PC connection, facilitating quicker setups and less gear required for on-location filming.
- Practical and Durable Design
- The camera head is easy to install and remove. An HDMI port cover prevents unexpected cable removal (when used with the optional AW-CAH103G cable bundle). The camera chassis and internals can withstand temperatures up to 104°F, so you can use this setup in the heat of summer.
In the Box Panasonic AW-360C10 360-Degree Live Camera Head Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AW-360C10 360-Degree Live Camera Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AW-360C10 Specs | Sensors | 4 x 1/2.3"-type MOS, 12.76 MP | | Lens | 4 x 1.83mm, f/2.4 | | Focus Distance | 1.6' / 0.5 m - infinity | | White Balance | Auto, Manual, WB set | | Exposure | Auto, Manual | | Shutter Speed | 1/30 to 1/12,000 sec. | | Gain | 0 - 30 dB | | Minimum Illumination | 6 lux @ 30 dB, 1/30 or 1/25 sec. shutter speed | | Video Outputs | 4 x HDMI type A | | Audio Input | 4 x Built-in mic | | Power Input | 1 x 20-pin, 12 VDC (supplied by base unit) | | Power Consumption | 13.8 W | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: 14 to 140°F / -10 to 60°C
Operating Humidity: 10-80%, non-condensing
Storage Humidity: 30-80% | | Dimensions | 3.8 x 7.1 x 3.8" / 9.6 x 18 x 9.6 cm | | Weight | 1.4 lb / 630 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
